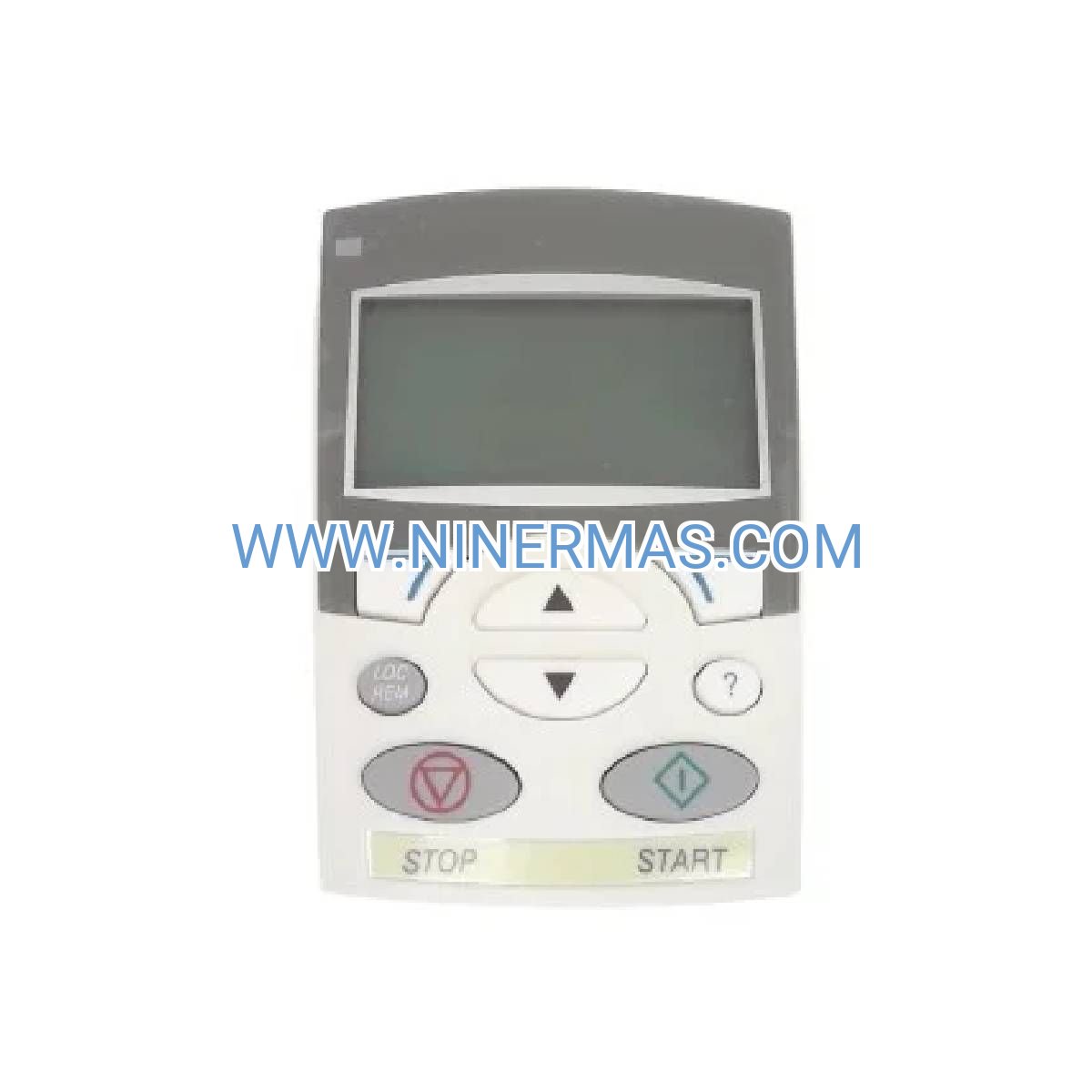

ACS-CP-A Assistant Control Panel (Industrial-Grade Drive HMI)

The ACS-CP-A represents ABB's purpose-built solution for decentralized drive management in demanding industrial environments. This assistant control panel transforms complex VFD parameter access into an intuitive local interface, empowering operators and technicians to configure, monitor, and troubleshoot ACS series variable frequency drives without centralized system dependencies or specialized software tools.

Designed for facilities where rapid response and on-site adjustments drive operational efficiency, the ACS-CP-A eliminates the traditional barriers between drive electronics and field personnel. Whether commissioning new installations, optimizing process parameters, or diagnosing performance anomalies, this compact panel delivers immediate access to critical drive functions at the point of operation.

From high-throughput manufacturing lines to mission-critical infrastructure systems, the ACS-CP-A serves as your frontline interface for maintaining peak drive performance, reducing mean time to repair, and enabling data-driven process optimization without workflow interruption.

Core Features & Business Value

✓ Direct Parameter Access
Eliminate laptop dependency during commissioning and maintenance cycles. Technicians configure acceleration curves, torque limits, and protection thresholds directly through the panel interface, reducing setup time by up to 60% compared to software-based configuration methods.

✓ Real-Time Diagnostic Capability
Instant visibility into drive status, fault codes, and operational metrics enables proactive maintenance strategies. Maintenance teams identify developing issues before catastrophic failures occur, protecting production schedules and extending equipment service life.

✓ Operator-Friendly Speed Control
Production personnel adjust motor speeds, start/stop sequences, and direction commands without accessing the main automation network. This localized control authority improves process responsiveness while maintaining system security and integrity.

✓ Compact Panel-Mount Design
Space-efficient construction integrates seamlessly into existing control cabinets and machine enclosures. The lightweight 0.1 kg form factor simplifies installation logistics and reduces structural load requirements in retrofit applications.

✓ Industrial Environmental Rating
Engineered to withstand temperature extremes, vibration, and electromagnetic interference typical of factory floor environments. Robust construction ensures reliable operation in conditions that would compromise consumer-grade control devices.

✓ Native ACS Drive Integration
Purpose-designed communication protocol ensures seamless data exchange with ABB ACS drive families. No middleware, gateways, or protocol converters required—reducing system complexity and potential failure points.

Application Scenarios & Pain Points Addressed

→ Conveyor System Optimization
Material handling operations require frequent speed adjustments to match upstream/downstream process variations. The ACS-CP-A enables operators to fine-tune conveyor velocities in real-time, eliminating bottlenecks and preventing product damage from excessive acceleration. Facilities report 15-25% throughput improvements through dynamic speed optimization.

→ HVAC Commissioning & Seasonal Tuning
Building management teams face recurring challenges balancing energy efficiency with comfort requirements across seasonal transitions. Local panel access allows HVAC technicians to modify fan curves, pump speeds, and control algorithms during occupied hours without disrupting building automation systems or requiring IT department coordination.

→ Water Treatment Process Control
Municipal and industrial water facilities demand precise flow control to maintain treatment chemistry and regulatory compliance. Field operators use the ACS-CP-A to adjust pump speeds in response to influent quality changes, preventing chemical dosing errors and ensuring consistent effluent parameters without control room intervention.

→ Emergency Troubleshooting in Remote Locations
Distributed infrastructure installations (pump stations, lift stations, remote compressor facilities) often lack reliable network connectivity for remote diagnostics. Maintenance personnel arriving on-site can immediately assess drive health, clear nuisance faults, and verify operational parameters through the local panel interface—reducing truck rolls and minimizing downtime.

→ Production Line Changeover Efficiency
Manufacturing facilities running multiple product SKUs require rapid drive reconfiguration between production runs. The ACS-CP-A accelerates changeover procedures by providing direct access to speed presets, acceleration profiles, and torque settings—cutting changeover time from hours to minutes and improving overall equipment effectiveness (OEE).

Technical Parameters & Selection Guide

Selection Criteria: Choose the ACS-CP-A when your application requires frequent on-site parameter adjustments, lacks permanent network infrastructure for remote access, or demands rapid fault diagnosis by field personnel. This panel is ideal for distributed installations, retrofit projects, and applications where operator interaction occurs primarily at the equipment location rather than through centralized SCADA systems.

Key Technical Considerations: Verify ACS drive series compatibility before ordering. The panel communicates through ABB's proprietary interface protocol—ensure your specific drive model supports assistant control panel connectivity. For applications requiring wireless configuration or smartphone integration, consider the ACS-AP-W variant with Bluetooth capability.

Extended Functionality & Integration Options

Multi-Drive Coordination: In installations with multiple ACS drives, deploy individual ACS-CP-A panels at each drive location to create a distributed control architecture. This approach enables zone-based operation where different production areas maintain independent control authority while remaining integrated with plant-wide automation systems.

Retrofit Modernization: Legacy installations with aging drive systems benefit from ACS-CP-A integration during incremental upgrade projects. The panel provides modern HMI functionality without requiring complete control system replacement, protecting capital investment while improving operational capabilities.

Training & Documentation: The intuitive interface serves as an effective training platform for new technicians learning drive technology fundamentals. Trainees gain hands-on experience with parameter structures, control modes, and diagnostic procedures in a controlled environment before working on critical production equipment.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-3 business days via express courier services. International deliveries typically arrive within 5-7 business days depending on customs clearance procedures and destination logistics infrastructure.

Warranty Coverage: All ACS-CP-A panels include manufacturer's standard warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring enhanced service level agreements.

Technical Support: Our applications engineering team provides pre-sales consultation to verify compatibility, post-delivery installation guidance, and ongoing troubleshooting assistance. Support services include wiring diagrams, parameter configuration templates, and integration best practices documentation.

Documentation Package: Each unit ships with installation manual, quick-start guide, parameter reference card, and mounting template. Digital resources include CAD drawings, compliance certificates, and integration examples for common automation platforms.

Frequently Asked Questions

Q: How does the ACS-CP-A connect to my existing ABB drive system?
A: The panel connects directly to the ACS drive's dedicated control port using a standard interface cable (typically included with the drive or available separately). No external power supply, communication modules, or configuration software required—the connection is plug-and-play with automatic parameter synchronization upon power-up.

Q: What parameter ranges can I adjust through the local panel interface?
A: The ACS-CP-A provides access to the complete drive parameter set, including motor nameplate data, acceleration/deceleration ramps, speed limits, torque settings, protection thresholds, and I/O configuration. Parameter access levels can be restricted through password protection to prevent unauthorized modifications in production environments.

Q: Can this panel reduce energy consumption in my motor-driven systems?
A: Yes—by enabling real-time speed optimization based on actual process demands rather than fixed-speed operation, the ACS-CP-A facilitates energy savings of 20-40% in variable-load applications such as fans, pumps, and compressors. Operators can fine-tune drive efficiency parameters to match specific operating conditions throughout the day or production cycle.

Q: What are the physical installation requirements for panel mounting?
A: The ACS-CP-A requires a standard DIN-sized cutout in your control cabinet door or enclosure panel. Mounting hardware and gasket seal are included. Minimum clearance requirements: 50mm on all sides for ventilation and cable routing. The panel can be installed in any orientation (horizontal, vertical, angled) without affecting functionality.

Q: Does the panel support remote monitoring or data logging capabilities?
A: The ACS-CP-A focuses on local control and diagnostics. For remote monitoring, data logging, or network integration, the drive itself should be connected to your plant automation system via fieldbus (Profibus, Ethernet/IP, Modbus) or consider upgrading to the ACS-AP-W model which offers Bluetooth connectivity for mobile device access.

Q: Is the control panel compatible with hazardous location installations?
A: The standard ACS-CP-A is designed for general industrial environments. For hazardous location applications (Class I Div 2, ATEX Zone 2, etc.), the panel must be installed within an appropriately rated enclosure that meets local electrical code requirements. Consult with our applications team for specific hazardous location installation guidance.

Expand Your Drive Control Ecosystem

Maximize your ABB drive system capabilities with these complementary interface solutions:

• ACS-AP-W Wireless Control Panel: Bluetooth-enabled variant for smartphone/tablet configuration and monitoring
• RUSB-02 USB Adapter: PC connectivity for advanced programming and firmware updates on ACS600/ACS800 series drives
• CDP312R Multi-Function Panel: Enhanced HMI with graphical display and expanded I/O for complex machine control applications

Request Your Technical Consultation

Our drive systems specialists are ready to assess your application requirements and recommend the optimal control interface configuration for your facility. Contact us today to discuss compatibility verification, integration planning, or volume pricing for multi-site deployments.
