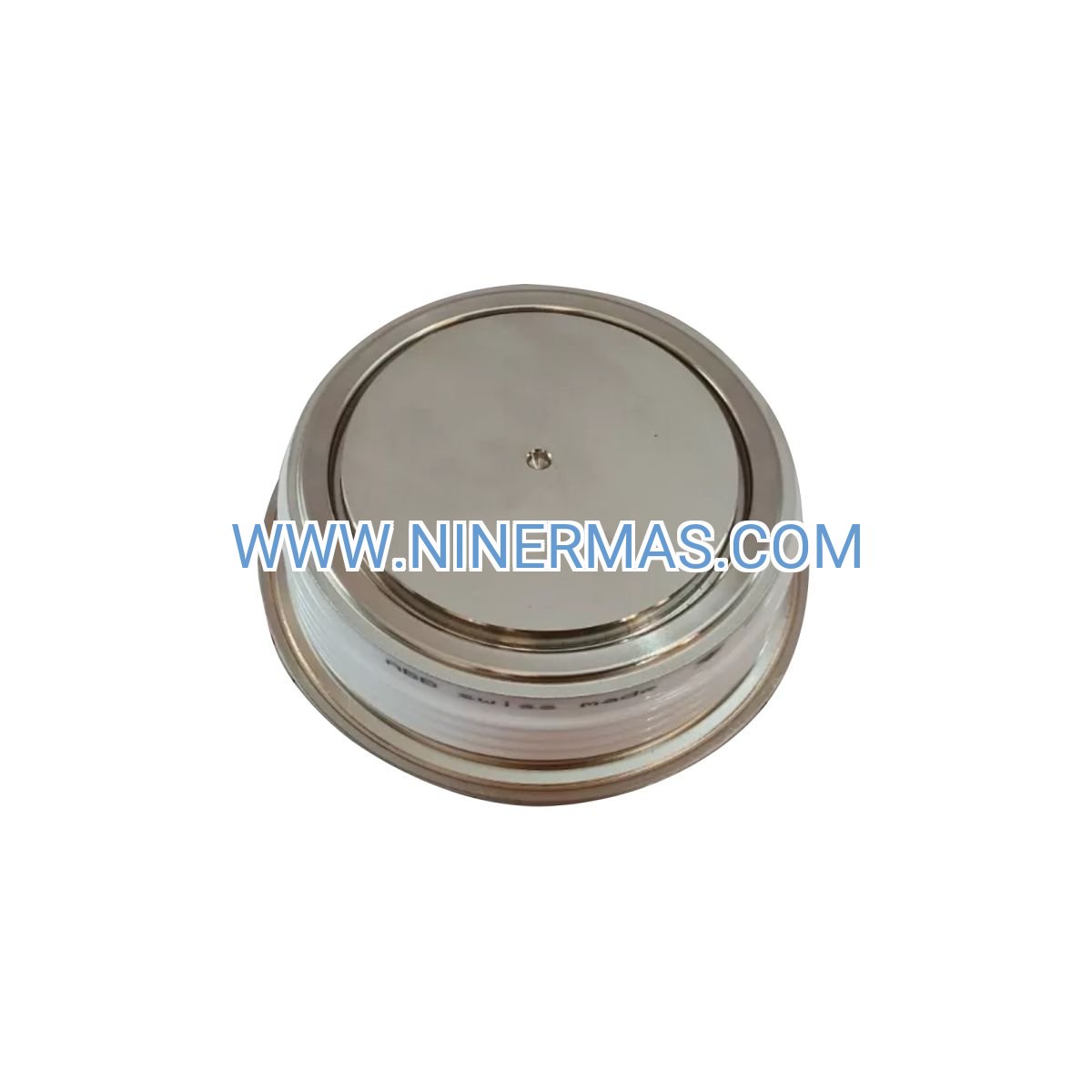

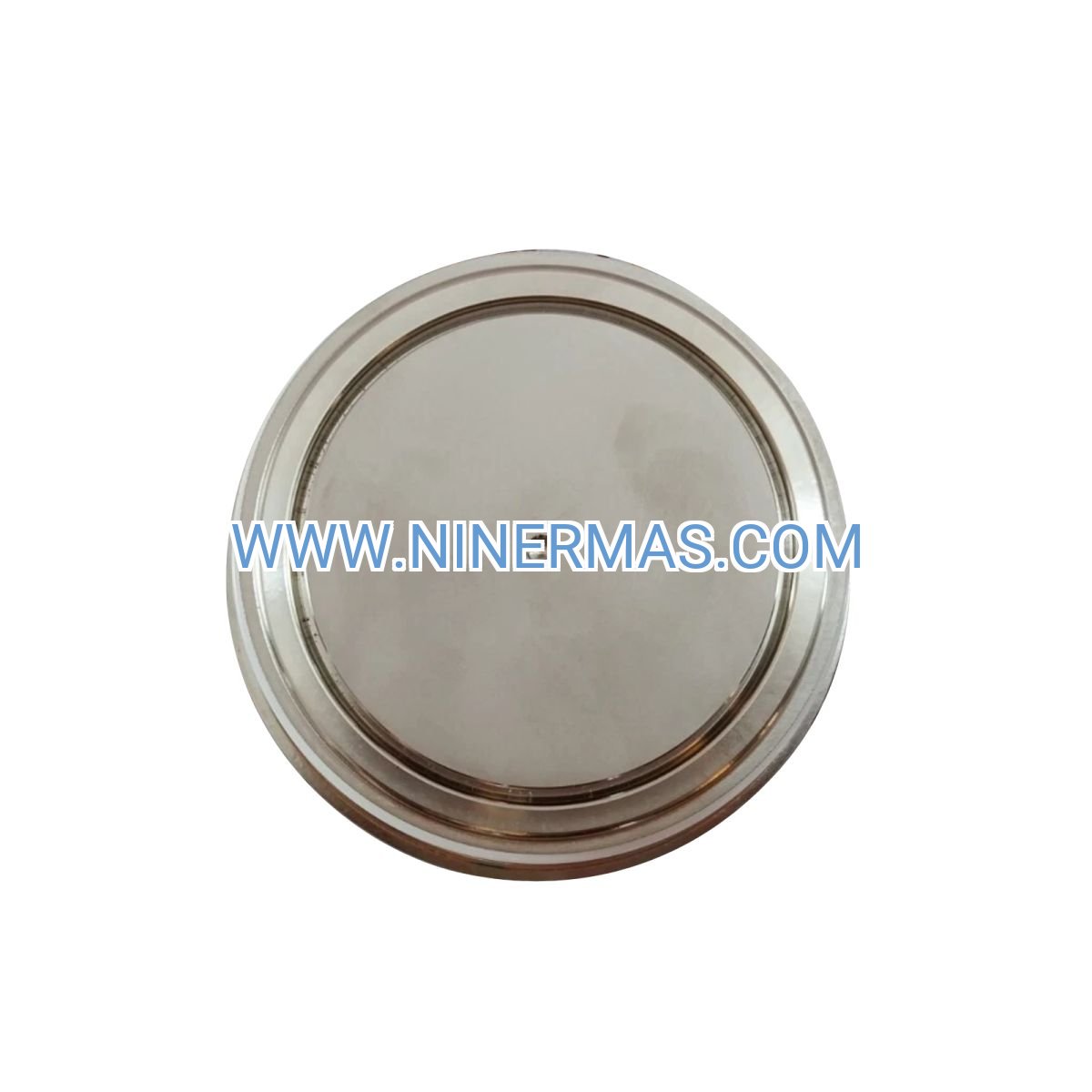

5STP38Q4200 Press-Pack Thyristor (Industrial-Grade 4200V Power Semiconductor)

The ABB 5STP38Q4200 represents a proven solution in high-voltage phase control technology, delivering reliable AC power regulation for mission-critical industrial systems. Engineered with press-pack construction and double-sided cooling architecture, this 4200V thyristor excels in applications demanding precise phase-angle modulation, superior thermal management, and long-term operational stability across harsh industrial environments.

Designed for integration into motor soft-start systems, static VAR compensators, and high-power heating controllers, the 5STP38Q4200 combines ABB's semiconductor expertise with field-proven reliability. Its robust mechanical design and optimized gate characteristics ensure consistent triggering performance while minimizing maintenance requirements and maximizing system uptime.

Whether you're upgrading legacy power control infrastructure or designing new medium-voltage installations, this thyristor provides the foundation for efficient, controllable power delivery with reduced harmonic distortion and enhanced equipment protection.

Core Features & Technical Advantages

✓ 4200V Blocking Voltage Capability
Handles medium-voltage applications with substantial safety margin, enabling direct connection to industrial distribution networks while maintaining reliable off-state performance under transient conditions.

✓ Press-Pack Housing Technology
Mechanically robust construction eliminates wire bonds and fragile connections, delivering superior vibration resistance, enhanced thermal cycling endurance, and simplified series/parallel configurations for scalable power systems.

✓ Double-Sided Cooling Architecture
Bilateral heat extraction maximizes current density and reduces junction temperature rise, enabling compact converter designs with improved power-to-volume ratios and extended semiconductor lifespan.

✓ Optimized Gate Triggering Characteristics
Consistent turn-on behavior across temperature ranges simplifies gate driver design, reduces triggering power requirements, and ensures synchronized operation in multi-device configurations.

✓ High Surge Current Withstand
Exceptional I²t rating protects against fault conditions and inrush currents during motor starting sequences, reducing nuisance trips and improving system fault tolerance.

✓ Low On-State Voltage Drop
Minimized conduction losses translate to reduced cooling requirements, lower operating costs, and improved overall system efficiency—particularly valuable in continuous-duty applications.

Industrial Application Scenarios

→ Motor Soft-Start Systems
Challenge: Direct-on-line motor starting creates mechanical stress, voltage sags, and peak demand charges.
Solution: The 5STP38Q4200 enables gradual voltage ramp-up, limiting inrush current to 2-3× full-load values while extending motor bearing life by 40-60% and reducing utility demand penalties.

→ Static VAR Compensation (SVC)
Challenge: Fluctuating reactive loads cause voltage instability and power factor penalties in industrial facilities.
Solution: Thyristor-controlled reactors using the 5STP38Q4200 provide continuous reactive power adjustment, maintaining power factor above 0.95 and eliminating utility surcharges while stabilizing bus voltage within ±2%.

→ Industrial Heating Control
Challenge: Temperature overshoot and energy waste in furnaces, ovens, and heat treatment systems.
Solution: Phase-angle firing delivers precise power modulation with 0.1% resolution, achieving ±1°C temperature stability while reducing energy consumption by 15-25% compared to contactor-based control.

→ Electrochemical Processing
Challenge: Plating quality and electrolysis efficiency depend on stable, controllable DC current.
Solution: Thyristor rectifiers built with the 5STP38Q4200 provide smooth current regulation with <5% ripple, improving coating uniformity and reducing material waste by 10-18%.

→ High-Power Welding Equipment
Challenge: Arc stability and weld penetration require precise current control during resistance and arc welding.
Solution: Fast-response phase control enables millisecond-level current adjustment, improving weld consistency and reducing defect rates by 30-45% in automated production lines.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 5STP38Q4200 when your application requires voltage blocking above 3000V, press-pack reliability for vibration-prone environments, or double-sided cooling for high-density converter designs. For lower voltage requirements (≤2800V), consider the 5STP24H2800 alternative. Always verify current ratings against your specific cooling configuration and duty cycle—consult our engineering team for thermal modeling assistance.

Extended Capabilities & Integration Options

Gate Driver Compatibility: Pairs seamlessly with ABB's GV C736 BE101 gate unit and third-party optical trigger modules. Supports both analog and digital firing control interfaces for integration with PLCs, SCADA systems, and dedicated power controllers.

Series/Parallel Operation: Press-pack construction enables reliable stacking for higher voltage applications (up to 12kV with proper grading) and parallel connection for increased current capacity with minimal derating.

Protection Integration: Compatible with standard snubber networks, voltage clamps, and fuse coordination schemes. Consult factory application notes for di/dt limiting and dv/dt protection recommendations.

Monitoring & Diagnostics: Supports temperature sensing via embedded thermistors (when specified) and voltage monitoring for predictive maintenance programs.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory orders
Warranty Coverage: 12 months against manufacturing defects under rated operating conditions
Technical Support: Pre-sales application engineering, installation guidance, and troubleshooting assistance included
Documentation Package: Datasheet, application notes, thermal design guidelines, and gate driver interface specifications provided with each order

Frequently Asked Questions

What current rating does the 5STP38Q4200 thyristor support?
Current capacity depends on cooling configuration and duty cycle. With adequate double-sided forced-air or liquid cooling, typical ratings range from 1500A to 2500A RMS. Contact our engineering team with your heatsink specifications and ambient conditions for precise current derating calculations.

Can this thyristor operate in three-phase bridge configurations?
Absolutely. The 5STP38Q4200 is commonly deployed in six-pulse and twelve-pulse bridge topologies for AC motor drives, SVC systems, and controlled rectifiers. Its matched electrical characteristics simplify parallel operation and current sharing.

What gate trigger requirements should I plan for?
Typical gate trigger current ranges from 150-300mA with 2-5V forward voltage. We recommend ABB's GV C736 BE101 gate unit or equivalent optical isolator-based drivers for reliable triggering with proper isolation from high-voltage circuits.

How does press-pack construction improve reliability compared to module packages?
Press-pack devices eliminate solder joints and wire bonds—common failure points in power semiconductors. The compression mounting provides superior thermal contact, vibration resistance, and the ability to withstand thermal cycling without degradation, resulting in 2-3× longer service life in industrial environments.

Is technical support available for custom integration projects?
Yes. Our applications engineering team provides circuit design review, thermal simulation, snubber calculation, and commissioning support throughout your project lifecycle. We also offer training on thyristor fundamentals and troubleshooting best practices.

What protection measures are recommended for this thyristor?
Implement RC snubbers for dv/dt protection, series inductors for di/dt limiting, and metal-oxide varistors (MOVs) for overvoltage clamping. Fast-acting semiconductor fuses rated for I²t coordination are essential for fault protection. Detailed protection schematics are available in our application guide.
