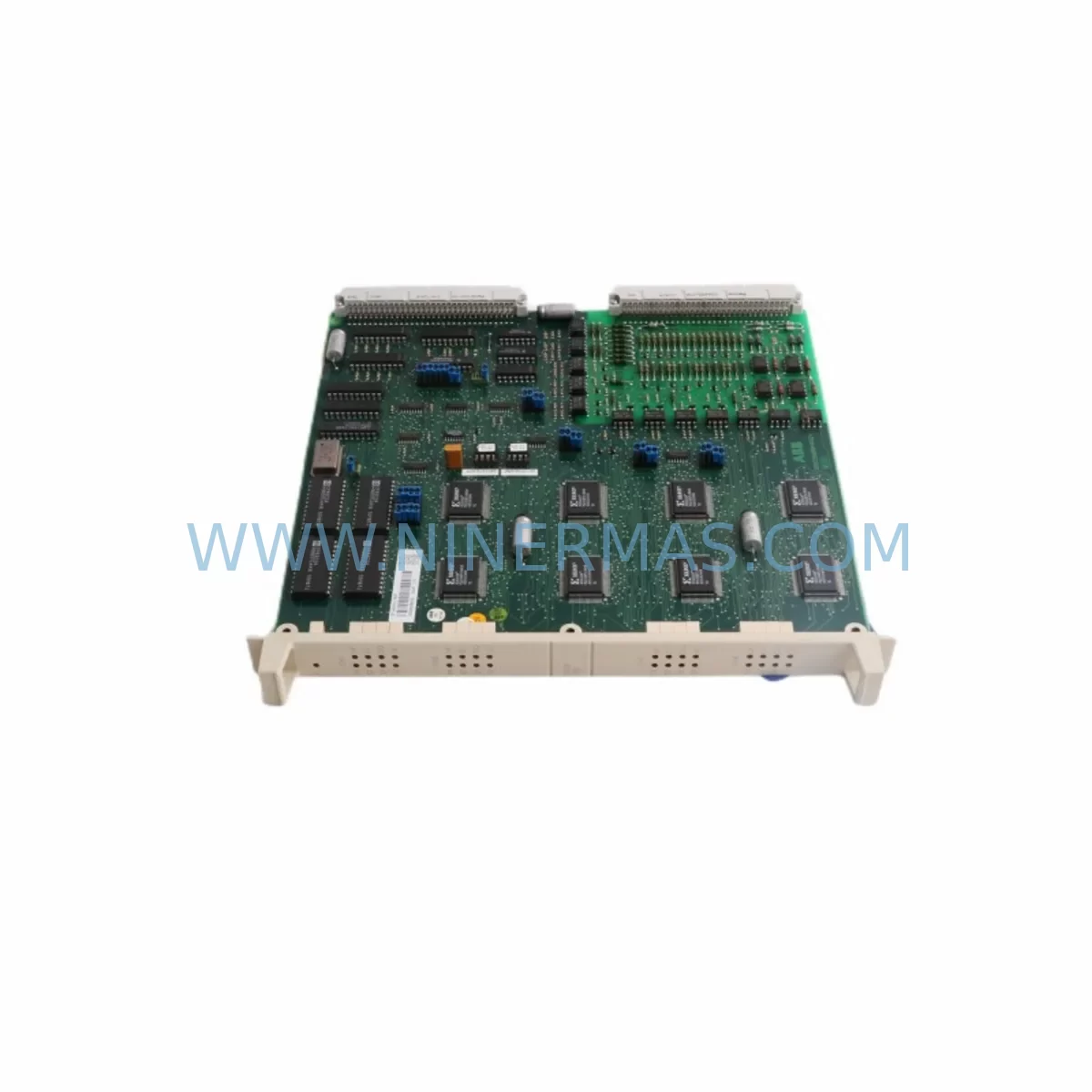

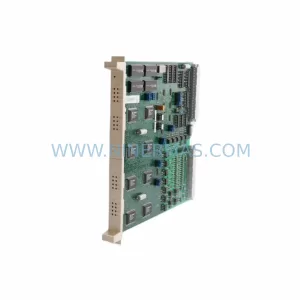

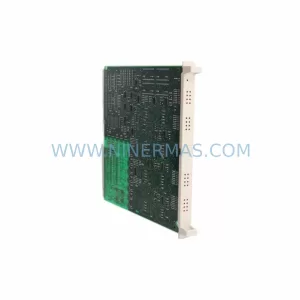

ABB 57160001-ADF DSDP 170 Service-Ready Spare Part

ABB 57160001-ADF DSDP 170 Service-Ready Spare Part for Industrial Maintenance

The ABB 57160001-ADF DSDP 170 is an original, service-ready spare part designed for industrial automation maintenance environments. As a critical communication and signal processing module within the ABB Advant OCS and AC500 control architecture, the DSDP 170 plays a central role in maintaining uninterrupted process control across manufacturing plants, power generation facilities, chemical processing lines, and heavy industrial installations. Sourced directly for maintenance and MRO procurement, this unit is tested prior to shipment and backed by a 12-month warranty, ensuring your engineering team can deploy it with confidence during both planned shutdowns and emergency recovery scenarios.

For maintenance engineers managing aging ABB Advant or AC500-based control systems, the DSDP 170 represents a high-priority line item in any spare parts inventory strategy. Its role in digital signal distribution and process I/O communication means that a failed or degraded unit can trigger cascading faults across connected I/O modules, field instruments, and supervisory control layers. Proactive stocking of the 57160001-ADF eliminates the risk of extended downtime caused by obsolescence or long lead times from OEM channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the DSDP 170 (57160001-ADF) during a planned outage or emergency recovery, a thorough inspection of the surrounding control architecture is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat this module replacement as an opportunity to audit the entire control cabinet and associated electrical circuits.

Begin by verifying the integrity of the ABB DSDO 115 digital output module and the DSDI 110 digital input module, both of which share the same backplane bus and are directly affected by DSDP 170 communication faults. A degraded DSDP 170 often causes intermittent I/O read errors that are misdiagnosed as field instrument failures — confirming the health of these I/O modules before and after replacement is critical.

Next, inspect the DSTA 150 power supply module that feeds the Advant rack. Voltage ripple or insufficient current capacity is a common root cause of premature module failure in aging Advant OCS installations. Use a calibrated multimeter to verify 24 VDC rail stability under load before inserting the replacement DSDP 170.

The DSBC 172 backplane bus coupler and associated rack connectors should be cleaned and inspected for oxidation or bent pins, as poor backplane contact is a leading cause of communication module faults in high-humidity or high-vibration environments. Similarly, the DSCS 140 communication supervisor module should be checked for firmware version compatibility with the replacement DSDP 170 unit.

For systems integrated with field devices via PROFIBUS DP or MODBUS RTU, verify that the communication cable termination resistors are correctly installed and that the DSSB 170 serial bus interface is functioning within specification. Signal integrity issues on the fieldbus can cause the replacement module to report faults immediately after installation, leading to unnecessary re-work.

Procurement engineers should also consider stocking the DSAX 110 analog I/O module and DSDO 120 relay output module as companion spares. These modules are frequently replaced in the same maintenance cycle as the DSDP 170 in Advant OCS systems that have been in service for more than 10 years. Maintaining a minimum of one unit of each in your MRO inventory significantly reduces mean time to repair (MTTR) during unplanned shutdowns.

Finally, review the terminal block wiring and cable labeling within the control cabinet. Loose or corroded terminal connections on ABB URTK/S or equivalent terminal blocks can introduce ground loops and signal noise that accelerate module wear. A complete cabinet inspection during the DSDP 170 replacement window is the most cost-effective way to extend the operational life of the entire control system.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before powering down the rack, document the current system status via the HMI or engineering workstation. Note any active alarms, I/O states, and communication diagnostics. This baseline will be used to verify full system restoration after replacement.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. Isolate the affected rack from the 24 VDC supply using the dedicated circuit breaker. Do not attempt hot-swap unless the DSDP 170 variant in your system explicitly supports it — most Advant OCS configurations require a cold swap.

Step 3 — Module Extraction: Release the front panel locking lever and slide the DSDP 170 out of its backplane slot. Inspect the ejected module for visible damage — burnt components, swollen capacitors, or corroded edge connectors indicate a systemic power quality issue that must be resolved before installing the replacement.

Step 4 — Replacement Installation: Insert the new ABB 57160001-ADF DSDP 170 into the correct backplane slot. Ensure the module is fully seated and the locking lever is engaged. Restore 24 VDC power and observe the module’s LED status indicators during boot-up. A solid green status LED confirms successful initialization.

Step 5 — System Verification: From the engineering workstation or HMI, confirm that all previously active I/O points are communicating correctly. Compare current system status against the pre-replacement baseline. Run a full I/O scan and verify that no new alarms have been generated. Document the replacement in your maintenance management system (CMMS) with the new module’s serial number and installation date.

This workflow is compatible with ABB Advant OCS and AC500 systems and is designed to minimize downtime while maintaining full system compatibility. The 57160001-ADF is a direct form-fit-function replacement for the original DSDP 170, requiring no firmware changes or parameter reconfiguration in standard installations.

Spare Parts Support FAQ

Q1: Is the ABB 57160001-ADF DSDP 170 compatible with all Advant OCS rack configurations?
The DSDP 170 is designed for use within the ABB Advant OCS control system family, including standard S100 I/O racks. Compatibility depends on the specific rack generation and firmware version of your DSCS communication supervisor. We recommend providing your full system configuration details when placing an order so our technical team can confirm slot and firmware compatibility before shipment.

Q2: What testing is performed before shipment?
Every 57160001-ADF DSDP 170 unit undergoes functional power-on testing and communication interface verification prior to dispatch. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request. All units are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

Q3: What is the warranty coverage and what does it include?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, we provide a replacement unit or full refund after fault verification.

Q4: Can you support long-term or recurring procurement for this part?
Yes. NINERMAS maintains stock of the ABB 57160001-ADF DSDP 170 and can support blanket purchase orders, scheduled deliveries, and consignment stocking arrangements for customers with ongoing maintenance programs. For plants operating multiple Advant OCS or AC500 systems, we recommend establishing a standing order to ensure availability during annual shutdowns and emergency callouts. Contact our team to discuss volume pricing and lead time commitments.
