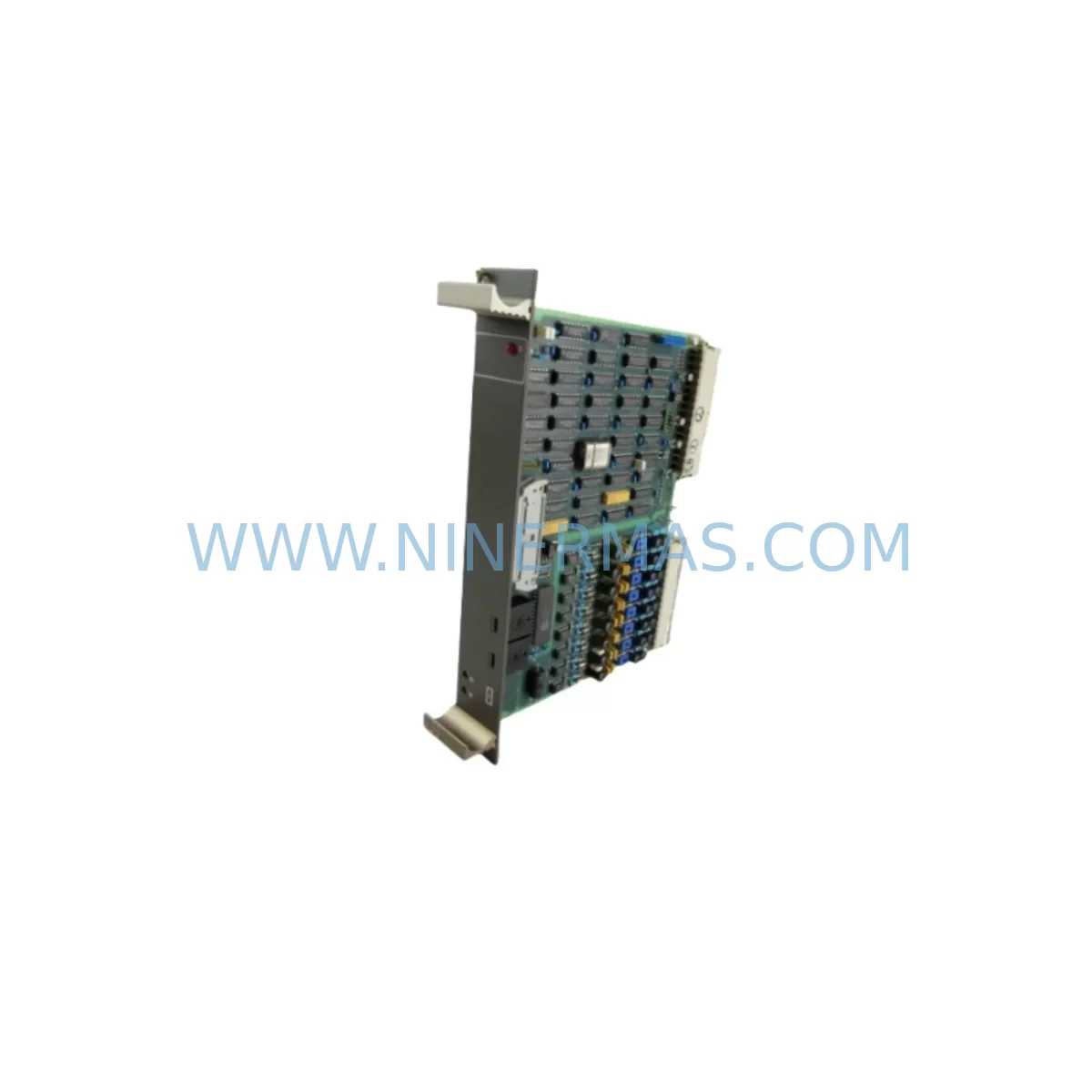

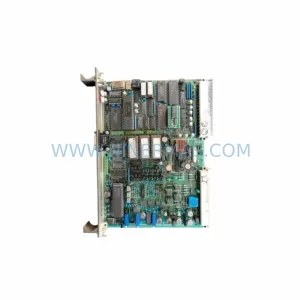

ABB 83SR05E Retrofit-Compatible Analog Input Module

ABB 83SR05E Retrofit-Compatible Analog Input Module for Legacy Systems

The ABB 83SR05E (part number GJR2369900R1100) is a ruggedized analog input module engineered for demanding industrial environments within the ABB Advant AC31 control platform. As legacy automation systems approach end-of-life and original spare parts become increasingly scarce, the 83SR05E has emerged as a critical retrofit component for plant engineers tasked with maintaining continuous production without committing to a full system overhaul. Whether you are replacing a failed module in an aging control cabinet, extending the operational life of a discontinued Advant OCS line, or bridging the gap during a phased migration to ABB’s AC500 platform, the 83SR05E delivers the signal conditioning accuracy and environmental resilience required for uninterrupted process control.

Designed to handle analog signal inputs across standard industrial ranges, the module integrates directly into existing Advant rack assemblies, preserving original backplane wiring and terminal block layouts. This compatibility dramatically reduces retrofit engineering hours and eliminates the need to redesign I/O mapping or reprogram controller logic from scratch. Maintenance teams working with the ABB PM581 or PM591 CPUs will find that the 83SR05E slots into the existing rack without requiring firmware updates or hardware address reassignment, provided the module configuration in the Control Builder M engineering tool is correctly aligned to the replacement unit’s channel parameters.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 83SR05E into an existing control architecture requires a structured pre-installation assessment. Begin by auditing the power supply capacity of the target rack — the ABB PS501 or equivalent Advant power supply unit must provide sufficient headroom to support the additional analog input load without triggering undervoltage faults on adjacent I/O modules. Confirm that the rack’s backplane bus is free of corrosion or connector damage before seating the replacement module.

Terminal block wiring is the next critical checkpoint. The 83SR05E uses a standard screw-terminal interface compatible with the existing field wiring harness in most AC31 installations. However, engineers should verify wire gauge compatibility and confirm that shielded cable is used for all analog signal runs to prevent noise interference — particularly in environments with variable-frequency drives or high-current motor starters nearby. Signal isolators may be required between the field transmitters and the module input terminals if ground loop issues are detected during pre-commissioning checks.

For systems running the ABB Advant Controller 31 with a PM646 or PM665 processor module, the 83SR05E module address must be confirmed against the hardware configuration stored in the MasterPiece 200/1 or equivalent engineering station. Any mismatch between the physical slot address and the software configuration will result in I/O fault alarms and loss of analog feedback to the control loop. Where the original system used an older 83SR04E or 83SR03E variant, verify that the channel count and signal type assignments are identical before substituting the 83SR05E.

HMI screen updates are often overlooked during analog module replacements. If the plant uses an ABB Panel 800 or a legacy OP7 operator panel, confirm that the analog tag addresses displayed on process overview screens still map correctly to the new module’s channel outputs after the swap. Communication links between the Advant controller and upstream SCADA systems via PROFIBUS-DP or Modbus TCP should be tested under live signal conditions before returning the line to production. Programming cables such as the ABB TK501 or equivalent USB-to-serial adapters are essential for online diagnostics during commissioning.

Where rack space is constrained — a common challenge in older control cabinets designed for compact Advant I/O assemblies — confirm the physical dimensions of the 83SR05E against the available slot clearance. In multi-rack configurations using the ABB S800 I/O bus coupler or TB820 bus termination unit, ensure that the module’s position does not disrupt the bus topology or introduce address conflicts with adjacent digital I/O modules such as the DI810 or DO810.

Downtime Control During System Migration

Minimizing production downtime during an analog input module replacement requires advance preparation and a disciplined changeover sequence. Before removing the failed or end-of-life 83SR05E, capture a full backup of the controller program using Control Builder M or the legacy MasterPiece programming environment. Document all analog channel configurations, scaling parameters, and alarm setpoints so that these can be verified against the replacement module’s configuration after installation.

Where possible, schedule the physical module swap during a planned maintenance window rather than responding reactively to a module failure. Pre-stage the replacement 83SR05E by confirming its factory test report and verifying that the unit has passed outgoing quality inspection. NINERMAS ships each 83SR05E with a functional test certificate, ensuring the module has been validated against its original specification before dispatch.

During the changeover, maintain field wiring continuity by labeling all terminal connections before disconnection. Use a structured re-termination sequence to avoid cross-wiring errors on multi-channel analog inputs. After re-seating the module and restoring power, perform a channel-by-channel loop check using a calibrated signal source before releasing the control loop to automatic mode. This step is essential for confirming that the replacement module’s input scaling matches the process transmitter output range and that no signal offset has been introduced by the hardware substitution.

For systems where a cold swap is not feasible due to continuous process requirements, consider using a temporary bypass strategy — routing the analog signal through a portable signal conditioner while the module is exchanged — to maintain process visibility at the HMI level throughout the replacement procedure. This approach is particularly effective in single-loop critical applications such as temperature control or pressure regulation where loss of feedback would trigger a process shutdown.

Retrofit Support FAQ

Q: Is the ABB 83SR05E GJR2369900R1100 a direct replacement for older Advant analog input modules?
A: Yes. The 83SR05E is designed as a form-fit-function replacement within the ABB Advant AC31 rack system. It is compatible with the same backplane slot, terminal block wiring, and software address configuration as earlier 83SR-series analog input modules, subject to channel count and signal type verification.

Q: What commissioning steps are required after installing the 83SR05E?
A: After physical installation, verify the module address in the controller configuration, perform a full channel loop check with a calibrated signal source, confirm analog scaling parameters in the engineering tool, and test communication links to the SCADA or HMI system before returning to automatic control mode.

Q: Does NINERMAS provide outgoing test certification for the 83SR05E?
A: Yes. Every 83SR05E unit shipped by NINERMAS is subject to functional testing prior to dispatch. A test certificate is included with each shipment, confirming that the module has been validated against ABB’s original performance specification.

Q: What warranty coverage applies to the ABB 83SR05E supplied by NINERMAS?
A: NINERMAS provides a 12-month warranty on all 83SR05E units, covering manufacturing defects and functional failure under normal operating conditions. Warranty support includes technical assistance for installation and commissioning queries.
