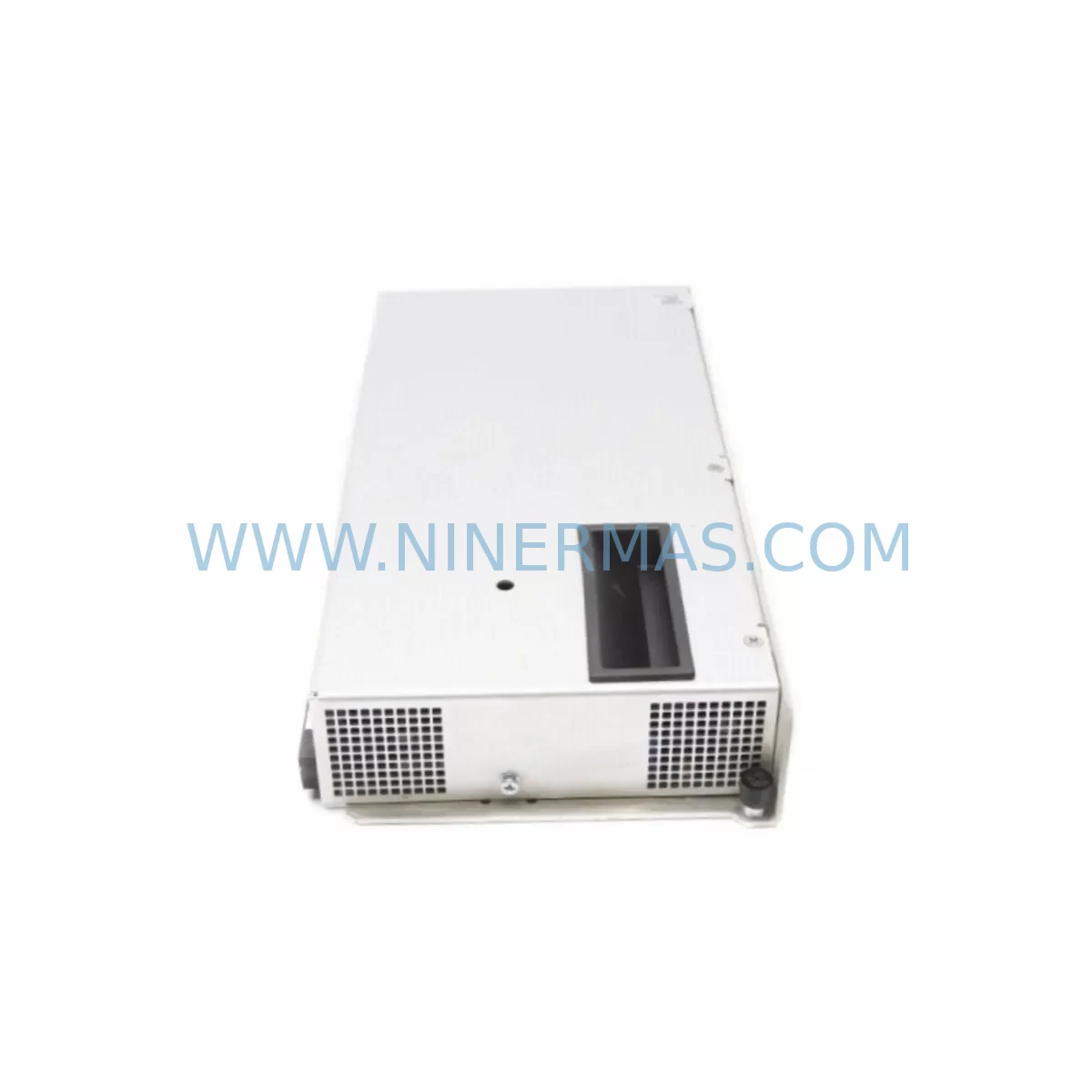

The Honeywell 51199929-100 (SPS5710) is a critical power supply module designed for Honeywell’s Experion PKS and TDC 3000 distributed control systems. As these platforms age and original components reach end-of-life, sourcing a verified, retrofit-compatible replacement becomes essential for maintaining process continuity. NINERMAS COMPANY LIMITED maintains ready inventory of the 51199929-100 SPS5710, pre-shipment tested and backed by a 12-month warranty, enabling maintenance engineers and system integrators to execute controlled replacements without extended procurement delays.

The SPS5710 power supply module provides regulated DC power to the HPM (High-Performance Process Manager) chassis and associated I/O subsystems. Its role in the power distribution architecture means that any replacement must be validated against the existing backplane interface, terminal wiring configuration, and load capacity before installation. Failure to confirm these parameters can result in unplanned shutdowns or damage to downstream modules.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a power supply replacement within an Experion PKS or TDC 3000 control cabinet, the 51199929-100 SPS5710 is rarely the only component under review. A thorough retrofit assessment typically spans the entire HPM chassis and its associated subsystems. Engineers frequently identify concurrent replacement needs for the 51304453-150 MU/EU Controller Module, which manages the primary control loop execution, and the 51309276-150 HPM Communication Module, responsible for maintaining the LCN (Local Control Network) data highway link. Both modules share the same chassis backplane and power rail as the SPS5710, making a coordinated replacement strategy more efficient than sequential interventions.

I/O infrastructure is another area requiring careful evaluation. The 51401469-100 PM I/O Link Module connects the HPM processor to field termination assemblies, and its continued operation depends on stable power delivery from the SPS5710. Similarly, the 51304337-150 HPM Processor Card and the 51305348-100 Redundancy Module must be confirmed operational before and after the power supply swap. If the site operates a redundant power supply configuration, the 51199929-100 can often be replaced online, with the redundant unit maintaining chassis power during the exchange — a critical advantage for continuous process operations.

Field termination and signal integrity should also be addressed during the retrofit window. The 51304516-200 IOP (Input/Output Processor) Module and associated 51401547-100 PMIO Termination Assemblies may require re-verification of signal levels after power restoration. For sites integrating legacy TDC 3000 hardware alongside Experion PKS nodes, the 51309152-175 PLCG Module and 51304485-100 APM (Advanced Process Manager) Module may also be present in the same control room, and their power budgets should be reviewed as part of the overall cabinet load analysis. Programming cables and HMI panel connections — including Experion Station displays — should be documented and verified post-restoration to confirm that all operator graphics and alarm configurations remain intact.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a power supply module in an active process control environment. The recommended approach begins with a full documentation audit: photograph all terminal wiring, record module slot assignments, export the current controller configuration backup, and confirm that the HMI historian is capturing data to an independent server before any hardware is disturbed.

Where a redundant SPS5710 or equivalent power supply is installed in the chassis, the replacement can be executed as a hot-swap procedure. The redundant unit assumes full load while the failed or aging module is removed and the new 51199929-100 is seated and secured. After insertion, verify that all output rail voltages stabilize within specification before releasing the redundant unit back to shared load mode. This approach eliminates process interruption entirely for sites with redundant power architecture.

For single-supply chassis configurations, a planned maintenance window is required. Coordinate with operations to identify a low-impact period, prepare a step-by-step isolation and restoration checklist, and ensure that the replacement module has been pre-tested and confirmed functional before the window opens. NINERMAS performs pre-shipment functional testing on all 51199929-100 units, providing test records with each shipment to support site acceptance procedures and reduce on-site commissioning time. After power restoration, systematically verify each I/O module, communication link, and HMI display before returning the system to automatic control.

Retrofit Support FAQ

Q1: Is the 51199929-100 a direct replacement for the SPS5710 in all HPM chassis revisions?
The 51199929-100 is the primary part number for the SPS5710 power supply module and is compatible with standard HPM chassis configurations used in Experion PKS and TDC 3000 systems. However, chassis revision and backplane generation should be confirmed against the site’s engineering documentation before ordering, as some late-revision chassis may have updated slot specifications.

Q2: What pre-installation checks are required before fitting the replacement module?
Before installation, verify the input voltage supply matches the module’s auto-ranging specification, measure existing output rail voltages to establish a baseline, document all terminal wiring connections, and confirm that the chassis slot is free of physical damage or corrosion. If a redundant power supply is present, confirm it is fully operational and capable of supporting the full chassis load during the swap.

Q3: Does NINERMAS provide pre-shipment testing and documentation for the 51199929-100?
Yes. All 51199929-100 SPS5710 units shipped by NINERMAS undergo functional pre-shipment testing. Test records are included with each shipment to support site acceptance and commissioning procedures. Units are covered by a 12-month warranty from the date of shipment.

Q4: What is the typical lead time and inventory availability?
NINERMAS maintains service-ready inventory of the 51199929-100 to support urgent maintenance requirements. Standard lead times are confirmed at the time of inquiry. For critical or time-sensitive requirements, contact our team directly to confirm current stock levels and expedited shipping options.
