ABB DSDP140B 57160001-ACX Service-Ready Spare Part

ABB DSDP140B 57160001-ACX Service-Ready Spare Part for Industrial Maintenance

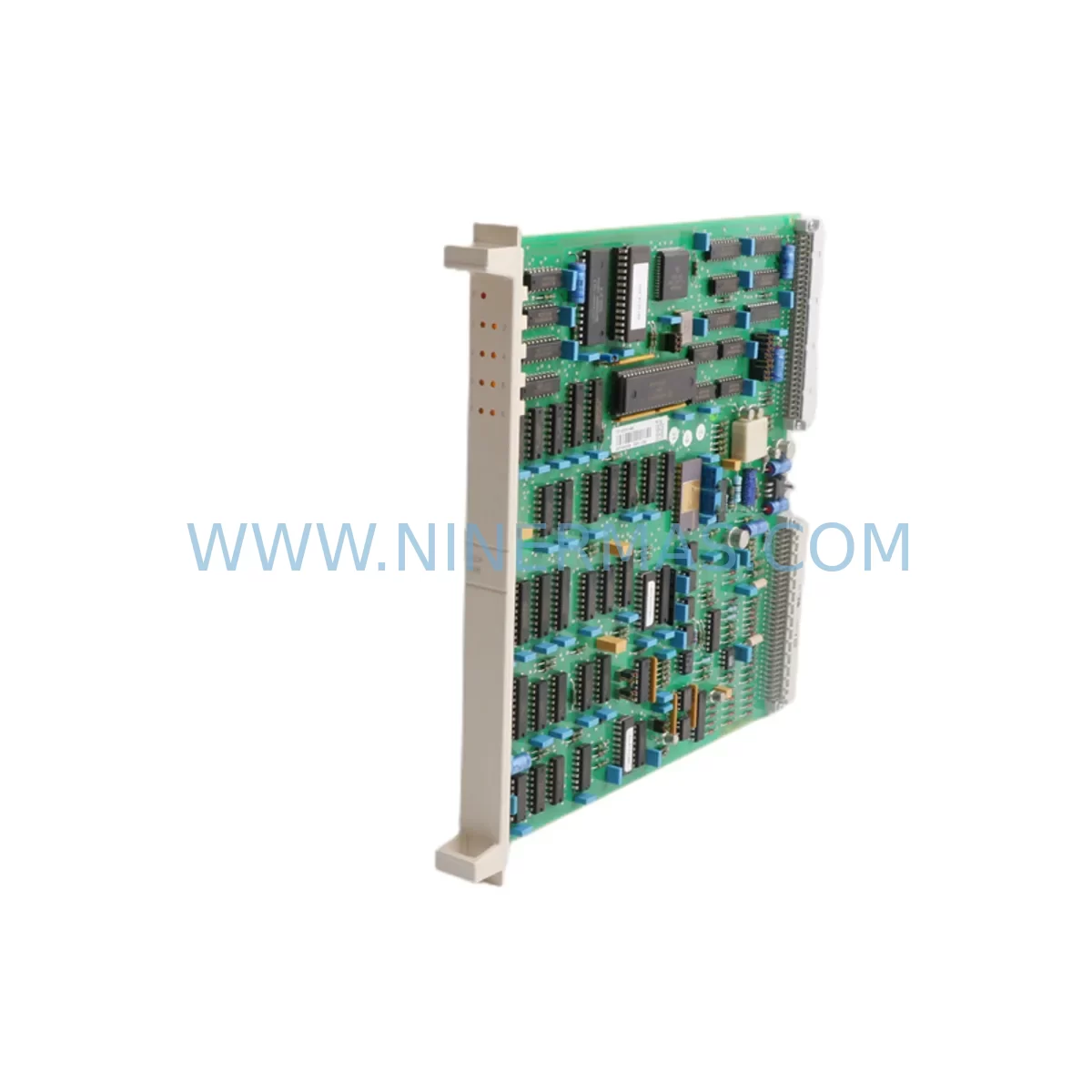

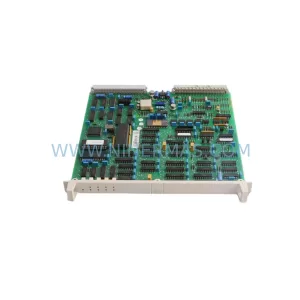

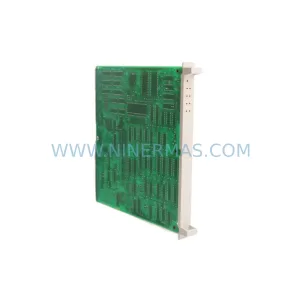

The ABB DSDP140B (57160001-ACX) is an original counter module designed for use within ABB’s Advant OCS and MOD 300 distributed control system platforms. As a critical pulse-counting and position-tracking component, this module plays a central role in encoder feedback loops, high-speed counter applications, and motion-related I/O processing across a wide range of industrial automation environments — including pulp and paper, oil and gas, power generation, chemical processing, and heavy manufacturing.

When a counter module fails or degrades, the consequences extend far beyond a single I/O channel. Encoder signals are lost, position data becomes unreliable, and the control system may trigger emergency shutdowns or produce erratic outputs. Sourcing a verified, service-ready replacement unit — such as the DSDP140B 57160001-ACX — is the fastest path to restoring normal operation and minimizing unplanned downtime.

At NINERMAS, every DSDP140B unit is inspected, function-tested, and shipped with a 12-month warranty. We maintain long-term stock of ABB Advant series modules to support both emergency replacement and planned annual maintenance programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DSDP140B 57160001-ACX is rarely an isolated task. In a well-structured preventive maintenance program, the counter module replacement should trigger a broader inspection of the surrounding control architecture. Maintenance engineers should simultaneously verify the condition of the ABB DSDI110A digital input module and DSDO110A digital output module, which share the same backplane and are subject to similar aging cycles. If the DSDP140B is exhibiting pulse-loss or count-drift faults, the associated DSTD110 termination unit and field wiring should be inspected for loose connections, shielding failures, or ground loops that may have contributed to the fault.

Power integrity is a common root cause of counter module failures. Before commissioning the replacement unit, engineers should confirm that the ABB DSDP110A power distribution module or equivalent rack power supply is delivering stable 24 VDC within tolerance. Voltage ripple or transient spikes — often caused by aging capacitors in the power supply — can corrupt high-speed pulse signals and cause premature module failure. Pairing the DSDP140B replacement with a power supply health check is strongly recommended.

Communication integrity should also be assessed. In Advant OCS systems, the DSCS110 communication supervisor module and DSMB175 Masterbus 300 interface are responsible for transmitting counter data upstream to the controller. A degraded communication module can mask counter faults or introduce latency that appears as counting errors. Verifying these modules during the same maintenance window prevents repeat callouts.

For sites running ABB AC 450 or AC 410 controllers, the DSPC172 processor module and its associated DSMB113 memory board should be checked for firmware compatibility with the replacement DSDP140B. Mismatched firmware versions can cause initialization failures even when the hardware is fully functional. Procurement engineers should confirm the exact hardware revision (ACX suffix) when ordering to ensure drop-in compatibility.

Finally, field-side components deserve attention. The DSTD190 signal termination board, encoder cable shielding, and any inline signal isolators or surge protection devices between the encoder and the module should be inspected. Encoder cables with degraded shielding are a frequent source of noise-induced count errors that are often misdiagnosed as module faults. Including these items in the annual spare parts inventory — alongside the DSDP140B itself — significantly reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the faulty DSDP140B, document the current module configuration using the ABB Advant Engineering Workstation or equivalent configuration tool. Export the I/O assignment, counter scaling parameters, and encoder type settings. This data is essential for configuring the replacement module and avoids re-engineering time during the outage window.

Step 2 — Safe isolation: Place the affected control loop in manual mode at the DCS operator station. Isolate the backplane slot by following the ABB Advant hot-swap procedure if supported, or perform a controlled shutdown of the affected rack section. Verify that the encoder power supply is de-energized before disconnecting field wiring from the DSTD termination unit.

Step 3 — Module swap: Remove the DSDP140B by releasing the front-panel locking lever and sliding the module from the backplane. Insert the replacement 57160001-ACX unit, ensuring the backplane connector is fully seated. Re-connect field wiring to the termination unit in the original configuration.

Step 4 — Configuration restore: Using the engineering workstation, download the saved I/O configuration to the replacement module. Verify counter scaling, encoder type (incremental/absolute), and pulse direction settings match the original. Confirm that the module status LED indicates normal operation before returning the loop to automatic mode.

Step 5 — Functional test: Run the encoder through its full range of motion and verify that the counter value tracks correctly at the DCS operator station. Check for any diagnostic alarms on the DSCS communication module. Log the replacement in the site maintenance management system (CMMS) and update the spare parts inventory accordingly.

This structured workflow typically allows a trained maintenance engineer to complete the DSDP140B replacement within 2–4 hours, including configuration restore and functional testing — significantly reducing the production impact of an unplanned counter module failure.

Spare Parts Support FAQ

Q1: Is the DSDP140B 57160001-ACX a direct drop-in replacement for older DSDP140 variants?
The 57160001-ACX order code designates a specific hardware revision of the DSDP140B. While it is functionally compatible with most ABB Advant OCS and MOD 300 applications that used earlier DSDP140 variants, we recommend confirming the hardware revision against your system’s engineering documentation before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: How is the module tested before shipment?
Every DSDP140B unit supplied by NINERMAS undergoes a multi-point inspection covering visual integrity, backplane connector condition, and functional verification using ABB-compatible test equipment. Units that do not pass all test criteria are not offered for sale. A test report is available upon request for critical applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s rated environmental specifications. In the event of a warranty claim, NINERMAS will provide a replacement unit or full refund within the warranty period.

Q4: Can NINERMAS support long-term supply for annual maintenance programs?
Yes. NINERMAS maintains standing inventory of ABB Advant series modules, including the DSDP140B, to support both emergency replacement and scheduled annual procurement programs. We can provide framework pricing for multi-unit orders and guaranteed lead times for maintenance contracts. Contact our sales team to discuss your site’s long-term spare parts strategy.
