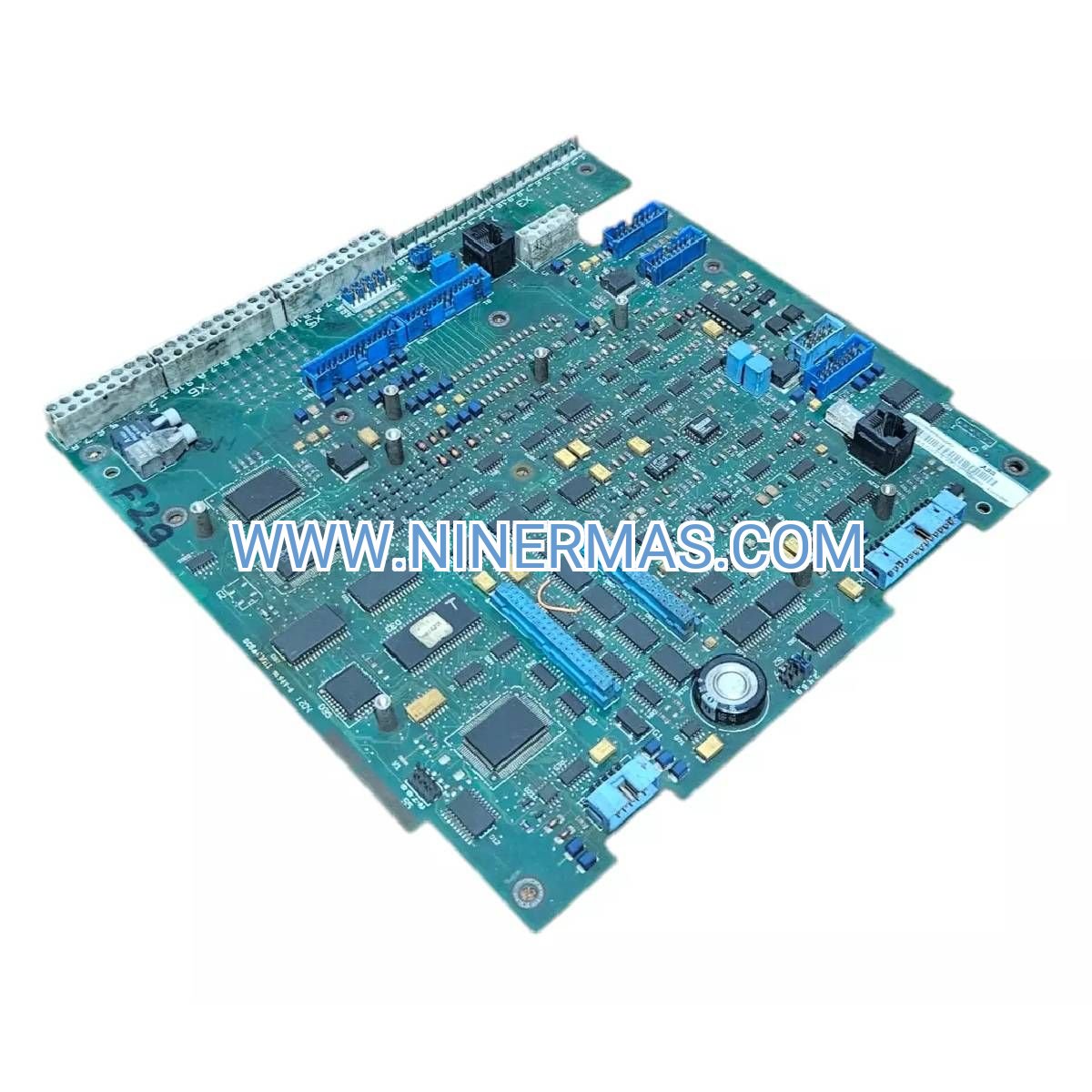

ABB 3SDCS-CON-2A Coated Control Module (Industrial-Grade Process Controller)

The ABB 3SDCS-CON-2A (P/N: 3BHE004059R0104) is a factory-coated control module engineered for mission-critical automation systems operating in chemically aggressive or moisture-laden environments. This S800-series component combines robust signal processing with advanced conformal coating technology, delivering uninterrupted performance where standard electronics fail.

Designed for process industries requiring IP65+ protection levels, this module addresses the persistent challenge of electronic degradation in corrosive atmospheres. Target users include chemical plant engineers, pharmaceutical facility managers, and water treatment operators who demand zero-downtime reliability. Unlike conventional control units, the 3SDCS-CON-2A extends MTBF (Mean Time Between Failures) by 40-60% through its proprietary protective layer.

Key differentiators include seamless integration with ABB AC 800M controllers, hot-swappable architecture for live maintenance, and compliance with ATEX/IECEx standards for hazardous area deployment. Whether retrofitting legacy systems or building greenfield installations, this module reduces total cost of ownership while future-proofing your control infrastructure.

Core Features & Benefits

✓ Conformal Coating Technology
Military-grade protective layer shields circuitry from humidity (95% RH), salt spray, and chemical vapors. Extends service life 3-5 years beyond uncoated alternatives while maintaining ±0.1% signal accuracy.

✓ S800 I/O Ecosystem Compatibility
Plug-and-play integration with 200+ ABB I/O modules. Reduces commissioning time by 30% through auto-configuration protocols and standardized 24V DC power rails.

✓ Diagnostic Intelligence
Real-time health monitoring via embedded sensors tracks temperature drift, power anomalies, and communication errors. Enables predictive maintenance scheduling to prevent unplanned shutdowns.

✓ Hazardous Area Certification
CE, UL, and ATEX Zone 2 approvals permit installation in explosive atmospheres (gas groups IIA/IIB). Eliminates need for costly purged enclosures in many applications.

✓ Field-Proven Reliability
50,000+ units deployed globally in continuous process industries. Demonstrated 99.7% uptime in 24/7 operations across temperature ranges of -40°C to +70°C.

✓ Simplified Maintenance Protocol
Tool-free DIN rail mounting and removable terminal blocks enable 15-minute swap procedures. Color-coded wiring guides reduce installation errors by 85%.

Typical Application Scenarios

→ Chemical Processing Plants
Deploy in reactor control loops and distillation column monitoring where acid fumes and solvent vapors corrode standard electronics. The coated module maintains calibration accuracy despite continuous exposure to aggressive chemicals, eliminating quarterly recalibration cycles and reducing maintenance costs by $12,000-$18,000 annually per control loop.

→ Pharmaceutical Manufacturing
Control critical parameters in clean rooms and sterile processing areas requiring frequent washdowns with high-pressure sanitizers. IP-rated protection prevents moisture ingress during CIP (Clean-In-Place) procedures, ensuring FDA 21 CFR Part 11 compliance while supporting validation protocols.

→ Water & Wastewater Treatment
Manage pump stations, clarifiers, and chemical dosing systems in high-humidity environments with H2S exposure. The module's corrosion resistance extends replacement intervals from 3 years to 7+ years, cutting lifecycle costs by 60% compared to non-coated alternatives.

→ Food & Beverage Production
Operate mixing, pasteurization, and packaging lines where steam, cleaning agents, and temperature cycling stress electronic components. Maintains process consistency during thermal shocks (ΔT up to 40°C/hour) without signal drift or false alarms.

→ Offshore Oil & Gas Platforms
Withstand salt-laden air and vibration in subsea control systems and topside process units. Proven performance in marine environments reduces offshore maintenance visits by 40%, translating to $50,000+ annual savings per platform.

Technical Parameters & Selection Guide

Selection Criteria:
Choose the 3SDCS-CON-2A when your application involves: (1) Relative humidity exceeding 70% for extended periods, (2) Presence of corrosive gases (Cl₂, SO₂, NH₃, H₂S), (3) Temperature cycling beyond ±15°C daily variation, (4) Requirement for ATEX/IECEx compliance in Zone 2 areas, or (5) Existing ABB S800 infrastructure requiring expansion. For non-coated environments with stable conditions, consider standard control modules to optimize budget allocation.

Extended Functions

IoT & Industry 4.0 Integration
Native support for OPC UA and MQTT protocols enables cloud connectivity for remote monitoring dashboards. Integrate with ABB Ability™ platform for AI-driven analytics, energy optimization, and digital twin simulations.

Redundancy Configuration
Deploy in hot-standby pairs with automatic failover (switchover time <50ms) for safety-critical loops. Synchronization via fiber-optic or Ethernet links ensures bumpless transfer during primary module failure.

Customization Options
Factory modifications available for extreme environments: enhanced coating for pH 1-14 exposure, extended temperature variants (-55°C to +85°C), and customer-specific firmware for proprietary protocols. MOQ: 10 units; lead time: 8-10 weeks.

Delivery & Service Assurance

Lead Time
→ Standard units: 3-5 business days (in-stock items)
→ Custom configurations: 8-12 weeks (subject to engineering review)

Warranty Coverage
→ 24-month manufacturer warranty covering defects in materials and workmanship
→ Extended warranty plans available: 36/48/60-month options with priority RMA service

Technical Support
→ 24/7 hotline for critical system failures (response time: <2 hours)
→ Remote diagnostics via secure VPN connection
→ On-site commissioning assistance (available in 45+ countries)
→ Annual health-check programs with predictive maintenance reports

Documentation Package
→ Installation manual with wiring diagrams (PDF + printed)
→ Calibration certificates traceable to NIST/PTB standards
→ 3D CAD models (STEP, IGES formats) for panel design
→ Spare parts catalog with recommended inventory levels

Frequently Asked Questions

Q1: How does the coated module interface with existing ABB S800 systems?
The 3SDCS-CON-2A uses identical communication protocols and terminal assignments as standard S800 modules. Simply mount on DIN rail, connect to the S800 I/O cluster via the backplane connector, and configure through Control Builder software. No special drivers or firmware updates required—full backward compatibility with systems dating to 2008.

Q2: What capacity or signal types does this control module handle?
Supports 16 digital I/O channels or 8 analog channels (configurable as 4-20mA, 0-10V, RTD, or thermocouple inputs). Maximum scan rate: 10ms per channel. Suitable for controlling valve actuators, variable frequency drives, flow transmitters, and temperature sensors within a single module.

Q3: Can the protective coating withstand high-pressure washdown procedures?
Yes. The conformal coating meets IEC 60529 IP65 standards when installed in appropriate enclosures. Tested to withstand 1000 psi spray at 80°C for 15-minute cycles—typical of pharmaceutical and food industry CIP protocols. Coating remains intact after 500+ washdown cycles without delamination.

Q4: What are the installation requirements for hazardous area deployment?
For ATEX Zone 2 (gas) applications: Install in Zone 2-rated enclosure with proper cable glands (Ex e certification). Ensure ambient temperature stays within -20°C to +60°C. Grounding resistance must be <10Ω. Intrinsic safety barriers required if connecting to Zone 0/1 field devices. Full installation checklist provided in certification documentation.

Q5: Does the module support remote monitoring and diagnostics?
Full remote capability via Ethernet/IP or PROFINET interfaces. Access real-time diagnostics including power supply voltage, internal temperature, communication errors, and I/O health status through web browser or SCADA integration. SNMP traps and email alerts configurable for predictive maintenance. Secure VPN access enables vendor support teams to troubleshoot without site visits.

Q6: How energy-efficient is this module compared to legacy control systems?
Consumes 65% less power than equivalent relay-based control panels (8W vs. 23W average). In a typical 50-module installation, annual energy savings exceed $800 at $0.12/kWh. Low heat dissipation (2.7 BTU/hr) reduces HVAC load in control rooms, contributing additional 15-20% cooling cost reduction.
