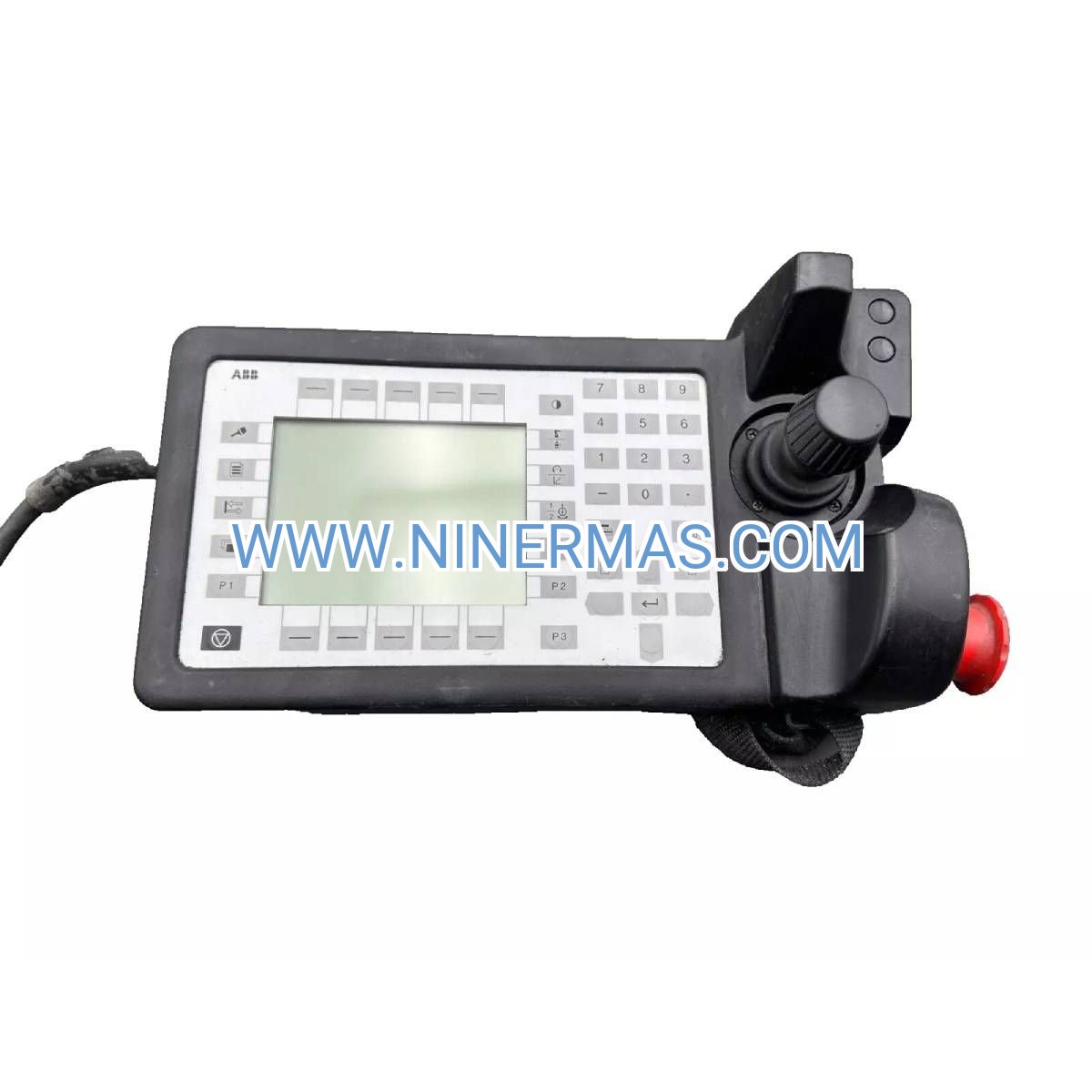

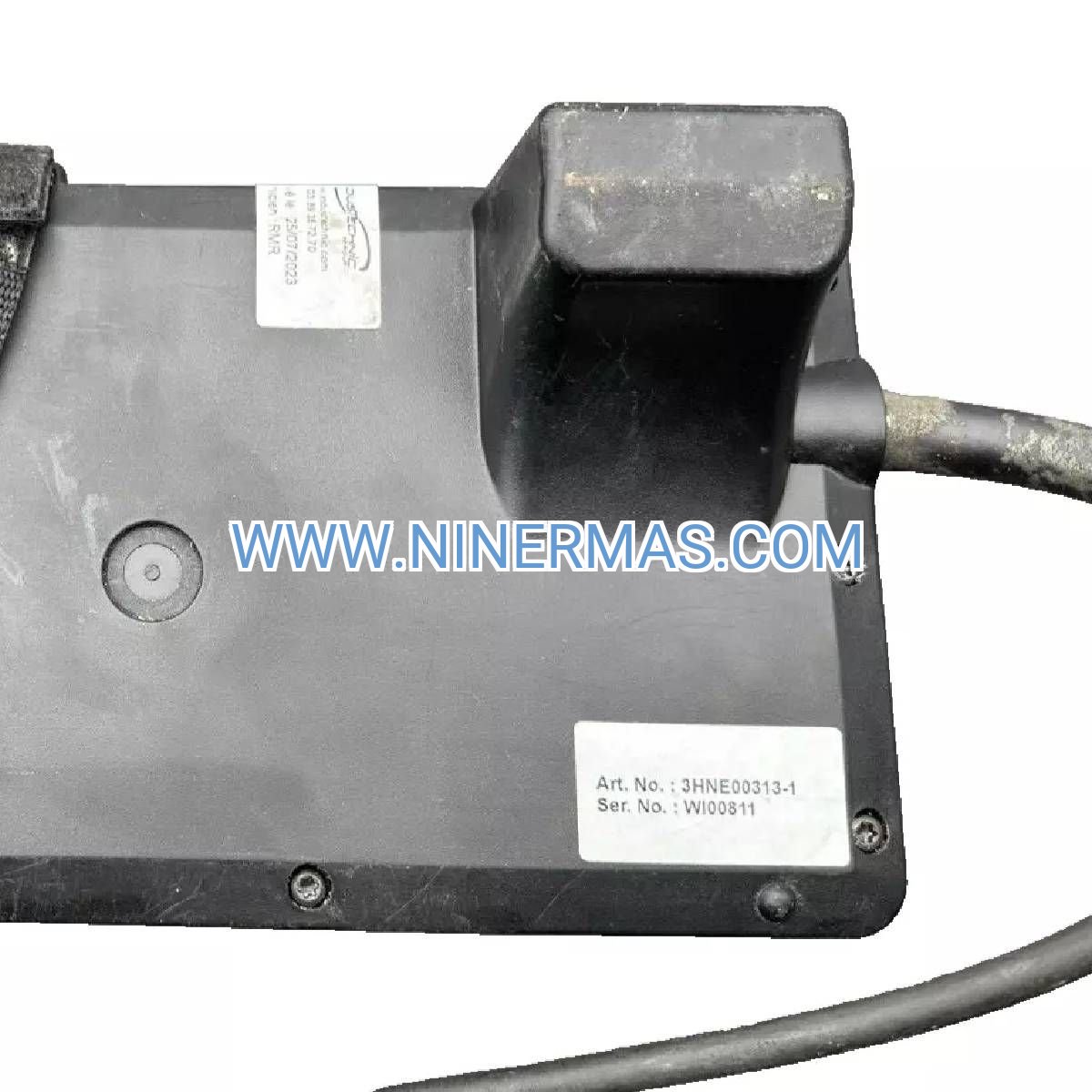

ABB 3HNE00313-1 Programming Unit (Industrial-Grade S4C Interface)

The ABB 3HNE00313-1 is a dedicated programming interface designed for seamless integration with S4C robot controller platforms. Featuring an advanced backlit LCD display, this unit delivers consistent readability across variable lighting environments—from low-visibility maintenance zones to high-intensity production floors. Built to Swedish engineering standards, it provides direct access to controller parameters, I/O diagnostics, and trajectory editing functions through an ergonomic, operator-focused design.

Manufacturing facilities requiring frequent robotic system adjustments rely on the 3HNE00313-1 for commissioning automation lines, optimizing cycle times, and resolving production bottlenecks. The backlit display technology eliminates dependency on external lighting during off-shift maintenance, while native S4C architecture compatibility ensures zero configuration delays. This programming unit serves as the critical interface between human expertise and robotic precision in automotive assembly, electronics manufacturing, and metal fabrication operations.

With a robust 3.3 kg construction and intuitive menu navigation, the 3HNE00313-1 reduces troubleshooting time compared to network-dependent remote programming methods. Operators gain immediate controller access without connectivity prerequisites, making it an essential tool for 24/7 production environments where uptime directly impacts profitability.

Core Capabilities & Business Value

✓ Backlit LCD Display Technology
High-contrast screen maintains visibility in 0-10,000 lux environments, enabling maintenance operations during night shifts without auxiliary lighting equipment. Reduces eye strain during extended programming sessions.

✓ Native S4C Controller Integration
Direct compatibility with ABB S4C architecture eliminates third-party interface layers. Plug-and-program functionality cuts commissioning time by 40% compared to generic HMI solutions.

✓ Real-Time Parameter Access
Instantaneous controller communication allows live adjustments to motion profiles, I/O configurations, and safety parameters. Troubleshooting cycles reduced from hours to minutes through direct diagnostic access.

✓ Ergonomic Industrial Design
3.3 kg balanced weight distribution and tactile button layout support extended use in production environments. IP-rated construction withstands typical manufacturing floor contaminants.

✓ Offline Programming Capability
Program editing and simulation functions operate independently of active production cycles, allowing engineers to develop optimized routines without halting operations.

✓ Multi-Language Menu System
Configurable interface supports global deployment across multinational facilities, reducing training requirements for diverse technical teams.

Industrial Application Scenarios

→ Automotive Assembly Line Commissioning
During new model launches, production engineers use the 3HNE00313-1 to fine-tune welding robot trajectories and adjust cycle times. The backlit display enables parameter verification in dimly lit body shop areas, while direct S4C access allows real-time path modifications without production line shutdowns. Result: 30% faster commissioning compared to laptop-based programming methods.

→ Electronics Manufacturing Troubleshooting
When pick-and-place robots experience positioning errors, technicians connect the programming unit to diagnose encoder drift, I/O signal integrity, and motion controller faults. Immediate access to diagnostic logs and parameter history accelerates root cause identification, minimizing scrap rates during high-volume production runs.

→ Metal Fabrication Process Optimization
Fabrication facilities leverage the 3HNE00313-1 to optimize cutting and welding robot speeds based on material variations. Engineers adjust acceleration profiles and dwell times directly at the controller, achieving 15-20% throughput improvements without compromising weld quality or dimensional tolerances.

→ Preventive Maintenance Operations
Scheduled maintenance windows utilize the programming unit to verify controller firmware versions, backup program files, and validate safety circuit integrity. The portable design allows technicians to service multiple robot cells efficiently during off-shift hours.

→ Training & Skill Development
Technical training programs employ the 3HNE00313-1 to teach robotic programming fundamentals without requiring expensive simulation software. Trainees gain hands-on experience with actual S4C controller interfaces, accelerating competency development for production support roles.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 3HNE00313-1 when your facility operates ABB S4C robot controllers and requires frequent on-site programming access. This unit is optimal for environments where network connectivity is unreliable or prohibited due to cybersecurity policies. The backlit display makes it the preferred choice for facilities with variable lighting conditions or 24/7 operations requiring night-shift maintenance.

For facilities with S4C+ or IRC5 controllers, verify compatibility with your specific controller firmware version. The 3HNE00313-1 requires the 3HNE00188-1/09 programming cable (sold separately) for physical connection to the controller's X4-XP20 port.

Extended Integration Capabilities

PROFIBUS Communication Expansion
When paired with the DSQC 352 PROFIBUS module (3HNE00009-1), the programming unit enables configuration of fieldbus parameters for integrated sensor networks and distributed I/O systems. This combination supports complex automation architectures requiring multi-vendor device coordination.

Program Backup & Version Control
Built-in memory functions allow storage of multiple program versions directly on the unit, facilitating A/B testing of motion profiles and rapid rollback during production trials. Export capabilities support integration with enterprise-level version control systems.

Custom Macro Development
Advanced users can develop custom programming macros for repetitive configuration tasks, reducing setup time for similar robot cells across multiple production lines. Macro libraries can be shared across facilities to standardize programming practices.

Delivery Timeline & Service Assurance

Standard Delivery: 5-7 business days for in-stock units via express logistics. All units ship with factory calibration certificates and operational verification documentation.

Custom Configuration: 10-15 business days for units requiring pre-loaded custom macros or specific firmware versions. Configuration services include functional testing and documentation of all customizations.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Extended warranty options available for critical production environments requiring guaranteed uptime.

Technical Support: Multilingual technical support team available via email, phone, and remote assistance. Support includes programming guidance, troubleshooting assistance, and compatibility verification for system upgrades.

Documentation Package: Each unit includes quick-start guide, complete user manual (PDF), S4C integration instructions, and cable connection diagrams. Video tutorials available for common programming tasks.

Frequently Asked Questions

Q: What cable is required to connect the 3HNE00313-1 programming unit to S4C controllers?
A: The unit requires the 3HNE00188-1/09 programming cable, which connects to the controller's X4-XP20 port. This cable is sold separately and features a 3-meter length suitable for typical robot cell configurations. Verify your controller's port configuration before ordering.

Q: Can the programming unit operate with S4C+ or IRC5 controller generations?
A: The 3HNE00313-1 is specifically engineered for S4C controller architecture. For S4C+ systems, compatibility depends on firmware version—contact technical support with your controller serial number for verification. IRC5 controllers require the FlexPendant programming interface instead.

Q: Does the backlit display consume additional power or require external batteries?
A: No external power source is needed. The programming unit draws power directly from the S4C controller through the programming cable connection. The backlight operates continuously during active sessions with no impact on controller performance or battery backup systems.

Q: What is the typical lifespan of the backlit LCD display under continuous industrial use?
A: The LCD display is rated for 50,000+ hours of operation under standard industrial conditions (0-45°C ambient temperature). In typical manufacturing environments with 16-hour daily operation, this translates to 8+ years of service life before backlight intensity degradation becomes noticeable.

Q: Can multiple programming units be used simultaneously on different robots within the same cell?
A: Yes, each S4C controller supports independent programming unit connections. Multiple technicians can work on separate robots concurrently without interference. However, only one programming interface (unit or laptop) can be active per controller at any given time.

Q: Is the programming unit compatible with third-party robot simulation software?
A: The 3HNE00313-1 operates as a direct controller interface and does not integrate with PC-based simulation platforms. For offline programming and simulation, ABB's RobotStudio software is recommended. The programming unit excels at on-site parameter adjustments and real-time troubleshooting rather than simulation tasks.

Request Technical Consultation

Our automation specialists are available to assess your S4C controller configuration and recommend optimal programming interface solutions. Contact us for compatibility verification, bulk pricing for multi-site deployments, or technical training on advanced programming unit features.
