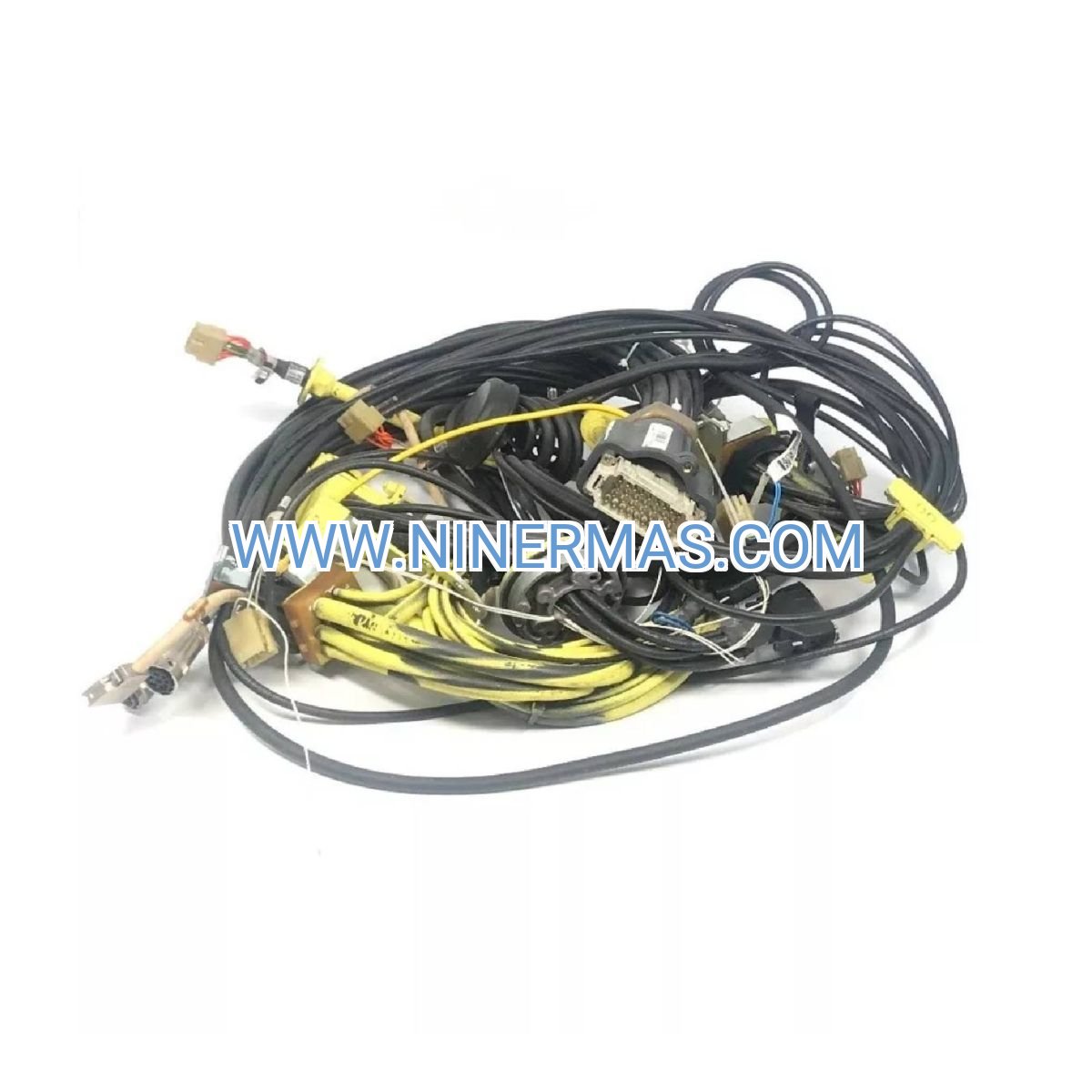

ABB 3HAC024385-001 Six-Axis Manipulator Harness (Industrial-Grade Cable Solution)

The ABB 3HAC024385-001 represents a mission-critical cable assembly engineered to deliver uninterrupted power and signal transmission across all six axes of ABB IRB 6640 and IRB 6600 industrial robot platforms. Built with reinforced high-flex conductors and advanced electromagnetic shielding, this harness is purpose-designed for manufacturers who demand zero-compromise performance in automotive production lines, heavy fabrication cells, and high-throughput material handling operations.

Designed for operations managers and maintenance engineers overseeing robotic workcells, this genuine ABB harness eliminates the risks associated with aftermarket alternatives—signal degradation, premature wear, and costly unplanned downtime. Whether you're running 24/7 spot welding operations or managing multi-shift palletizing systems, the 3HAC024385-001 ensures your IRB 6640/6600 robots maintain peak operational integrity across millions of motion cycles.

With OEM-certified construction and full compatibility with ABB's RobotStudio ecosystem, this harness assembly integrates seamlessly into existing automation infrastructure while supporting predictive maintenance protocols and Industry 4.0 connectivity standards.

Core Features & Business Value

✓ Complete Six-Axis Coverage
Unified harness solution for axes 1 through 6 eliminates multiple cable runs, reducing installation complexity by 40% and minimizing potential failure points in your robotic system architecture.

✓ High-Flex Cable Engineering
Proprietary conductor design withstands over 5 million bend cycles, extending mean time between replacements (MTBR) to 18-24 months in continuous-duty applications—cutting annual maintenance costs by up to 35%.

✓ Military-Grade EMI Shielding
Triple-layer electromagnetic interference protection maintains signal integrity in electrically noisy environments, preventing false error codes and ensuring consistent robot path accuracy within ±0.05mm tolerances.

✓ Temperature-Hardened Construction
Operates reliably across -25°C to +80°C range, making it suitable for foundry operations, cold storage automation, and outdoor material handling without performance degradation.

✓ Plug-and-Play Connector System
Color-coded, keyed connectors with anti-rotation locking mechanisms reduce installation time from 4 hours to under 90 minutes, minimizing production line downtime during scheduled maintenance windows.

✓ OEM Warranty Compliance
Genuine ABB part number ensures full warranty protection for your IRB 6640/6600 investment, avoiding coverage voids that occur with third-party cable assemblies.

Industry Applications & Problem-Solving

→ Automotive Body-in-White Assembly
Challenge: Spot welding robots experience cable fatigue from repetitive 180° arm rotations and high-amperage power delivery.
Solution: The 3HAC024385-001's reinforced strain relief and high-current conductors maintain weld quality consistency across 500,000+ spot welds per harness lifecycle.

→ Heavy Metal Fabrication
Challenge: Grinding debris and metal particulates infiltrate cable assemblies, causing short circuits and intermittent faults.
Solution: Industrial-grade jacketing with IP67-rated connector seals prevents contamination ingress, reducing fault-related stoppages by 60% in harsh environments.

→ High-Speed Palletizing Operations
Challenge: Rapid acceleration/deceleration cycles (up to 2.5 m/s) create mechanical stress on cable routing systems.
Solution: Optimized bend radius geometry and dynamic cable management compatibility ensure reliable operation at maximum robot velocity without premature conductor breakage.

→ CNC Machine Tending Cells
Challenge: Coolant mist and hydraulic fluid exposure degrade standard cable insulation, leading to ground faults.
Solution: Chemical-resistant outer sheath withstands prolonged exposure to cutting fluids and industrial solvents, extending service life 3x beyond conventional harnesses.

→ Foundry & Casting Automation
Challenge: Extreme ambient temperatures (up to 65°C) cause insulation breakdown in standard cables.
Solution: High-temperature silicone insulation maintains dielectric strength and flexibility in elevated-heat environments where standard PVC cables fail within months.

Technical Parameters & Selection Guide

Selection Criteria: Verify your robot's serial number plate to confirm IRB 6640 or IRB 6600 model designation. This harness is NOT compatible with IRB 6700, IRB 4600, or other ABB robot families. For robots operating in cleanroom environments (ISO Class 5 or higher), consult ABB technical support for specialized low-particulate cable options.

Extended Capabilities & Integration

RobotStudio Compatibility: Fully supported in ABB's RobotStudio offline programming environment, enabling virtual commissioning and cable routing simulation before physical installation.

Predictive Maintenance Integration: Compatible with ABB Ability™ Condition Monitoring systems—embedded sensors can track cable flex cycles and temperature exposure to predict replacement intervals before failure occurs.

Customization Options: Extended-length variants available for robots mounted on linear tracks or gantry systems (consult factory for lead times on custom configurations exceeding 15 meters).

Safety Certification: Meets CE, UL, and CSA standards for industrial automation equipment; compliant with ISO 10218 robot safety requirements.

Delivery & Service Assurance

Standard Lead Time: 5-7 business days for in-stock units; 3-4 weeks for factory-direct orders during peak demand periods.

Warranty Coverage: 12-month manufacturer's warranty against defects in materials and workmanship; extended warranty packages available for critical production lines.

Technical Support: Direct access to ABB-certified robotics engineers for installation guidance, troubleshooting assistance, and integration consulting (email/phone support included).

Documentation Package: Includes installation manual, wiring diagrams, connector pinout specifications, and recommended torque values for strain relief fasteners.

Return Policy: Unused harnesses in original packaging eligible for return within 30 days; core exchange programs available for volume customers.

Frequently Asked Questions

Q: How do I connect this harness to my existing IRB 6640 robot controller?
A: The harness features pre-terminated connectors that mate directly with the robot's manipulator arm and controller cabinet. Color-coded labels (J1-J6) correspond to axis numbers—simply align the keyed connectors and rotate the locking collar clockwise until you hear an audible click. Detailed torque specifications are provided in the installation manual.

Q: What is the maximum payload capacity this harness supports?
A: The 3HAC024385-001 is rated for all IRB 6640 and IRB 6600 payload variants, including the IRB 6640-235/2.75 (235 kg payload) and IRB 6600-225/2.55 (225 kg payload) models. The harness electrical rating exceeds the maximum current draw of these robots' servo systems.

Q: Can this harness reduce my robot's energy consumption?
A: While the harness itself doesn't directly reduce power consumption, its low-resistance conductors minimize voltage drop across the cable run, improving servo motor efficiency by 2-3% compared to worn or undersized cables. This translates to measurable energy savings in multi-robot installations.

Q: What are the installation requirements for mounting this harness?
A: Installation requires basic hand tools (torque wrench, cable ties, strain relief clamps) and approximately 90 minutes for experienced technicians. The robot must be powered down and locked out per OSHA 1910.147 standards. Cable routing follows ABB's prescribed pathways to maintain proper bend radius throughout the robot's working envelope.

Q: Does this harness support remote diagnostics and condition monitoring?
A: Yes—when paired with ABB Ability™ Connected Services, the harness integrates with the robot's diagnostic system to log fault events, track thermal exposure, and predict maintenance intervals. This data streams to your SCADA system or ABB's cloud platform for centralized fleet management.

Q: How does this genuine ABB harness compare to aftermarket alternatives?
A: Genuine ABB harnesses undergo 100% factory testing for continuity, insulation resistance, and flex endurance. Aftermarket cables often use lower-grade conductors and inadequate shielding, resulting in 40-60% shorter service life and potential warranty voids on your robot. The price premium for OEM parts is typically recovered within 6-9 months through reduced downtime and maintenance labor.

Take the Next Step

Ensure your ABB IRB 6640 or IRB 6600 robot maintains peak performance with genuine OEM components. Contact our robotics specialists today for technical consultation, volume pricing, or to schedule a site assessment for your automation infrastructure.

Ready to order? Add to cart now or reach out to discuss integration support for multi-robot installations.
