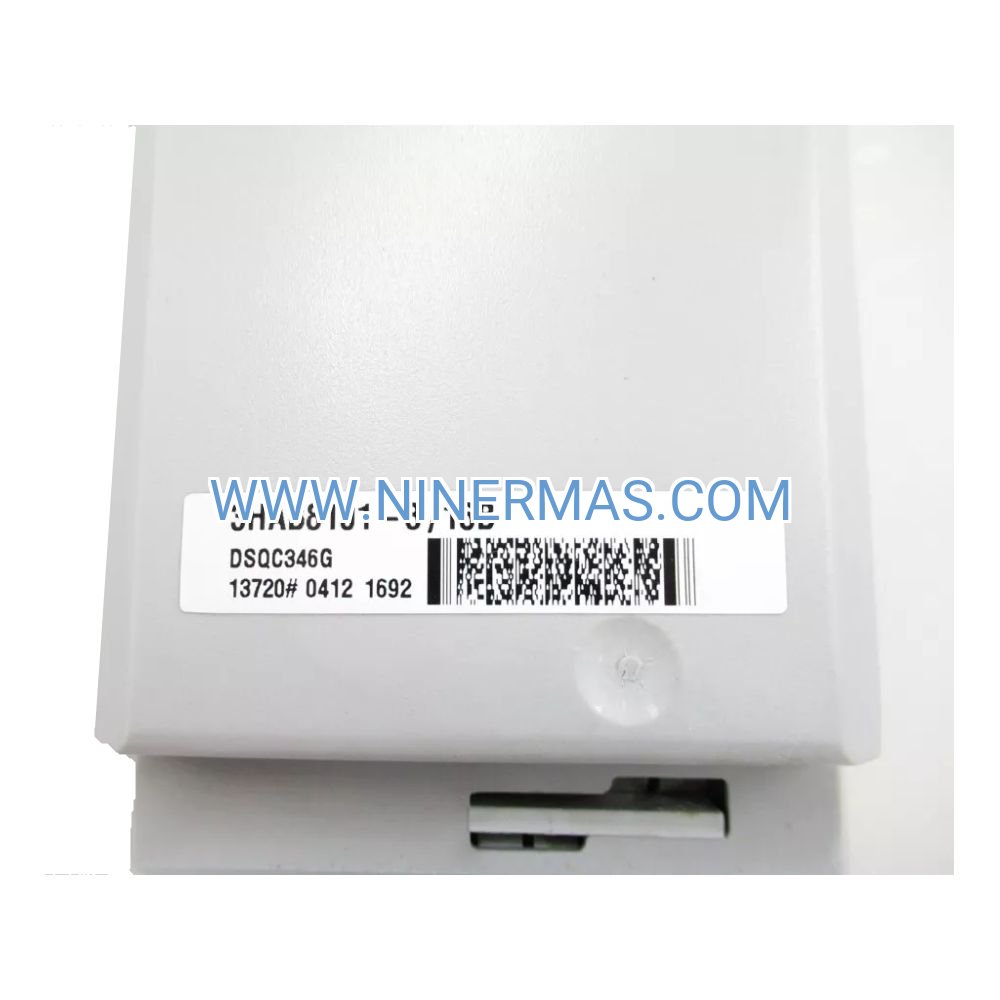

ABB DSQC 346G Servo Drive Unit (Industrial-Grade Motion Controller)

The ABB 3HAB8101-8 represents a critical motion control component within ABB's IRC5 and S4C+ robotic ecosystems. Manufactured in Sweden to exacting industrial standards, this single-axis servo drive delivers microsecond-level response times and adaptive torque management for demanding automation environments. Whether you're operating high-speed assembly lines, coordinating multi-robot welding cells, or managing precision material handling systems, this drive unit provides the reliability and performance industrial operations demand.

Designed for integration into climate-controlled electrical cabinets, the DSQC 346G interfaces directly with ABB's controller backplane architecture, eliminating external wiring complexity while maintaining signal integrity across high-frequency communication channels. Its modular construction supports rapid field replacement—a critical advantage when production uptime directly impacts revenue.

With built-in diagnostic capabilities and compatibility across multiple ABB robot generations, this drive unit reduces spare parts inventory requirements while future-proofing your automation infrastructure against controller platform migrations.

Core Features & Benefits

→ Adaptive Servo Algorithms
Real-time trajectory optimization adjusts acceleration curves based on payload mass and inertia, reducing mechanical stress on robot joints while maintaining cycle time targets. This translates to extended gearbox life and fewer unplanned maintenance events.

→ Multi-Layer Fault Protection
Integrated monitoring circuits detect overcurrent conditions, thermal anomalies, and communication errors within 2 milliseconds, triggering safe shutdown sequences that protect both drive electronics and connected motors. Diagnostic LEDs provide instant fault identification for faster troubleshooting.

→ Hot-Swap Architecture
Field-replaceable design allows technicians to exchange failed units during scheduled maintenance windows without full system power-down. Pre-configured replacement drives retain motor pairing data, minimizing recalibration time.

✓ High-Speed Serial Interface
Dedicated communication bus achieves 12 Mbps data transfer rates, enabling position updates every 250 microseconds for smooth motion interpolation in coordinated multi-axis applications.

✓ Wide Payload Compatibility
Optimized current control supports ABB robots handling 6 kg to 250 kg payloads, making this drive suitable for applications ranging from electronics assembly to heavy automotive component handling.

✓ Compact Footprint
At just 3.14 kg and designed for vertical mounting, the unit maximizes cabinet space utilization—critical in retrofit installations where panel real estate is limited.

Application Scenarios

Automotive Body Assembly
In body-in-white welding cells, the DSQC 346G drives robotic arms through complex 3D weld paths with positional repeatability under ±0.05 mm. This precision ensures consistent spot weld quality across thousands of daily cycles, reducing rework rates and maintaining structural integrity standards.

High-Speed Packaging Lines
Palletizing robots equipped with this drive achieve pick-place cycle times under 1.2 seconds while handling variable product weights. Dynamic torque compensation prevents product damage during rapid deceleration, protecting both packaging integrity and end-effector tooling.

Electronics Manufacturing
PCB assembly robots leverage the drive's microsecond-level position control to place surface-mount components at rates exceeding 15,000 parts per hour. Vibration-free motion profiles prevent solder paste disturbance and ensure placement accuracy within ISO 9001 tolerances.

Metal Fabrication Cells
Robotic welding systems utilize coordinated motion control across multiple DSQC 346G units to maintain precise torch angles and travel speeds. Synchronized axis control ensures uniform weld bead appearance and penetration depth, critical for structural welding applications.

Pharmaceutical Handling
Cleanroom-compatible robots use this drive's smooth acceleration profiles to transfer delicate vials and syringes without inducing product agitation. Controlled motion reduces particulate generation, supporting GMP compliance in sterile manufacturing zones.

Technical Parameters & Selection Guide

Selection Criteria: When specifying this drive unit, verify controller firmware revision compatibility through ABB's product configurator. For S4C to IRC5 migration projects, consult ABB migration documentation to confirm drive compatibility with target controller software versions. Installations in high-vibration environments may require additional cabinet shock mounting.

Extended Functions

Remote Diagnostics Integration: When paired with ABB's Connected Services platform, the drive unit streams real-time performance telemetry to cloud-based analytics engines. Predictive maintenance algorithms identify degradation patterns in capacitor ESR and thermal cycling, enabling condition-based replacement scheduling that prevents unexpected failures.

Custom Motion Profiles: Advanced users can modify servo tuning parameters through RobotStudio software to optimize performance for non-standard payloads or specialized end-effectors. Custom acceleration limits and jerk control settings improve process outcomes in applications like adhesive dispensing or laser cutting.

Multi-Drive Synchronization: In gantry robot configurations or coordinated dual-arm systems, multiple DSQC 346G units maintain phase-locked operation through the IRC5 controller's motion coordination engine, achieving sub-millisecond synchronization accuracy.

Delivery & Service Assurance

Lead Time: In-stock units ship within 24-48 hours via express courier. Custom-configured drives or bulk orders (10+ units) typically require 5-7 business days for preparation and quality verification.

Warranty Coverage: All drive units include a comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Warranty claims include advance replacement service to minimize production downtime.

Technical Support: Our robotics integration specialists provide phone and email support for installation troubleshooting, parameter configuration, and system optimization. On-site commissioning services available for complex multi-robot installations.

Documentation Package: Each unit ships with installation quick-start guide, wiring diagrams, and digital access to full technical manuals. Firmware update files and RobotStudio configuration templates available through customer portal.

Frequently Asked Questions

Can this servo drive unit operate with third-party robot controllers?
No, the DSQC 346G utilizes ABB's proprietary communication protocol and is exclusively compatible with ABB IRC5 and S4C+ controller platforms. Attempting integration with non-ABB systems will result in communication failure and potential equipment damage.

What is the typical replacement interval for this drive unit in continuous operation?
Under standard industrial conditions (16-hour daily operation, controlled ambient temperature, clean power supply), the DSQC 346G typically operates reliably for 10-15 years. Electrolytic capacitor aging is the primary wear mechanism; preventive replacement at 12-year intervals is recommended for mission-critical applications.

Does the drive unit require recalibration after installation in an existing robot system?
Replacement drives retain motor electrical parameters when properly configured through RobotStudio. However, ABB recommends performing a quick mastering check and test motion sequence after installation to verify optimal performance, particularly in precision applications requiring ±0.1 mm repeatability.

How does this drive handle power supply fluctuations common in industrial facilities?
Integrated power conditioning circuits tolerate ±10% voltage variation and provide transient suppression up to 1 kV. For facilities with frequent power quality issues, ABB recommends installing dedicated UPS systems or line reactors on the main controller power supply.

What diagnostic information is available when troubleshooting drive faults?
The drive unit provides multi-color LED fault indicators and logs detailed error codes accessible through the IRC5 FlexPendant or RobotStudio interface. Common fault codes include overcurrent (E1), communication loss (E3), and thermal shutdown (E7), each with specific troubleshooting procedures in the service manual.

Are firmware updates required when upgrading the IRC5 controller software?
Drive firmware compatibility is tied to specific RobotWare versions. Major controller software upgrades (e.g., RobotWare 5.x to 6.x) typically require corresponding drive firmware updates, which are performed through RobotStudio's system update wizard. Always verify compatibility matrices before initiating controller upgrades.

Ready to Optimize Your Robot Performance?

Whether you're replacing a failed drive unit, stocking critical spares, or upgrading legacy S4C systems, our team provides expert guidance on drive selection, configuration, and integration. Contact our robotics specialists for application-specific recommendations, volume pricing, or technical consultation on complex multi-robot installations.

Request a quote today or speak with our engineering team to discuss your specific automation requirements.
