ABB 3BHE004573R0143 UFC760 BE143 Retrofit-Compatible Excitation Controller

ABB 3BHE004573R0143 UFC760 BE143 Retrofit-Compatible Excitation Controller for Legacy Systems

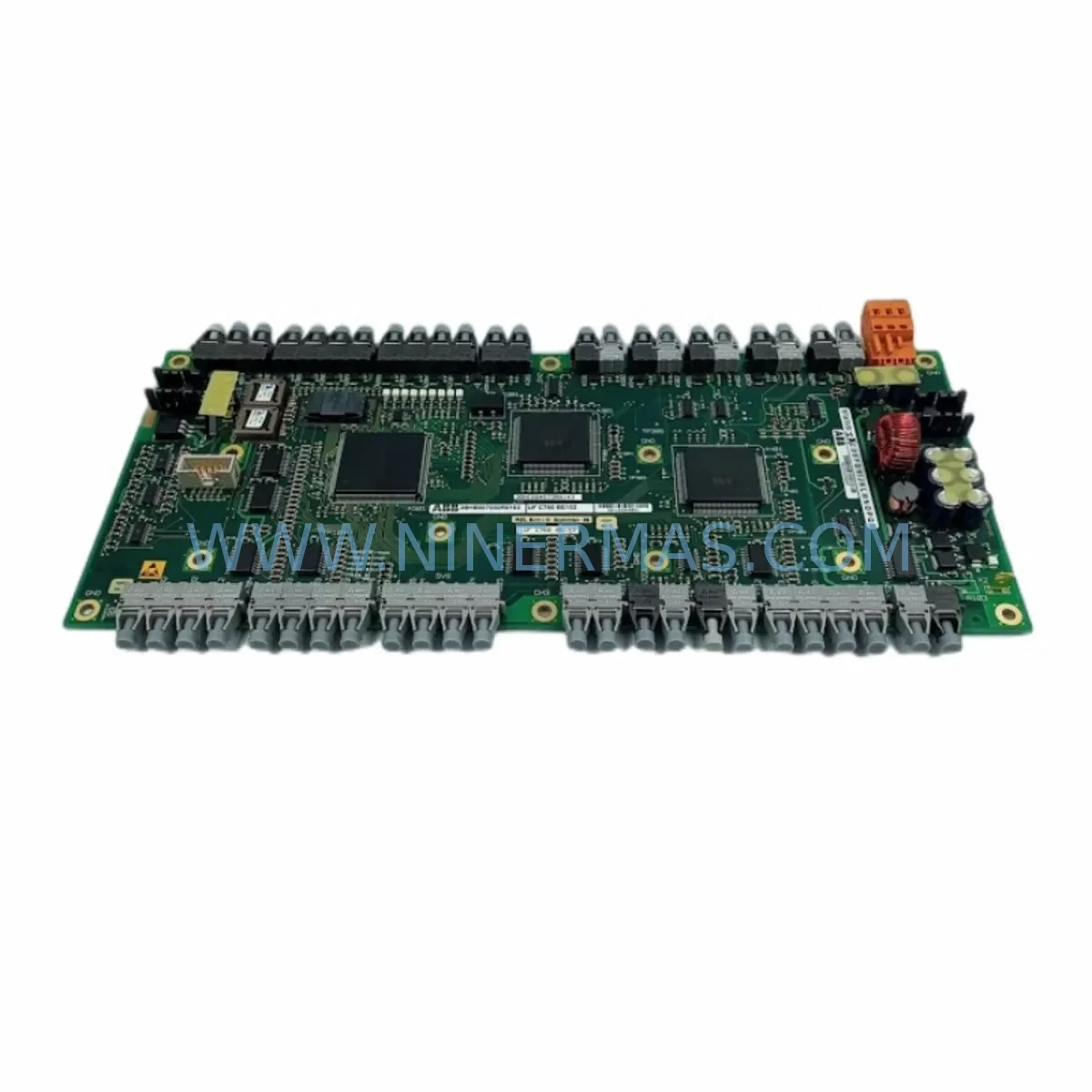

The ABB 3BHE004573R0143 UFC760 BE143 is a high-performance excitation control board designed for the ACS6000 medium-voltage drive series. As original ABB production of this module has been discontinued, industrial facilities operating legacy ACS6000 drive cabinets face increasing pressure to source verified replacement units that maintain full compatibility with existing hardware, firmware, and field wiring. NINERMAS supplies this module from authenticated stock, fully tested prior to shipment, and backed by a 12-month warranty.

Whether you are managing a planned retrofit of an aging drive system or responding to an unplanned failure on a critical production line, the UFC760 BE143 board is a direct drop-in replacement for the original factory-installed unit. Its compatibility with the ACS6000 backplane, internal communication bus, and excitation signal chain means that experienced commissioning engineers can complete the swap with minimal disruption to the surrounding control architecture.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the UFC760 BE143 board within an ACS6000 drive system requires careful pre-engineering. Before the replacement unit arrives on site, the engineering team should audit the existing drive cabinet to confirm the power supply rail voltages — typically the internal ±15 V and +24 V DC supplies — are within specification, as a degraded APOW-01 power supply board or AINT-02 auxiliary interface board can cause the new excitation board to fault immediately after installation.

Terminal wiring on the UFC760 BE143 follows the ACS6000 standard I/O mapping. Engineers should document all existing analog and digital I/O assignments from the original board before removal, cross-referencing the site-specific wiring diagram against the ACS6000 hardware manual. If the drive cabinet also houses an RDCO-02C DDCS communication adapter for upstream DCS or SCADA connectivity, the fiber-optic link addresses and node numbers must be recorded and re-entered during commissioning to restore communication with the plant control system.

For sites running the ACS6000 in a multi-drive configuration — for example, in a tandem or master-follower arrangement — the RDCO-0x communication option board settings and the drive-to-drive DDCS ring topology must be verified before the replacement board is powered. Any mismatch in node addressing will prevent the drive from joining the communication ring and may trigger a system-wide fault across all connected drives.

Where the ACS6000 interfaces with a higher-level control system via a PROFIBUS DP fieldbus adapter (RPBA-01) or a MODBUS RTU interface module, the fieldbus configuration stored in the drive parameters must be backed up using DriveWindow before the board swap. After installation of the new UFC760 BE143, the parameter set should be restored and the fieldbus communication verified by monitoring live process data from the DCS or PLC before returning the drive to automatic control.

In retrofit projects where the ACS6000 is integrated with a legacy ABB AC500 PLC or a third-party Siemens S7-300 controller via hardwired I/O, the digital output signals from the drive — including run permissive, fault relay, and speed-at-reference — should be tested individually against the PLC input card before the drive is released to production. This step is particularly important when the replacement board has a different firmware revision than the original, as minor differences in output timing can affect PLC ladder logic behavior.

If the retrofit scope extends beyond the UFC760 BE143 to include a broader drive modernization — for example, replacing the AINT-02 auxiliary interface board, upgrading the APOW-01 power supply, or installing a new RMIO-11C motor control board — the project should be sequenced to allow individual subsystem testing before full drive commissioning. This staged approach reduces the risk of compound faults and makes fault isolation significantly easier during the final commissioning run.

For HMI integration, sites using an ABB CP600 operator panel or a legacy Panel Builder 800 (PB800) touchscreen connected to the ACS6000 should verify that all drive status screens, alarm pages, and parameter write functions operate correctly after the board replacement. In some cases, HMI tag addresses linked to drive parameters may need to be refreshed if the new board firmware introduces parameter index changes.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team undertaking a UFC760 BE143 replacement on a live production site. The recommended approach is to treat the board swap as a planned maintenance event, scheduling it during a production window where the drive can be safely de-energized, isolated, and locked out according to site LOTO procedures.

Before de-energizing the ACS6000, the commissioning engineer should use DriveWindow or the drive’s local keypad to perform a full parameter upload, saving the complete parameter file to a laptop or USB drive. This backup protects the original control program logic, motor model data, speed reference scaling, and all application-specific tuning values. If the drive is running a custom application macro, the macro file should also be exported separately.

The physical board swap itself — removing the original 3BHE004573R0143 and installing the replacement UFC760 BE143 — typically takes less than 30 minutes for an experienced drive engineer familiar with the ACS6000 cabinet layout. The majority of the commissioning time is spent on parameter restore, communication verification, and the no-load test run. On sites where a spare drive or bypass contactor is available, the process can be further accelerated by pre-staging the replacement board in a test cabinet and verifying its basic functionality before the planned outage begins.

After parameter restore and communication verification, the drive should be run in local control mode at reduced speed before being returned to automatic control from the DCS or PLC. This step confirms that the motor model, speed feedback, and excitation control loop are all functioning correctly with the new board before full production load is applied. Any residual faults should be cleared and the fault history reviewed to confirm no pre-existing hardware issues remain in the drive cabinet.

Retrofit Support FAQ

Q1: Is the 3BHE004573R0143 UFC760 BE143 a direct replacement for the original ABB factory board?
Yes. The UFC760 BE143 supplied by NINERMAS is sourced from authenticated ABB production stock and is a direct hardware replacement for the original 3BHE004573R0143 installed in ACS6000 drive cabinets. Firmware revision compatibility should be confirmed against your drive software version before installation.

Q2: What pre-shipment testing is performed on each unit?
Every UFC760 BE143 unit undergoes a full functional test before dispatch. Testing covers power-on self-test, communication interface verification, and signal output checks. A test report is available upon request. All units are shipped with a 12-month warranty from the date of shipment.

Q3: Do I need to re-parameterize the drive after installing the replacement board?
A parameter restore from a pre-swap backup is strongly recommended. While the hardware is a direct replacement, restoring the original parameter set via DriveWindow ensures that all motor model data, application macros, and fieldbus settings are correctly applied to the new board. NINERMAS technical support can advise on the restore procedure if required.

Q4: What is the typical lead time and do you hold stock?
NINERMAS maintains inventory of the 3BHE004573R0143 UFC760 BE143 to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For urgent requirements, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability.
