ABB 3BHE004573R0141 UFC760 BE141 Retrofit Interface Board

ABB 3BHE004573R0141 UFC760 BE141 Retrofit-Compatible Interface Board for Legacy ABB Control Systems

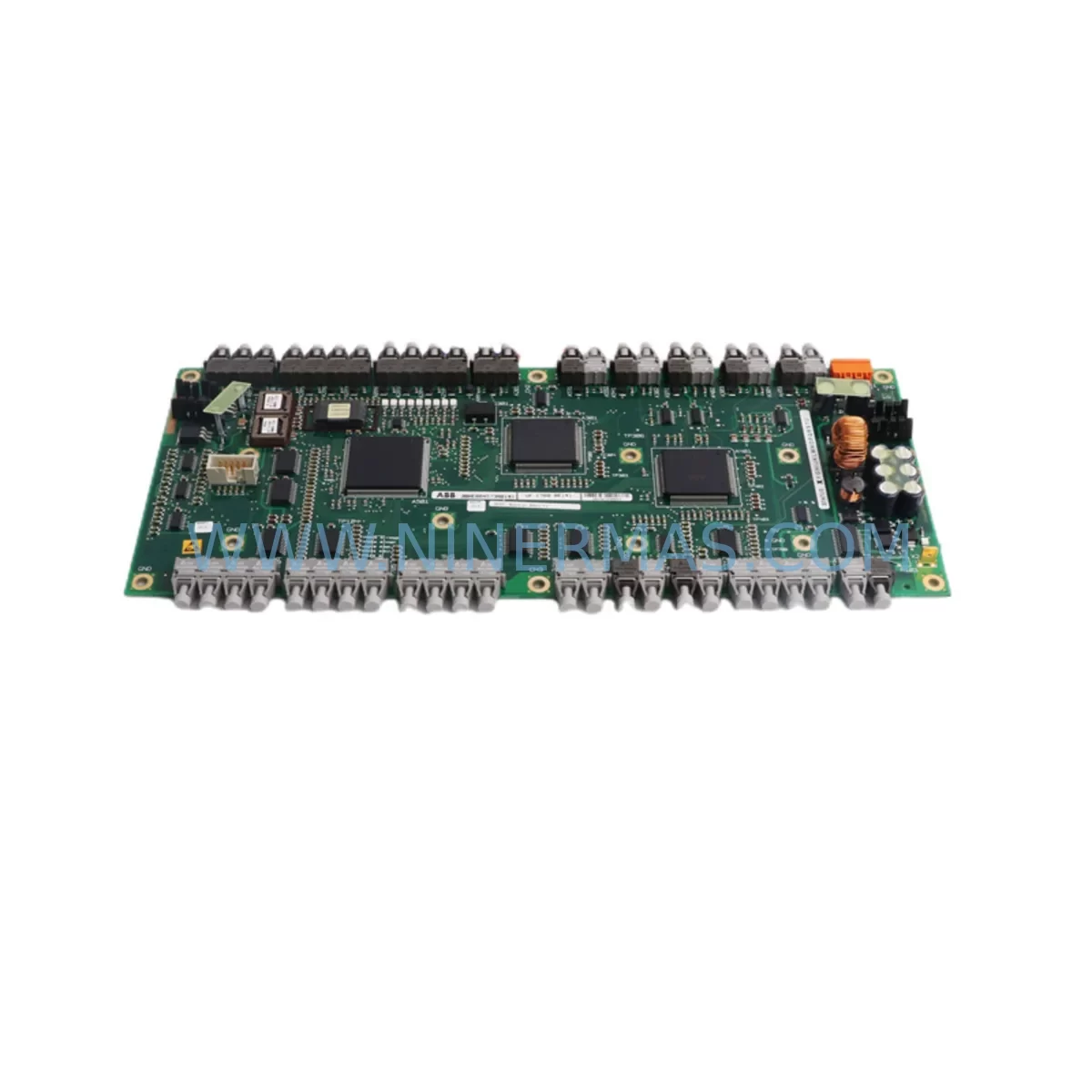

The ABB 3BHE004573R0141 is a UFC760 BE141 interface board designed for use within ABB’s industrial automation and drive control platforms. As a retrofit-compatible replacement module, it serves engineers and maintenance teams tasked with modernizing aging control architectures, restoring discontinued spare parts, and extending the operational life of existing ABB-based control cabinets. Whether you are replacing a failed board in an active production line or pre-stocking critical spares for a planned system upgrade, the 3BHE004573R0141 provides a reliable, tested solution with a 12-month warranty and verified shipment testing before dispatch.

This interface board is commonly deployed in ABB drive systems and excitation control platforms where the UFC760 module family handles communication bridging, signal conditioning, and backplane interfacing. The BE141 designation identifies the specific hardware revision, which is critical when sourcing replacements for systems that cannot accept cross-revision substitutions without firmware or configuration adjustments. NINERMAS maintains verified inventory of this module to support urgent replacement needs and planned retrofit projects alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 3BHE004573R0141 in an operational ABB control system requires careful pre-work to avoid extended downtime. Before removing the existing UFC760 BE141 board, maintenance engineers should document the current DDCS node address, fiber optic channel assignments, and any parameter sets stored locally on the module. In systems where the UFC760 interfaces with an ABB AC800M controller or a PM864A/PM865A processor module, the control program logic should be backed up to the engineering workstation using ABB Control Builder M prior to any hardware intervention.

The UFC760 BE141 typically occupies a defined slot within an ABB S800 I/O station or a dedicated drive control rack. When planning the retrofit, confirm that the replacement board’s hardware revision (R0141) matches the slot’s firmware expectations. In some ACS800 drive configurations, the UFC760 communicates over a DDCS fiber ring that also connects to RDCO-02 or RDCO-04 DDCS communication option boards mounted in the drive inverter unit. Any change to the UFC760 node address will require corresponding updates to the DDCS ring topology settings in the drive parameter group.

For control cabinets that also house ABB NPBA-12 PROFIBUS adapter modules or NETA-21 remote monitoring units, verify that the UFC760 replacement does not disrupt the fieldbus segment. If the existing system uses an ABB CI854A PROFIBUS DP interface module for upstream SCADA communication, the I/O mapping between the UFC760 and the CI854A should be re-validated after the board swap. Similarly, if the cabinet includes ABB AI810 or AO810 analog I/O modules that feed signals through the UFC760 interface layer, signal scaling and channel assignments must be confirmed against the original engineering documentation.

In excitation control applications using the ABB Unitrol 6000 platform, the UFC760 BE141 may serve as the primary interface between the excitation controller and the generator protection relay. In this context, replacing the board requires coordination with the protection relay configuration to ensure that trip and alarm signals are correctly re-established after commissioning. An ABB SDCS-CON-4 control board or equivalent drive control card in the same cabinet may also need parameter verification if it shares a communication segment with the UFC760.

Where the retrofit involves migrating from an older ABB Masterpiece or MOD 300 control platform to a current AC800M architecture, the UFC760 BE141 often acts as a bridge module during the transition phase. In these phased migration projects, the board may need to coexist with legacy ABB DSMB 110 or DSQC 500-series components until the full cutover is complete. NINERMAS can advise on compatible module combinations and supply the associated components to support a complete retrofit bill of materials.

Downtime Control During System Migration

Minimizing production downtime during a UFC760 BE141 board replacement begins with preparation, not execution. The most effective approach is to perform all pre-swap configuration work — parameter export, DDCS topology documentation, HMI tag list review, and fiber optic channel mapping — during a scheduled maintenance window before the actual hardware change. This allows the physical swap to be completed in the shortest possible time, often within a single shift.

When the system cannot be taken fully offline, a staged approach is recommended: isolate the UFC760’s DDCS channel from the ring, insert the replacement 3BHE004573R0141 board, restore the fiber connections, and re-commission the node address before re-integrating the channel into the active ring. This method preserves the control continuity of other nodes on the DDCS ring — such as the AC800M controller and any connected ACS800 drive units — while the replacement board is being initialized.

After the board swap, the commissioning sequence should include a full I/O check against the original signal list, a DDCS communication test to confirm node visibility from the controller, and an HMI screen validation to ensure that all process values are displaying correctly. If the system uses ABB Control Builder M for program management, a live comparison between the pre-swap and post-swap program states should be performed to confirm that no logic has been inadvertently altered. NINERMAS provides pre-shipment function testing on all UFC760 BE141 units to reduce the risk of receiving a non-functional board, and the 12-month warranty covers any latent defects identified after installation.

Retrofit Support FAQ

Q1: Is the 3BHE004573R0141 a direct drop-in replacement for my existing UFC760 BE141 board?
In most cases, yes — provided your existing board carries the same R0141 hardware revision. If your current board is a different revision (e.g., R0001 or R0101), a firmware compatibility check is recommended before installation. Contact NINERMAS with your system’s serial number and drive type for a pre-sale compatibility confirmation.

Q2: What commissioning steps are required after installing the replacement board?
After physical installation, you will need to re-confirm the DDCS node address, verify fiber optic channel assignments, and perform an I/O signal check. In drive applications, re-run the drive ID run or motor identification routine if the UFC760 is involved in motor control parameter management. HMI screens connected to the UFC760’s data points should be validated for correct tag mapping.

Q3: Does NINERMAS test the board before shipment, and what does the warranty cover?
Yes. Every 3BHE004573R0141 unit is function-tested prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental factors outside the module’s rated specifications.

Q4: How quickly can NINERMAS supply the 3BHE004573R0141, and is stock available for urgent orders?
NINERMAS maintains in-stock inventory of the 3BHE004573R0141 to support urgent replacement needs. Standard lead time for in-stock units is 3–7 business days for international shipments. For critical production line failures, expedited shipping options are available. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and arrange priority dispatch.
