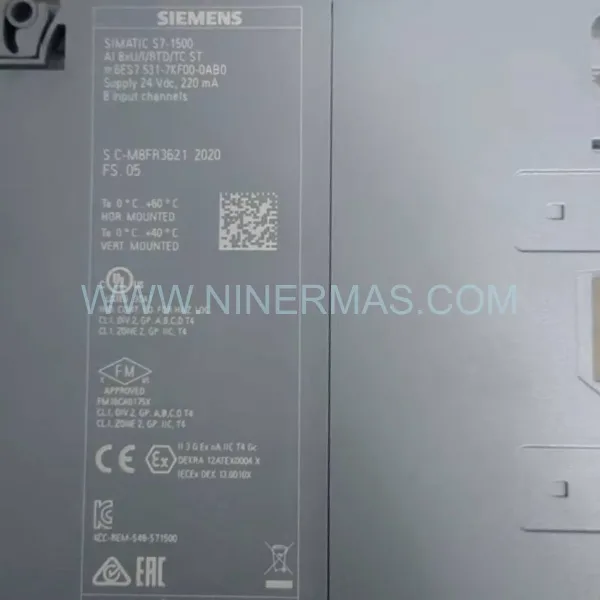

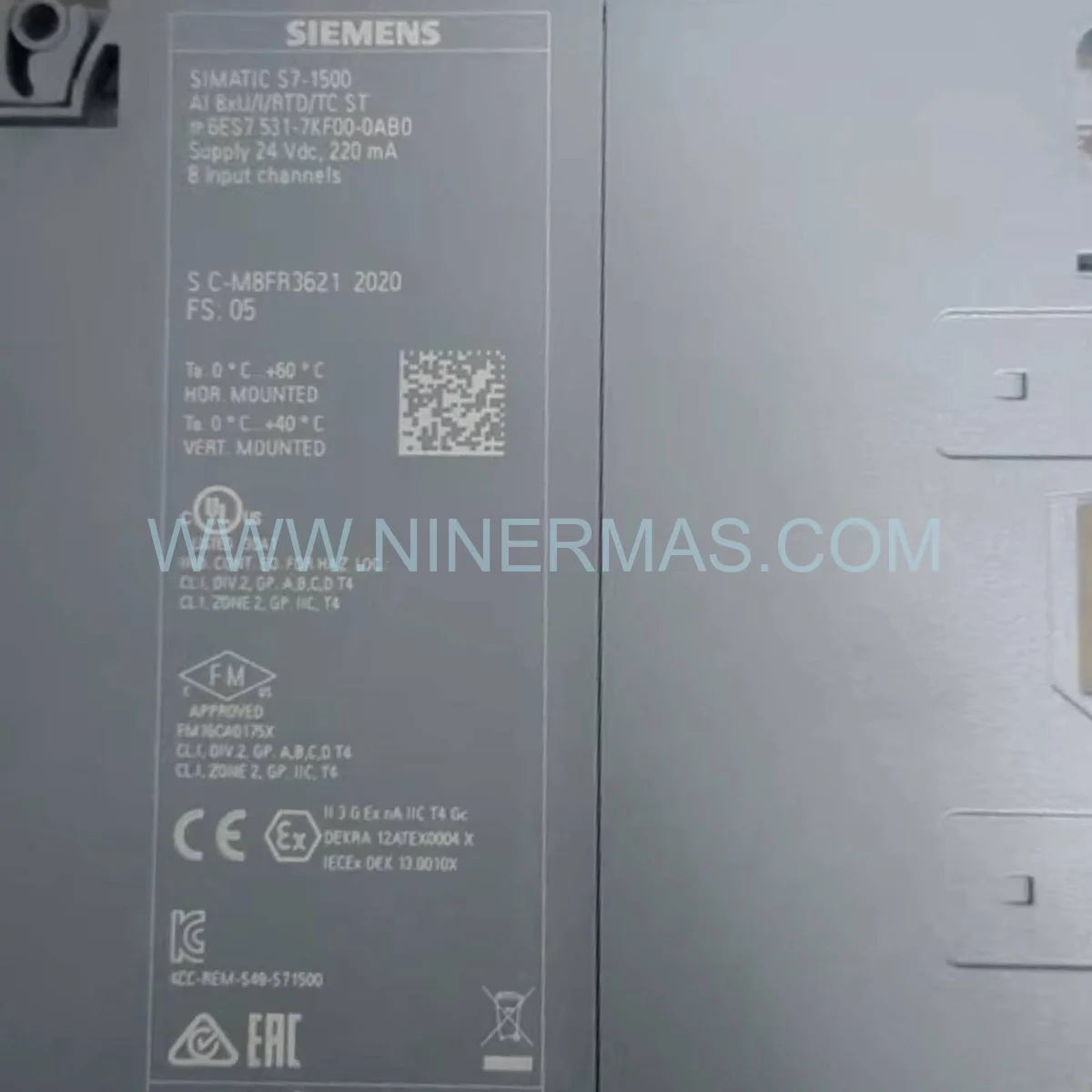

Siemens 6ES7531-7KF00-0AB0 Analog Input Module | S7-1500 AI 8xU/I/RTD/TC ST

Siemens 6ES7531-7KF00-0AB0 | Reliable Automation Component for Mission-Critical Applications

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the Siemens 6ES7531-7KF00-0AB0 stands as a cornerstone I/O module for sustaining system availability in SIMATIC S7-1500 architectures. Its 8-channel universal analog input design consolidates voltage, current, RTD, and thermocouple acquisition into a single slot — directly reducing rack complexity and eliminating inter-module signal conversion latency. In mission-critical environments where every millisecond of unplanned downtime translates to measurable production loss, the 6ES7531-7KF00-0AB0 delivers the deterministic scan cycles and channel-level diagnostics that SRE teams depend on for proactive fault isolation.

Deployed across petrochemical reactors, turbine control panels, and high-voltage switchgear enclosures, this module demonstrates exceptional resilience under thermal stress and electromagnetic interference. Its galvanic isolation architecture decouples field-side transients from the backplane bus, protecting CPU integrity during surge events. Installation teams should note that horizontal mounting is rated to +60°C ambient — vertical orientation reduces this ceiling and must be accounted for in thermal derating calculations during cabinet layout. Shielded twisted-pair cabling and proper grounding of the front connector shield terminal are non-negotiable for RTD accuracy in high-noise environments.

For maintenance planners operating legacy or end-of-life SIMATIC S7-1500 lines, securing a verified stock of the 6ES7531-7KF00-0AB0 as a critical spare is a fundamental risk-mitigation strategy. Lead times for new production runs can extend beyond acceptable MTTR windows; holding pre-tested, original-factory units on-site ensures that analog signal acquisition is restored within a single maintenance shift rather than weeks.

Key Operational Features

Universal 8-Channel Input: Each channel independently configurable for U (±10V/±5V/±2.5V/±1.25V), I (±20mA/0-20mA/4-20mA), RTD (Pt100/Pt200/Pt500/Pt1000/Ni100/Ni1000), or TC (Type B/E/J/K/N/R/S/T) — maximizing sensor flexibility without additional modules.
16-Bit Resolution: ±27,648 count range delivers sub-millivolt discrimination, essential for precision process optimization in pharmaceutical and chemical dosing applications.
Galvanic Channel Isolation: Protects backplane bus from field-side ground loops and transient surges — a core requirement for high-availability system integration in power generation environments.
Configurable Conversion Time: Selectable from 2.5ms to 100ms per channel, enabling engineers to balance scan speed against noise rejection for each specific sensor type.
Comprehensive Diagnostics: Channel-specific fault reporting via TIA Portal — wire-break, overrange, underrange, and supply voltage monitoring — supports predictive maintenance workflows and reduces unscheduled outages.
Hot-Swap Capability: Module replacement without full system shutdown preserves operational excellence in 24/7 production environments.
Seamless TIA Portal Integration: Native GSD/GSDML support with automatic parameter upload/download eliminates manual reconfiguration after module exchange.

Maintenance & Performance Benchmarks

The 6ES7531-7KF00-0AB0 is engineered to slot into both small-scale standalone S7-1500 racks and large distributed I/O architectures spanning multiple ET 200MP stations over PROFINET. In redundant CPU configurations (S7-1500R/H), the module participates in bumpless switchover sequences, maintaining analog data continuity during controller failover events — a benchmark that few third-party alternatives can match.

Accuracy specifications hold at ±0.3% of full scale for voltage and current channels, and ±0.5°C for RTD/thermocouple channels under reference conditions. Field experience confirms that these figures are reproducible across the full 0-60°C operating range when installation guidelines are observed. Calibration drift over a 12-month service interval remains within factory tolerance, reducing the frequency of scheduled recalibration shutdowns and contributing directly to overall equipment effectiveness (OEE) targets.

For automation components in safety-instrumented systems (SIS), the module’s diagnostic coverage and systematic capability ratings should be verified against the specific SIL target of the loop. Integration with SIMATIC Safety CPUs requires confirmation of the applicable firmware compatibility matrix in the Siemens product documentation.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6ES7531-7KF00-0AB0 dispatched from our inventory is supplied in original factory packaging with intact Siemens holographic seals and full traceability documentation. We maintain dedicated buffer stock of high-velocity SIMATIC S7-1500 automation components to support same-day dispatch for orders confirmed before the daily cut-off — a critical advantage when production lines are down and every hour carries a cost.

Our global supply network is specifically structured to source EOL (End-of-Life) and legacy modules that have been discontinued from standard distribution channels. For facilities running long-lifecycle SIMATIC platforms, this means access to verified original parts without the risk of counterfeit substitutes entering the maintenance supply chain. All units are inspected against Siemens factory specifications prior to shipment, and export documentation is prepared to comply with international trade regulations for seamless customs clearance across major industrial markets.

Worldwide express logistics partnerships ensure delivery to North America, Europe, Southeast Asia, and the Middle East within 3-7 business days under standard conditions, with expedited options available for emergency plant recovery scenarios.

Engineering Support & FAQ

Q1: What is the correct installation sequence for replacing a 6ES7531-7KF00-0AB0 in a live S7-1500 rack?
A: With hot-swap enabled, power down the front connector, remove the module, insert the replacement, and reconnect the front connector. TIA Portal will automatically upload the stored parameter set from the CPU to the new module. Verify channel diagnostics in the online device view before returning the loop to automatic control.

Q2: Which TIA Portal and CPU firmware versions are compatible with this module?
A: The 6ES7531-7KF00-0AB0 requires TIA Portal V13 SP1 or higher and SIMATIC S7-1500 CPU firmware V2.0 or later. For advanced diagnostic features and HART pass-through (if applicable), V15.1+ is recommended. Always cross-reference the Siemens compatibility matrix (SIOS) for your specific CPU variant.

Q3: Can individual channels be configured for different signal types simultaneously?
A: Yes. Each of the 8 channels is independently parameterized via TIA Portal hardware configuration. A single module can simultaneously acquire thermocouple data on channels 1-3, RTD signals on channels 4-5, and 4-20mA current loops on channels 6-8 without any hardware modification.

Q4: How is the warranty claim process handled for this module?
A: Units are covered by a 12-month warranty from the date of invoice. To initiate a claim, contact our technical support team with the purchase order reference and a description of the observed fault. We arrange return logistics and dispatch a replacement unit upon receipt and inspection — minimizing your system downtime exposure.

Q5: What are the wiring requirements for RTD 4-wire measurement to achieve rated accuracy?
A: For 4-wire RTD connections, use the dedicated IC+/IC- excitation terminals alongside the IM+/IM- measurement terminals as defined in the module wiring diagram. Shielded cable with the shield grounded at one end (preferably the cabinet end) is mandatory. Wire resistance up to 100Ω per conductor is compensated by the 4-wire topology, preserving ±0.5°C accuracy.

Q6: Is this module suitable for use in SIL-rated safety loops?
A: The standard 6ES7531-7KF00-0AB0 is a non-safety (standard) module and is not independently SIL-certified for use as a safety I/O device. For SIL 2/3 applications, Siemens offers dedicated F-modules within the ET 200MP range. The standard module may be used for monitoring functions outside the safety function boundary, subject to your SIS design authority’s approval.
