ABB DI803 3BSE022362R1 | 230V AC Digital Input Module (New & Original)

ABB DI803 3BSE022362R1 | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the ABB DI803 3BSE022362R1 stands as a cornerstone I/O module for sustaining system availability in distributed control architectures. Deployed within ABB 800xA and Advant OCS platforms, this 8-channel 230V AC digital input module enables precise, galvanically isolated signal acquisition from high-voltage field devices — directly contributing to Process Optimization and Operational Excellence across power generation, chemical processing, and water treatment facilities. Its role in real-time status monitoring of motor contactors, valve limit switches, and safety interlocks makes it indispensable for uninterrupted production continuity.

In harsh industrial environments characterized by elevated EMI, ground potential differentials, and thermal cycling, the ABB DI803 3BSE022362R1 demonstrates exceptional durability. Each of its 8 channels features individual galvanic isolation rated at 2.5kV test voltage, effectively shielding the control backplane from transient overvoltages and cross-channel interference. Installation engineers should ensure proper DIN rail grounding and verify AC supply frequency compatibility (50/60 Hz) prior to commissioning to maximize long-term module integrity.

As production lines age and OEM support windows close, maintaining a verified stock of the DI803 3BSE022362R1 as a critical spare part is a non-negotiable element of any proactive maintenance strategy. Its proven track record in mission-critical installations worldwide positions it as a benchmark Automation Component for System Integration projects requiring zero-compromise reliability.

Key Operational Features

8-Channel High-Voltage Input: Independently processes 230V AC signals (180-265V AC range) across all channels simultaneously
Channel-Level Galvanic Isolation: 2.5kV isolation per channel eliminates cross-channel interference and protects downstream hardware
Seamless System Integration: Native compatibility with ABB 800xA and Advant OCS via S800 I/O communication modules
High Availability Design: Supports hot-swap operation — modules can be replaced without halting the process
Redundancy-Ready Architecture: Engineered to operate within redundant I/O topologies for maximum uptime assurance
Onboard Diagnostic LEDs: Instant visual channel-status feedback accelerates fault isolation and reduces MTTR
Compact DIN Rail Footprint: Optimized for high-density panel layouts without sacrificing thermal performance

Maintenance & Performance Benchmarks

The DI803 3BSE022362R1 is engineered to adapt across diverse industrial network architectures — from small standalone control panels to large-scale distributed I/O networks spanning multiple process units. In multi-drop S800 I/O bus configurations, the module maintains deterministic response times under 20ms, ensuring that safety interlock logic and process control loops receive accurate, time-stamped digital state data without latency-induced errors.

Preventive maintenance cycles for this module should include periodic insulation resistance checks on field wiring, verification of LED diagnostic indicators against SCADA alarm logs, and firmware version audits to confirm compatibility with the host 800xA controller version. For legacy Advant OCS installations, the DI803 remains a validated replacement for aging first-generation digital input cards, enabling brownfield modernization without full system overhaul — a critical advantage for facilities prioritizing capital expenditure efficiency.

Its operating temperature range of 0°C to +60°C and compliance with RoHS, CE, and UL standards confirm suitability for global deployment, including facilities subject to IEC 61511 functional safety requirements.

Comprehensive Data Sheet

| Attribute | Technical Data | |—|—| | Full Part Number | 3BSE022362R1 | | Model | DI803 | | Brand | ABB | | Module Type | Digital Input Module | | Number of Channels | 8 | | Input Voltage | 230V AC nominal (180-265V AC) | | Input Frequency | 50 / 60 Hz | | Isolation Type | Galvanic, per channel | | Isolation Test Voltage | 2.5 kV | | Response Time | <20 ms typical | | Operating Temperature | 0°C to +60°C | | Mounting | DIN rail | | Compatible Systems | ABB 800xA, Advant OCS | | Communication Bus | S800 I/O | | Hot-Swap Support | Yes | | Certifications | RoHS, CE, UL | | Country of Origin | Switzerland | | Weight | 0.3 kg |

Professional Logistics & Sourcing Excellence

Every ABB DI803 3BSE022362R1 unit dispatched from our inventory is supplied in Original Factory Packaging, complete with manufacturer labels and traceability documentation — ensuring authenticity verification upon receipt. For urgent production recovery scenarios, same-day dispatch is available for in-stock units, with worldwide express logistics options covering DHL, FedEx, and UPS priority services to minimize plant downtime.

We specialize in global supply of EOL (End-of-Life) and Legacy Automation Modules, maintaining buffer stock of the DI803 3BSE022362R1 to support facilities where ABB has discontinued standard distribution channels. Our sourcing network spans certified industrial distributors across Europe, Asia, and the Americas, guaranteeing access to genuine components regardless of regional availability constraints. All units are subject to pre-shipment functional inspection and carry a 1-Year Warranty covering manufacturing defects and operational failures under normal service conditions.

Engineering Support & FAQ

Q1: What are the installation prerequisites for the DI803 3BSE022362R1 in an 800xA system?
The module must be installed on a compatible S800 I/O station with an assigned CI840 or equivalent communication interface module. Verify that the 800xA engineering workspace has the correct hardware library version loaded before adding the DI803 to the hardware configuration tree. Ensure DIN rail grounding continuity and confirm AC supply voltage is within the 180-265V AC operating range prior to energizing.

Q2: Which firmware versions of ABB 800xA are compatible with the DI803 3BSE022362R1?
The DI803 is supported across ABB 800xA versions 5.0 through 6.1 and all Advant OCS MasterBus 300 configurations. For installations running 800xA 6.1 SP2 or later, confirm that the S800 I/O device library patch KB-3BSE078901 is applied to avoid diagnostic polling conflicts. Contact ABB technical support or your system integrator for firmware compatibility matrices specific to your controller baseline.

Q3: Can the DI803 3BSE022362R1 be replaced online without shutting down the process?
Yes. The DI803 supports hot-swap replacement within S800 I/O stations that have been configured for redundant or non-redundant online maintenance mode. After physical module swap, the 800xA system will automatically re-initialize the channel configuration within approximately 30 seconds. Confirm channel status via the faceplate diagnostic view before returning the loop to automatic control.

Q4: What warranty coverage applies to units purchased through your store?
All DI803 3BSE022362R1 units are covered by a 1-Year Warranty from the date of shipment. Warranty claims are processed within 5 business days upon receipt of the defective unit. Coverage includes free-of-charge replacement or full refund for confirmed manufacturing defects. Physical damage resulting from incorrect installation voltage or improper handling is excluded from warranty scope.

Q5: How do I verify the authenticity of a DI803 3BSE022362R1 upon receipt?

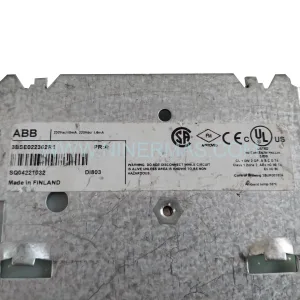

Authentic units feature a holographic ABB traceability label on the module housing with a scannable QR code linking to ABB’s product verification portal. The part number 3BSE022362R1 and serial number should be cross-referenced against the packing slip. Counterfeit modules typically exhibit inconsistent label printing quality and missing CE/UL markings on the terminal block housing.

Q6: What are the recommended spare part stocking levels for the DI803 3BSE022362R1?
For facilities operating more than 10 DI803 units, a minimum buffer of 2 spare modules per I/O station is recommended to cover both planned maintenance windows and unplanned failures. Given the EOL status of certain ABB S800 series components, procuring a 12-24 month forward stock is advisable to mitigate supply chain disruption risk for mission-critical process control applications.
