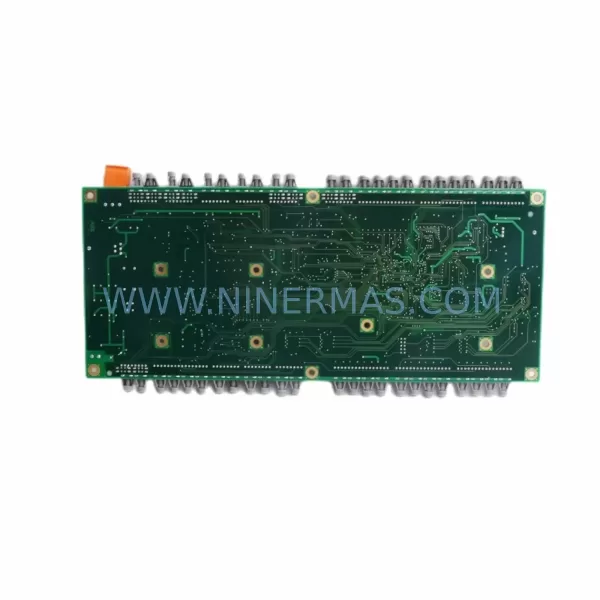

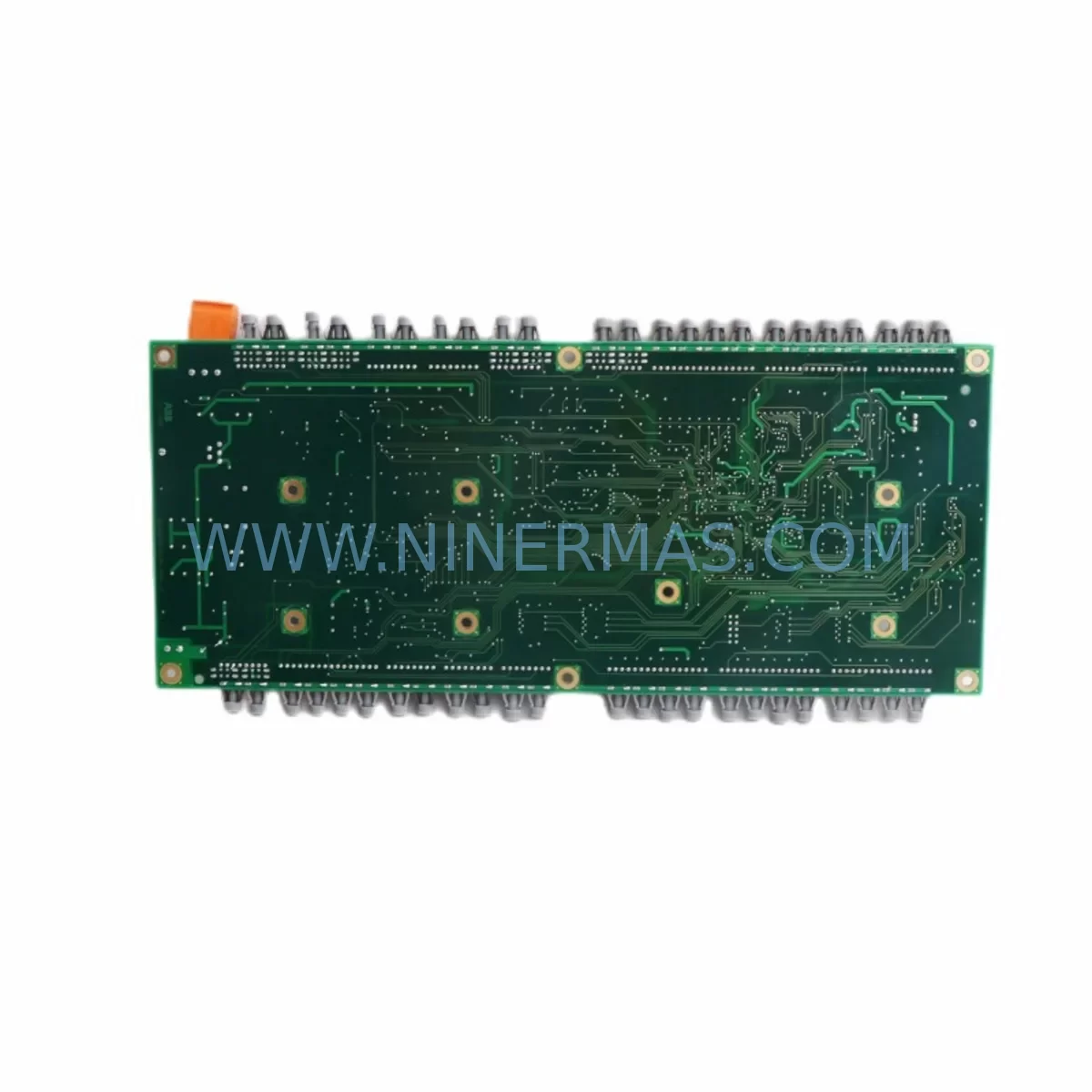

ABB 3BHE004573R0145 UFC760 BE145 Retrofit Excitation Board

ABB 3BHE004573R0145 UFC760 BE145 Retrofit Excitation Board: Legacy System Compatibility & Smooth Upgrade

The ABB 3BHE004573R0145, also referenced as UFC760 BE145, is a critical excitation control board used within ABB’s UNITROL excitation system platform. As legacy power generation and industrial drive systems age beyond their original support lifecycle, this board has become one of the most sought-after retrofit and replacement components for engineers tasked with modernizing aging generator control panels, turbine excitation cabinets, and synchronous motor drive systems. Whether you are replacing a failed unit in an operating plant or proactively stocking spares to extend the service life of a UNITROL 5000 or UNITROL 6000 installation, the 3BHE004573R0145 UFC760 BE145 provides a verified drop-in solution that minimizes engineering rework and reduces unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 3BHE004573R0145 UFC760 BE145 into an existing excitation system requires careful pre-installation planning. Before removing the legacy board, engineers should document the current AVR parameter set, PSS (Power System Stabilizer) tuning values, and any site-specific excitation ceiling settings stored in the UNITROL controller. These parameters are typically backed up via the ABB UNITROL commissioning software or extracted through the system’s HMI interface — often an ABB Panel 800 or CP600 operator panel — before any hardware is disturbed.

The rack and backplane assembly must be inspected for corrosion, loose connectors, and backplane bus integrity. In many aging UNITROL installations, the UNS0881A-P or UNS0886A power supply module may also be approaching end of life and should be evaluated for concurrent replacement to avoid a secondary failure shortly after the board swap. Similarly, the UFC760 BE145 communicates over the internal rack bus, so the integrity of the UNS0880A communication interface module should be confirmed before commissioning the replacement board.

Terminal wiring connected to the excitation I/O — including field current feedback signals, voltage transformer inputs, and current transformer secondary circuits — must be verified against the original wiring diagram. Any discrepancy in CT polarity or VT phase assignment will cause incorrect AVR response and must be corrected before energizing the excitation system. Where the legacy installation used analog signal conditioning through a UNS0863A or similar signal processing module, confirm that the signal scaling parameters remain compatible with the replacement board’s input range.

For sites migrating from older UNITROL 3000 platforms to UNITROL 5000 or UNITROL 6000 architectures, the 3BHE004573R0145 UFC760 BE145 is frequently specified as part of a broader control cabinet upgrade that also involves replacing the main controller board, updating the PROFIBUS DP network segment, and reconfiguring the HMI display pages to reflect the new I/O mapping. In these projects, the UNS0881A-P power supply, UNS0863A signal module, and the UFC760 communication board are typically replaced as a coordinated set to ensure system-wide compatibility and to qualify the entire installation under a single commissioning sign-off.

Physical installation space should be confirmed before ordering. The UFC760 BE145 occupies a standard single-width slot in the UNITROL module rack. If the existing rack is fully populated, a rack expansion or a spare slot must be identified. In compact control cabinets where space is constrained, the overall cabinet thermal load should also be recalculated to confirm that the existing cooling arrangement — whether forced-air or natural convection — remains adequate after the retrofit.

Downtime Control During System Migration

Minimizing downtime during an excitation board replacement is a primary concern for power plant operators and industrial facility managers. The 3BHE004573R0145 UFC760 BE145 is supplied fully tested and ready for installation, which eliminates the need for bench testing on arrival and allows maintenance teams to proceed directly to installation during a planned outage window.

Before the outage begins, the complete parameter backup should already be completed and verified. A second technician should be assigned to monitor the HMI and confirm that the generator or motor returns to stable automatic voltage regulation (AVR) mode within the expected time after the board is seated and the rack is powered. The original program logic stored in the UNITROL controller is not affected by replacing the UFC760 BE145 board alone — the controller retains its configuration independently — which significantly reduces the risk of a logic-related commissioning failure.

Where the plant operates in a parallel generation configuration, the excitation system should be transferred to manual control or the unit should be taken offline before the board swap to prevent an uncontrolled reactive power excursion. After the replacement board is installed and the rack is powered, the AVR should be brought up in manual excitation mode first, with the field current set to a known reference value, before switching to automatic AVR mode and verifying voltage regulation response against the pre-outage baseline.

All replacement units supplied by NINERMAS are subject to pre-shipment functional testing to confirm that the board powers up correctly, communicates on the rack bus, and passes basic I/O verification. This testing protocol, combined with the 12-month warranty coverage, provides the assurance needed to proceed with a planned maintenance replacement rather than waiting for an in-service failure that would result in an unplanned and potentially extended outage.

Retrofit Support FAQ

Q1: Is the 3BHE004573R0145 UFC760 BE145 a direct replacement for the original ABB board?
Yes. The 3BHE004573R0145 UFC760 BE145 is a direct form-fit-function replacement for the original ABB board of the same part number. No hardware modification or firmware update is required in standard UNITROL 5000 and UNITROL 6000 installations. Parameter re-entry from backup is recommended after any board replacement as a best practice.

Q2: What pre-shipment testing is performed on each unit?
Each 3BHE004573R0145 UFC760 BE145 supplied by NINERMAS undergoes functional power-on testing, rack bus communication verification, and I/O channel continuity checks before dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: How do I confirm wiring compatibility before installation?
Cross-reference the terminal assignment diagram in the ABB UNITROL installation manual for your specific rack configuration. Pay particular attention to CT secondary circuit polarity, VT phase sequence, and the 24 VDC auxiliary supply connection. If the original wiring documentation is unavailable, NINERMAS technical support can assist with identifying the correct terminal layout based on your system serial number.

Q4: What is the typical lead time and do you hold stock?
NINERMAS maintains inventory of the 3BHE004573R0145 UFC760 BE145 to support urgent replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity or project-based orders, please contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to confirm availability and arrange priority dispatch.
