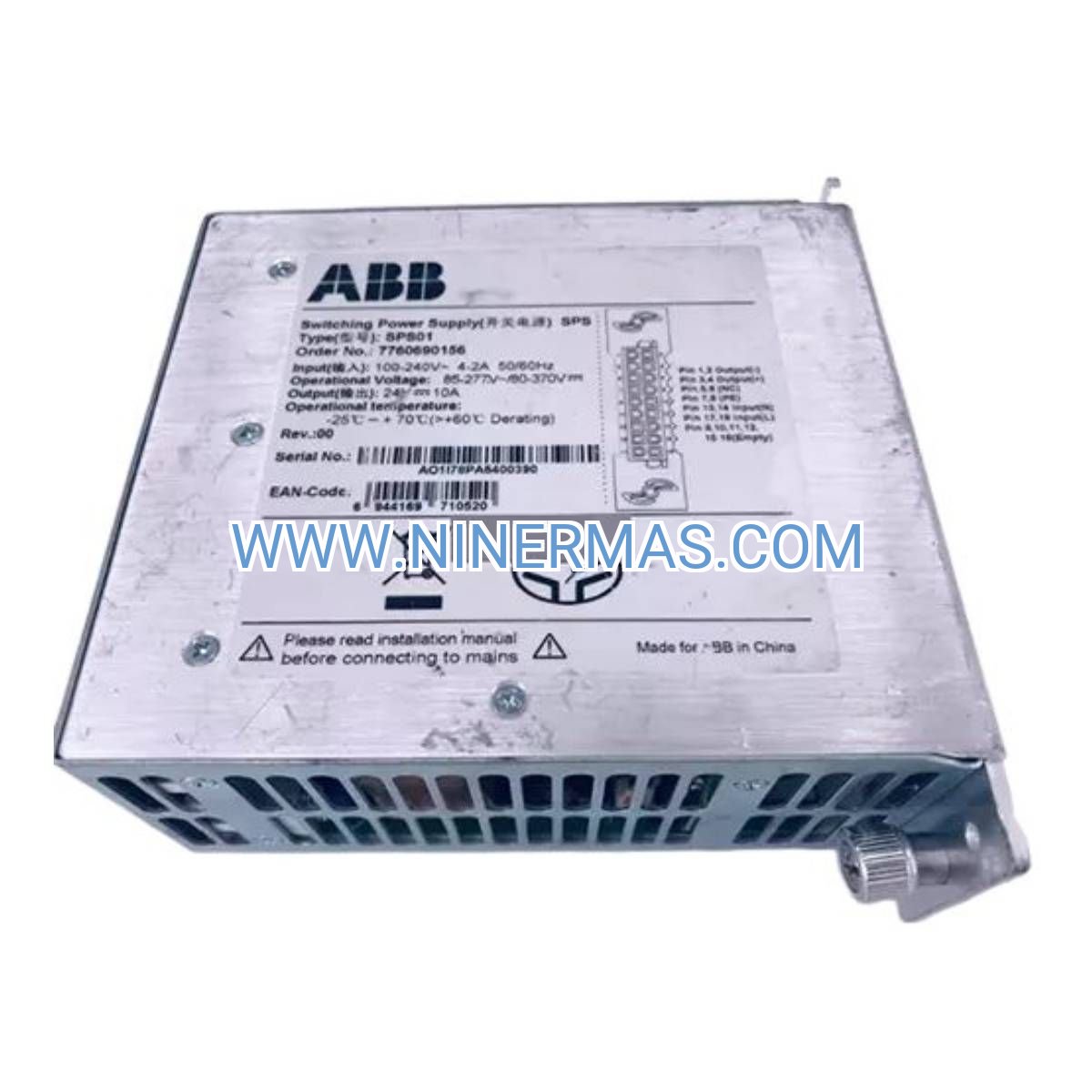

SPS01 Industrial Power Module (24VDC/10A Regulated Output)

ABB's SPS01 (Part No. 2VAA008278R001) delivers precision-regulated 24-volt DC power at 10 amperes continuous capacity, engineered for mission-critical industrial control applications. This MPS IV-series module combines compact DIN-rail mounting with wide-range AC input acceptance, making it the preferred choice for distributed automation architectures requiring stable, low-noise auxiliary power.

Designed for process industries, manufacturing facilities, and infrastructure systems, the SPS01 addresses voltage fluctuation challenges while maintaining <50mV ripple performance. Its auto-sensing input (100-240VAC) eliminates regional voltage concerns, while built-in protection circuits safeguard downstream instrumentation from transient events and overload conditions.

Whether powering PLC I/O racks, field transmitters, or control valve positioners, this power module ensures uninterrupted operation through thermal management rated to +70°C ambient and efficiency exceeding 89% at full load—reducing cabinet heat buildup and operational costs simultaneously.

Key Performance Features & Industrial Benefits

→ Universal Input Compatibility: 100-240VAC auto-sensing eliminates voltage-specific inventory; single SKU serves global installations with 50/60Hz tolerance
→ Peak Current Reserve: 12A surge capacity (5-second duration) handles inrush from solenoid valves, contactors, and motor starters without nuisance trips
→ Extended Temperature Range: -25°C to +70°C operation suits outdoor enclosures, unheated facilities, and high-ambient manufacturing zones
→ Multi-Layer Protection: Integrated overload, short-circuit, and over-temperature shutdown with auto-recovery preserves equipment lifespan
→ Low EMI Design: CE/UL certified construction minimizes electromagnetic interference with sensitive analog signals and communication networks
→ Diagnostic Indicators: Tri-color LED array (AC OK/DC OK/Fault) enables rapid troubleshooting without multimeter access

Proven Application Environments

Chemical & Petrochemical Processing:
Powers explosion-proof junction boxes, 4-20mA transmitters, and emergency shutdown logic in hazardous area classifications. The SPS01's wide temperature tolerance and sealed construction withstand corrosive atmospheres while maintaining ±2% voltage regulation critical for analog signal accuracy.

Water & Wastewater Treatment:
Energizes SCADA remote terminal units, level sensors, and chlorination control panels across distributed pump stations. Parallel redundancy configurations (using optional decoupling modules) ensure 24/7 uptime for municipal infrastructure where power interruptions trigger environmental compliance violations.

Automotive Manufacturing:
Supports robotic welding cells, vision inspection systems, and conveyor interlocks requiring synchronized power-up sequencing. The 12A peak rating accommodates pneumatic valve manifolds and servo brake releases without voltage sag affecting position encoders.

Food & Beverage Production:
Drives sanitary sensor networks, CIP (clean-in-place) valve clusters, and temperature monitoring arrays in washdown-rated enclosures. Stainless mounting compatibility and conformal-coated PCBs resist moisture ingress during high-pressure cleaning cycles.

Building Automation Systems:
Provides auxiliary power for BACnet controllers, VAV damper actuators, and fire alarm notification circuits in commercial high-rises. Compact 125mm width maximizes panel density when co-located with lighting contactors and HVAC sequencers.

Technical Specifications & Selection Criteria

Selection Guidelines:
Calculate total load current including 20% safety margin. For applications requiring >8A continuous above 50°C ambient, consider forced-air cooling or the SPS02 (20A) variant. Redundant configurations demand N+1 architecture using ABB's current-sharing accessories (order separately). Wire sizing: 14AWG minimum for output runs <3m; 12AWG for cabinet-to-field distances exceeding 10 meters to maintain <0.5V drop.

Advanced Integration Capabilities

Parallel Redundancy: Deploy multiple SPS01 units with diode-OR output coupling for automatic failover. Status monitoring via dry-contact relays enables SCADA alarm integration without additional I/O modules.

MPS IV Ecosystem: Hot-swappable when mounted on ABB BP03 base plates. Compatible with monitoring modules providing real-time voltage/current telemetry over Modbus RTU or Profibus DP networks.

Custom Configurations: Factory pre-wiring services available for OEM panel builders requiring terminal block adapters, surge suppression, or conformal coating upgrades for marine/offshore applications.

Delivery Terms & Service Commitments

✓ Lead Time: Stock items ship within 24-48 hours; custom configurations 5-7 business days
✓ Warranty: 12-month comprehensive coverage including parts, labor, and return shipping
✓ Technical Support: Application engineering assistance via phone/email; on-site commissioning available for multi-unit installations
✓ Documentation: Complete package includes installation manual, wiring diagrams, CAD drawings (STEP/DWG), and compliance certificates

Frequently Asked Questions

What wire termination method does the SPS01 power supply module use?
Screw-clamp terminals accept 12-22AWG solid or stranded conductors. Torque specification: 0.5-0.6 Nm. Ferrule use recommended for stranded wire to prevent strand breakage during maintenance.

Can this 24V industrial power supply operate in parallel for increased current capacity?
Yes—up to four SPS01 units parallel via current-sharing modules (ABB part CSM-04) for 40A total. Each unit requires individual input circuit protection (2A slow-blow fuse recommended).

How does the SPS01 compare to switch-mode versus linear power supply designs?
This is a high-frequency switch-mode topology offering 89%+ efficiency versus 50-60% for linear types. Reduced heat dissipation allows higher density installations—critical for space-constrained control panels.

What input circuit protection rating is required for the MPS IV power module?
Install 2A Type C or D circuit breaker on AC input. Alternatively, use 3AG slow-blow fuses rated 2.5A. Output side requires separate protection per NEC Article 725 for Class 2 circuits.

Does the unit support remote on/off control for energy management systems?
Standard model lacks remote enable input. For scheduled shutdown applications, specify SPS01-RC variant with 24VDC enable signal (5mA draw). Consult factory for retrofit kits on existing installations.

What is the expected service life in continuous industrial operation?
Electrolytic capacitor lifespan determines replacement interval: 7-10 years at 40°C ambient, 4-5 years at 60°C. Preventive maintenance includes annual terminal re-torque and dust removal from ventilation slots.

Order Your ABB SPS01 Power Supply Today

Ensure reliable 24VDC power for your automation infrastructure. Contact our technical sales team for quantity pricing, application review, or integration support. Expedited shipping available for urgent project timelines.
