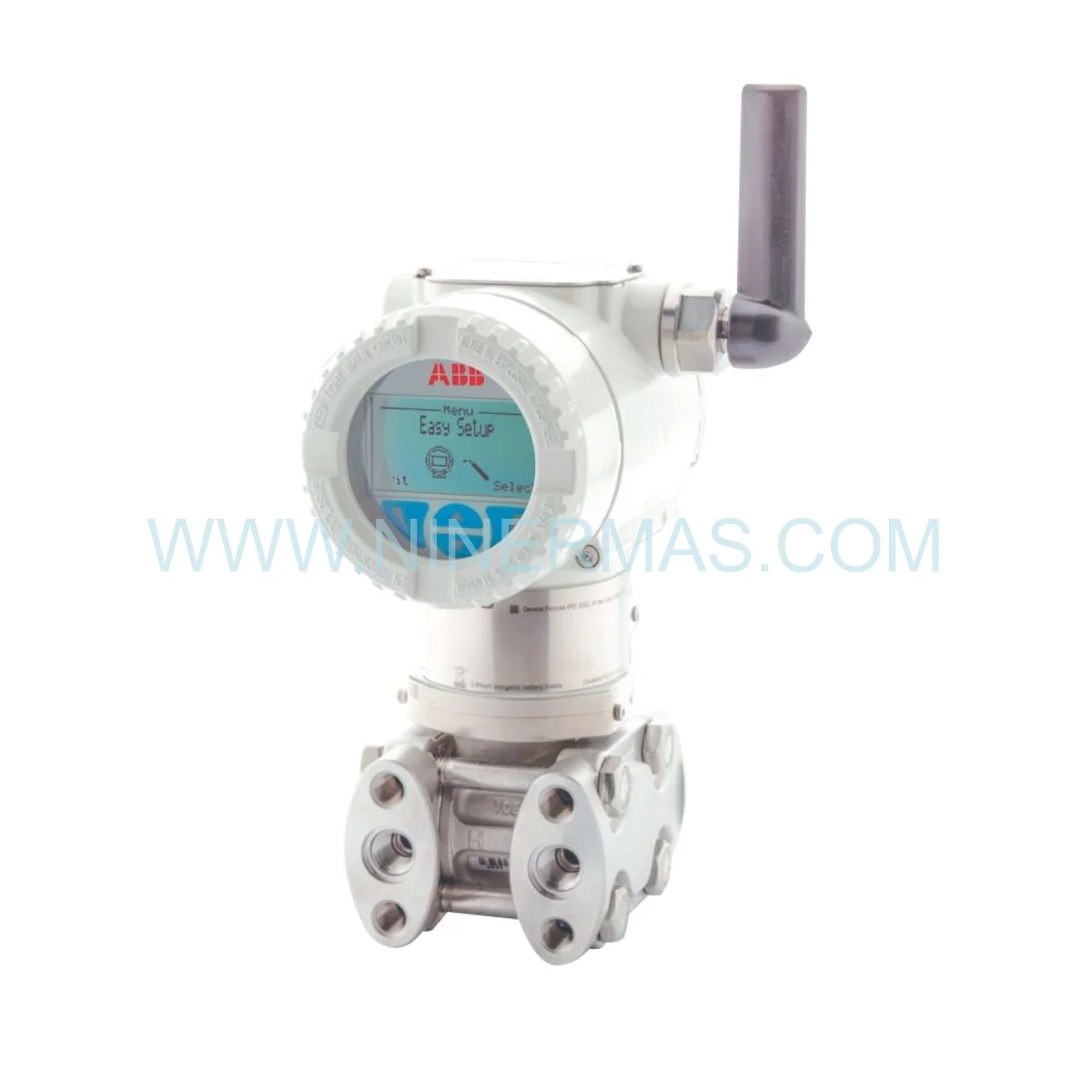

ABB 266DSH Differential Pressure Transmitter (Industrial-Grade Process Control)

Engineered for mission-critical industrial environments, the ABB 266DSH differential pressure transmitter delivers uncompromising measurement accuracy and long-term reliability. This advanced instrumentation solution addresses the most demanding process control challenges across oil & gas, chemical manufacturing, power generation, and water treatment facilities where precision and safety are non-negotiable.

Built on ABB's proven silicon resonant sensor technology, the 266DSHESSA2A1V2L1B1 model combines exceptional 0.06% accuracy with 100:1 turndown capability, enabling precise measurement across wide operating ranges. The integrated HART digital communication protocol ensures seamless integration with modern DCS and SCADA systems while providing advanced diagnostics for predictive maintenance strategies.

What sets this transmitter apart is its Through-The-Glass (TTG) configuration technology—a revolutionary feature that allows complete parameter adjustment without compromising explosion-proof integrity. This innovation reduces commissioning time by 60% and eliminates costly hot work permits in hazardous classified areas, delivering immediate operational and safety benefits.

Technical Specifications & Performance Metrics

Measurement Performance:

• ✓ Accuracy Class: 0.06% of calibrated span (upgradeable to 0.04%)
• ✓ Measurement Range: 0.54–16 kPa (5.4–160 mbar / 2.16–64 in. H₂O)
• ✓ Turndown Capability: 100:1 for maximum application flexibility
• ✓ Stability Performance: 0.15% URL drift over 10-year operational life
• ✓ Response Time: <90 ms for rapid process changes

Communication & Output:

• → 4-20 mA analog output with superimposed HART digital signal
• → NAMUR NE107 compliant diagnostics for asset health monitoring
• → Integral LCD display with real-time process visualization
• → TTG magnetic keypad for intrinsically safe configuration

Construction Materials:

• • Wetted Parts: AISI 316L stainless steel (NACE MR0175 compliant)
• • Fill Fluid: Silicone oil for temperature stability
• • Housing: Aluminum alloy barrel construction
• • Process Connection: 1/4 in. NPT female, horizontal orientation
• • Electrical Entry: 1/2 in. NPT conduit connection

Application Scenarios & Industry Solutions

1. Flow Measurement in Pipeline Systems
Monitor differential pressure across orifice plates, venturi meters, and flow nozzles for accurate mass and volumetric flow calculation in custody transfer and process control applications. The high turndown ratio accommodates varying flow conditions without sacrificing accuracy.

2. Tank Level Monitoring
Measure hydrostatic pressure differential for precise level detection in storage tanks, reactors, and separators. The NACE-compliant wetted materials ensure corrosion resistance in aggressive chemical environments and sour gas service.

3. Filter Performance Tracking
Continuously monitor pressure drop across filtration systems to optimize changeout schedules and prevent system failures. Early detection of filter loading reduces energy consumption and extends equipment life by 30-40%.

4. Pump & Compressor Protection
Track differential pressure across rotating equipment for performance optimization and predictive maintenance. SIL2/SIL3 certification enables integration into safety shutdown systems for overpressure protection.

5. Leak Detection Systems
Deploy in critical containment monitoring where sensitive pressure differential measurement provides early warning of seal failures, valve leakage, or system breaches before catastrophic events occur.

Key Benefits & Competitive Advantages

Operational Excellence:

• Reduced Maintenance Burden: 10-year stability specification minimizes calibration frequency, cutting maintenance costs by up to 50% compared to conventional transmitters
• Enhanced Safety Compliance: IEC 61508 SIL3 certification (1oo2 configuration) meets the highest functional safety requirements for process shutdown systems
• Simplified Commissioning: TTG technology enables complete configuration without housing removal, reducing installation time from hours to minutes
• Universal Compatibility: Standard 4-20 mA output ensures plug-and-play integration with legacy control systems while HART provides future-ready digital capabilities

Environmental Resilience:

• Operating temperature: -40°C to +85°C ambient
• Ingress protection: IP66/IP67 for harsh outdoor installations
• Vibration resistance: IEC 60068-2-6 compliant for rotating equipment mounting
• EMC immunity: Industrial-grade electromagnetic compatibility per IEC 61326

Model Code Decoder: 266DSHESSA2A1V2L1B1

Advanced Features & Technology Integration

Digital Sensor Architecture: The silicon resonant sensor technology eliminates mechanical linkages and moving parts, delivering superior repeatability (0.01% of span) and immunity to vibration-induced errors common in capacitive designs.

Predictive Diagnostics: Continuous self-monitoring tracks sensor health, electronics performance, and process anomalies. HART-accessible diagnostic data enables condition-based maintenance strategies and reduces unplanned downtime by 70%.

Safety System Integration: Certified failure rates (λ_SD, λ_SU, λ_DD) and systematic capability documentation simplify SIL verification calculations for safety instrumented functions per IEC 61511.

Environmental Adaptability: Automatic temperature compensation across the full operating range maintains accuracy specifications without manual intervention, critical for outdoor installations with extreme temperature swings.

Delivery, Warranty & Technical Support

Lead Time & Logistics:
→ Standard Configuration: 8-10 weeks factory lead time
→ Express Service: 4-6 weeks available for critical projects
→ Global Shipping: DHL/FedEx/UPS with full tracking and insurance
→ Documentation: Calibration certificate, installation manual, HART DD files included

Warranty Coverage:
→ 12-month comprehensive warranty covering manufacturing defects
→ Extended warranty programs available for long-term projects
→ Performance guarantee: meets published accuracy specifications or replacement

Technical Support Services:
→ Pre-sales application engineering consultation
→ Commissioning assistance and startup support
→ Troubleshooting expertise via phone, email, and remote diagnostics
→ Spare parts availability with 24-48 hour expedited shipping

Frequently Asked Questions

Q: What makes the TTG keypad technology superior to traditional configuration methods?
A: Through-The-Glass configuration uses magnetic coupling to transmit keystrokes through the transparent cover, eliminating the need to open the housing in hazardous areas. This maintains explosion-proof certification, eliminates hot work permit requirements, and reduces configuration time by 60% compared to conventional methods requiring housing removal.

Q: Can this transmitter replace existing Rosemount or Yokogawa differential pressure transmitters?
A: Yes, the 266DSH offers direct replacement capability with comparable or superior specifications. The standard 4-20 mA HART output ensures wiring compatibility, while the 1/4 in. NPT process connections match industry-standard mounting patterns. Our technical team provides migration planning and configuration transfer assistance.

Q: How does the 10-year stability specification reduce total cost of ownership?
A: Traditional transmitters require calibration verification every 12-24 months, incurring labor costs, process downtime, and calibration equipment expenses. The 266DSH's 0.15% URL/10-year stability extends verification intervals to 36-48 months, reducing lifecycle calibration costs by 50-70% while maintaining measurement integrity.

Q: Is the transmitter suitable for steam service applications?
A: While the standard 266DSH handles process temperatures up to 120°C, steam applications typically require remote seal configurations to protect the sensor from extreme temperatures. Consider the ABB 266DRH remote seal version for steam flow measurement or contact our application engineers for system design assistance.

Q: What HART communication capabilities are available beyond basic configuration?
A: The HART protocol provides access to primary variable (PV), secondary variable (SV), tertiary variable (TV), and quaternary variable (QV) data streams. Advanced diagnostics include sensor temperature, electronics temperature, drive current, and comprehensive status flags. Full HART 7 compliance enables integration with AMS, PACTware, and other asset management platforms.

Q: Can I order this transmitter with explosion-proof or intrinsically safe certifications?
A: The aluminum housing version (A1 code) supports explosion-proof certifications for Class I, Division 1 hazardous locations. Intrinsically safe versions require different housing options (stainless steel with IS barriers). Specify your area classification requirements, and we'll configure the appropriate certified model.

Selection Guide & Ordering Information

When specifying the ABB 266DSH for your application, consider these critical parameters:

• Measurement Range: Select span range based on normal operating differential pressure with 3:1 to 5:1 safety margin
• Process Compatibility: Verify wetted material compatibility with process fluid chemistry and temperature
• Environmental Conditions: Confirm ambient temperature range and ingress protection requirements
• Safety Requirements: Identify SIL rating needs and redundancy architecture for safety functions
• Communication Protocol: Standard HART or consider WirelessHART (266DDH series) for remote locations

Ready to optimize your process measurement? Contact our application engineering team for technical consultation, custom configuration assistance, or project quotations. We provide comprehensive support from initial specification through commissioning and ongoing operation.
