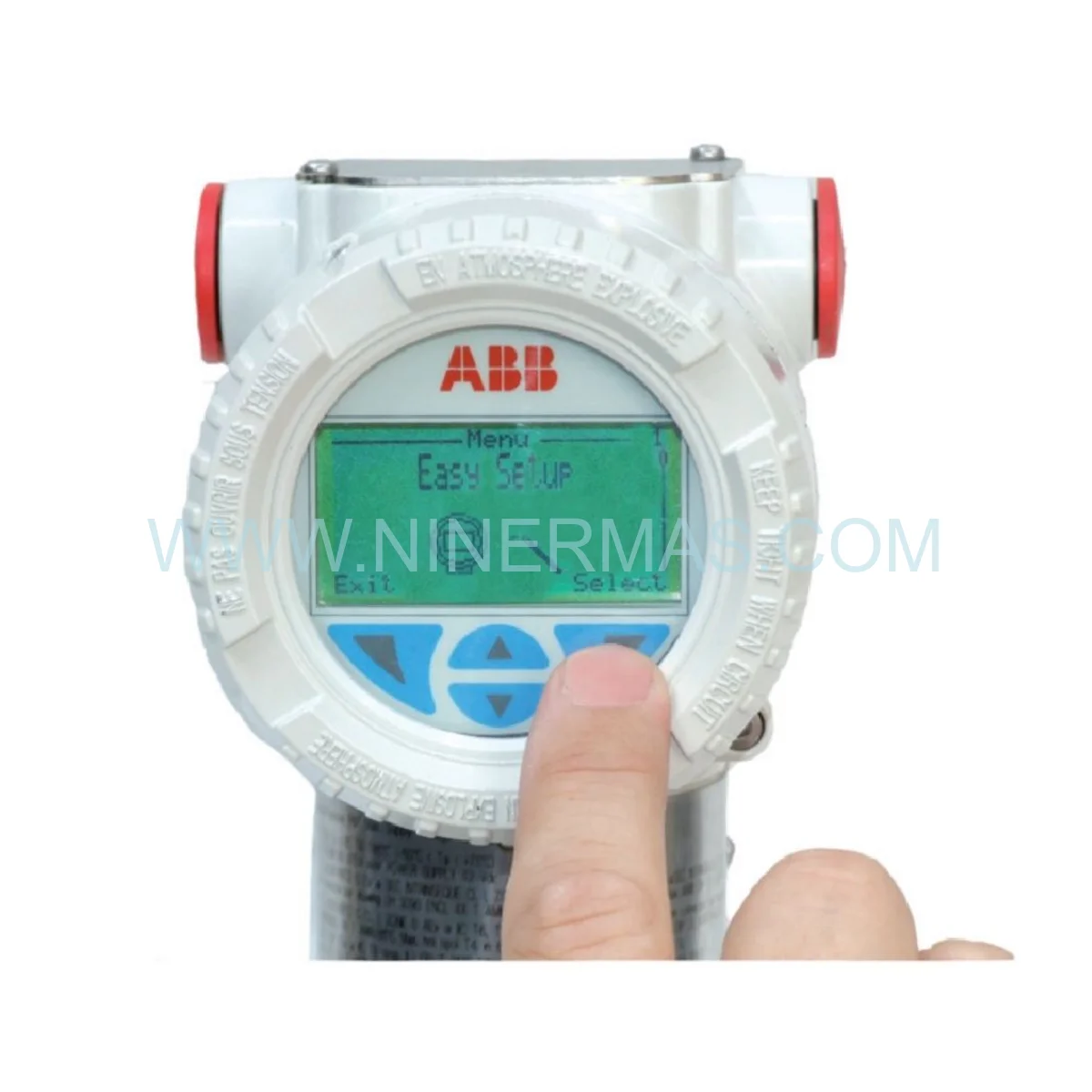

ABB 266DDH Differential Pressure Transmitter (Industrial-Grade WirelessHART Sensor)

The ABB 266DDH (Model: 266DDHFSSA2A1E1L1C1H3) delivers precision differential pressure measurement through advanced WirelessHART technology, eliminating costly wiring infrastructure while maintaining exceptional ±0.06% accuracy across 0.05 to 16,000 kPa measurement spans. Engineered for safety-critical applications, this transmitter carries dual SIL2 and SIL3 certifications per IEC 61508 standards, making it the preferred choice for process industries requiring both wireless flexibility and functional safety compliance.

Designed for harsh industrial environments, the 266DDH combines robust 316L stainless steel construction with intelligent diagnostics and self-organizing mesh network capabilities. Its 10-year battery life and explosion-proof certifications (ATEX, IECEx, FM, CSA) ensure reliable operation in hazardous locations while reducing total cost of ownership through minimal maintenance requirements.

Whether you're monitoring flow through orifice plates, tracking tank levels, or implementing predictive maintenance on filtration systems, this smart transmitter provides the accuracy, reliability, and wireless convenience demanded by modern industrial operations. Ready to transform your pressure measurement strategy? Contact our technical team for application-specific configuration guidance.

Core Features & Technical Advantages

✓ Exceptional Measurement Precision
Achieves ±0.06% of span accuracy with 100:1 turndown ratio, ensuring reliable data across wide operating ranges from 0.05 kPa to 16,000 kPa. Advanced silicon sensor technology compensates for temperature variations automatically.

✓ WirelessHART Mesh Networking
IEC 62591 compliant wireless protocol enables self-healing network topology with 200+ meter line-of-sight range. Eliminates up to 80% of installation costs compared to traditional wired transmitters while maintaining deterministic communication.

✓ Safety Instrumented System Ready
Dual SIL2/SIL3 certification allows direct integration into safety loops for emergency shutdown systems, pressure relief monitoring, and critical process protection applications. Proven failure rate data supports systematic capability calculations.

✓ Extended Battery Operation
Lithium battery pack delivers 10+ years of continuous operation at standard 4-second update rates. Built-in power management and battery health diagnostics prevent unexpected failures through predictive alerts.

✓ Hazardous Area Approvals
Comprehensive explosion protection certifications (ATEX Zone 0, IECEx, FM Class I Div 1, CSA) enable deployment in the most demanding petrochemical, oil & gas, and chemical processing environments.

✓ Remote Seal Compatibility
Integrated diaphragm seal support protects sensor from corrosive, viscous, or high-temperature process media. Available seal materials include Hastelloy C, Monel, Tantalum, and 316L stainless steel for application-specific chemical resistance.

Industrial Application Scenarios

→ Flow Measurement & Energy Management
Deploy across orifice plates, venturi tubes, and flow nozzles for accurate volumetric flow calculation in steam, gas, and liquid applications. Wireless architecture simplifies installation on remote pipelines and difficult-to-access measurement points, reducing commissioning time by 60% while enabling real-time energy consumption monitoring.

→ Tank Level Monitoring in Pressurized Vessels
Measure hydrostatic pressure in storage tanks, reactors, and pressurized vessels containing chemicals, petroleum products, or liquefied gases. The transmitter's SIL3 certification supports overfill prevention systems while wireless connectivity eliminates intrinsically safe barrier requirements, cutting installation costs significantly.

→ Filter & Strainer Performance Tracking
Implement predictive maintenance strategies by continuously monitoring differential pressure across bag filters, cartridge filters, and strainer baskets. Automated alerts trigger maintenance activities before filter breakthrough occurs, preventing product contamination and optimizing filter replacement schedules to reduce operational expenses by 25-40%.

→ Leak Detection in Critical Pipelines
Establish baseline differential pressure profiles across pipeline segments to identify developing leaks, blockages, or unauthorized taps. The mesh network architecture allows deployment of multiple transmitters along extended pipeline routes without trenching for cables, enabling comprehensive leak detection coverage at minimal infrastructure cost.

→ Pump Performance & Cavitation Prevention
Monitor suction and discharge pressure differentials on centrifugal pumps to detect impeller wear, cavitation conditions, and seal failures before catastrophic damage occurs. Integration with vibration sensors and motor current analysis creates comprehensive pump health monitoring systems.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 266DDH, consider your maximum operating pressure (select range with 2:1 safety margin), required accuracy class (±0.06% suitable for custody transfer and critical control), update rate requirements (faster rates reduce battery life), and hazardous area classification (verify certifications match your zone/division requirements). For corrosive or high-temperature applications, specify appropriate diaphragm seal materials and capillary fill fluids.

Extended Capabilities & System Integration

Advanced Diagnostics & Predictive Maintenance
Built-in NAMUR NE107 diagnostics continuously monitor sensor health, battery status, communication quality, and process anomalies. Predictive alerts identify developing issues such as impulse line blockages, sensor drift, or network interference before they impact measurement quality, enabling condition-based maintenance strategies that reduce unplanned downtime by up to 70%.

Multi-Variable Measurement
Simultaneous transmission of differential pressure, static pressure, and sensor temperature provides comprehensive process insight from a single device. This multi-variable capability supports advanced flow compensation calculations and enables detection of abnormal process conditions through pattern analysis.

IoT & Cloud Connectivity
WirelessHART gateway integration enables seamless data flow to cloud-based analytics platforms, SCADA systems, and enterprise asset management software. RESTful API support facilitates custom dashboard development and integration with third-party business intelligence tools for advanced process optimization.

Customization & Special Configurations
Factory customization options include extended temperature ranges (-55°C to +150°C), special process connections (tri-clamp, DIN flanges), exotic materials (titanium, zirconium), and application-specific calibration ranges. Consult our engineering team for project-specific requirements including custom firmware configurations and integration protocols.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock units ship within 3-5 business days via express courier with full tracking. Standard configurations typically arrive within 7-10 business days for most global destinations.

Custom Configuration: Factory-configured units with special options (exotic materials, extended ranges, custom calibration) require 4-6 weeks lead time. Expedited processing available for critical projects.

Warranty Coverage: Comprehensive 24-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs (up to 5 years) available for critical applications requiring long-term performance guarantees.

Technical Support: Lifetime technical support includes configuration assistance, troubleshooting guidance, firmware updates, and application engineering consultation. On-site commissioning services available for complex installations or multi-transmitter networks.

Documentation Package: Each transmitter ships with installation manual, quick-start guide, safety certification documents, calibration certificate traceable to national standards, and WirelessHART network configuration templates. Digital documentation library includes CAD drawings, 3D models, and integration guides.

Frequently Asked Questions

How does the WirelessHART mesh network ensure reliable communication in industrial environments?
The 266DDH utilizes time-synchronized mesh architecture with frequency hopping across 15 channels in the 2.4 GHz ISM band. Each transmission can take multiple redundant paths through neighboring devices, automatically routing around interference or obstacles. Network reliability exceeds 99.9% even in electrically noisy environments with dense metal structures.

What is the actual battery replacement procedure and associated downtime?
Battery replacement is a simple field procedure requiring approximately 15 minutes. The transmitter housing opens via four captive screws, and the battery pack connects via a keyed connector preventing reverse polarity. Configuration data is retained in non-volatile memory, eliminating the need for re-commissioning. Hot-swap capability allows replacement without process shutdown in non-hazardous areas.

Can this transmitter integrate with existing DCS systems from other manufacturers?
Yes, the WirelessHART gateway provides multiple output protocols including Modbus TCP/IP, OPC UA, HART-IP, and Ethernet/IP, ensuring compatibility with DCS platforms from Honeywell, Emerson, Siemens, Yokogawa, and others. Standard 4-20mA output simulation is also available through wireless-to-analog converters for legacy systems.

What are the limitations for differential pressure measurement in steam applications?
Direct steam contact is limited to 125°C process temperature. For superheated steam or higher temperatures, remote diaphragm seals with capillary systems extend the operating range to 400°C. Condensate pots or cooling elements may be required depending on steam conditions. Our application engineers can specify the optimal configuration for your steam measurement requirements.

How does the SIL3 certification affect installation and maintenance requirements?
SIL3 certification requires adherence to systematic capability requirements including proof testing intervals (typically 12-24 months), documentation of safety function parameters, and use of approved installation practices per IEC 61511. The transmitter's built-in partial stroke testing capability can extend proof test intervals up to 10 years when combined with online diagnostics, significantly reducing maintenance burden.

What cybersecurity features protect the wireless network from unauthorized access?
WirelessHART implements AES-128 encryption for all communications, unique device authentication keys, and join key management preventing rogue device connections. Network segmentation, access control lists, and secure key distribution protocols meet IEC 62443 industrial cybersecurity standards. Regular security audits and firmware updates address emerging threats.

Ready to Upgrade Your Pressure Measurement Infrastructure?

Transform your process monitoring with wireless technology that delivers wired-level reliability without the installation complexity. Our technical specialists are ready to assist with application selection, network design, and integration planning.

Contact us today:
? Email: sale@ninermas.com
? Phone: +0086 187 5021 5667
? Technical Resources: https://ninermas.com

Request a detailed quotation, technical datasheet, or schedule a consultation with our automation engineers to discuss your specific differential pressure measurement challenges.
