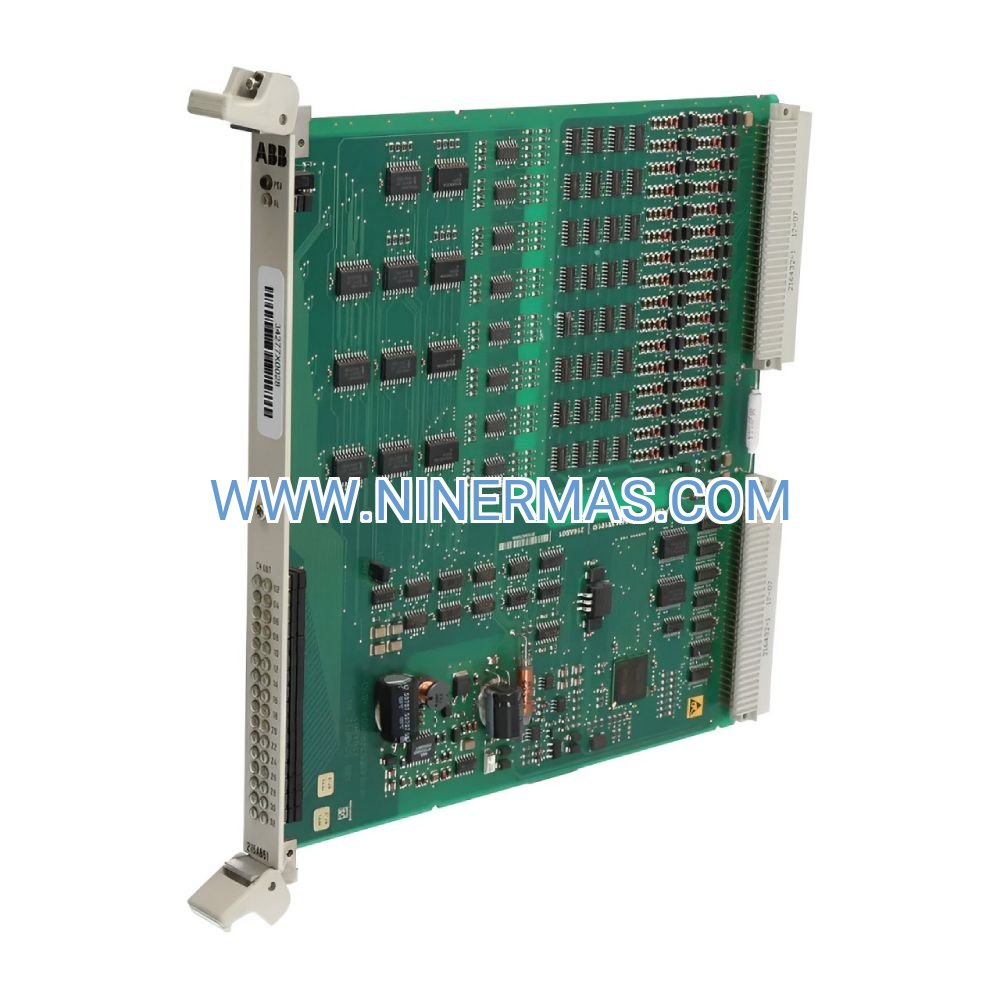

ABB 216AB61 Digital Output Module (Industrial-Grade 32-Channel Controller)

The ABB 216AB61 (Part No. HESG324013R100) is a high-density digital output module engineered for mission-critical industrial control applications. Featuring 32 independent binary output channels with solid-state switching technology, this module delivers precise actuation control for solenoid valves, motor contactors, alarm systems, and process indicators across manufacturing, energy, and infrastructure sectors.

Designed for seamless integration with ABB Advant and MOD 300 distributed control systems, the 216AB61 combines robust electrical isolation, diagnostic intelligence, and field-proven reliability to minimize unplanned downtime. Whether you're orchestrating complex valve sequencing in chemical plants or coordinating pump stations in water treatment facilities, this module provides the deterministic performance your operations demand.

With hot-swappable architecture and comprehensive channel-level diagnostics, maintenance teams can execute repairs without process interruption—reducing mean time to repair (MTTR) by up to 60% compared to legacy I/O systems. Every output channel supports 2A continuous load capacity with built-in short-circuit and thermal protection.

Core Capabilities & Technical Advantages

✓ High-Density I/O Architecture
32 galvanically isolated binary outputs in a compact DIN-rail form factor maximize cabinet space efficiency while reducing wiring complexity. Each channel operates independently with dedicated optical isolation to prevent ground loop interference and protect upstream control logic from field-side electrical faults.

✓ Solid-State Reliability
Semiconductor-based switching eliminates mechanical relay wear, delivering >100,000 switching cycles under rated load conditions. Response times under 10ms enable precise timing control for high-speed packaging lines, batch processes, and safety interlocks.

✓ Intelligent Diagnostics
Channel-specific LED indicators provide real-time status visualization for rapid fault isolation. Integrated self-test routines detect open loads, short circuits, and power supply anomalies—transmitting diagnostic data to your SCADA system for predictive maintenance scheduling.

✓ Hot-Swap Serviceability
Field-replaceable design with keyed connectors allows technicians to swap modules during live operation (following proper safety protocols), eliminating costly production stoppages for routine maintenance or emergency repairs.

✓ Industrial Environmental Hardening
Operates reliably across -20°C to +60°C ambient temperatures with conformal coating protection against moisture, dust, and chemical vapors. IP20 enclosure rating suits standard control cabinet installations.

✓ Universal 24VDC Interface
Standard industrial voltage compatibility simplifies integration with existing field devices and power distribution infrastructure, reducing engineering time and component costs.

Industry Applications & Use Cases

→ Chemical & Petrochemical Processing
Control pneumatic valve actuators in reactor feed systems, batch dosing sequences, and emergency shutdown (ESD) circuits. The module's fast response time ensures precise ingredient metering while isolation protects control systems from hazardous area electrical disturbances.

→ Power Generation & Distribution
Operate circuit breaker trip coils, generator excitation controls, and substation alarm annunciators. Proven reliability in utility-grade environments where single-point failures can cascade into grid instability or equipment damage.

→ Water & Wastewater Treatment
Coordinate multi-pump stations, chemical dosing systems, and clarifier mechanisms. The 2A output capacity directly drives most industrial contactors without intermediate relays, simplifying panel design and reducing failure points.

→ Manufacturing & Assembly Lines
Sequence conveyor diverters, robotic gripper actuators, and quality inspection gates in automotive, electronics, and consumer goods production. Deterministic timing supports takt-based manufacturing with minimal jitter.

→ Building Automation & HVAC
Manage damper actuators, chiller staging, and boiler sequencing in large commercial facilities. Energy-efficient solid-state outputs reduce panel heat generation compared to electromechanical relay banks.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 216AB61 when your application requires high channel density (32 outputs), moderate current loads (≤2A per point), and compatibility with ABB Advant/MOD 300 systems. For higher current requirements (>2A), consider pairing with external contactors. For analog control needs, evaluate the ABB 216EA62 analog input module as a complementary solution.

Advanced Integration Features

SCADA/HMI Connectivity
Seamless data exchange with ABB 800xA, Wonderware, Siemens WinCC, and other industrial HMI platforms via standard Modbus RTU/TCP or PROFIBUS DP protocols (depending on controller configuration). Real-time output status monitoring enables remote diagnostics and operational dashboards.

Redundancy Support
Deploy in redundant controller architectures for high-availability applications. Automatic failover mechanisms ensure continuous output control during primary controller maintenance or faults—critical for pharmaceutical clean rooms and semiconductor fabrication.

Custom Configuration Services
Our engineering team provides pre-configured modules with customer-specific I/O mapping, diagnostic thresholds, and firmware settings. Reduce commissioning time by up to 40% with factory-tested configurations tailored to your process requirements.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (express shipping available)
Custom Configurations: 10-15 business days for factory programming and testing
Warranty Coverage: 12 months comprehensive warranty covering manufacturing defects and component failures
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and retrofit planning
Documentation Package: Includes installation manual, wiring diagrams, CAD drawings (DXF/PDF), and sample ladder logic code

Frequently Asked Questions

Q: Can the ABB 216AB61 interface with non-ABB control systems?
A: Yes, the module accepts standard 24VDC control signals from any industrial PLC or DCS platform. While optimized for ABB Advant systems, it functions as a universal digital output module when proper signal conditioning and power distribution are implemented. Consult our integration guides for Siemens, Allen-Bradley, and Schneider controller compatibility.

Q: What load types are compatible with the solid-state outputs?
A: The 216AB61 drives resistive, inductive, and capacitive loads within the 2A continuous rating. Common applications include solenoid valves (DC coils), indicator lamps (LED/incandescent), small contactors, and relay coils. For highly inductive loads (motors, transformers), install external flyback diodes or RC snubbers to protect output transistors from voltage spikes.

Q: How do I perform hot-swap replacement without disrupting the process?
A: Follow ABB's documented hot-swap procedure: (1) Verify replacement module firmware matches existing unit, (2) Ensure control system is in RUN mode with outputs actively controlled, (3) Release module locking mechanism and extract while maintaining connector engagement until last moment, (4) Insert new module firmly until locking tabs engage, (5) Verify green POWER and COMM LEDs illuminate. The control system automatically re-establishes communication within 2-3 seconds. Always wear appropriate PPE and follow site-specific LOTO procedures.

Q: What diagnostic capabilities help reduce troubleshooting time?
A: Each output channel features a dedicated status LED (green = active, off = inactive, red = fault). The module reports channel-level diagnostics to the host controller, including open-load detection, short-circuit events, and over-temperature conditions. Advanced users can access detailed fault logs via ABB's Control Builder software for root-cause analysis and predictive maintenance trending.

Q: Is the module suitable for safety-instrumented systems (SIS)?
A: The 216AB61 is designed for standard process control applications (SIL 0). For safety-critical functions requiring SIL 2/3 certification (emergency shutdown, fire & gas detection), specify ABB's dedicated safety I/O modules from the AC 800M High Integrity series, which include redundant circuitry and certified failure rates.

Q: What are the power consumption and heat dissipation characteristics?
A: The module consumes approximately 5W from the 24VDC logic supply plus the cumulative load power of active outputs. At full load (32 channels × 2A), expect ~150W total power draw and corresponding heat generation. Ensure adequate cabinet ventilation (forced air recommended for ambient temperatures >45°C) and maintain 50mm clearance above/below the module for convective cooling.

Take the Next Step

Ready to enhance your control system reliability with the ABB 216AB61? Our industrial automation specialists are available to discuss your specific application requirements, provide detailed technical specifications, and recommend complementary components for complete system integration.

Contact our team today:
→ Request a formal quotation with volume pricing
→ Schedule a technical consultation for system design review
→ Download CAD models and integration documentation
→ Inquire about exchange/repair services for existing modules
