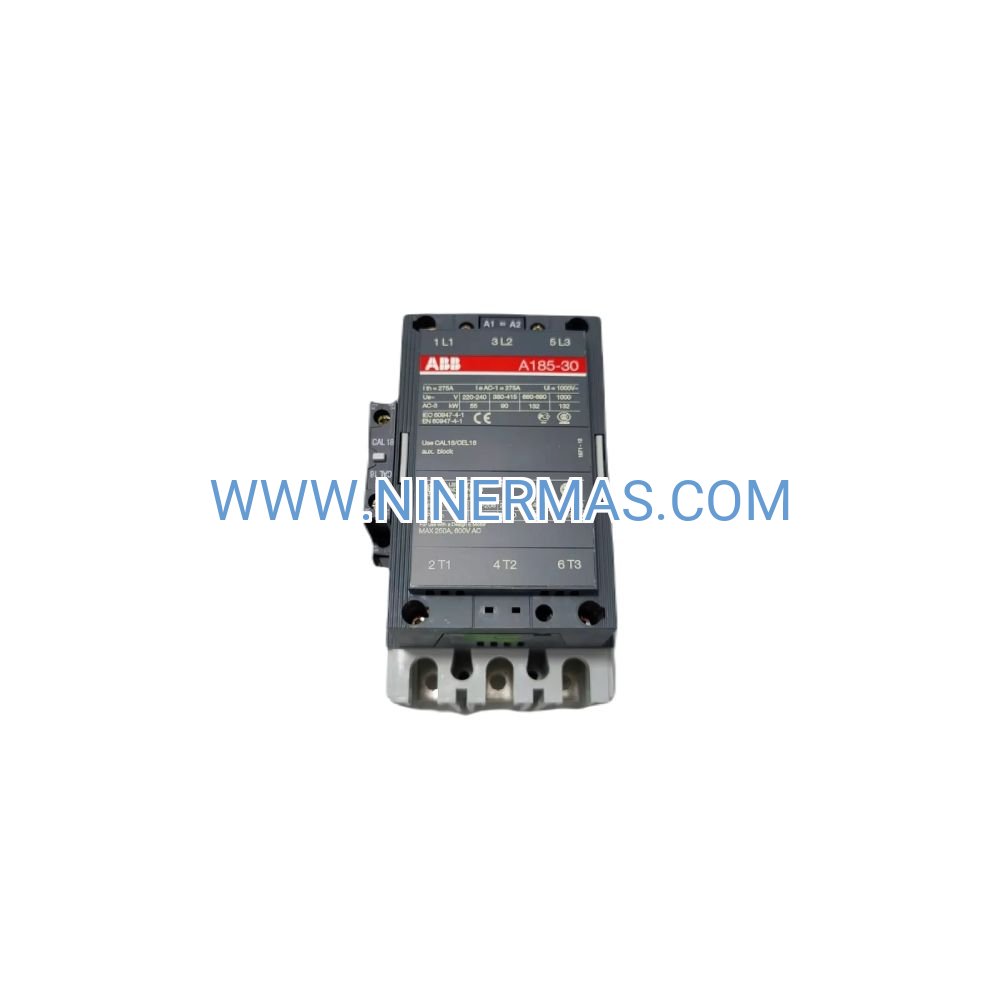

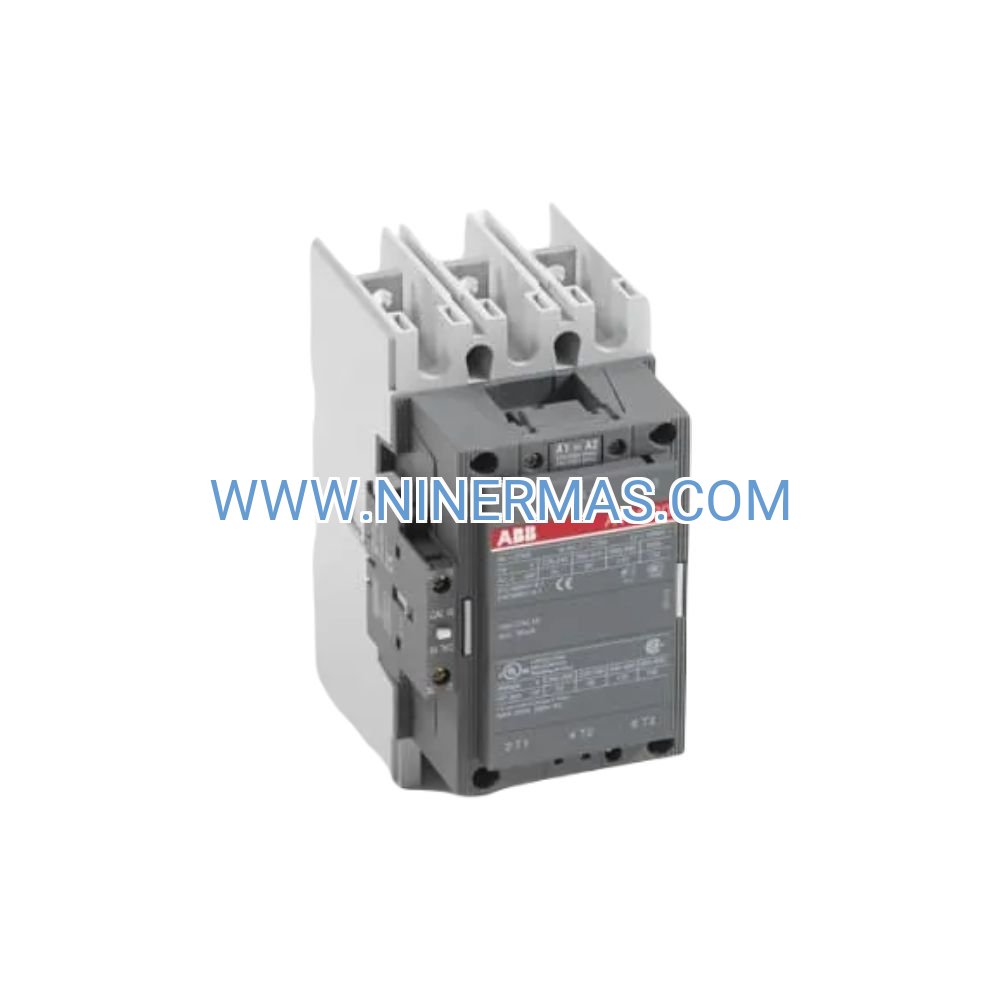

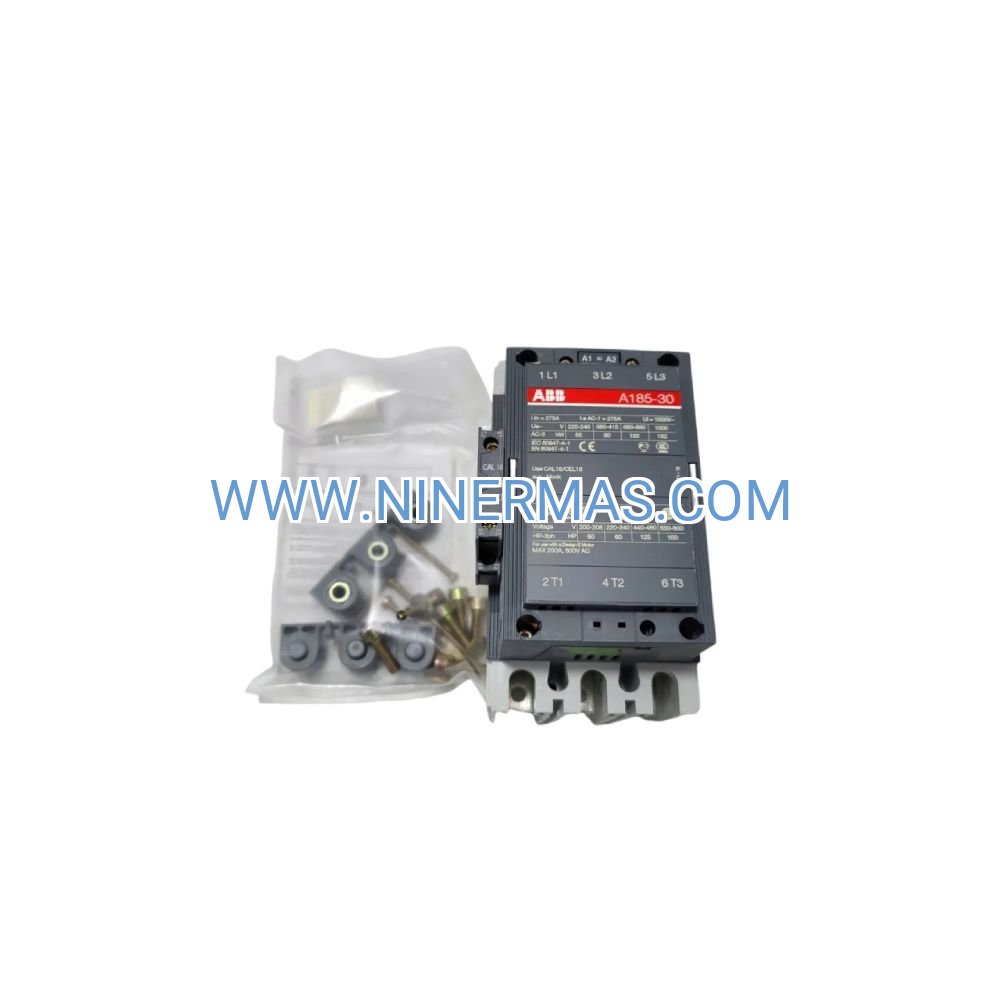

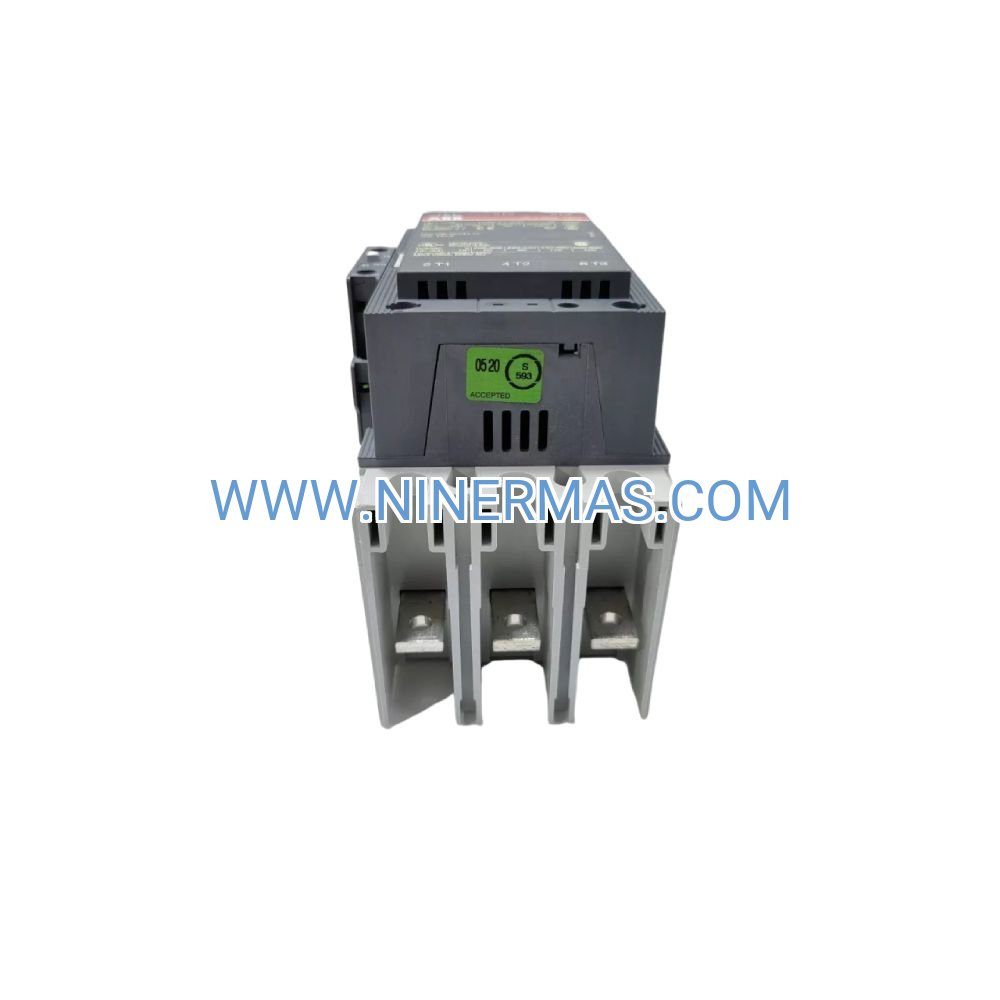

ABB 1SFL491001R8011 Contactor (Industrial-Grade Electromagnetic Switching Device)

The ABB 1SFL491001R8011 represents a professional-grade electromagnetic contactor engineered for high-reliability motor control and industrial automation circuits. This Swedish-manufactured switching device combines robust 3-pole main contact architecture with integrated auxiliary switching (1NO+1NC configuration), delivering versatile control capabilities for voltage ratings up to 690V AC. Designed for continuous-duty applications in manufacturing, process control, and building automation environments, this contactor provides the foundation for dependable electrical load management.

Industrial facilities face constant pressure to minimize unplanned downtime while managing increasingly complex electrical loads. The 1SFL491001R8011 addresses these challenges through ABB's proven contact metallurgy and arc suppression technology, ensuring consistent switching performance across millions of operational cycles. Whether controlling three-phase motors, coordinating pump stations, or managing HVAC systems, this contactor delivers the operational certainty that production schedules demand.

Key advantages include extended electrical life expectancy (100,000+ operations under rated load), minimal contact resistance degradation, and compatibility with ABB's comprehensive ecosystem of control components. The dual auxiliary contacts enable sophisticated control logic implementation, remote status monitoring, and seamless integration with programmable logic controllers for modern Industry 4.0 installations.

Core Features & Technical Advantages

→ Three-Pole Main Contact Configuration
Handles three-phase AC loads up to 690V with low contact resistance and superior arc quenching. Reduces voltage drop across contacts, minimizing heat generation and extending service intervals.

→ Dual Auxiliary Contact System (1NO + 1NC)
Provides flexible signaling for control circuits, interlocking sequences, and remote monitoring systems. Enables fail-safe logic implementation and PLC status feedback without additional relay components.

→ High-Cycle Durability Engineering
Rated for 1 million+ mechanical operations and 100,000+ electrical switching cycles under nominal conditions. Reduces replacement frequency and lowers total cost of ownership in continuous-operation environments.

✓ Swedish Manufacturing Standards
Produced in Sweden under ISO 9001 quality protocols with rigorous testing for contact welding resistance, insulation integrity, and environmental resilience. Ensures consistent performance across global installations.

✓ Standard DIN Rail Mounting
Simplifies installation in control cabinets with universal 35mm DIN rail compatibility. Reduces assembly time and enables modular panel design for scalable automation systems.

✓ Wide Coil Voltage Availability
Supports multiple control voltage options (24V, 110V, 230V AC/DC variants available) to match existing control infrastructure. Eliminates need for voltage conversion in retrofit applications.

Application Scenarios & Industry Solutions

Motor Starting & Reversing Circuits
Controls three-phase induction motors in conveyor systems, pumps, fans, and compressors. The auxiliary contacts coordinate forward/reverse logic or provide motor-running status to supervisory systems, preventing simultaneous energization and protecting drive components.

HVAC System Control
Manages chiller units, air handling equipment, and cooling tower fans in commercial buildings and industrial facilities. Delivers reliable switching for seasonal load variations while auxiliary contacts enable building management system integration for energy optimization.

Pump Station Automation
Orchestrates multi-pump installations for water treatment, irrigation, and process fluid transfer. The 1NO+1NC auxiliary configuration supports lead-lag sequencing, alternation logic, and dry-run protection without external relay modules.

Manufacturing Line Control
Provides dependable switching for production machinery, material handling systems, and robotic work cells. High electrical life expectancy reduces maintenance interruptions in 24/7 manufacturing operations where downtime costs exceed $10,000 per hour.

Emergency Power Transfer Systems
Coordinates generator startup sequences and utility-to-generator transfer logic in backup power installations. Auxiliary contacts signal transfer completion to monitoring systems and enable automatic load shedding during capacity constraints.

Technical Parameters & Selection Guide

Selection Criteria: When specifying this contactor, verify that your motor full-load current does not exceed the contactor's rated current for AC-3 duty (motor starting applications). For resistive or heating loads (AC-1 duty), higher current ratings apply. Always coordinate with appropriate thermal overload relay sizing based on motor nameplate data. Confirm control circuit voltage matches available coil voltage options during procurement.

Extended Functionality & Integration Capabilities

IoT & Remote Monitoring Integration
Auxiliary contacts interface directly with SCADA systems, building automation platforms, and cloud-based monitoring solutions. Enable predictive maintenance programs by tracking switching cycles and detecting contact degradation before failure occurs.

Modular Accessory Expansion
Accepts snap-on auxiliary contact blocks, surge suppressors, and mechanical interlocks for enhanced functionality. Allows field customization without replacing the base contactor unit as system requirements evolve.

Energy Management Optimization
When integrated with power monitoring equipment, enables demand-response strategies and load shedding during peak utility pricing periods. Reduces facility energy costs by 15-25% in time-of-use rate structures.

Delivery Timeline & Service Assurance

Standard Delivery: 5-7 business days for in-stock units to major industrial centers. Expedited shipping available for critical replacement applications.

Custom Configuration Lead Time: 10-15 business days for non-standard coil voltages or special auxiliary contact arrangements. Factory coordination ensures specification accuracy.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for high-criticality installations.

Technical Support: Direct access to application engineers for sizing verification, control circuit design review, and troubleshooting assistance. Phone and email support available during business hours (GMT+8).

Documentation Package: Includes dimensional drawings, wiring diagrams, terminal identification charts, and recommended torque specifications. IEC certification documents provided upon request for compliance verification.

Frequently Asked Questions

What is the expected service life in continuous-duty motor control applications?
Under AC-3 duty conditions (motor starting with breaking during running), the contactor delivers 100,000+ electrical operations. In mechanical switching without load (auxiliary circuit use), expect 1 million+ cycles. Actual life varies with load characteristics, ambient temperature, and switching frequency.

Can this contactor be used for capacitor bank switching or transformer control?
While physically capable, capacitor switching (AC-6b duty) and transformer inrush current management require specialized contact materials and arc suppression. Consult ABB's capacitor contactor series for these applications to avoid premature contact welding.

How do I determine the correct thermal overload relay pairing?
Select thermal overload relays based on motor full-load amperage (FLA) from the nameplate, not contactor rating. The relay should trip at 105-120% of motor FLA. ABB thermal relays in the corresponding frame size provide optimal mechanical fit and electrical coordination.

Is this contactor suitable for single-phase motor control applications?
Yes, the 3-pole configuration can control single-phase motors by utilizing two poles for line switching and leaving one pole unused, or using all three poles for enhanced contact redundancy in critical applications. Verify voltage and current ratings remain within specifications.

What maintenance intervals are recommended for industrial environments?
Inspect contact condition every 50,000 operations or annually in dusty/corrosive environments. Check for contact pitting, discoloration, or material transfer. Verify auxiliary contact operation and mounting screw torque. Replace contacts when erosion exceeds 1mm depth or if contact resistance increases significantly.

Does the contactor include built-in surge protection for coil circuits?
Standard models include basic coil suppression for AC voltage coils. For DC coil versions or installations with long control cable runs, external surge suppression modules are recommended to prevent voltage spikes from damaging control electronics.

Take the Next Step

Ready to specify the ABB 1SFL491001R8011 for your automation project? Contact our technical sales team for application-specific sizing verification, volume pricing, and delivery coordination. We provide complete documentation packages and integration support to ensure successful installation and commissioning.

Request a formal quotation: Email your project requirements including quantity, delivery location, and coil voltage specification to receive a detailed proposal within 24 hours.
