Industrial-Grade Auxiliary Contact for Contactor Signal Expansion

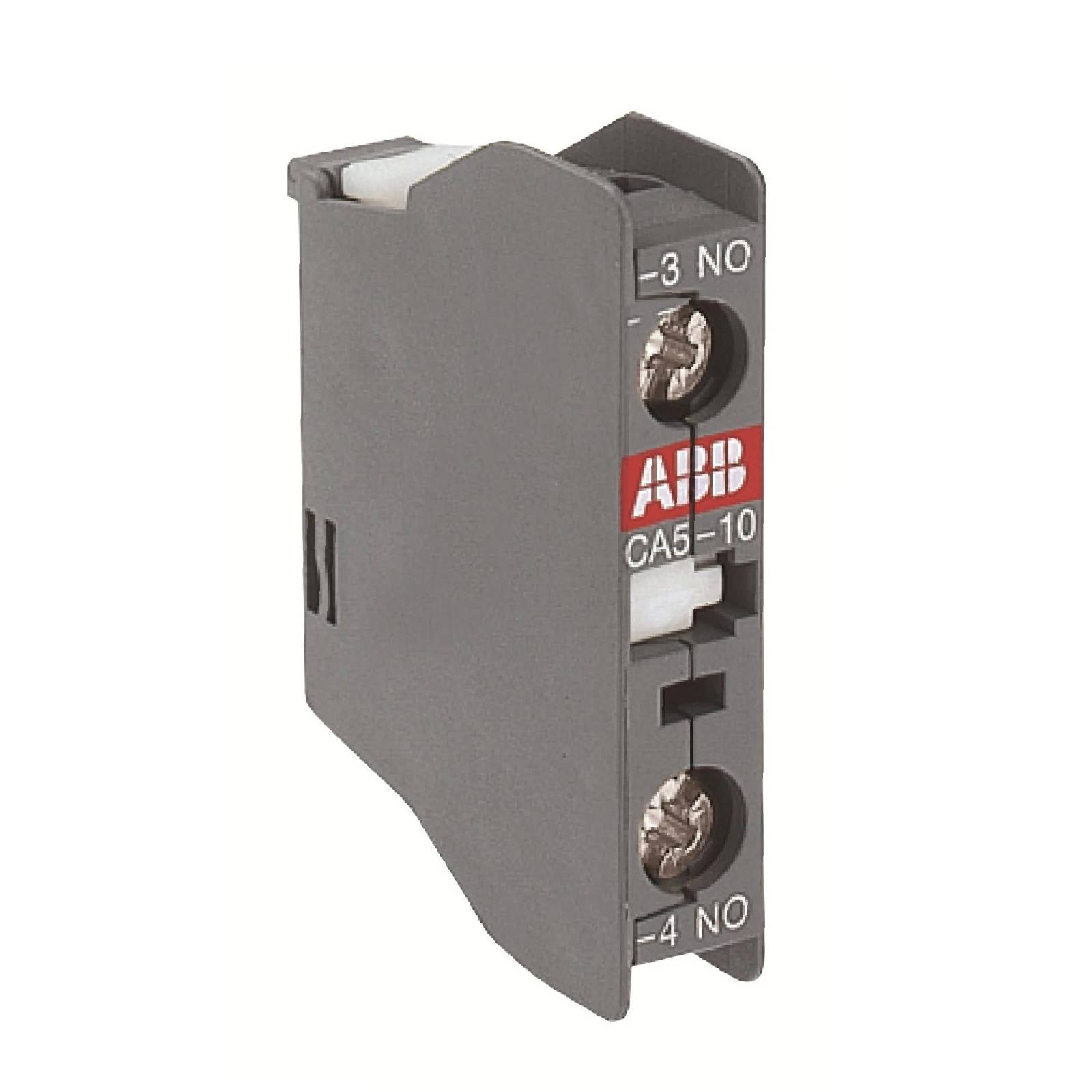

The ABB CA5-10 auxiliary contact block (model 1SBN010010R1010) transforms standard contactors into intelligent switching devices by adding critical feedback and interlock capabilities. Designed for front-mounting on A9 through A300 series contactors, this single normally-open (1NO) contact module enables real-time status monitoring, sequential control logic, and fail-safe interlocking across industrial automation systems.

Manufacturing facilities, HVAC installations, and process control environments rely on auxiliary contacts to bridge the gap between power switching and control intelligence. Whether you're implementing motor starter interlocks, building PLC feedback circuits, or creating alarm notification systems, the CA5-10 delivers the reliability and precision that mission-critical operations demand.

With 10 million mechanical operations lifecycle and silver alloy contacts rated for 690V insulation voltage, this Czech-manufactured component meets the durability standards required for 24/7 industrial service. The tool-free snap-on installation and universal A-series compatibility make system expansion straightforward, while the compact IP20-rated housing ensures safe integration into control panels and enclosures.

Key Features & Industrial Benefits

→ Universal A-Series Compatibility
Fits ABB contactors from A9 to A300 frame sizes without adapters or modifications. One auxiliary block design serves your entire contactor inventory, simplifying spare parts management and reducing procurement complexity.

→ High-Reliability Contact System
Silver alloy contacts deliver consistent performance across 1 million electrical operations at rated load. Low contact resistance minimizes voltage drop in control circuits, ensuring reliable PLC input signals and indicator lamp operation.

→ Snap-On Installation Architecture
Front-mount design allows field installation in under 30 seconds without disassembling the contactor or disconnecting power wiring. Integrated locking mechanism prevents accidental detachment during vibration or maintenance activities.

✓ Wide Operating Temperature Range
Functional from -25°C to +60°C, supporting applications in refrigerated warehouses, outdoor pump stations, and high-temperature manufacturing environments where standard components fail.

✓ Dual AC/DC Circuit Capability
10A current rating applies to both alternating and direct current control circuits. Single component handles diverse signaling requirements across mixed-voltage control systems.

✓ Stackable Configuration Options
Mount up to two auxiliary blocks per contactor for complex control schemes requiring multiple feedback points. Combine NO and NC contacts to create custom logic without external relays.

Application Scenarios Across Industries

Motor Control Panel Interlocking
Prevent simultaneous operation of forward/reverse contactors in reversing motor starters. The CA5-10 provides the normally-open contact that breaks the opposing coil circuit when one direction energizes, eliminating catastrophic phase conflicts and protecting drive systems from damage.

Pump Station Remote Monitoring
Transmit pump contactor status to SCADA systems for real-time operational visibility. Connect the auxiliary contact to analog input modules or telemetry units to track run hours, detect unexpected shutdowns, and trigger maintenance alerts before failures occur.

HVAC Sequencing Control
Coordinate multi-stage compressor or fan operation in commercial climate systems. Use auxiliary contacts to confirm first-stage contactor closure before enabling second-stage equipment, preventing electrical overload during startup and optimizing energy consumption.

Conveyor Safety Interlocks
Implement emergency stop logic that disables downstream conveyors when upstream sections halt. The auxiliary contact signals control PLCs to execute coordinated shutdown sequences, protecting product flow and preventing material accumulation.

Lighting Control Indication
Drive pilot lights or HMI status indicators showing contactor position in electrical distribution panels. Maintenance personnel can verify circuit status at a glance without test equipment, accelerating troubleshooting and reducing downtime.

Technical Specifications & Selection Guide

Selection Criteria: Choose the CA5-10 when your application requires a normally-open contact that closes upon contactor energization. For fail-safe circuits requiring a contact that opens when the contactor energizes, specify the CA5-01 (1NC configuration) instead. Applications needing both NO and NC contacts can stack two auxiliary blocks on the same contactor, or select the CA5-11 (1NO + 1NC) dual-contact model for space-constrained installations.

Extended Functionality & Integration

PLC Interface Optimization
The 10A contact rating provides sufficient current capacity to drive multiple PLC inputs in parallel, eliminating the need for signal distribution relays. Connect up to 8 standard 24VDC PLC input modules (at 5mA per input) from a single auxiliary contact, simplifying panel wiring and reducing component count.

IoT Gateway Connectivity
Integrate with digital input modules from Modbus RTU, Ethernet/IP, or PROFINET gateways to transmit contactor status to cloud-based monitoring platforms. The dry contact output interfaces directly with industrial IoT devices without signal conditioning, enabling predictive maintenance analytics and remote diagnostics.

Custom Control Logic
Combine multiple CA5-10 blocks across different contactors to create AND/OR logic gates in hardwired control circuits. This approach reduces reliance on programmable controllers for simple interlock functions, improving system reliability through hardware-based safety logic.

Retrofit Compatibility
Add auxiliary contacts to existing contactor installations without panel modifications or downtime. The front-mount design allows installation while the contactor remains energized (observe proper lockout/tagout procedures), making it ideal for upgrading legacy systems with modern monitoring capabilities.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 24-48 hours via express courier. Typical transit time to major industrial centers: 3-5 business days domestic, 7-10 days international.

Bulk Orders: Quantities exceeding 50 units may require 5-7 business days for preparation. Contact our sales team for volume pricing and expedited shipping options.

Warranty Coverage: 12-month manufacturer's warranty against defects in materials and workmanship. Warranty includes free replacement and covers return shipping costs.

Technical Support: Lifetime access to our automation specialists for application guidance, wiring diagrams, and troubleshooting assistance. Phone and email support available during business hours (GMT+8), with emergency callback service for critical system failures.

Documentation Package: Each order includes installation instructions, dimensional drawings, and electrical specifications. CAD models (STEP/IGES format) and 3D panel layout files available upon request for design integration.

Frequently Asked Questions

How do I confirm compatibility with my existing ABB contactor?
Check your contactor nameplate for the series designation (A9, A12, A16, A26, A30, A40, A50, A63, A75, A95, A110, A145, A185, A210, A260, or A300). All these models accept CA5-series auxiliary blocks. If your contactor predates the A-series (such as B-series or older), contact our technical team for adapter solutions.

What's the maximum number of auxiliary blocks I can install on one contactor?
You can mount two auxiliary blocks on the front face and two on the side (if your contactor model supports side mounting). This provides up to 8 contacts total when using dual-contact blocks, sufficient for complex control schemes without external relay panels.

Can this auxiliary contact switch inductive loads like relay coils?
Yes, the AC-15 rating specifically covers control circuit applications including relay and contactor coils. For highly inductive loads, install RC suppression networks across the contact to extend electrical life. Consult the ABB auxiliary contact application guide for suppressor sizing.

Does the contact position reset if the contactor fails mechanically?
The auxiliary contact mechanically links to the contactor's moving core. If the main contacts weld or the mechanism jams, the auxiliary contact reflects the actual contactor position, not the coil energization state. This provides true position feedback for safety-critical applications.

What wire termination method does the contact block use?
Screw-clamp terminals accept solid or stranded copper conductors from 14 AWG to 22 AWG (2.5mm² to 0.5mm²). Torque terminals to 0.5-0.6 Nm using a calibrated screwdriver. Ferrules are recommended for stranded wire to prevent strand breakage.

How do I test the auxiliary contact after installation?
With power isolated, use a multimeter in continuity mode across the contact terminals. Manually press the contactor armature—you should hear a distinct click and see the meter indicate continuity (for NO contacts). Release the armature and verify the contact opens. For energized testing, measure voltage across the contact with the coil de-energized (should read supply voltage) and energized (should read near zero).

Ready to Enhance Your Contactor Control Systems?

Add the ABB CA5-10 auxiliary contact block to your cart now for fast shipping and expert support. Our industrial automation specialists are standing by to assist with application questions, bulk pricing, or custom integration requirements.

Need a different contact configuration? Explore our complete range of ABB auxiliary contacts including normally-closed (NC), changeover (CO), and multi-contact models to match your exact control logic requirements.
