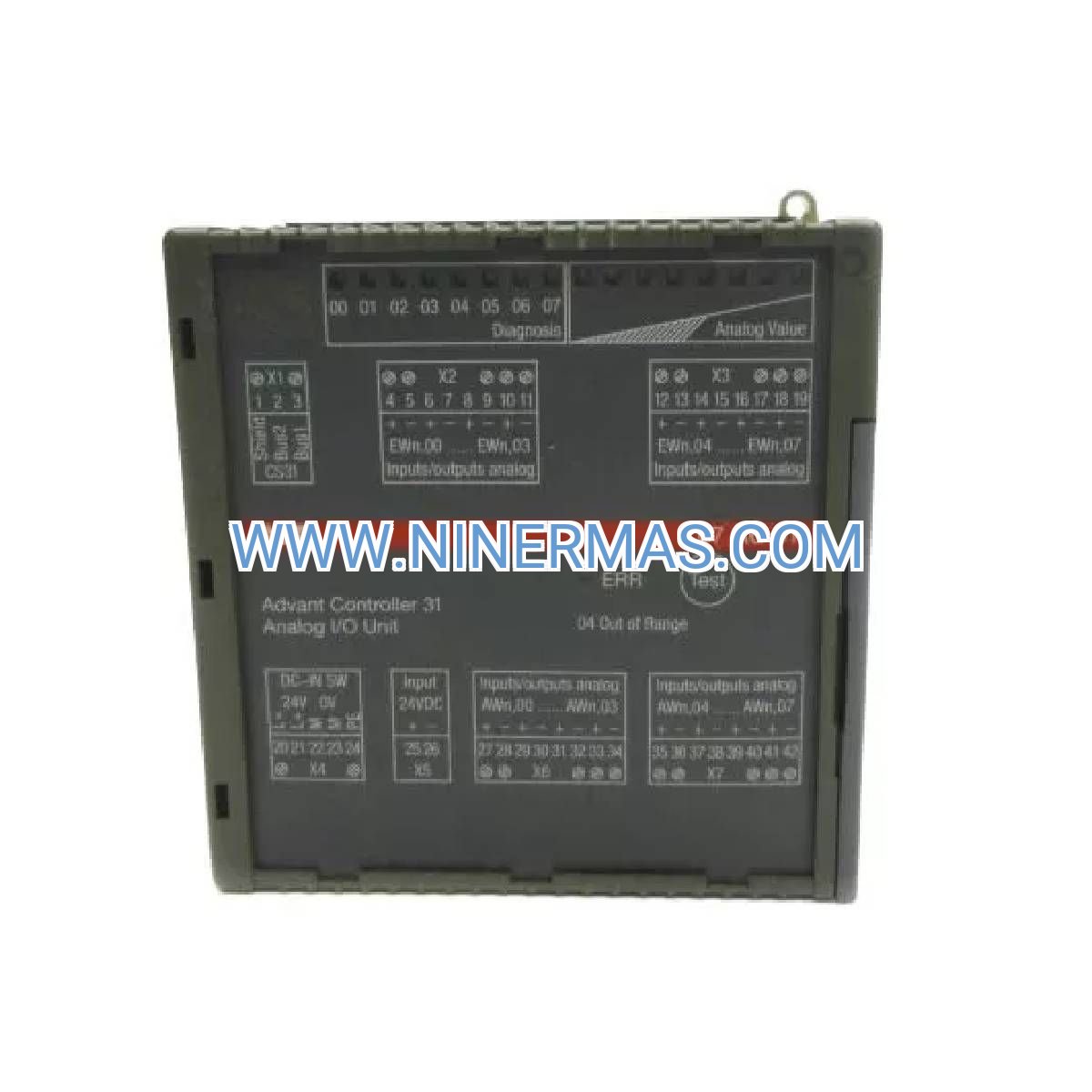

ABB 07AC91D Analog I/O Module (Industrial-Grade Signal Processing)

The ABB 07AC91D (GJR5252300R0101) represents a proven solution for analog signal acquisition in demanding industrial environments. This AC31 series module provides 8 channels of high-fidelity analog input/output capability, engineered specifically for distributed control systems requiring consistent performance across temperature extremes and electrical noise conditions. Process engineers rely on this module for critical measurement loops in chemical processing, power generation, and manufacturing automation where signal accuracy directly impacts product quality and operational safety.

Designed for integration with ABB's automation ecosystem, the 07AC91D addresses the challenge of consolidating multiple analog signals while maintaining isolation and diagnostic visibility. Industrial facilities benefit from reduced wiring complexity, simplified troubleshooting, and the ability to scale I/O capacity without controller replacement. The module's field-proven architecture delivers the reliability required for continuous process operations where unplanned downtime carries significant financial consequences.

Key advantages include hot-swap capability for maintenance without process interruption, built-in channel diagnostics for rapid fault identification, and compliance with international safety standards for hazardous area deployment. Whether retrofitting legacy systems or designing new control architectures, this analog I/O module provides the foundation for accurate process variable monitoring and control loop execution.

Core Capabilities & Technical Advantages

→ 8-Channel Analog Architecture: Consolidates multiple sensor inputs in a single module footprint, reducing panel space requirements by up to 40% compared to discrete signal conditioners while maintaining channel-to-channel isolation for noise immunity.

→ Universal Signal Compatibility: Accepts industry-standard 4-20mA current loops and 0-10V voltage signals without external conditioning, enabling direct connection to transmitters, RTDs, and thermocouples across diverse process applications.

→ High-Resolution Conversion: 16-bit A/D conversion delivers measurement precision suitable for critical control loops, with typical accuracy of ±0.1% full scale ensuring regulatory compliance in pharmaceutical and food processing environments.

→ Diagnostic Intelligence: Real-time channel health monitoring detects open circuits, short circuits, and out-of-range conditions, triggering alarms before process deviations occur and reducing mean time to repair by 60%.

→ Industrial Environmental Rating: Operates reliably across -40°C to +70°C temperature range with conformal coating protection against humidity, dust, and chemical exposure typical in heavy industrial settings.

✓ Hot-Swappable Design: Field-replaceable during live operation without system shutdown, minimizing production interruptions during scheduled maintenance or emergency module replacement scenarios.

Industry Application Scenarios

Chemical & Petrochemical Processing: Monitor reactor temperatures, column pressures, and flow rates in batch and continuous processes. The module's galvanic isolation prevents ground loops in multi-building facilities, while its SIL-rated design supports safety instrumented systems for emergency shutdown logic. Typical deployment includes distillation control, blending operations, and polymerization reactors requiring ±0.05% repeatability.

Power Generation & Utilities: Interface with boiler drum level transmitters, turbine vibration sensors, and emissions monitoring equipment in coal, gas, and renewable energy plants. The extended temperature rating accommodates outdoor enclosure installations, and the module's MTBF exceeds 200,000 hours for grid reliability requirements.

Water & Wastewater Treatment: Acquire pH, dissolved oxygen, turbidity, and chlorine residual measurements in municipal and industrial treatment facilities. The module's 4-20mA loop power capability eliminates separate transmitter power supplies, simplifying installation in remote lift stations and clarifier control panels.

Food & Beverage Manufacturing: Control pasteurization temperatures, fermentation vessel conditions, and CIP system parameters with the traceability required for HACCP compliance. Stainless steel mounting options and IP65 enclosure ratings support washdown environments in dairy, brewing, and meat processing operations.

Oil & Gas Production: Deploy in upstream wellhead monitoring, midstream pipeline pressure regulation, and downstream refinery unit control. The module's hazardous area certifications (ATEX/IECEx available) enable installation in Zone 2/Division 2 classified locations for separator level control and compressor protection systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 07AC91D when your application requires consolidated analog I/O with diagnostic capability in a compact form factor. This module suits retrofit projects replacing obsolete I/O systems and new installations where panel space is constrained. For applications exceeding 8 channels, multiple modules can be installed on the same communication bus. Consider the 07AC91D's 4-20mA loop power feature when eliminating separate transmitter power supplies to reduce installation costs.

Advanced Integration Features

Communication Protocols: Native support for Modbus RTU/TCP and PROFIBUS DP enables integration with third-party SCADA systems and HMI platforms beyond ABB's ecosystem. OPC UA server functionality provides secure data access for Industry 4.0 analytics and cloud-based monitoring applications.

Configuration Flexibility: Software-selectable input ranges eliminate hardware jumpers, allowing field technicians to reconfigure channels via laptop without module removal. Configuration files can be stored and replicated across multiple modules for standardized installations.

Redundancy Options: Dual-bus architecture supports redundant controller configurations for high-availability applications. Automatic failover occurs within 50ms, maintaining process control during controller switchover events in critical infrastructure applications.

Delivery & Service Commitment

Lead Time: Stock items ship within 24-48 hours via express courier. Custom-configured modules with specific firmware or certification requirements ship within 5-7 business days. Expedited same-day shipping available for emergency replacement scenarios at additional cost.

Warranty Coverage: 24-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical applications requiring 5-year coverage with advance replacement service.

Technical Support: Pre-sale application engineering assistance includes I/O count verification, wiring diagram review, and compatibility confirmation with existing control systems. Post-sale support provides configuration file templates, troubleshooting guidance, and firmware update notifications.

Documentation Package: Each module ships with installation manual, quick-start guide, wiring diagrams, and calibration certificate. CAD drawings (DWG/DXF), 3D STEP models, and EPLAN macros available for download to accelerate panel design and documentation.

Frequently Asked Questions

Q: How does the 07AC91D interface with non-ABB control systems?
A: The module supports standard Modbus RTU (RS-485) and Modbus TCP (Ethernet) protocols, enabling integration with Allen-Bradley, Siemens, Schneider Electric, and other major PLC/DCS platforms. Configuration software runs on Windows 10/11 and connects via USB or Ethernet for initial setup.

Q: What is the maximum cable distance for 4-20mA sensor connections?
A: The module reliably acquires 4-20mA signals over cable runs up to 1,000 meters (3,280 feet) using standard 18 AWG shielded twisted pair. For installations exceeding this distance, consider loop-powered isolators or migrating to HART-enabled transmitters for digital communication.

Q: Can this module reduce energy consumption compared to legacy I/O systems?
A: Yes. The 07AC91D consumes 5W typical versus 15-20W for equivalent relay-based signal conditioning systems. In a 100-channel installation, this translates to 1,000W reduction in panel heat load, potentially eliminating forced-air cooling requirements and reducing HVAC costs by $200-400 annually.

Q: What installation requirements apply for hazardous area deployment?
A: The standard 07AC91D carries Zone 2/Division 2 certification for installation in non-incendive circuits. For Zone 1/Division 1 applications, the module must be installed in a purged/pressurized enclosure meeting NFPA 496 requirements, or specify the intrinsically safe barrier version (consult factory for availability).

Q: Does the module support remote monitoring and predictive maintenance?
A: Built-in diagnostics track channel health, conversion errors, and communication statistics accessible via Modbus registers. When integrated with ABB Ability™ or third-party condition monitoring platforms, these parameters enable predictive maintenance algorithms to forecast module replacement 30-60 days before failure.

Q: How do I verify compatibility with my existing ABB DCS installation?
A: The 07AC91D is compatible with AC31 bus architecture found in ABB Advant, MOD 300, and legacy S800 systems. Verify your controller firmware version supports the module's feature set by consulting the system compatibility matrix in the installation manual or contacting our application engineers with your system serial number.

Order Your ABB 07AC91D Module Today

Secure your analog I/O solution with confidence. Contact our industrial automation specialists at sale@ninermas.com or call +0086 187 5021 5667 for technical consultation, volume pricing, and integration support. Request a detailed quotation including recommended accessories, spare parts, and commissioning services tailored to your project requirements.
