ABB 70EB02b-E Digital Input Module | 16-Channel DI for Procontrol P13 DCS System

ABB 70EB02b-E Digital Input Module – Industrial-Grade Contact Monitoring for Procontrol P13 DCS

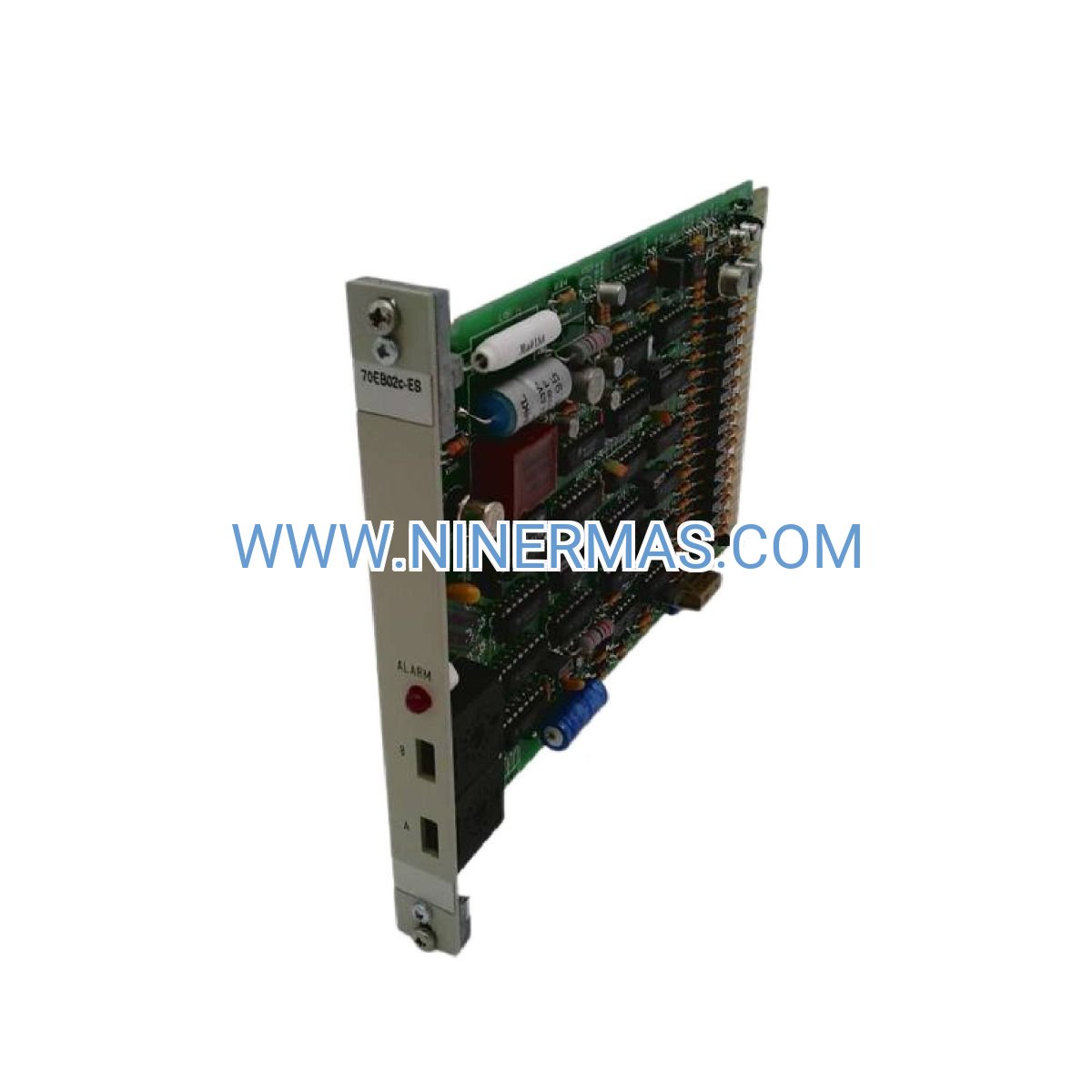

The ABB 70EB02b-E (HESG447038R1) is a high-performance 16-channel digital input module engineered for reliable dry contact monitoring within ABB Procontrol P13 distributed control systems. Utilizing advanced signal conditioning and galvanic isolation technology, this module delivers precise real-time status acquisition from field devices such as limit switches, push buttons, relay contacts, and proximity sensors, ensuring stable operation in demanding industrial environments.

Designed for process automation, power generation, and manufacturing facilities, the 70EB02b-E addresses critical challenges including signal interference, ground loop noise, and voltage transients. It is ideal for applications requiring high-density I/O integration, such as petrochemical plants, water treatment systems, steel mills, and pharmaceutical production lines where continuous monitoring of equipment status is essential for operational safety and efficiency.

Through standardized design and flexible configuration options, this module offers exceptional reliability, electromagnetic compatibility, and ease of maintenance. It is suitable for system integrators, control panel builders, design institutes, and end-user facilities seeking proven DCS I/O solutions. Contact our application engineers for customized system design, technical specifications, and quotation assistance.

Core Features & Technical Advantages

High-Density 16-Channel Architecture
Provides 16 independent digital input channels in a compact form factor, reducing cabinet space requirements while maximizing I/O density. Each channel features individual signal conditioning circuits to ensure accurate state detection and minimize cross-talk interference.

Robust 500V Galvanic Isolation
Equipped with channel-to-bus isolation rated at 500V AC/DC, protecting sensitive control electronics from field-side voltage surges, ground potential differences, and electromagnetic interference. This isolation enhances system reliability and extends equipment service life in harsh industrial environments.

Fast Response Time (<10ms)
Achieves signal acquisition and processing within 10 milliseconds, meeting real-time control requirements for high-speed production lines, emergency shutdown systems, and critical process interlocks. Configurable input filtering options allow optimization for specific application needs.

Wide Input Voltage Range & Compatibility
Accepts standard industrial voltage levels (24V DC nominal, with tolerance for 18-30V DC), ensuring compatibility with diverse field devices and power supply configurations. Supports both sinking and sourcing input modes for flexible wiring topologies.

Comprehensive Diagnostic & Protection Functions
Integrated self-diagnostics continuously monitor module health, channel status, and communication integrity. Built-in protection against reverse polarity, overvoltage, and short-circuit conditions minimizes downtime and maintenance costs. LED indicators provide instant visual feedback for troubleshooting.

Seamless Procontrol P13 Integration
Designed specifically for ABB Procontrol P13 architecture, ensuring plug-and-play installation, automatic configuration recognition, and full compatibility with system engineering tools. Supports hot-swappable replacement in redundant configurations without process interruption.

Typical Application Scenarios

The ABB 70EB02b-E digital input module is engineered for industrial environments demanding high reliability, precise signal acquisition, and long-term operational stability. Representative applications include:

Process Automation & Chemical Manufacturing
Monitors valve position feedback, pump running status, level switch signals, and emergency stop circuits in continuous process industries. Ensures safe operation of reactors, distillation columns, and material handling systems while providing critical data for SCADA visualization and alarm management.

Power Generation & Energy Infrastructure
Acquires status signals from circuit breakers, isolator switches, protection relays, and auxiliary equipment in power plants, substations, and renewable energy facilities. Supports compliance with IEC 61850 and other industry standards for grid automation and remote monitoring.

Water & Wastewater Treatment Systems
Collects operational data from flow switches, pressure sensors, motor contactors, and gate valve position indicators in municipal water supply, sewage treatment, and industrial effluent management systems. Enables automated control sequences and regulatory reporting.

Manufacturing & Assembly Lines
Interfaces with photoelectric sensors, proximity switches, safety interlocks, and conveyor status indicators in automotive, electronics, food processing, and packaging industries. Facilitates real-time production monitoring, quality control, and predictive maintenance strategies.

Building Automation & HVAC Control
Integrates with fire alarm systems, access control panels, HVAC equipment status, and elevator safety circuits in commercial buildings, hospitals, and data centers. Provides centralized monitoring and energy management capabilities.

Technical Specifications & Selection Guide

To facilitate system design and procurement, the following specifications outline the key parameters of the ABB 70EB02b-E digital input module. Custom configurations and extended temperature range variants are available upon request.

Electrical Characteristics:

• Number of Channels: 16 digital inputs
• Input Voltage Range: 18-30V DC (24V DC nominal)
• Input Current: Typically 5-8 mA per channel
• Logic Threshold: Low <5V, High >15V
• Isolation Voltage: 500V AC/DC (channel-to-bus)
• Response Time: <10 ms (configurable filtering)

Mechanical & Environmental:

• Module Dimensions: Standard Procontrol P13 form factor
• Operating Temperature: -10°C to +55°C (extended range available)
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% RH, non-condensing
• Protection Rating: IP20 (for panel mounting)
• MTBF: >100,000 hours (at 40°C)

Compliance & Certifications:

• CE Mark (EMC Directive, Low Voltage Directive)
• UL/cUL Listed for industrial control equipment
• RoHS compliant
• IEC 61131-2 conformance

Selection Recommendations:
When specifying the 70EB02b-E module, consider the following factors: total number of discrete input points required, field device voltage levels, environmental conditions (temperature, vibration, EMI exposure), redundancy requirements, and integration with existing Procontrol P13 infrastructure. For applications involving hazardous areas, consult our engineers regarding intrinsically safe barrier requirements and ATEX/IECEx certification options.

If you need assistance with system architecture design, I/O point allocation, or compatibility verification with legacy equipment, please provide project details including application type, environmental conditions, quantity requirements, and delivery timeline. Our technical team will recommend optimal configurations and provide detailed quotations.

Extended Capabilities & System Integration

Redundancy & High Availability
Supports hot-standby redundant configurations when deployed in fault-tolerant Procontrol P13 systems. Automatic failover mechanisms ensure continuous operation during module replacement or maintenance activities, critical for safety-instrumented systems (SIS) and emergency shutdown applications.

Advanced Diagnostics & Predictive Maintenance
Embedded diagnostic algorithms monitor signal quality, wiring integrity, and module performance parameters. Integration with ABB System 800xA or third-party asset management platforms enables condition-based maintenance scheduling, reducing unplanned downtime and optimizing spare parts inventory.

Cybersecurity & Network Protection
Designed with defense-in-depth principles, the module operates within secure Procontrol P13 communication protocols. Supports network segmentation, access control, and audit logging to meet IEC 62443 industrial cybersecurity standards for critical infrastructure protection.

Engineering Tools & Documentation
Fully supported by ABB Control Builder engineering software for configuration, simulation, and commissioning. Comprehensive technical documentation includes CAD drawings, wiring diagrams, HART/Fieldbus integration guides, and troubleshooting flowcharts to accelerate project execution and reduce engineering costs.

Delivery, Service & Quality Assurance

Lead Time & Availability:
Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom-configured modules or large-volume orders require 2-4 weeks lead time depending on specifications and current production schedules. Expedited delivery options available for urgent projects.

Warranty & Support:
All ABB 70EB02b-E modules are backed by a comprehensive 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and service level agreements (SLAs) are available for mission-critical installations. Technical support includes remote diagnostics, on-site commissioning assistance (region-dependent), and 24/7 hotline access for emergency troubleshooting.

Documentation Package:
Each module ships with complete technical documentation including installation manual, electrical schematics, terminal wiring diagrams, configuration parameter lists, and safety instructions in multiple languages. Digital resources such as 3D CAD models, EPLAN macros, and firmware update utilities are accessible through ABB's online support portal.

Quality Certifications:
Manufactured in ISO 9001:2015 certified facilities with rigorous quality control processes. Every unit undergoes 100% functional testing, burn-in validation, and environmental stress screening prior to shipment. Traceability documentation and material certificates available upon request for regulated industries.

Frequently Asked Questions (FAQ)

Q: How does the ABB 70EB02b-E digital input module integrate with existing Procontrol P13 DCS infrastructure?
A: The module is designed for seamless plug-and-play installation into Procontrol P13 I/O racks. It automatically registers with the system controller upon power-up, and configuration parameters can be downloaded via ABB Control Builder software. No special drivers or firmware updates are required for standard installations. Ensure compatibility with your specific P13 system version by verifying the hardware/software revision matrix in the technical manual.

Q: What is the maximum number of 70EB02b-E modules that can be installed in a single I/O rack?
A: The quantity depends on the specific Procontrol P13 rack model and power budget. Typically, a standard 19-inch rack can accommodate 8-12 modules, limited by backplane communication capacity and power supply rating. For high-density applications, consult the system planning guide or contact our engineers to optimize rack configuration and ensure adequate cooling and power distribution.

Q: What level of energy savings or operational efficiency can be achieved with this digital input module?
A: While the module itself is a signal acquisition device with minimal power consumption (<5W typical), its contribution to overall system efficiency comes from enabling precise process control, reducing false alarms, and supporting predictive maintenance strategies. Facilities using advanced DCS I/O for real-time monitoring report 10-20% reductions in unplanned downtime and 15-30% improvements in maintenance labor productivity through early fault detection.

Q: What are the environmental requirements for installing the 70EB02b-E module? What is its protection rating?
A: The module is rated IP20 for standard control panel mounting in climate-controlled environments. Operating temperature range is -10°C to +55°C with 5-95% relative humidity (non-condensing). For harsh environments with extreme temperatures, corrosive atmospheres, or high vibration, consider installing the module in a NEMA 4X or IP65-rated enclosure with appropriate thermal management. Conformal coating options are available for high-humidity or chemical exposure applications.

Q: Does the module support remote monitoring and data acquisition? Which communication protocols are compatible?
A: The 70EB02b-E communicates via the Procontrol P13 proprietary backplane protocol, which interfaces with ABB System 800xA or third-party SCADA systems through standard industrial protocols including OPC UA, Modbus TCP, PROFINET, and IEC 61850. Remote access is achieved through the DCS network infrastructure with appropriate cybersecurity measures (VPN, firewall, role-based access control). Direct fieldbus connectivity (HART, Foundation Fieldbus) requires additional gateway modules.

Q: Can the module be used in safety-instrumented systems (SIS) or emergency shutdown applications?
A: The standard 70EB02b-E is designed for basic process control (BPCS) applications. For safety-critical functions requiring SIL 2 or SIL 3 certification per IEC 61508/61511, ABB offers dedicated safety I/O modules within the AC 800M High Integrity platform. However, the 70EB02b-E can be used for non-safety monitoring functions within a safety system architecture, such as status indication or diagnostic feedback loops.

Request Technical Support & Quotation

To receive a detailed system design proposal, competitive pricing, or application-specific technical consultation, please provide the following information to our engineering team:

• Project name and industry sector
• Application description and process requirements
• Total number of digital input points required
• Field device voltage levels and signal types
• Environmental conditions (temperature, humidity, hazardous area classification)
• Existing DCS platform and version (if retrofit/expansion project)
• Preferred delivery timeline and installation schedule
• Quantity requirements and budget constraints

Our certified application engineers will respond within 24 hours with tailored recommendations, system architecture diagrams, and comprehensive quotations including hardware, software licenses, commissioning services, and training options.
