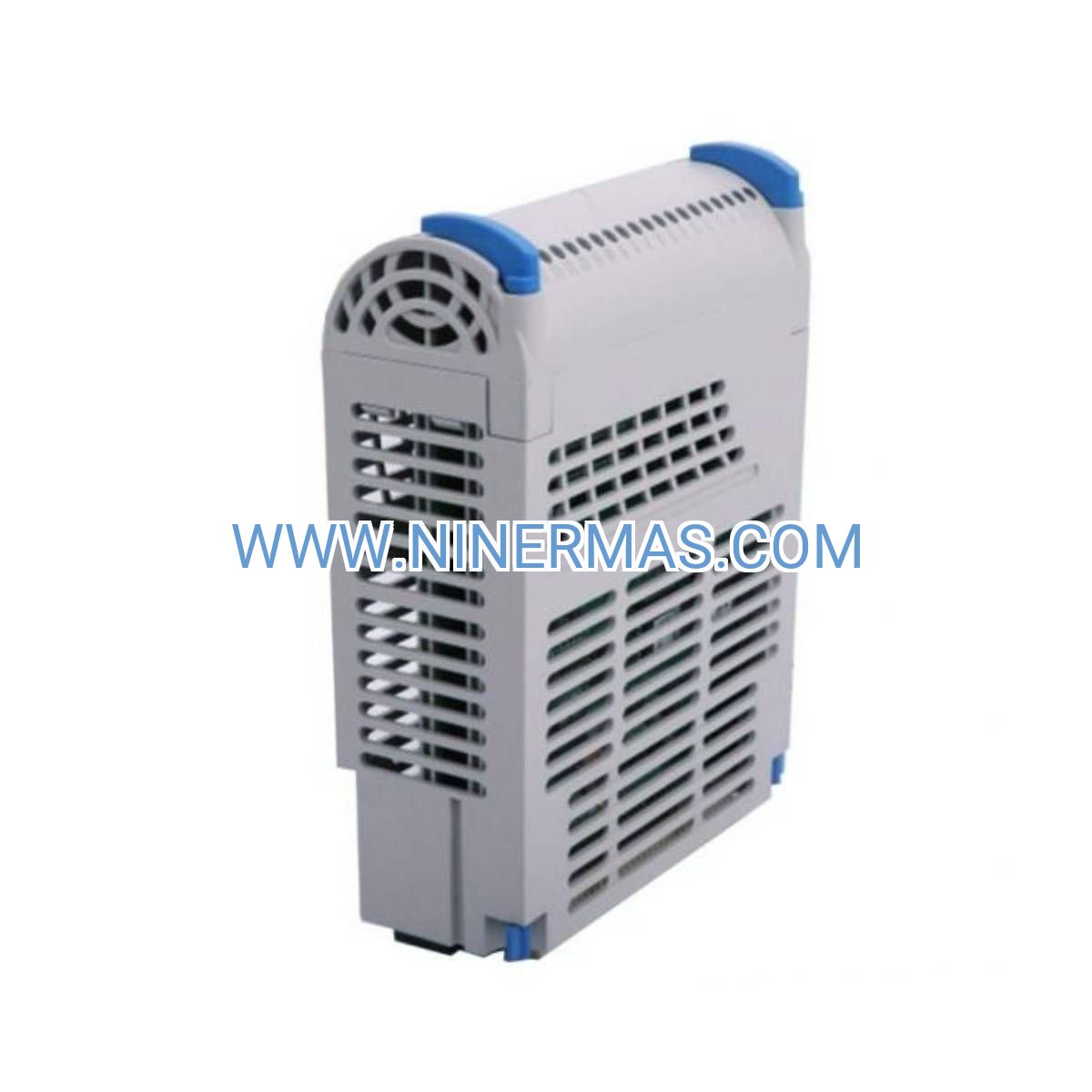

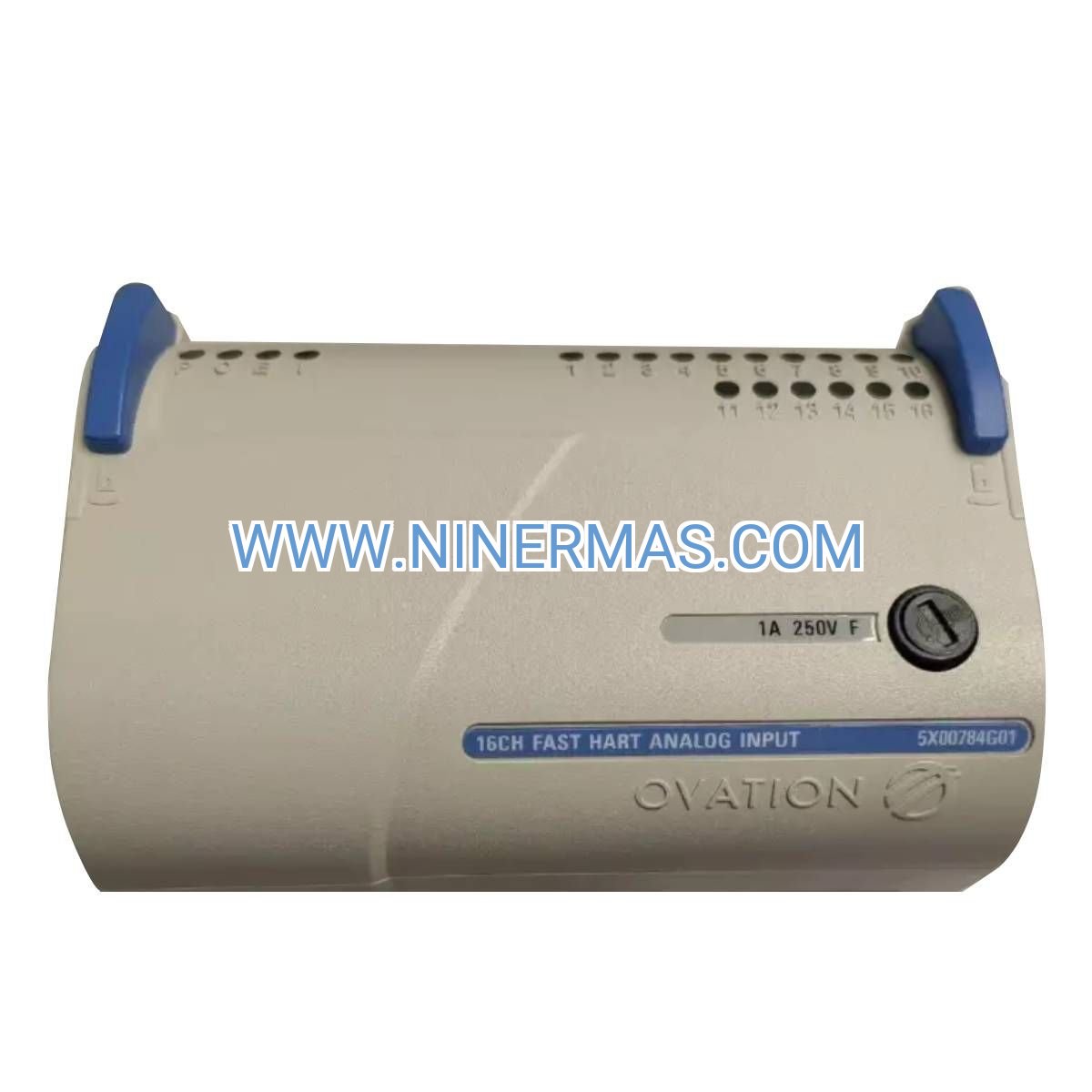

5X00784G01 Analog Input Module (Industrial-Grade Multi-Signal Acquisition)

The 5X00784G01 is a high-density analog input interface engineered for Emerson Ovation distributed control systems, delivering precise signal conversion from field instrumentation to digital process data. This 16-channel universal module handles current loops, voltage transmitters, thermocouples, and RTD sensors within a single compact form factor, eliminating the need for multiple specialized cards in power generation, petrochemical, and manufacturing environments.

Built for mission-critical applications where measurement integrity directly impacts safety and profitability, the module provides channel-to-channel isolation, automatic cold junction compensation, and continuous diagnostic monitoring. Plant engineers rely on this proven technology to consolidate diverse sensor types while maintaining the accuracy and reliability demanded by regulatory compliance and operational excellence programs.

Whether you're upgrading legacy I/O infrastructure or expanding existing Ovation systems, the 5X00784G01 offers plug-and-play integration with hot-swappable installation, reducing commissioning time and minimizing production interruptions during modernization projects.

Core Features & Technical Advantages

→ Universal Input Flexibility: Software-selectable signal types (4-20mA, 1-5VDC, 0-10VDC, J/K/T/E/R/S/B thermocouples, Pt100/Pt1000 RTDs) allow dynamic reconfiguration without rewiring—adapt to changing process requirements through Ovation Developer Studio configuration changes alone.

✓ Superior Measurement Resolution: 16-bit analog-to-digital conversion delivers 0.0015% granularity across full scale, enabling detection of subtle process variations that 12-bit systems miss—critical for advanced control strategies and early fault detection in rotating equipment monitoring.

✓ Electrical Isolation Architecture: Channel-to-channel and channel-to-backplane galvanic isolation prevents ground loop interference and cross-talk between sensors, ensuring clean signals even in electrically noisy industrial environments with VFD drives and welding equipment.

✓ Integrated Sensor Diagnostics: Real-time health monitoring identifies open circuits, shorted inputs, and out-of-range conditions with alarm generation to Ovation HMI—shift from reactive to predictive maintenance by catching sensor failures before they impact product quality.

✓ Hot-Swap Serviceability: Replace or add modules during live operation without system shutdown or process interruption—essential for continuous manufacturing where unplanned downtime costs exceed $10,000 per hour in lost production and off-spec material.

✓ Extended Temperature Rating: -40°C to +70°C operational range supports installation in non-climate-controlled field enclosures and extreme environments from Arctic pipelines to Middle Eastern refineries without derating or auxiliary cooling.

Application Scenarios Across Industries

Power Generation Facilities: In combined-cycle plants, the 5X00784G01 monitors critical parameters including steam drum levels (4-20mA differential pressure), turbine exhaust temperatures (Type K thermocouples), and generator bearing RTDs—all on a single module. This consolidation reduces spare parts inventory and simplifies troubleshooting when operators need to verify sensor accuracy during load-following operations.

Chemical Process Manufacturing: Batch reactor control demands simultaneous tracking of jacket temperatures, internal pressures, and pH levels. The module's mixed-signal capability connects thermocouples for exothermic reaction monitoring, pressure transmitters for runaway detection, and voltage-output analyzers for composition control—providing the multi-parameter visibility required for recipe management and SPC compliance.

Upstream Oil & Gas Production: Wellhead monitoring systems use the 5X00784G01 to acquire separator pressures, flow computer pulse inputs, and H2S analyzer signals in Class I Division 2 locations. FM approval and conformal coating protect against corrosive atmospheres, while the module's diagnostic features alert operators to sensor drift before custody transfer meters fall out of calibration windows.

Water & Wastewater Treatment: Municipal plants leverage universal inputs to connect diverse instrumentation: turbidity meters (4-20mA), chlorine residual analyzers (0-10VDC), and digester temperature sensors (RTDs). Centralized I/O reduces panel footprint in space-constrained pump stations while maintaining the measurement accuracy needed for EPA discharge permit compliance.

Food & Beverage Processing: Pasteurization skids require precise temperature profiling across multiple zones. The 5X00784G01's thermocouple inputs with automatic CJC eliminate external transmitters, lowering installed costs while meeting FDA 21 CFR Part 11 validation requirements through NIST-traceable calibration certificates and audit trail capabilities in the Ovation historian.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 5X00784G01 when your application requires mixing multiple signal types within a single I/O rack location. For systems with homogeneous sensor populations (all 4-20mA or all thermocouples), dedicated input modules may offer lower per-point costs. However, the universal architecture provides future-proofing when process modifications introduce new sensor technologies—avoiding costly panel redesigns and rewiring campaigns.

Verify that your Ovation controller firmware supports the module's advanced diagnostic features (requires Ovation 3.5 or later). For hazardous area installations, confirm that your enclosure rating matches the module's Division 2/Zone 2 approval—additional barriers may be required for Division 1/Zone 1 field devices.

Extended Capabilities & Integration Options

OPC UA Connectivity: Ovation 3.7+ systems expose module diagnostics and channel data via OPC UA servers, enabling integration with third-party analytics platforms, cloud historians, and machine learning tools for predictive maintenance algorithms that identify sensor degradation patterns before failures occur.

Redundancy Support: Deploy in redundant controller configurations where dual modules provide automatic failover—if the primary module faults, the backup seamlessly assumes control without process interruption or "bumpless transfer" disturbances that could trip safety interlocks.

Custom Linearization: Beyond standard thermocouple and RTD curves, the module supports user-defined linearization tables for specialty sensors (e.g., non-standard thermistors, custom pressure transducers) through Ovation's function block programming—eliminating external signal conditioners and their associated calibration drift.

Cybersecurity Hardening: Firmware-level authentication prevents unauthorized configuration changes, while encrypted backplane communications protect against man-in-the-middle attacks in ICS environments subject to NERC CIP or IEC 62443 compliance mandates.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units shipping from our regional distribution centers in North America, Europe, and Asia-Pacific. Expedited same-day dispatch available for critical outage situations (contact our emergency hotline for 24/7 support).

Custom Configuration: Factory-programmed modules with pre-loaded channel assignments and scaling parameters ship within 7-10 business days—ideal for large projects where commissioning time compression justifies the premium for plug-and-produce delivery.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended 5-year protection plans available, including advance replacement service that ships a spare module before you return the failed unit—minimizing inventory carrying costs for critical spares.

Technical Support: Lifetime access to our application engineering team for configuration assistance, troubleshooting guidance, and system integration consulting. On-site commissioning services available in major industrial regions, with certified Ovation specialists who can validate installation quality and optimize control loop tuning.

Documentation Package: Each module ships with quick-start guide, detailed installation manual, wiring diagrams, and NIST-traceable calibration certificate. CAD drawings (AutoCAD DWG, PDF) and 3D STEP models available for download to support panel design and as-built documentation requirements.

Frequently Asked Questions

Q: Can the 5X00784G01 interface directly with HART-enabled 4-20mA transmitters?
A: Yes, the module passes HART digital signals transparently while measuring the analog 4-20mA current. However, HART communication requires a separate HART modem or Ovation HART I/O module for bi-directional device configuration and diagnostics—the 5X00784G01 provides analog measurement only.

Q: What is the maximum cable length between field sensors and the module?
A: For 4-20mA current loops, up to 1000 meters (3280 feet) with standard 18 AWG shielded cable. Voltage inputs should be limited to 100 meters to minimize noise pickup. Thermocouple extension wire can run 300+ meters if proper extension-grade wire is used and EMI sources are avoided. RTD 4-wire configurations support 500+ meter runs with negligible lead resistance errors.

Q: How does the module's energy efficiency compare to legacy analog input cards?
A: The 5X00784G01 consumes approximately 5W versus 12-15W for older generation modules—a 60% reduction that lowers cooling requirements and extends backplane power supply headroom. In a typical 200-point I/O system, this translates to 1.4kW annual energy savings and reduced HVAC load in control rooms.

Q: Are firmware updates required when upgrading Ovation controller software?
A: The module's firmware is backward-compatible across Ovation 3.x releases. Firmware updates are optional and only needed to enable new diagnostic features introduced in major Ovation versions. Updates are performed via Ovation Developer Studio without removing the module from the rack—typically completed in under 5 minutes per module.

Q: Can I mix 2-wire and 4-wire RTD connections on the same module?
A: Yes, each channel is independently configurable for 2-wire, 3-wire, or 4-wire RTD connections. However, 2-wire configurations introduce lead resistance errors (typically 0.5-2°C depending on cable length), so 3-wire or 4-wire connections are recommended for precision temperature control applications where ±0.1°C accuracy is required.

Q: What cybersecurity certifications does the module hold for critical infrastructure deployments?
A: The 5X00784G01 is part of Ovation systems certified under IEC 62443-4-2 (component security requirements) and supports NERC CIP compliance through secure configuration management and audit logging. The module itself has no network-facing interfaces—all communications occur via the isolated Ovation backplane, reducing attack surface area compared to Ethernet-based I/O systems.

Ready to Optimize Your Process Measurement Infrastructure?

Contact our industrial automation specialists to discuss your specific application requirements, receive technical sizing assistance, or request a formal quotation with volume pricing for multi-module projects. Our team can provide Ovation system health assessments to identify obsolete I/O modules that should be upgraded to current-generation technology like the 5X00784G01.

For immediate technical inquiries or emergency replacement needs, reach out via the contact information below—we're committed to keeping your critical control systems operational 24/7/365.
