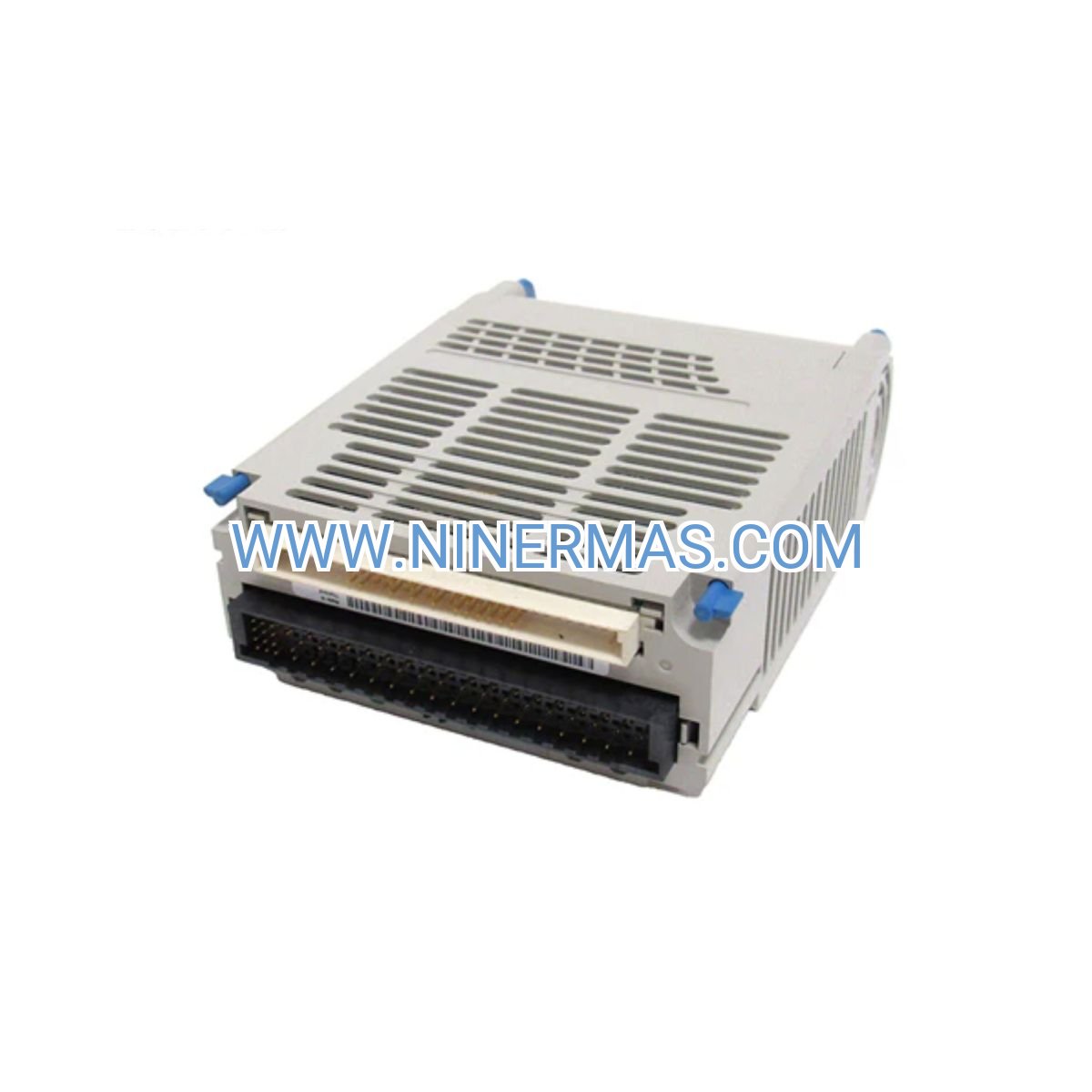

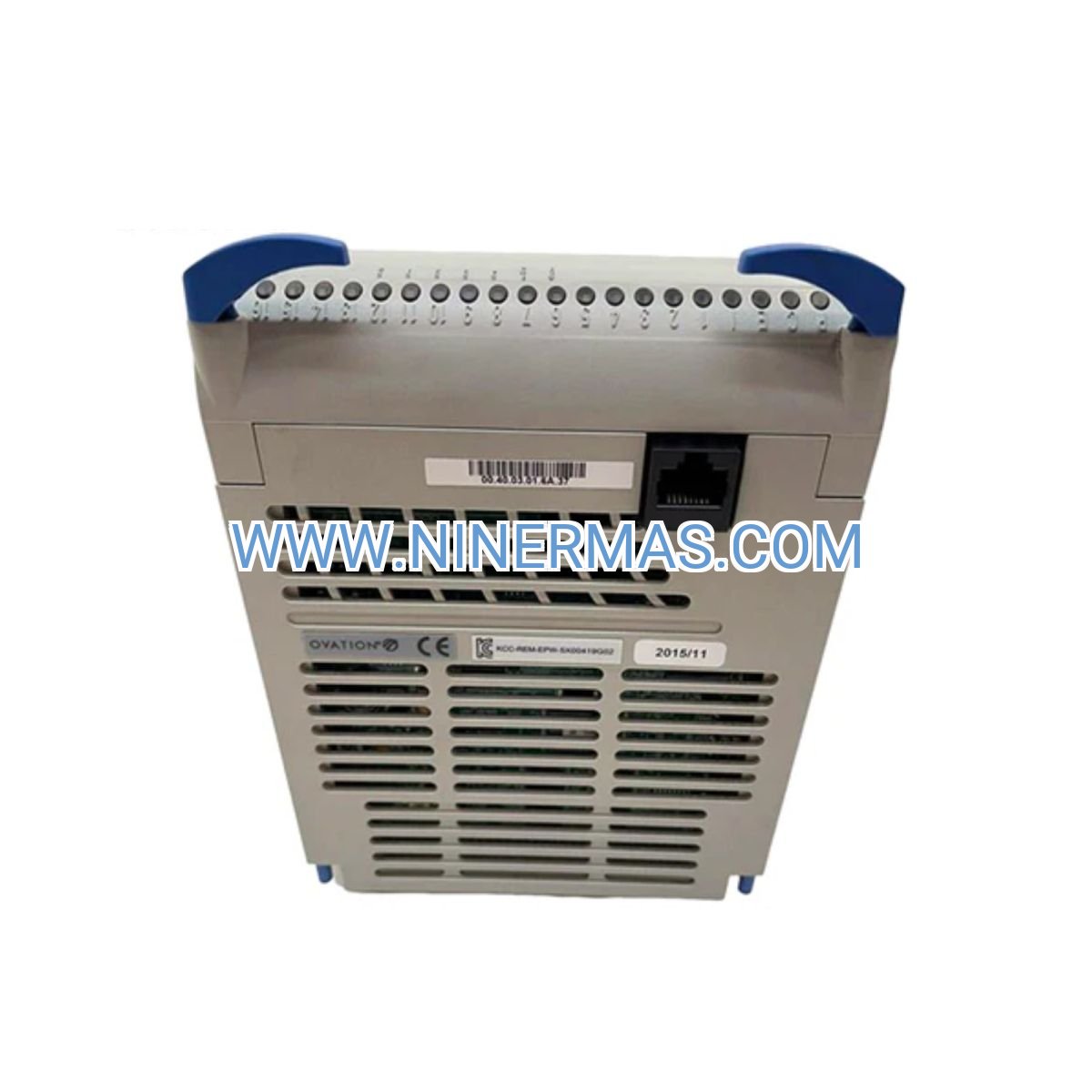

5X0070G05 Analog Input Module (Industrial-Grade DCS Interface)

The 5X0070G05 is a high-performance analog input interface engineered for Emerson Ovation distributed control architectures. This module transforms analog field signals from process transmitters into precise digital values, enabling real-time monitoring and control across power generation, petrochemical, and heavy manufacturing environments. Built for mission-critical applications, it combines 16-bit resolution with robust isolation technology to ensure measurement integrity in electrically noisy industrial settings.

Process engineers and plant operators rely on this module to capture critical parameters—temperature, pressure, flow rate, and level measurements—from standard 4-20 mA current loops and voltage transmitters. Its advanced signal conditioning eliminates ground loop interference while maintaining accuracy specifications that meet stringent regulatory requirements for emissions monitoring, safety instrumented systems, and quality control documentation.

Whether you're upgrading legacy DCS infrastructure or commissioning new process units, the 5X0070G05 delivers proven reliability with hot-swappable design, comprehensive diagnostics, and seamless integration into Ovation control strategies. Reduce commissioning time, minimize calibration drift, and achieve superior process visibility with this industry-standard analog input solution.

Core Features & Benefits

→ Multi-Channel Analog Acquisition
Simultaneous monitoring of multiple process variables through independent input channels, each with dedicated A/D conversion. Reduces wiring complexity and cabinet space requirements compared to single-channel designs while maintaining channel-to-channel isolation for electrical safety.

→ Universal Signal Compatibility
Accepts both 4-20 mA current loops (industry standard for process transmitters) and 0-10 VDC voltage signals without external conditioning. Automatic signal type detection simplifies configuration and prevents wiring errors during installation or maintenance activities.

→ Superior Measurement Accuracy
16-bit analog-to-digital conversion delivers 0.0015% resolution across the full input span. Combined with ±0.05% accuracy specification, this ensures regulatory compliance for emissions monitoring, custody transfer metering, and pharmaceutical batch documentation where measurement uncertainty directly impacts product quality and legal liability.

✓ Intelligent Fault Detection
Continuous sensor health monitoring identifies open circuits, short circuits, and transmitter failures within milliseconds. Diagnostic data integrates with Ovation alarm management to differentiate true process upsets from instrumentation faults, reducing operator workload and preventing unnecessary process shutdowns.

✓ Industrial Environmental Hardening
Conformal coating protects circuitry from humidity, dust, and chemical vapors in harsh plant environments. Extended temperature rating (-20°C to +65°C) supports installation in non-climate-controlled equipment rooms, reducing HVAC costs while maintaining long-term reliability with MTBF exceeding 200,000 hours.

✓ Hot-Swap Serviceability
Replace failed modules during operation without system shutdown or loss of control. Automatic configuration download from controller memory eliminates manual parameter entry, reducing mean time to repair from hours to minutes and maximizing plant availability.

Application Scenarios

Coal-Fired Power Plants
Monitor boiler feedwater flow, superheater steam temperature, and economizer oxygen levels in 500+ MW generating units. The module's high scan rate captures rapid load changes during grid frequency regulation, while SIL-2 certification supports integration into burner management safety systems that prevent furnace explosions.

Refinery Crude Distillation
Track column tray temperatures, reflux flow rates, and overhead pressure in atmospheric and vacuum distillation towers. Measurement precision enables tight cut-point control that maximizes valuable middle distillate yields while meeting product specification limits for sulfur content and flash point.

Pharmaceutical Batch Processing
Record reactor jacket temperatures, agitator torque, and ingredient addition rates for FDA 21 CFR Part 11 compliance. Built-in calibration traceability and audit trail capabilities support validation documentation requirements, while isolated inputs prevent cross-contamination between batch vessels.

Water Treatment Facilities
Measure clarifier turbidity, filter differential pressure, and chemical dosing pump stroke in municipal drinking water plants. The module's noise immunity maintains accuracy despite variable frequency drive interference from high-power pumps, ensuring consistent water quality that meets EPA Safe Drinking Water Act standards.

Pulp & Paper Mills
Control digester cooking liquor temperature, bleach tower consistency, and dryer section moisture in integrated kraft pulp and paper production. Rapid signal processing supports cascade control strategies that optimize fiber quality and energy consumption across multi-stage continuous processes.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires high-density analog input with superior noise rejection. For applications with more than 50% voltage inputs, consider pairing with current-optimized variants to balance channel utilization. If your process demands faster than 50ms updates, evaluate high-speed analog input alternatives within the Ovation I/O portfolio.

Extended Functions

Predictive Maintenance Integration: Export diagnostic data to Emerson AMS Asset Monitor for vibration analysis correlation and sensor drift trending. Machine learning algorithms identify degrading transmitters before they fail, enabling condition-based maintenance scheduling that reduces spare parts inventory.

Cybersecurity Hardening: Firmware authentication and encrypted configuration downloads protect against unauthorized modifications. Role-based access control integrates with plant-wide security policies to maintain IEC 62443 compliance for industrial control system cybersecurity.

Custom Linearization: Apply user-defined polynomial equations or lookup tables to linearize non-standard sensor outputs (thermocouples, RTDs with custom curves). Eliminates external signal conditioners and reduces total installed cost for specialty measurement applications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules with factory-programmed parameters available in 2-3 weeks. Expedited delivery options available for emergency outage support.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring guaranteed parts availability beyond standard product lifecycle.

Technical Support: Access to Emerson's global support network including 24/7 emergency hotline, application engineering consultation, and on-site commissioning assistance. Regional service centers stock replacement modules for same-day shipment to minimize downtime.

Documentation Package: Includes installation manual with wiring diagrams, configuration software license, calibration certificate with NIST traceability, and compliance declarations (CE, UL). Digital documentation portal provides access to firmware updates, technical bulletins, and training videos.

Frequently Asked Questions

Q: How do I interface this analog input module with third-party SCADA systems?
A: The module integrates natively with Ovation controllers that support OPC UA, Modbus TCP, and DNP3 protocols for seamless data exchange with Wonderware, Ignition, and other SCADA platforms. Configuration through Ovation Developer Studio automatically generates tag databases compatible with standard industrial communication drivers.

Q: What is the maximum cable length for 4-20 mA transmitter connections?
A: Standard 4-20 mA current loops support up to 1000 meters (3280 feet) of twisted-pair instrumentation cable with 50Ω/km resistance. For longer distances, use transmitters with boosted output or install loop-powered signal isolators at 500-meter intervals to maintain signal integrity.

Q: Can this module achieve energy savings in existing control systems?
A: Yes—the module's low 8W power consumption reduces cabinet heat load by 40% compared to legacy I/O cards, decreasing air conditioning requirements. Additionally, faster scan rates enable tighter process control that optimizes steam, fuel, and electrical consumption in energy-intensive applications like distillation and drying.

Q: What are the physical installation requirements for this I/O module?
A: Mounts in standard Ovation I/O chassis with hot-swap capability—no tools required for insertion or removal. Requires 25mm (1 inch) clearance above and below for convection cooling. Field wiring terminates on removable screw-terminal blocks rated for 14-22 AWG wire, supporting both ferrule and bare-wire terminations per IEC standards.

Q: Does the module support remote monitoring and diagnostics?
A: Full remote access through Ovation's web-based diagnostic interface displays real-time channel values, alarm status, and calibration history from any authorized workstation. Mobile app compatibility enables technicians to troubleshoot I/O issues from smartphones during field rounds, reducing response time for process deviations.

Q: How does the module handle sensor failures during critical process operations?
A: Configurable fail-safe modes allow each channel to output last-good-value, predetermined safe state, or trigger controller-level fault handling. Advanced diagnostics distinguish between sensor failures, wiring faults, and out-of-range conditions, enabling intelligent alarming that prevents false trips while maintaining safety system integrity.

Get Started Today

Enhance your process control accuracy and system reliability with the 5X0070G05 analog input module. Our technical specialists are ready to assist with application selection, system integration planning, and migration strategies for legacy DCS upgrades. Contact us for detailed specifications, compatibility verification, or to request a formal quotation for your next project.
