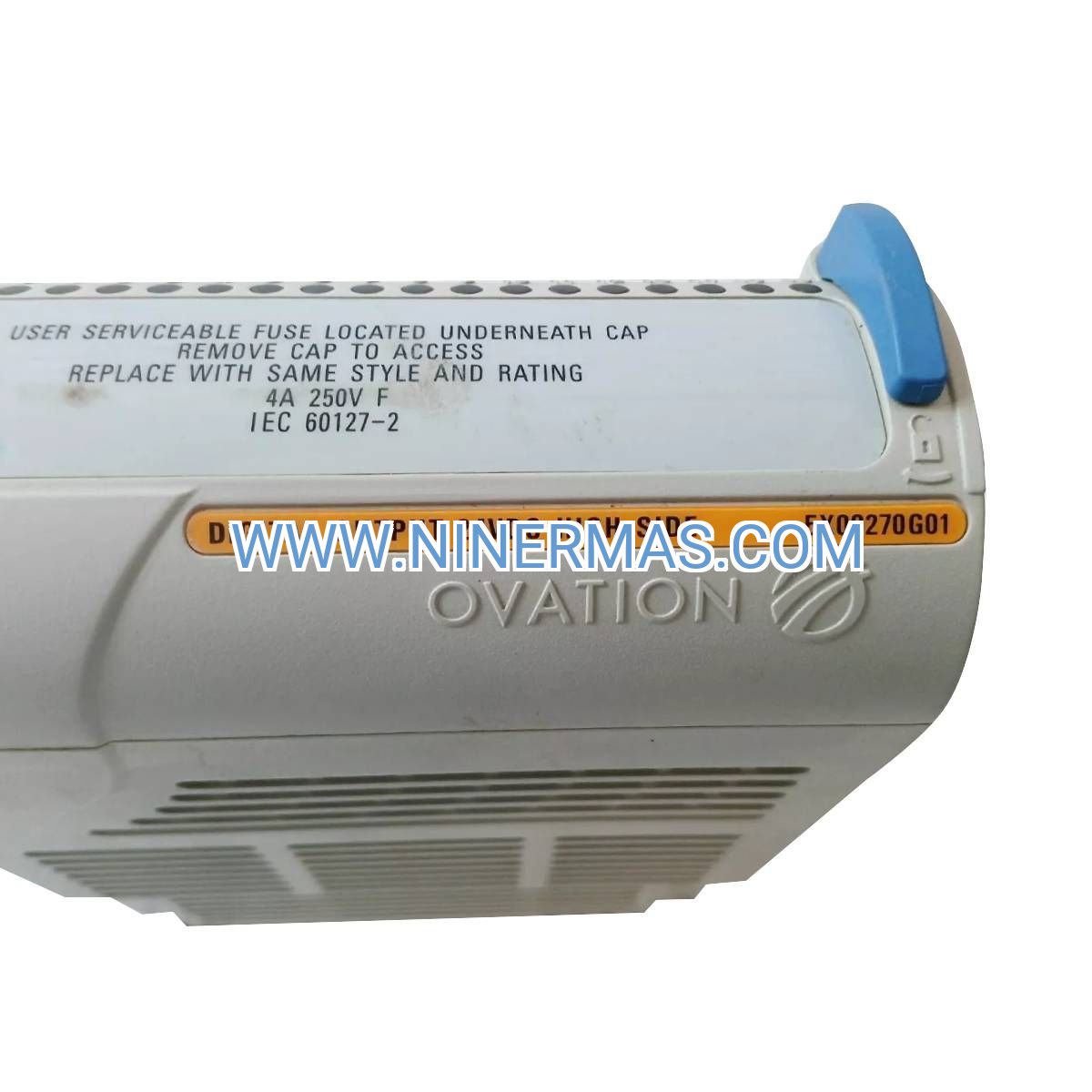

Industrial-Grade Analog Input Personality Module for Ovation Control Systems

The 5X00270G01 represents Emerson's modular approach to distributed control system I/O architecture, functioning as a field-replaceable signal conditioning interface that pairs with Ovation analog input base modules. This personality module defines the electrical characteristics and measurement parameters for each input channel, enabling operators to reconfigure signal types without replacing entire I/O assemblies. Whether monitoring process temperatures via thermocouples, tracking pressure through 4-20mA transmitters, or measuring voltage signals from analytical instruments, this single component adapts to diverse measurement requirements across industrial facilities.

Designed for process industries where measurement accuracy directly impacts product quality and regulatory compliance, the 5X00270G01 delivers enterprise-grade signal conditioning with built-in diagnostics. Plant engineers gain the flexibility to modify I/O configurations as processes evolve, while maintenance teams benefit from reduced spare parts inventory and simplified troubleshooting procedures. The module's hot-swap capability minimizes production interruptions during configuration changes or component replacement.

This personality card integrates seamlessly with Emerson's Ovation distributed control platform, supporting mixed-signal configurations where different channel types coexist on the same base module. Advanced features include automatic sensor health monitoring, calibration data storage, and protection against electrical transients—critical capabilities for maintaining measurement integrity in harsh industrial environments.

Core Capabilities & Performance Advantages

→ Universal Signal Compatibility: Accepts industry-standard analog inputs including 4-20mA current loops, 1-5VDC and 0-10VDC voltage ranges, plus direct thermocouple connections (J, K, T, E, R, S, B types) and RTD sensors (Pt100/Pt1000 configurations). Eliminates the need for external signal converters and reduces wiring complexity.

→ Field-Configurable Architecture: Channel-by-channel signal type selection through jumper settings or software configuration enables rapid adaptation to changing process requirements. Reconfigure a thermocouple input to accept 4-20mA signals in minutes without controller programming changes.

→ Integrated Signal Conditioning: Onboard amplification, linearization algorithms, and cold junction compensation for thermocouples ensure measurement accuracy across the full operating range. Factory calibration coefficients stored in non-volatile memory maintain precision throughout the module's service life.

✓ Electrical Isolation & Protection: Channel-to-backplane isolation prevents ground loops that degrade measurement quality, while overvoltage protection, reverse polarity guards, and transient suppression circuits safeguard against field wiring errors and electrical disturbances.

✓ Hot-Swap Serviceability: Replace personality modules during system operation without powering down the base module or interrupting control network communications. The Ovation controller automatically detects configuration changes and updates I/O mapping tables.

✓ Diagnostic Intelligence: Continuous monitoring of sensor health, wiring integrity, and signal quality with fault data transmitted to the control system. Predictive maintenance algorithms identify degrading sensors before measurement errors impact process control.

Application Scenarios Across Process Industries

Refinery Modernization Programs: Upgrade legacy DCS I/O systems in operating refineries without process shutdowns. Install Ovation base modules and configure 5X00270G01 personality cards to match existing field instrumentation—preserving transmitter calibrations and terminal block wiring while gaining modern diagnostic capabilities. Reduces migration risk and capital expenditure compared to complete I/O system replacement.

Chemical Plant Expansion Projects: Deploy base modules during initial construction phases, then add personality cards as production units commission. This phased approach aligns I/O procurement with project cash flow while maintaining configuration flexibility as process designs evolve. Avoid hardware obsolescence when scope changes require different signal types.

Power Generation Instrumentation: Monitor boiler temperatures, turbine vibration sensors, and emissions analyzers using mixed-signal configurations on shared base modules. Configure channels 1-4 for K-type thermocouples measuring combustion temperatures, channels 5-6 for 4-20mA pressure transmitters, and channels 7-8 for 0-10VDC analytical signals—maximizing I/O density in limited control cabinet space.

Pharmaceutical Manufacturing Compliance: Maintain validated system configurations with serialized personality modules that store calibration data and configuration parameters. When regulatory audits require documentation of measurement system accuracy, retrieve calibration certificates and traceability records linked to specific module serial numbers.

Spare Parts Inventory Optimization: Stock multiple personality card types while maintaining minimal base module inventory. When I/O failures occur, replace the compact personality card rather than the entire module assembly—reducing spare parts investment by 40-50% and improving mean time to repair.

Technical Specifications & Selection Criteria

Selection Guidelines: Verify base module compatibility before ordering—the 5X00270G01 requires Ovation analog input bases with matching connector pinouts. Determine required signal types and channel counts to optimize module utilization. For applications requiring galvanic isolation between channels, specify isolated base modules. Consult Emerson application engineers for hazardous area installations requiring intrinsic safety barriers or explosion-proof enclosures.

Advanced Integration Features

Automatic Configuration Recognition: When installed, the personality card communicates its signal type configuration to the Ovation controller via the base module backplane. The control system automatically updates I/O database entries, eliminating manual configuration steps and reducing commissioning errors.

Calibration Data Portability: Factory calibration coefficients stored in the personality card's EEPROM travel with the module during replacement. Swap a failed card with a spare, and the new module maintains identical measurement accuracy without field recalibration—critical for maintaining process control during emergency repairs.

Predictive Maintenance Integration: Sensor degradation algorithms analyze signal noise, drift patterns, and response times to predict impending failures. Maintenance management systems receive advance notification of sensors requiring calibration or replacement, enabling scheduled interventions during planned outages rather than reactive repairs during production runs.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock modules; 4-6 weeks for factory orders during high-demand periods. Expedited shipping available for critical outage situations.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for long-term capital projects.

Technical Support: Access to Emerson's global support network including 24/7 emergency hotline, application engineering consultation, and on-site commissioning assistance. Regional service centers provide calibration services and repair depot support.

Documentation Package: Includes installation quick-start guide, configuration worksheets, wiring diagrams, and dimensional drawings. Comprehensive technical manuals available through Emerson's online documentation portal with revision tracking for configuration management.

Frequently Asked Questions

Q: Can I mix different signal types on the same base module using multiple personality cards?
A: No—each base module accepts one personality card that defines the signal type for all channels on that module. However, you can configure individual channels for different ranges within the supported signal family (e.g., channels 1-4 for J-type thermocouples, channels 5-8 for K-type thermocouples).

Q: What happens to process control when I hot-swap a personality card?
A: The Ovation controller detects the configuration change and updates I/O mapping automatically. Control strategies continue executing using the last valid input values until the new card initializes (typically <2 seconds). Configure control loops with appropriate hold or safe-state logic for critical processes.

Q: How do I verify calibration accuracy after installing a replacement personality card?
A: Each module ships with a calibration certificate documenting accuracy at multiple points across the measurement range. For field verification, apply known reference signals using a precision calibrator and compare controller readings to expected values. Recalibration is rarely required due to EEPROM-stored coefficients.

Q: Are these personality cards compatible with older Ovation system generations?
A: The 5X00270G01 is designed for current-generation Ovation controllers and base modules. Compatibility with legacy systems depends on base module revision levels and controller firmware versions. Contact Emerson technical support with your system serial numbers for compatibility verification.

Q: What environmental conditions affect measurement accuracy?
A: Ambient temperature variations impact thermocouple cold junction compensation accuracy. Install modules in temperature-controlled cabinets maintaining 20-30°C for optimal performance. High humidity can cause condensation on circuit boards—ensure cabinet environmental controls meet IP54 or better protection ratings.

Q: Can I configure RTD sensors for 2-wire, 3-wire, or 4-wire connections?
A: Yes—the 5X00270G01 supports all standard RTD wiring configurations. Use 4-wire connections for highest accuracy applications where lead resistance compensation is critical. 3-wire configurations provide good accuracy for most industrial applications, while 2-wire is suitable for short cable runs where lead resistance is negligible.

Request Technical Consultation

Our industrial automation specialists provide application-specific guidance for Ovation system configurations, I/O architecture design, and migration planning. Contact our team to discuss your project requirements, receive detailed quotations, and access technical resources including CAD drawings, configuration tools, and compatibility matrices.
