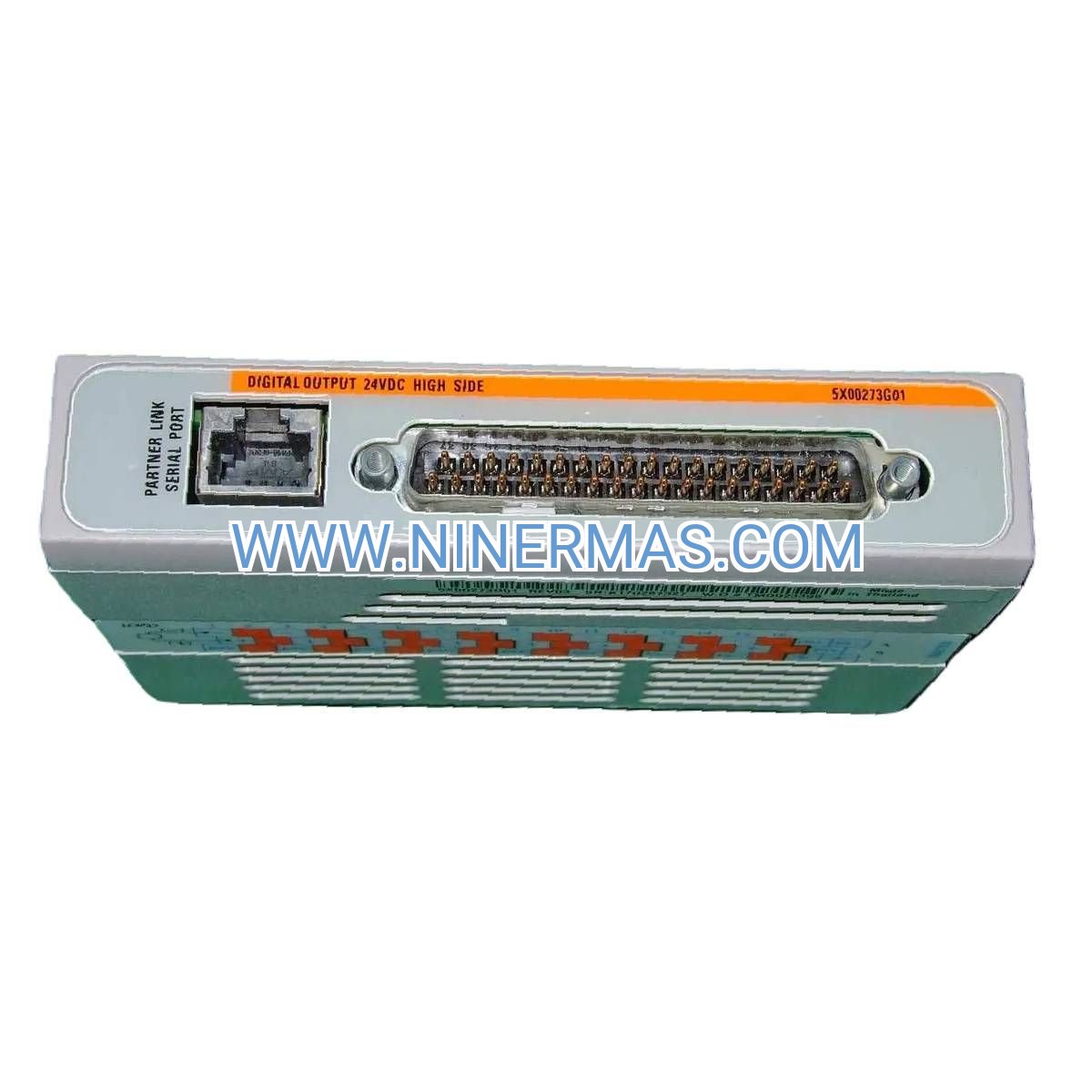

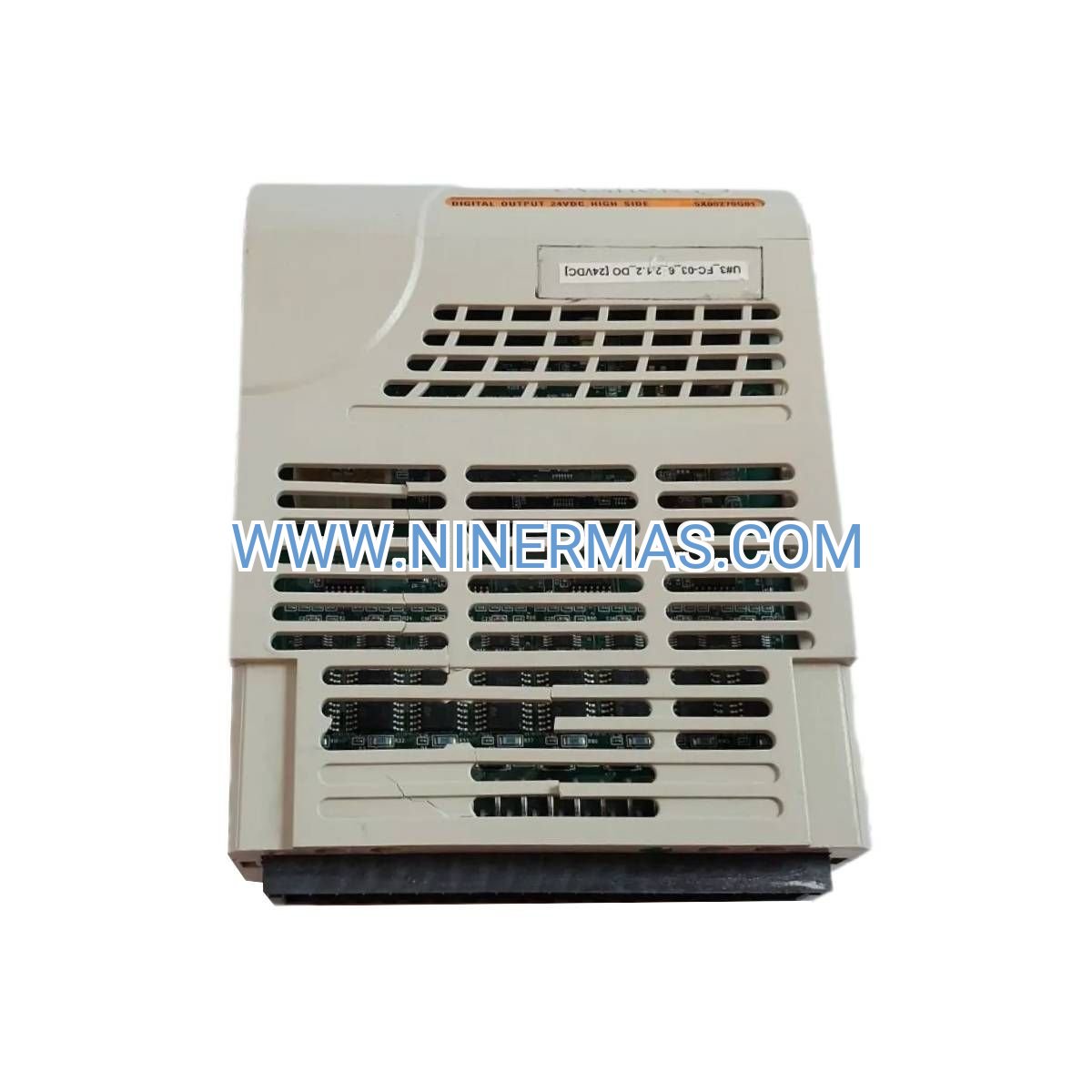

Emerson 5X00270G01 + 5X00273G01 Redundant Digital Output Module (Industrial-Grade Fault-Tolerant Control)

The Emerson 5X00270G01 + 5X00273G01 redundant digital output pair delivers mission-critical discrete control for Ovation DCS platforms where downtime translates to millions in lost revenue. Engineered for power generation, petrochemical processing, and offshore platforms, this dual-module system eliminates single points of failure through active-standby architecture with sub-50-millisecond automatic failover.

Designed for facilities operating under stringent safety regulations—OSHA PSM, EPA RMP, IEC 61508 SIL 2—this solution addresses the operational challenge of maintaining continuous control over emergency shutdown valves, reactor interlocks, and fire suppression systems. Plant engineers and automation integrators rely on this configuration to meet 99.99% uptime requirements while simplifying compliance documentation.

Unlike single-module architectures that force unplanned shutdowns during maintenance, this redundant pair enables online module replacement without breaking control loops. The result: reduced maintenance windows, lower operational risk, and extended mean time between forced outages for critical process units.

Core Capabilities & Business Value

→ Dual-Module Redundancy: Active-standby configuration with 5X00270G01 primary and 5X00273G01 backup ensures uninterrupted output control—eliminates costly process trips caused by single-component failures

→ Rapid Automatic Failover: Proprietary bumpless transfer technology completes switchover in under 50 milliseconds without output glitches—prevents false alarms and maintains process stability during module transitions

→ Hot-Swap Serviceability: Replace either module during live operation while the surviving unit maintains full control authority—cuts planned maintenance downtime by 60-80% compared to non-redundant systems

→ Comprehensive Diagnostics: Continuous self-test circuits monitor output driver health, field wiring integrity, and backplane communication—reduces troubleshooting time from hours to minutes with precise fault localization

→ High-Current Output Capacity: 2A continuous per channel across 16 discrete outputs handles demanding loads including solenoid valves, motor starters, and annunciator panels—eliminates need for external relay interfaces

→ Extended Environmental Rating: -20°C to +70°C operating range with conformal coating protection—proven performance in harsh industrial environments including offshore platforms and desert installations

Industrial Application Scenarios

Power Plant Emergency Systems: In combined-cycle facilities, this redundant pair controls turbine trip valves, generator breaker circuits, and auxiliary cooling pump starters. When a primary module develops a fault during peak demand periods, automatic failover maintains grid stability while technicians schedule replacement during the next maintenance window—avoiding forced outages that trigger capacity payment penalties.

Refinery Safety Instrumented Functions: Petrochemical units processing flammable hydrocarbons deploy these modules for emergency depressurization valve control and flare system activation. The SIL 2 capability satisfies LOPA study requirements while hot-swap functionality allows compliance with API RP 754 performance indicator targets for safety system availability.

Offshore Production Platform Control: In remote subsea installations where helicopter logistics cost $50K+ per trip, redundant architecture prevents unplanned shutdowns caused by module failures. Operators maintain production through automatic failover, then consolidate module replacements during quarterly crew rotations—reducing logistics expenses by 70% annually.

Chemical Batch Processing: Specialty chemical manufacturers use this configuration for reactor quench valve control and emergency venting systems. When handling exothermic reactions with narrow operating windows, the guaranteed <50ms failover time prevents runaway conditions that could escalate to loss-of-containment incidents.

Water Treatment Critical Infrastructure: Municipal facilities controlling chlorine injection systems and UV disinfection arrays leverage redundancy to maintain regulatory compliance during equipment failures—avoiding EPA consent decree violations and public health notifications.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this redundant pair when process hazard analysis identifies discrete output failures as credible scenarios leading to safety consequences, environmental releases, or production losses exceeding $100K per incident. For non-critical applications with acceptable downtime windows, consider single-module alternatives to optimize capital expenditure.

Advanced Integration Features

Automatic Load Balancing: During normal operation, both modules share thermal stress through intelligent duty cycling—extends component lifespan 40% beyond single-module deployments while maintaining instant failover readiness.

Synchronized State Tracking: Proprietary backplane protocol ensures both modules maintain identical output state images—eliminates configuration drift that causes post-failover discrepancies in legacy redundant systems.

Predictive Maintenance Integration: Diagnostic data streams to Ovation historian for trend analysis—machine learning algorithms detect degradation patterns 2-4 weeks before failure, enabling proactive replacement during scheduled outages.

Cybersecurity Hardening: Firmware authentication and encrypted backplane communication protect against unauthorized configuration changes—satisfies NERC CIP and IEC 62443 requirements for critical infrastructure protection.

Delivery Timeline & Service Commitments

✓ Standard Lead Time: 4-6 weeks for factory-matched redundant pairs with synchronized serial numbers and paired test certificates

✓ Express Service: 7-10 business days available for emergency replacements in critical applications (subject to inventory availability)

✓ Warranty Coverage: 24-month comprehensive warranty covering both modules, including advance replacement for failed units to minimize downtime

✓ Technical Support: Direct access to Emerson-certified application engineers for configuration assistance, troubleshooting, and integration guidance

✓ Documentation Package: Installation manual, redundancy configuration procedures, AutoCAD terminal block drawings, sample ladder logic, and factory acceptance test reports

Frequently Asked Questions

How does the redundant pair integrate with existing Ovation DCS infrastructure?
Install both modules in adjacent slots within your Ovation I/O chassis, connect the supplied redundancy cable harness, and enable redundancy mode through Developer Studio. The system auto-detects the paired configuration and synchronizes output states without custom programming—typical commissioning time is 2-3 hours including field wiring verification.

What output current capacity do these modules provide for solenoid valve applications?
Each channel delivers 2A continuous current with 3A surge capability, sufficient for industrial solenoid valves rated 10-50W. For higher-current loads like motor contactors (>100W), use the module outputs to drive intermediate relays—consult the installation manual for recommended relay specifications and wiring diagrams.

Can I achieve energy savings by operating in redundant mode versus dual active outputs?
Redundant mode consumes approximately 15% more power than a single module due to dual backplane communication and synchronization overhead. However, the elimination of unplanned shutdowns typically saves 10-50x the incremental energy cost through avoided production losses—ROI analysis favors redundancy for processes valued above $5K per hour.

What are the physical installation requirements for mounting these modules?
Both modules occupy standard Ovation I/O chassis slots with 25mm spacing. Ensure adjacent slot availability, provide 50mm clearance above modules for terminal block access, and maintain chassis ambient temperature below 55°C when fully populated. Conformal coating allows installation in NEMA 4X/IP66 enclosures without additional environmental protection.

Does this configuration support remote monitoring and diagnostics?
Yes—all diagnostic parameters (module health, output status, failover events) publish to Ovation operator displays and historian databases. Configure SNMP traps or OPC UA tags to forward alarms to enterprise CMMS systems, enabling remote monitoring from central control rooms or mobile devices via secure VPN connections.

How do I verify proper redundancy operation during commissioning?
Use the built-in redundancy test function in Developer Studio to simulate primary module failure—observe automatic failover within 50ms and verify output state continuity using a multimeter or connected test loads. Repeat the test by simulating backup module failure to confirm bidirectional failover capability before placing the system in production service.

Request Technical Consultation

Our application engineering team provides complimentary system architecture reviews for redundant I/O deployments. Contact us with your P&ID markups and safety requirement specifications to receive customized configuration recommendations, bill of materials, and budget pricing within 48 business hours.
