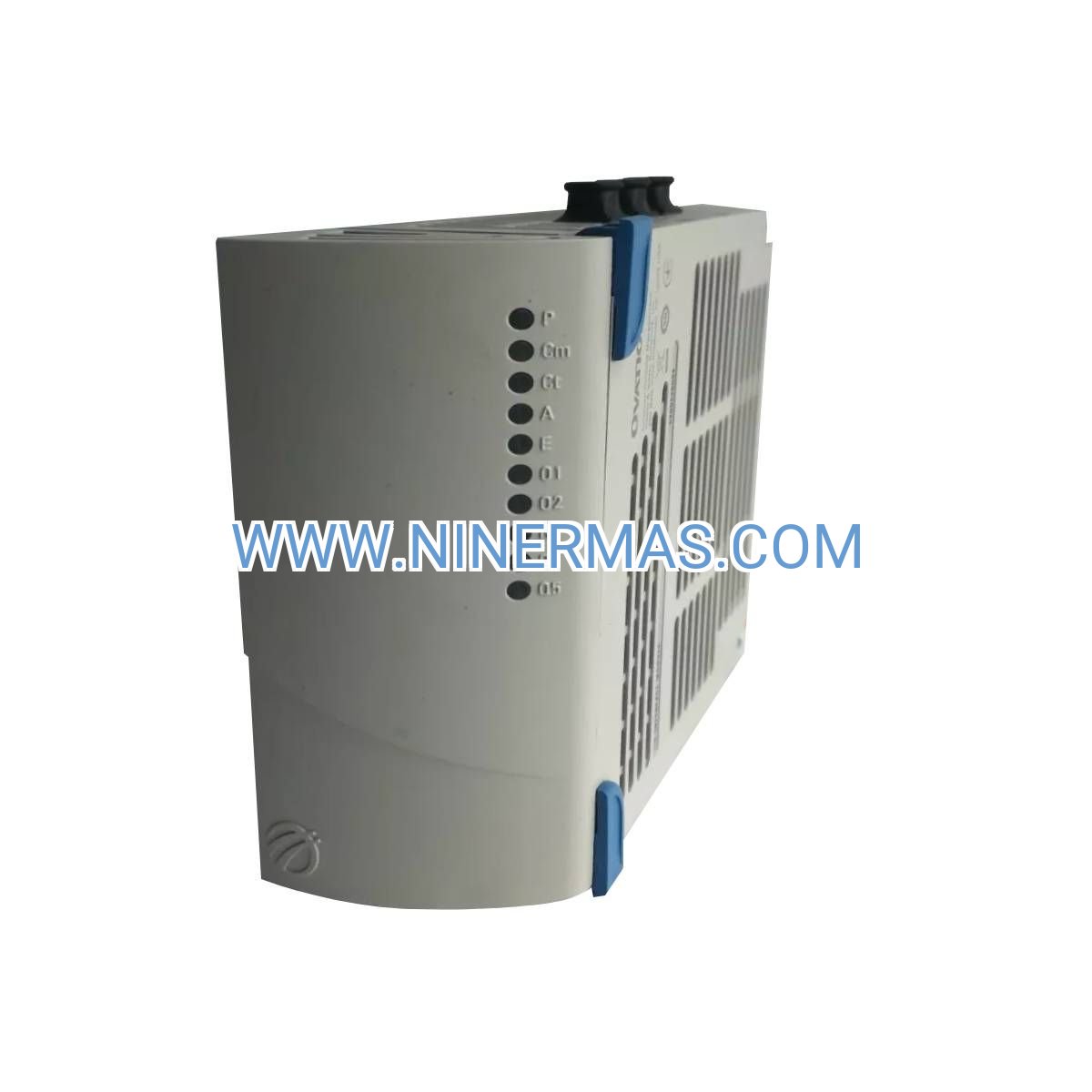

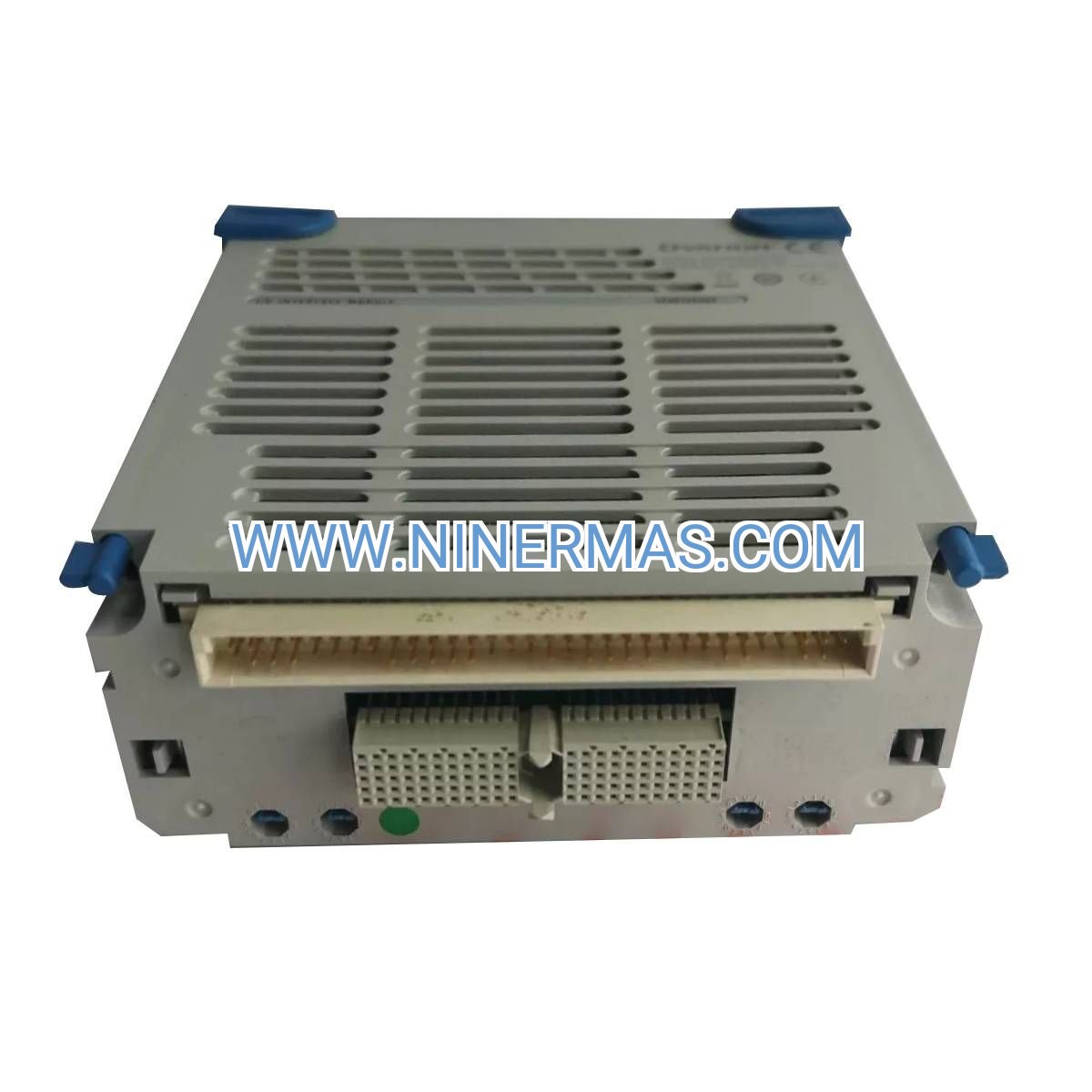

5X00226G04 I/O Interface Module (Industrial-Grade Communication Hub)

The 5X00226G04 represents a mission-critical communication node engineered for Emerson Ovation distributed control environments. Designed to bridge controller logic with distributed field instrumentation, this interface module delivers deterministic data exchange across industrial networks where control precision and uptime directly impact operational revenue. Built for environments demanding fault-tolerant architecture, the module integrates dual-path redundancy, protocol versatility, and real-time diagnostics into a compact, rack-mountable form factor.

Process engineers and automation specialists deploy this interface to eliminate single points of failure in control networks spanning power generation facilities, water treatment infrastructure, and continuous manufacturing operations. The module addresses the fundamental challenge of maintaining microsecond-level synchronization across geographically distributed I/O while providing seamless failover during network disruptions or maintenance events.

Key differentiators include hardware-accelerated encryption for cybersecurity compliance, adaptive bandwidth management for traffic prioritization, and native support for both legacy Modbus systems and modern OPC UA architectures—enabling phased modernization without forklift upgrades.

Core Features & Benefits

→ Dual Redundant Communication Paths: Automatic failover under 50ms ensures continuous operation during network failures, cable damage, or switch maintenance—critical for 24/7 process industries where downtime costs exceed $100K/hour.

→ 100 Mbps Full-Duplex Ethernet Backbone: High-throughput architecture supports up to 128 I/O points per module with deterministic 10ms scan cycles, enabling tight control loops for temperature, pressure, and flow regulation in real-time processes.

→ Multi-Protocol Flexibility: Simultaneous support for Modbus TCP/IP, OPC UA, and proprietary Ovation protocols allows integration of legacy PLCs, modern SCADA systems, and cloud gateways within a unified network topology.

→ Built-In Network Diagnostics: Real-time monitoring of packet loss, latency spikes, and traffic congestion provides early warning of degrading network conditions before they impact control performance—reducing troubleshooting time by 60%.

→ Extended Environmental Tolerance: Operates reliably across -20°C to +60°C with 5-95% humidity resistance, suitable for outdoor substations, coastal facilities, and high-temperature industrial environments without climate-controlled enclosures.

✓ Cybersecurity Hardening: Hardware encryption accelerators and role-based access control meet NERC CIP and IEC 62443 standards for critical infrastructure protection, safeguarding against unauthorized access and malware propagation.

Application Scenarios

Combined-Cycle Power Generation: Coordinate turbine control, heat recovery steam generators (HRSG), and emissions monitoring across multi-building facilities. The module's redundant design prevents loss of critical telemetry during grid disturbances, ensuring compliance with environmental regulations and avoiding forced outages that trigger capacity penalties.

Pharmaceutical Batch Processing: Synchronize reactor temperature control, ingredient dosing pumps, and clean-in-place (CIP) sequences with validated 21 CFR Part 11 audit trails. Deterministic scan rates maintain recipe precision for FDA-regulated production where batch deviations require costly material disposal.

Municipal Wastewater Treatment: Integrate remote lift stations, aeration blowers, and clarifier drives across city-wide SCADA networks. Modbus TCP compatibility enables cost-effective connection of existing field devices while OPC UA provides data integration with asset management systems for predictive maintenance.

Petrochemical Refining: Enable distributed control of distillation columns, compressor stations, and tank farms spanning acres of process area. The module's MTBF rating exceeding 150,000 hours reduces unplanned maintenance interventions in hazardous classified locations.

Renewable Energy Farms: Aggregate data from wind turbine controllers, solar inverters, and battery storage systems for grid-scale energy management. IEEE 1588 PTP time synchronization ensures accurate power quality measurements for utility interconnection compliance.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 5X00226G04 when your application requires fault-tolerant I/O communication with scan rates under 20ms. For non-redundant applications with slower update requirements, consider cost-optimized single-port alternatives. Systems exceeding 128 I/O points per network segment should implement multiple modules with load balancing.

Extended Functions

Edge Analytics Capability: Onboard processing resources support local data aggregation, alarm filtering, and conditional logic execution—reducing network traffic by up to 40% while enabling autonomous control during WAN outages.

Cloud Gateway Integration: Secure MQTT/HTTPS tunneling to AWS IoT Core, Azure IoT Hub, or private cloud platforms enables remote monitoring dashboards and predictive maintenance analytics without exposing OT networks to internet threats.

Custom Firmware Options: Emerson engineering services can develop application-specific protocol converters or specialized I/O drivers for proprietary field devices, accelerating integration timelines for unique automation requirements.

Delivery & Service Assurance

Lead Time: Standard configuration ships within 3-5 business days from regional distribution centers. Custom firmware or extended temperature variants require 4-6 weeks for factory configuration and testing.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year service contracts available with advance replacement and on-site support options.

Technical Support: Access to Emerson's 24/7 global support hotline with escalation to application engineers for complex integration challenges. Remote diagnostic tools enable screen-sharing troubleshooting sessions.

Documentation Package: Includes installation manual, network configuration guide, Modbus register mapping, OPC UA information model, AutoCAD dimensional drawings, and sample ladder logic for common PLC platforms.

Frequently Asked Questions

Q: How does the 5X00226G04 interface with existing Modbus RTU field devices?
A: The module functions as a Modbus TCP/RTU gateway when paired with serial converter modules. Configure the Ovation controller to poll Modbus TCP addresses, and the interface translates requests to RTU format for legacy instruments—eliminating the need to replace functional field devices during DCS upgrades.

Q: What is the maximum cable distance between the interface module and remote I/O racks?
A: Using standard Cat5e/Cat6 Ethernet cabling, reliable communication extends to 100 meters per IEEE 802.3 specifications. For longer distances, deploy industrial Ethernet switches with fiber optic uplinks supporting multi-kilometer runs in campus-style facilities.

Q: Can this module reduce energy consumption in my control system?
A: While the module itself consumes only 12W, its edge processing capabilities enable advanced control strategies like load shedding, demand response, and optimized setpoint management—delivering 5-15% energy savings in HVAC, compressed air, and motor control applications through improved process efficiency.

Q: What installation requirements are necessary for redundant operation?
A: Redundancy requires dual network switches (preferably from different manufacturers to avoid common-mode firmware vulnerabilities), separate cable routing paths to prevent physical damage correlation, and independent 24VDC power supplies. The module auto-detects redundant configurations without manual parameter setting.

Q: Does the interface support remote monitoring and diagnostics?
A: Yes—built-in web server provides browser-based access to real-time network statistics, I/O health status, and historical trend data. SNMP traps integrate with enterprise network management systems for centralized alarm aggregation and automated ticketing workflows.

Q: How do I verify compatibility with my current Ovation system version?
A: The 5X00226G04 supports Ovation versions 3.5 and later. Check your controller firmware revision in Developer Studio under System Configuration. Modules ship with backward-compatible firmware; upgrades to match your installed base are available via USB configuration port.

Get Started Today

Enhance your Ovation DCS reliability with proven I/O interface technology trusted by Fortune 500 industrial operators. Our application engineers are available to review your network topology, recommend optimal module placement, and provide integration support from concept through commissioning.

Request a technical consultation: Contact our team to discuss your specific control architecture requirements and receive customized configuration recommendations.
