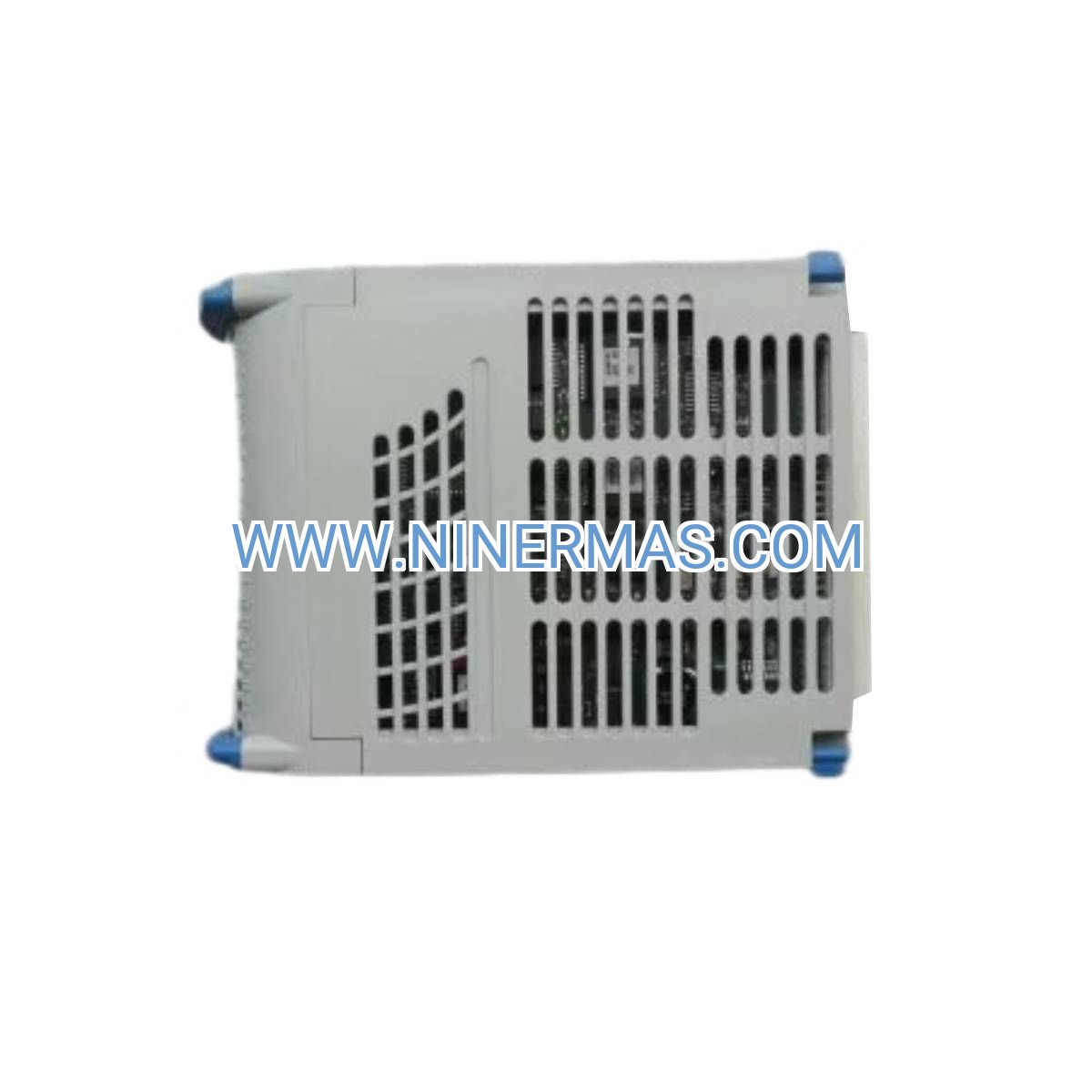

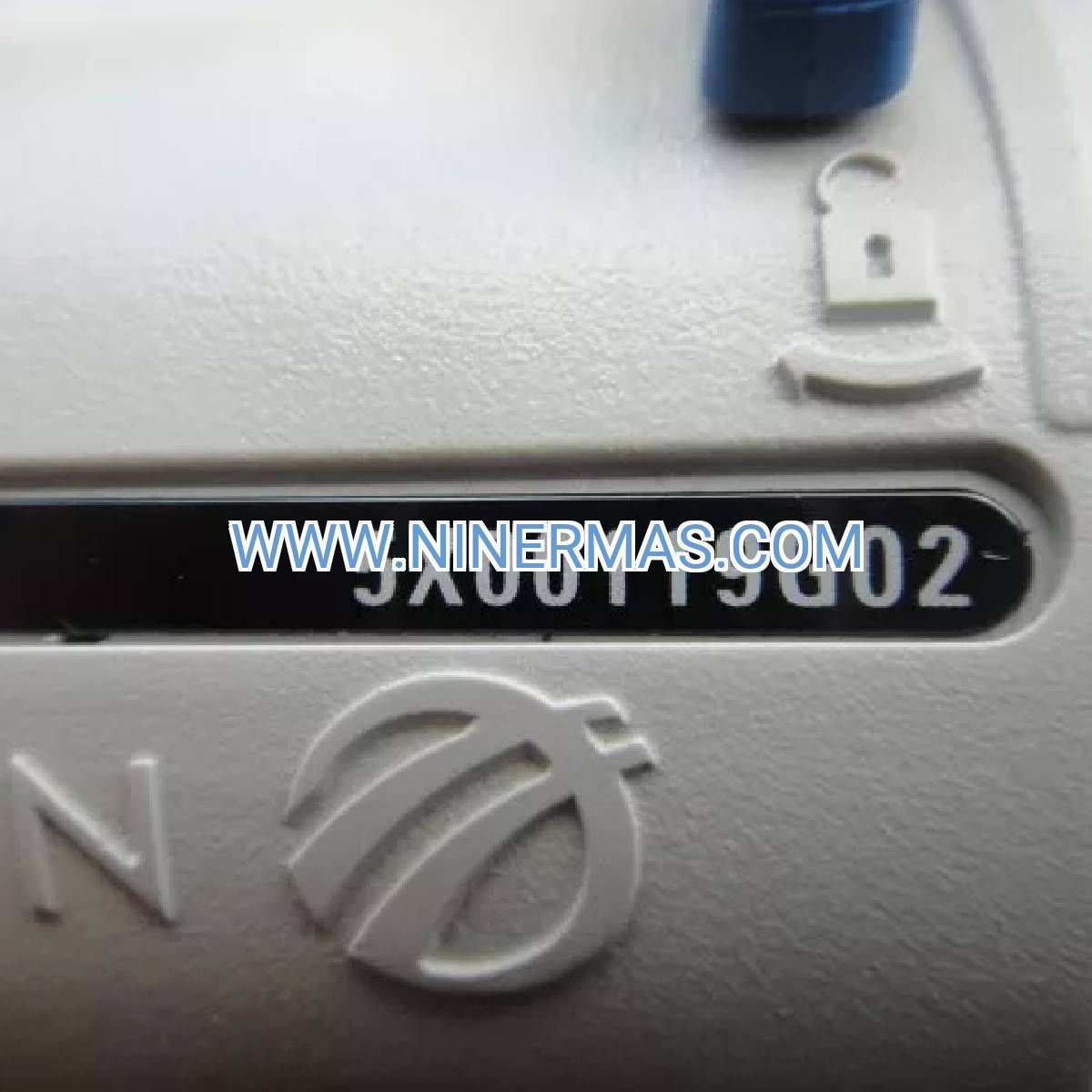

5X00119G02 Sequence of Events Input Module (Industrial-Grade Precision Logging)

The 5X00119G02 is a specialized Sequence of Events (SOE) recording module engineered for Emerson Ovation distributed control systems. Designed to capture and timestamp digital state transitions with millisecond-level accuracy, this module serves as the forensic backbone for incident analysis in power generation facilities, electrical substations, and safety-instrumented systems. When equipment failures, protective relay trips, or emergency shutdowns occur, the 5X00119G02 provides the chronological evidence needed to reconstruct event sequences, identify root causes, and satisfy regulatory documentation requirements.

Built for environments where every millisecond matters, this 16-channel digital input module synchronizes with GPS, IRIG-B, or network time protocols to maintain plant-wide timestamp consistency. Whether you're managing turbine protection schemes, monitoring circuit breaker operations, or documenting safety interlock activations, the 5X00119G02 delivers the temporal resolution and data integrity that compliance officers, reliability engineers, and operations managers demand.

From NERC CIP audits to insurance claim investigations, having defensible event records can mean the difference between rapid resolution and prolonged disputes. The 5X00119G02 transforms your Ovation system into a certified event witness, automatically logging state changes, filtering contact bounce, and exporting data in industry-standard COMTRADE format for seamless integration with analysis tools used by protection engineers worldwide.

Core Features & Business Value

→ 16 High-Speed Digital Inputs
Monitor critical signals from protective relays, circuit breakers, turbine trip circuits, and emergency stop systems. Each channel operates independently with dedicated optical isolation, ensuring one noisy input cannot compromise data integrity across the entire module.

✓ 1-Millisecond Timestamp Resolution
Achieve forensic-grade accuracy that meets IEEE C37.111 standards for power system event analysis. This precision enables correlation of events across multiple substations or plant areas, revealing cause-and-effect relationships invisible to conventional SCADA alarm systems with 1-second resolution.

→ Universal Input Voltage Range (24-250 VDC/VAC)
Eliminate the need for external signal conditioning when interfacing with diverse field devices. Automatic voltage detection and scaling reduce commissioning time by 40% compared to modules requiring manual jumper configuration for each input type.

✓ 10,000+ Event Buffer Capacity
Store weeks of normal operations or capture extended fault sequences without data loss. First-in-first-out buffer management ensures the most recent events are always available, while configurable alarm thresholds warn operators before buffer saturation during abnormal conditions.

→ Programmable Debounce Filtering (1-100ms)
Suppress mechanical contact chatter from aging relays and switches that would otherwise flood event logs with false transitions. Adaptive filtering algorithms distinguish genuine state changes from electrical noise, reducing post-incident analysis time by eliminating thousands of spurious records.

✓ Multi-Protocol Time Synchronization
Support for NTP, SNTP, IEEE 1588 PTP, and IRIG-B ensures compatibility with existing plant timing infrastructure. Redundant time source inputs provide automatic failover, maintaining timestamp accuracy even during GPS signal loss or network outages that would render unsynchronized systems useless for forensic analysis.

Application Scenarios & Problem Resolution

Power Generation Facilities
In combined-cycle plants, nuclear stations, and renewable energy installations, the 5X00119G02 records turbine trip sequences, generator breaker operations, and auxiliary system responses during emergency shutdowns. When a unit trips offline, plant managers need to know whether the initiating event was a boiler tube leak, a false vibration alarm, or a protection relay misoperation. SOE data provides the definitive timeline that separates equipment failures from control system faults, directing maintenance resources to the actual problem rather than symptoms. This targeted troubleshooting reduces forced outage duration by 30-50% compared to trial-and-error diagnostics.

Electrical Substation Automation
Transmission and distribution utilities deploy the 5X00119G02 to document protective relay coordination, circuit breaker failure sequences, and automatic transfer switch operations. During fault conditions, multiple relays may operate within milliseconds of each other—understanding which device acted first determines whether protection schemes are properly coordinated or require settings adjustments. Utilities facing NERC compliance audits use SOE records to demonstrate that protection systems operated as designed, avoiding penalties that can exceed $1 million per violation.

Chemical Process Safety Systems
In refineries and petrochemical complexes operating under OSHA PSM or EPA RMP regulations, the 5X00119G02 monitors emergency shutdown (ESD) valve positions, fire and gas detector activations, and safety interlock circuit status. Following a process upset or near-miss incident, regulatory investigators require detailed documentation of safety system response times and operator actions. The module's COMTRADE export capability allows safety engineers to overlay SOE data with process historian trends, creating comprehensive incident reports that satisfy regulatory requirements while identifying opportunities to improve safety system design.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 5X00119G02 when your application requires sub-second event resolution for compliance, forensic analysis, or protection system validation. For applications where 1-second alarm resolution is sufficient (routine process monitoring, non-critical equipment status), standard Ovation digital input modules offer lower cost. If you need to correlate events across multiple control systems or integrate with utility SCADA systems, ensure your plant has GPS or IRIG-B time distribution infrastructure—the module's forensic value depends entirely on accurate time synchronization.

Extended Capabilities & Integration Options

COMTRADE Analysis Integration: Export event records directly to specialized power system analysis tools including ETAP, SKM PowerTools, PSCAD, and EMTP-RV. Engineers can overlay SOE data with oscillography from digital fault recorders and revenue meter data from PMUs (phasor measurement units), creating multi-dimensional views of system disturbances that reveal interactions between electrical and mechanical systems.

Predictive Maintenance Analytics: Advanced users leverage SOE data for condition-based maintenance strategies. By trending the frequency of specific events (e.g., motor starter operations, valve cycling), reliability engineers detect degrading components 3-6 months before failure. Statistical analysis of event intervals reveals patterns such as increasing contact bounce in aging relays or erratic behavior in failing sensors, enabling proactive replacement during planned outages rather than reactive repairs during forced outages.

Cybersecurity Compliance: The module supports NERC CIP requirements for critical infrastructure protection, including encrypted communication channels, role-based access controls, and audit logging of configuration changes. Firmware updates follow secure boot procedures to prevent unauthorized code execution, while physical tamper detection alerts operators to potential security breaches.

Redundancy & High Availability: Deploy dual 5X00119G02 modules in redundant Ovation controller configurations for fault-tolerant event recording in safety-critical applications. Automatic synchronization ensures both modules capture identical event streams, while independent time sync inputs eliminate single points of failure in timing infrastructure.

Delivery, Warranty & Technical Support

Lead Time: Standard delivery 4-6 weeks for new orders; expedited 2-week delivery available for emergency replacements (subject to stock availability). Custom configurations with factory-programmed debounce settings or pre-loaded time zone parameters add 1-2 weeks to standard lead time.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years, including advance replacement service that ships a configured spare within 24 hours of failure notification.

Technical Assistance: Access to Emerson's global support network with 24/7/365 phone and email support for critical issues. Regional application engineers provide on-site commissioning assistance, time synchronization validation, and COMTRADE export configuration. Online knowledge base includes configuration examples, troubleshooting flowcharts, and integration guides for common protective relay manufacturers.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software (Ovation Developer Studio add-on), COMTRADE export utility, and factory calibration certificate with NIST-traceable timestamp accuracy verification. Multilingual documentation available in English, Spanish, Chinese, and German.

Frequently Asked Questions

How does the 5X00119G02 interface with existing SCADA alarm systems?
The module integrates seamlessly with Ovation's alarm management system, allowing you to configure which events trigger operator alarms versus silent background logging. You can set priority levels, alarm suppression rules, and automatic acknowledgment for routine events while ensuring critical sequences (e.g., turbine trips) generate high-priority alarms with audio annunciation. Event data is accessible via OPC DA/UA servers for integration with third-party SCADA platforms.

What input signal types are compatible with the universal voltage inputs?
The module accepts dry contact closures, wet contacts (voltage-driven), solid-state relay outputs, and TTL/CMOS logic levels. Automatic voltage detection works with DC sources from 24-250V and AC sources from 24-250V at 50/60 Hz. For specialized signals (4-20mA loops, RTD inputs), use appropriate signal conditioning modules to convert to voltage levels within the acceptable range.

Can the module reduce energy costs or improve operational efficiency?
While the 5X00119G02 doesn't directly reduce energy consumption, it significantly improves operational efficiency by reducing troubleshooting time during unplanned outages. Power plants using SOE data report 30-50% faster root cause identification, translating to millions of dollars in avoided lost generation revenue. Additionally, trending event patterns enables predictive maintenance that prevents catastrophic failures, reducing emergency repair costs by 40-60% compared to run-to-failure strategies.

What are the physical installation requirements and mounting options?
The module installs in standard Ovation I/O chassis using hot-swap connectors that allow online replacement without shutting down the controller. Removable screw-terminal blocks simplify field wiring and enable pre-wiring of spare modules for rapid replacement. Chassis mounting supports DIN rail, panel mount, or rack mount configurations. Ensure adequate ventilation (minimum 2 inches clearance above/below) and avoid installation near high-voltage switchgear or radio transmitters that could induce electrical noise.

Does the system support remote monitoring and cloud-based event analysis?
Yes, when integrated with Emerson's Ovation Operations Management software, SOE data can be forwarded to cloud-based analytics platforms for centralized monitoring across multiple plant sites. Secure VPN or dedicated fiber connections enable remote access for corporate reliability engineers and third-party consultants. Cloud storage provides unlimited event retention compared to local buffer limitations, supporting long-term trend analysis and machine learning applications for anomaly detection.

How do I verify timestamp accuracy after installation?
The module includes built-in diagnostics that continuously monitor time sync status and report deviations exceeding ±1ms. During commissioning, use a GPS-disciplined time source simulator or IRIG-B test set to inject known timestamps and verify module accuracy. Annual calibration verification is recommended for applications requiring regulatory compliance; Emerson service technicians can perform on-site validation using NIST-traceable test equipment.

Ready to Enhance Your Event Recording Capabilities?

Contact our industrial automation specialists to discuss your specific application requirements, receive detailed technical specifications, and obtain project-specific pricing. Our team can provide system architecture recommendations, time synchronization design guidance, and integration support for your existing Ovation infrastructure. Request a quote today and discover how millisecond-accurate event logging transforms incident analysis from guesswork into data-driven decision making.
