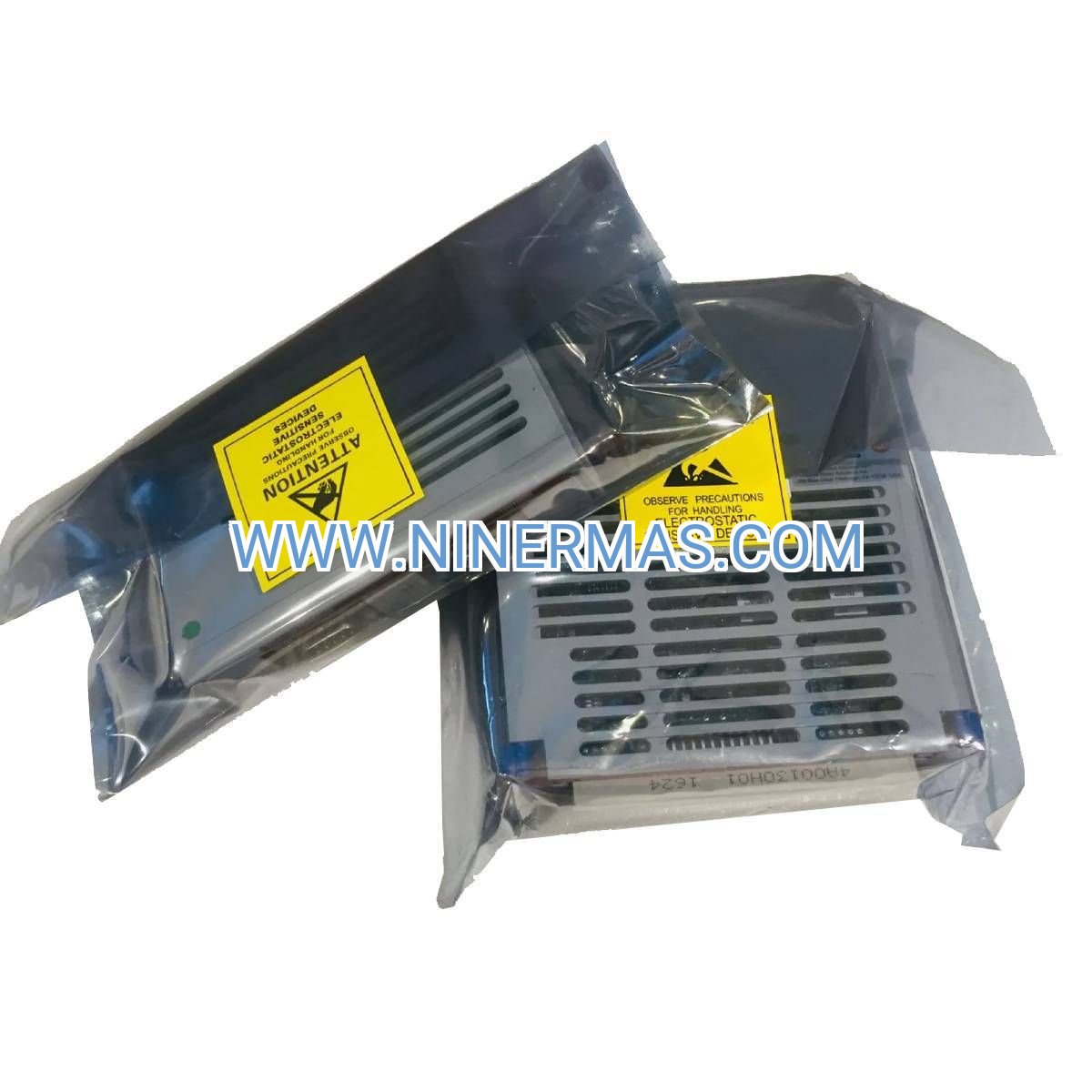

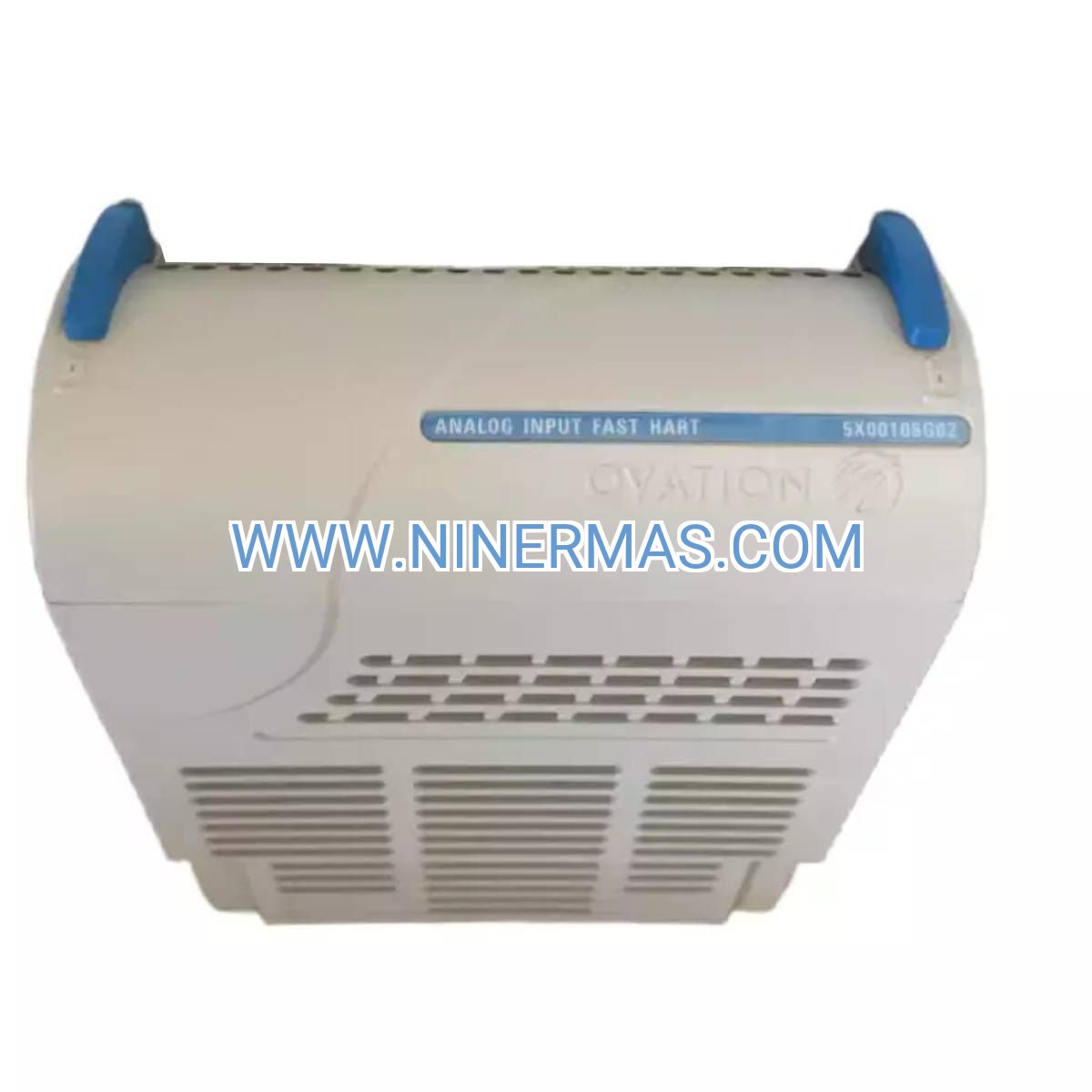

Emerson 5X00106G02 + 5X00109G02 – Industrial-Grade HART Analog Input Module

The Emerson 5X00106G02 paired with 5X00109G02 terminal assembly delivers enterprise-class analog signal acquisition for mission-critical Ovation distributed control systems. This integrated solution combines eight universal input channels with full HART digital communication protocol, enabling simultaneous process measurement and intelligent field device diagnostics. Engineered for industries where measurement accuracy, system uptime, and regulatory compliance are non-negotiable.

Process engineers and automation specialists rely on this module to bridge legacy 4-20mA instrumentation with modern digital asset management platforms. Whether you're retrofitting aging DCS infrastructure or designing greenfield facilities, the 5X00106G02 provides the flexibility to handle diverse sensor types—from thermocouples and RTDs to voltage and current transmitters—all within a single, hot-swappable hardware platform.

Key differentiators include 24-bit sigma-delta analog-to-digital conversion for laboratory-grade precision, 1500V galvanic isolation to eliminate ground loop interference, and built-in HART multiplexing that unlocks advanced diagnostics without additional gateway hardware. This combination reduces total cost of ownership while future-proofing your control architecture for Industry 4.0 connectivity.

Core Capabilities & Business Value

→ Universal Input Architecture
Configure each of the eight channels independently for 4-20mA current loops, 1-5VDC or 0-10VDC voltage signals, Type J/K/T/E/R/S/B thermocouples, or Pt100/Pt1000/Cu10 RTDs. This eliminates the need to stock multiple module variants, cutting spare parts inventory costs by 35-50% while simplifying maintenance training.

✓ HART 7 Digital Overlay
Access real-time diagnostics, configuration parameters, and secondary process variables from HART-enabled field devices without interrupting the 4-20mA analog signal. Integrate seamlessly with AMS Device Manager or third-party asset management systems to implement predictive maintenance strategies that reduce unplanned downtime by 40%.

✓ Safety Instrumented System Ready
SIL 2 certification per IEC 61508 enables deployment in safety-critical applications including emergency shutdown systems, burner management, and high-integrity pressure protection. Systematic capability and proven-in-use data support functional safety lifecycle requirements from design through decommissioning.

✓ Extreme Environment Resilience
Conformal coating protects circuitry against humidity, corrosive gases, and temperature extremes from -40°C to +70°C. FM, CSA, ATEX Zone 2, and IECEx certifications permit installation in hazardous area control rooms without expensive purge enclosures, saving $8,000-$15,000 per cabinet in installation costs.

✓ Cybersecurity by Design
Firmware authentication and encrypted configuration protocols defend against unauthorized access in networked plant environments. Compliance with ISA/IEC 62443-4-2 industrial cybersecurity standards protects intellectual property and prevents production disruptions from cyber threats.

✓ Hot-Swap Serviceability
Replace modules during operation without shutting down the controller or interrupting adjacent I/O channels. This capability enables maintenance during scheduled production windows, avoiding $50,000-$200,000 in lost revenue per unplanned outage in continuous process industries.

Application Scenarios Across Industries

Oil & Gas Upstream Production
Monitor wellhead pressures, separator temperatures, and flow meter signals in offshore platforms and remote gathering stations. The module's wide operating temperature range and hazardous area certifications support installations in Zone 2 control buildings where ambient conditions fluctuate seasonally. HART diagnostics enable condition-based maintenance of subsea transmitters, reducing costly helicopter mobilizations for false alarms.

Chemical Batch Processing
Track reactor jacket temperatures, ingredient feed rates, and distillation column pressures in specialty chemical plants producing adhesives, coatings, and polymers. Recipe management systems leverage the module's 50ms update rate for tight closed-loop control during exothermic reactions, preventing thermal runaways that could damage equipment or compromise product specifications.

Power Generation & Utilities
Acquire boiler drum levels, turbine bearing temperatures, and flue gas oxygen concentrations in combined-cycle power plants and cogeneration facilities. SIL 2 capability supports integration with burner management systems and emergency trip logic, meeting NFPA 85 and IEC 61511 functional safety requirements for utility boiler protection.

Water & Wastewater Treatment
Measure pH, dissolved oxygen, turbidity, and flow in municipal treatment plants and industrial effluent systems. The module's resistance to electromagnetic interference from variable frequency drives ensures accurate readings in electrically noisy pump stations, while HART diagnostics detect sensor fouling before it impacts regulatory compliance reporting.

Metals & Mining Operations
Control furnace temperatures, conveyor speeds, and slurry densities in smelting, refining, and mineral processing facilities. Conformal coating withstands dust, vibration, and corrosive atmospheres common in primary metals production, extending mean time between failures to over 100,000 hours in harsh industrial environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires universal input flexibility, HART diagnostics, or SIL 2 safety certification. For applications with only 4-20mA current inputs and no HART requirement, consider the 5X00105G01 standard analog input module for cost optimization. If you need higher channel density, the 5X00106G03 16-channel variant offers double the I/O capacity in the same footprint.

Extended Functionality & Integration

Ovation Developer Studio Integration: Graphical configuration tools eliminate manual register programming. Drag-and-drop function blocks automatically map HART device parameters to controller tags, reducing commissioning time by 60% compared to legacy text-based configuration methods.

AMS Suite Connectivity: Bidirectional HART communication enables remote calibration, configuration cloning, and continuous diagnostics monitoring through Emerson's AMS Device Manager. Predictive analytics algorithms analyze sensor drift patterns to schedule calibration only when needed, reducing maintenance labor costs by 25-35%.

Third-Party SCADA/HMI Compatibility: OPC UA and Modbus TCP gateways provide seamless data exchange with Wonderware, Ignition, FactoryTalk, and other supervisory systems. This openness prevents vendor lock-in while preserving investment in existing visualization infrastructure.

Custom Scaling & Linearization: Built-in polynomial linearization corrects non-linear sensor characteristics for square-root flow extraction, thermocouple cold junction compensation, and custom transducer curves. User-defined scaling ranges eliminate the need for external signal conditioners, simplifying panel design and reducing wiring costs.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock modules shipped from our regional distribution centers in North America, Europe, and Asia-Pacific. Expedited same-day shipping available for emergency replacements at no additional charge for customers with active support contracts.

Custom Configuration Services: Factory pre-configuration of channel assignments, scaling parameters, and HART device descriptors available with 7-10 business day lead time. Pre-configured modules arrive ready for plug-and-play installation, reducing commissioning time from days to hours.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for up to 60 months, including advance replacement and on-site failure analysis for critical applications.

Technical Support: Lifetime access to Emerson's global support network including 24/7 emergency hotline, regional application engineers, and online knowledge base with 10,000+ technical documents. Remote diagnostic services available via secure VPN connection to troubleshoot configuration issues without site visits.

Documentation Package: Comprehensive installation manual, wiring diagrams, HART device descriptor files, Ovation Developer Studio configuration examples, and calibration procedures. All documentation available in PDF format with free lifetime updates as firmware revisions are released.

Frequently Asked Questions

Q: How do I connect HART devices to the 5X00106G02 module for simultaneous analog and digital communication?
A: Wire HART transmitters using standard two-wire 4-20mA connections to the 5X00109G02 terminal assembly. The module automatically detects HART signals superimposed on the analog current loop. Configure HART polling in Ovation Developer Studio by enabling the HART communication option for each channel and specifying the device polling address (0-15 for multidrop, 0 for point-to-point). No external HART multiplexer required.

Q: What is the maximum cable length between field transmitters and the input module?
A: For 4-20mA current loops, maximum cable length is 1500 meters using 18 AWG shielded twisted pair with loop resistance not exceeding 600Ω. Voltage inputs support up to 300 meters with the same wire gauge. Thermocouple and RTD inputs should be limited to 100 meters to minimize lead resistance errors; use 3-wire or 4-wire RTD connections for automatic lead compensation on runs exceeding 50 meters.

Q: Can this module reduce energy consumption compared to older analog input cards?
A: Yes. The 5X00106G02 consumes 4.5W typical versus 8-12W for legacy analog input modules, representing a 45-60% reduction in power draw. In a typical DCS cabinet with 40 I/O modules, this translates to 140-300W lower heat dissipation, reducing air conditioning loads and extending component lifespan. Over a 10-year service life, energy savings can offset 15-20% of the initial module cost.

Q: What are the installation requirements for hazardous area applications?
A: The module is certified for installation in Zone 2 / Division 2 hazardous areas when mounted in Ovation controller chassis within a control room or analyzer shelter. No special purging or intrinsic safety barriers required for the module itself. However, field wiring to Zone 0/1 or Division 1 areas must use appropriate intrinsic safety barriers or explosion-proof conduit per local electrical codes (NEC 500/505, IEC 60079).

Q: Does the module support remote monitoring and diagnostics for predictive maintenance programs?
A: Absolutely. HART diagnostics provide continuous monitoring of sensor health including drift detection, out-of-range alarms, and loop integrity verification. When integrated with AMS Suite, the system generates predictive alerts 2-4 weeks before transmitter failures based on statistical analysis of performance trends. This enables condition-based maintenance scheduling that reduces spare parts inventory by 30% and eliminates 80% of nuisance calibration checks.

Q: How does the module handle sensor failures or open-circuit conditions?
A: Built-in diagnostics detect open wire, short circuit, and out-of-range conditions within one scan cycle (50ms). The module reports fault status to the controller via dedicated diagnostic tags, allowing control logic to implement failsafe actions such as holding last good value, switching to backup sensors, or initiating safe shutdown sequences. Configurable alarm priorities (low/medium/high/critical) integrate with plant alarm management systems per ISA-18.2 guidelines.

Ready to Upgrade Your Process Control Infrastructure?

Contact our application engineering team for a free compatibility assessment and ROI analysis tailored to your facility. We'll evaluate your existing DCS architecture, recommend optimal I/O configurations, and provide detailed migration planning to minimize downtime during system upgrades. Request a quote today and discover how the Emerson 5X00106G02 can transform your analog input strategy.
