⚡ Ultra-Fast HART Communication for Real-Time Process Intelligence

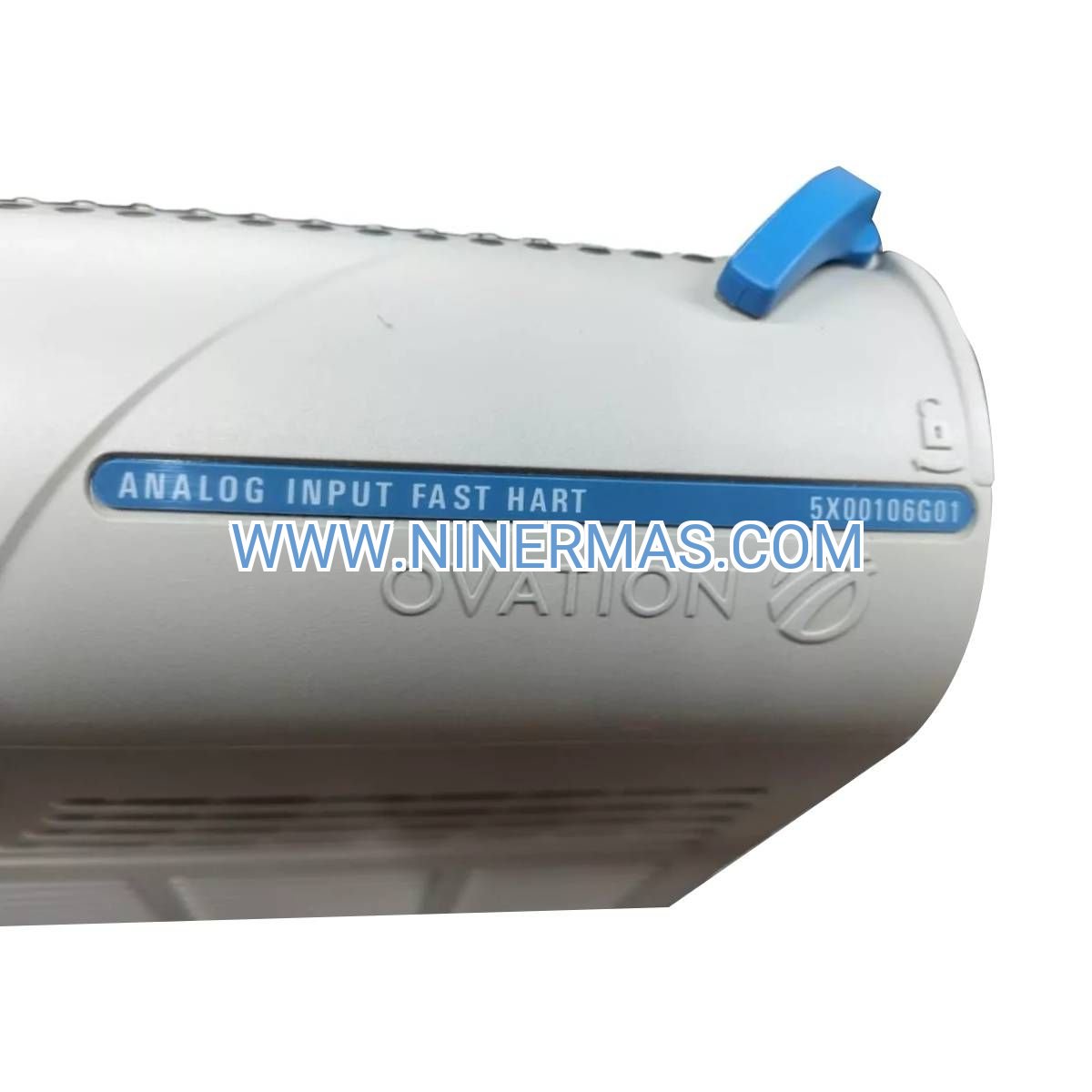

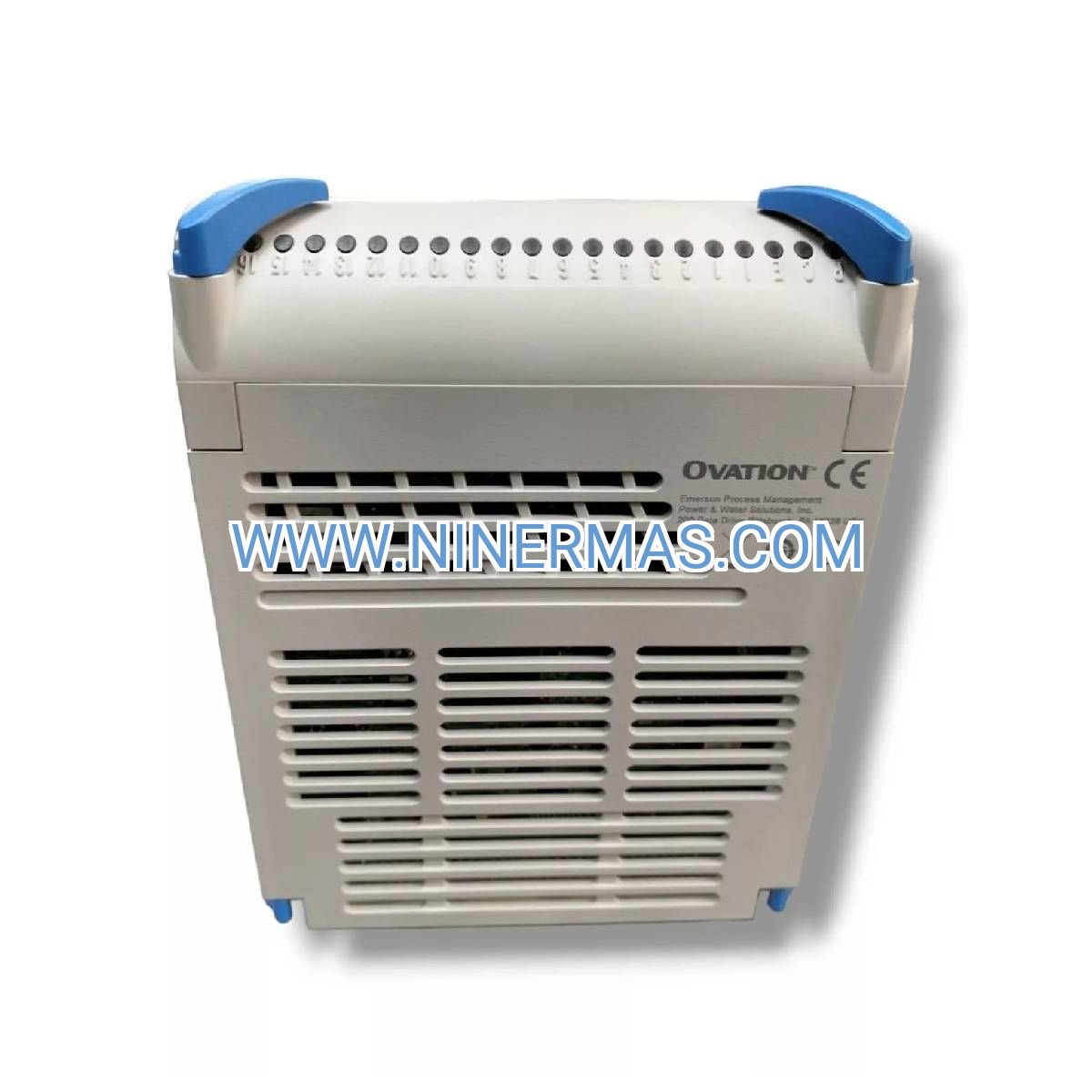

The 5X00106G01 represents Emerson's breakthrough in high-speed HART analog input technology for Ovation DCS platforms. Unlike conventional HART modules that sacrifice speed for digital communication, this advanced design delivers simultaneous high-speed analog measurement and burst-mode HART data acquisition—enabling real-time process control alongside comprehensive device diagnostics without performance compromise.

? Advanced Technical Architecture

• Input Channels: 8 universal HART-enabled analog inputs
• HART Speed: Burst-mode communication for 10x faster device data retrieval
• Signal Types: 4-20mA with HART, 1-5VDC, 0-10VDC, thermocouples, RTDs
• ADC Resolution: 24-bit sigma-delta conversion for exceptional precision
• Measurement Accuracy: ±0.04% of reading (current/voltage), ±0.3°C (temperature)
• Update Rate: 25ms per channel (analog), 100ms (HART variables)
• HART Compliance: HART 7.x protocol with multidrop addressing
• Simultaneous Operation: Parallel analog control and HART diagnostics
• Isolation: 2000V channel-to-channel and channel-to-system isolation
• Operating Range: -40°C to +75°C extended temperature rating
• Certifications: FM, CSA Class I Div 2, ATEX Zone 2, IECEx, SIL 3 capable

? Strategic Industrial Applications

Advanced Process Control: Deploy in model predictive control (MPC) applications within refineries and petrochemical complexes where millisecond-level measurement updates enable tighter control loops, reducing product variability by 15-25% and increasing yield through optimal setpoint tracking.

Pharmaceutical Bioprocessing: Monitor critical quality attributes in bioreactors, fermenters, and chromatography systems where FDA 21 CFR Part 11 compliance demands complete audit trails. HART diagnostics automatically log sensor calibration dates, drift trends, and maintenance events for regulatory documentation.

Specialty Chemical Production: Control batch reactors, distillation columns, and crystallization processes where recipe precision determines product purity. High-speed analog updates maintain tight temperature and pressure control while HART data validates sensor performance between calibration cycles.

? Breakthrough Innovation Features

Predictive Maintenance Revolution: Burst-mode HART retrieves sensor health metrics 10x faster than standard implementations—temperature compensation errors, sensor drift rates, vibration signatures—enabling AI-driven predictive models that forecast transmitter failures 4-8 weeks in advance with 85% accuracy.

Dynamic Range Optimization: Automatic input ranging adjusts ADC gain based on signal characteristics, delivering 24-bit resolution across the entire measurement span. This eliminates the traditional trade-off between range and precision, capturing both steady-state accuracy and transient detail.

Cybersecurity by Design: Hardware-enforced HART command filtering prevents unauthorized device configuration changes through the control network. Cryptographic authentication ensures only authorized engineering workstations can modify transmitter parameters, meeting ISA/IEC 62443-3-3 security level 2 requirements.

? Engineering Productivity Enhancements

Integrated with Ovation Developer Studio and AMS Device Manager for unified configuration—set analog scaling, alarm limits, and HART polling schedules through a single interface. The module's self-documenting capability automatically populates loop sheets with transmitter tag numbers, calibration ranges, and manufacturer data, reducing commissioning documentation time by 50%.

? Complete System Package

• 5X00106G01 high-speed HART analog input module
• Spring-clamp terminal assembly with wire retention
• HART configuration utility software license
• Module extraction tool and mounting hardware
• NIST-traceable calibration certificate with test data
• Comprehensive technical manual with HART command reference

?️ Enterprise-Grade Support

Manufactured in ISO 9001/14001 certified facilities with 100% functional testing and environmental stress screening. Backed by Emerson's PlantWeb digital ecosystem with access to 24/7 global technical support, guaranteed 20-year spare parts availability, and on-site commissioning assistance for critical installations requiring Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT) protocols.
