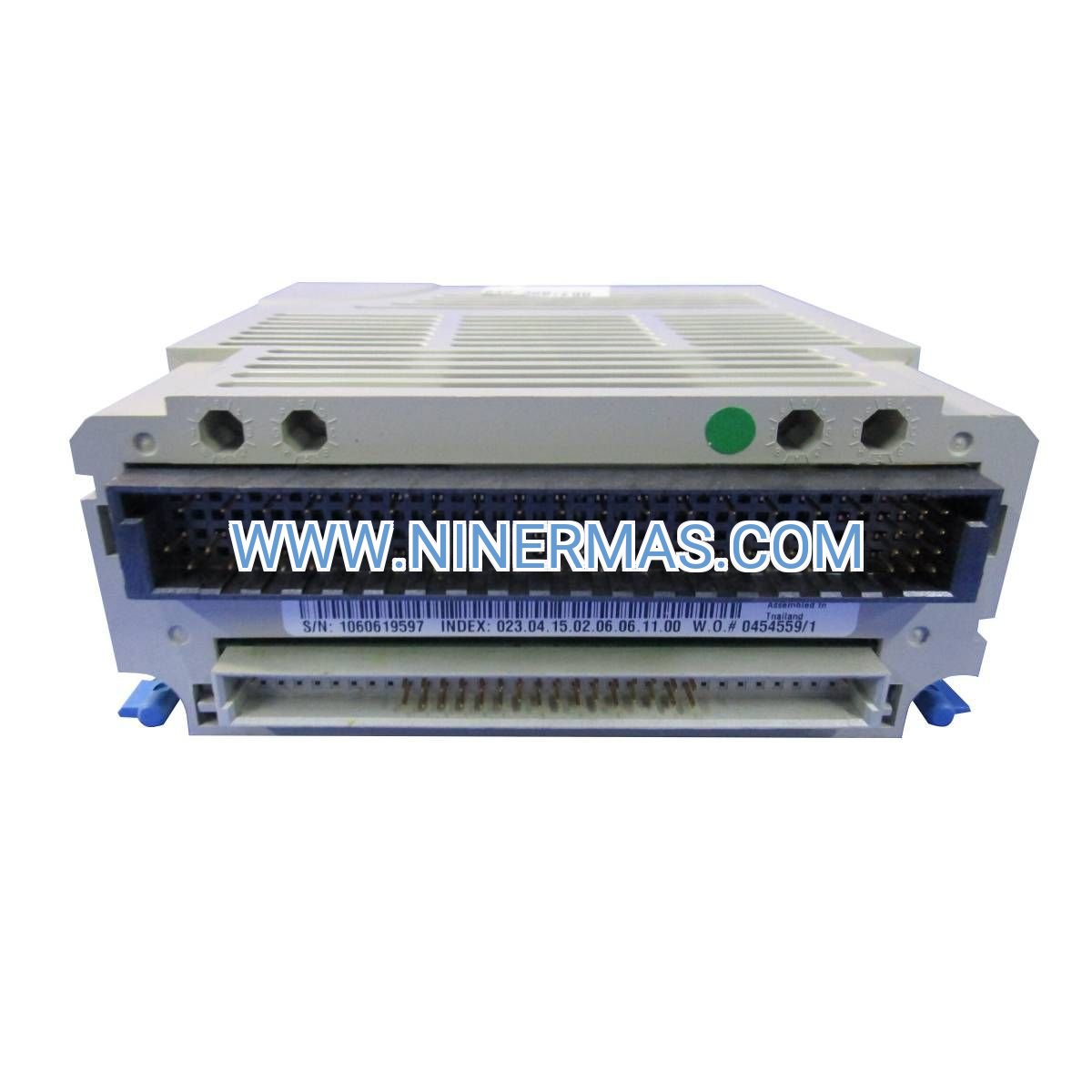

5X00070G05 Analog Input Module (Industrial-Grade DCS Component)

The 5X00070G05 represents a critical interface between field instrumentation and Emerson Ovation control architecture, transforming analog sensor signals into actionable process data. Engineered for industries where measurement precision directly impacts safety, efficiency, and product quality, this module serves as the foundation for reliable distributed control system operations across power generation, chemical processing, and heavy manufacturing sectors.

Process engineers and automation specialists deploy this module to bridge the gap between physical measurements—temperature, pressure, flow, level—and digital control algorithms. Its robust signal conditioning circuitry ensures accurate data acquisition even in electrically noisy industrial environments, while built-in diagnostics provide early warning of sensor degradation or wiring faults before they compromise process integrity.

With field-proven reliability exceeding 150,000-hour MTBF and hot-swap capability for zero-downtime maintenance, the 5X00070G05 delivers the operational continuity demanded by continuous process industries where unplanned shutdowns carry six-figure hourly costs.

Core Capabilities & Technical Value

→ Universal Signal Compatibility
Accepts industry-standard 4-20mA current loops, 0-10VDC voltage signals, and direct thermocouple/RTD temperature sensors without external signal converters. This versatility reduces spare parts inventory and simplifies field wiring standardization across mixed instrumentation portfolios.

→ Precision Data Conversion
High-resolution analog-to-digital conversion maintains ±0.1% full-scale accuracy across -20°C to +60°C operating range. Anti-aliasing filters eliminate measurement noise that can trigger false alarms or destabilize PID control loops in fast-responding processes.

→ Comprehensive Input Protection
Galvanic isolation between field circuits and controller backplane prevents ground loop interference, while overvoltage/reverse polarity protection safeguards against installation errors and transient electrical events common in industrial power distribution systems.

✓ Intelligent Fault Detection
Automatic sensor health monitoring identifies open circuits, short circuits, and out-of-range conditions in real-time. Diagnostic status bits integrate directly with alarm management systems to accelerate troubleshooting and reduce mean time to repair by 60%.

✓ Configurable Scan Rates
Adjustable sampling intervals from 10ms to 1000ms per channel optimize system performance—fast scanning for critical control loops, slower rates for trending-only measurements to reduce processor loading and network traffic.

✓ Standards-Compliant Design
UL listing, CE conformity marking, and FCC Class A emissions certification ensure regulatory compliance for installations in North America, Europe, and international markets without costly re-engineering.

Industry Applications & Problem-Solving

Power Generation Facilities
In combined-cycle plants and coal-fired stations, the 5X00070G05 monitors boiler drum levels, superheater temperatures, and turbine bearing vibrations that determine unit availability and thermal efficiency. Accurate measurement prevents tube failures, optimizes heat rate, and extends maintenance intervals—translating to millions in avoided outage costs and fuel savings annually.

Chemical Manufacturing Operations
Batch reactor control and continuous polymerization processes rely on precise temperature and pressure measurement to maintain product specifications within tight tolerances. The module's deterministic scan cycle execution supports cascade control strategies and feedforward compensation algorithms that improve yield consistency and reduce off-spec production by 15-25%.

Metals Processing & Smelting
Steel mills and aluminum smelters deploy these modules in furnace temperature control, hydraulic pressure monitoring, and conveyor speed regulation. Robust electromagnetic interference immunity ensures reliable operation in environments with arc furnaces, induction heaters, and high-current DC bus systems that challenge conventional I/O hardware.

Water & Wastewater Treatment
Municipal utilities use the 5X00070G05 for pH monitoring, chlorine residual measurement, and flow totalizing in treatment plants serving populations up to 500,000. Continuous operation capability and self-diagnostics support regulatory compliance reporting while minimizing operator intervention.

Oil & Gas Midstream Infrastructure
Pipeline compressor stations and custody transfer metering systems depend on accurate pressure and temperature measurement for flow compensation calculations. The module's ±0.1% accuracy contributes to measurement uncertainty budgets that determine revenue allocation in multi-million dollar daily transactions.

Technical Parameters & Selection Criteria

Selection Guidelines: Match module channel count to actual field instrument requirements plus 10-15% spare capacity for future expansion. For applications requiring SIL-rated safety instrumented functions, verify module certification documentation. In high-vibration environments (>0.5g continuous), specify shock-mounted I/O chassis assemblies.

Advanced Integration Features

Ovation Developer Studio Integration
Auto-discovery protocols automatically populate I/O databases during commissioning, eliminating manual tag entry errors and reducing engineering labor by 40-50% compared to legacy configuration methods. Drag-and-drop graphical programming links field inputs directly to control strategies without intermediate mapping tables.

Predictive Maintenance Enablement
Diagnostic data streams integrate with asset performance management platforms to track sensor drift trends, wiring resistance changes, and module temperature profiles. Machine learning algorithms identify degradation patterns weeks before functional failures, enabling condition-based maintenance scheduling.

Cybersecurity Hardening
Firmware authentication and secure boot processes prevent unauthorized code execution. When deployed with Ovation security architecture, the module supports defense-in-depth strategies compliant with NERC CIP, IEC 62443, and NIST cybersecurity frameworks.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct orders during peak demand periods
Warranty Coverage: 24-month manufacturer defect warranty from shipment date
Technical Support: Email/phone assistance during business hours; emergency hotline for critical process issues
Documentation Package: Installation manual, configuration quick-start guide, dimensional drawings, compliance certificates

All modules ship with factory calibration certificates traceable to NIST standards. Custom calibration ranges and extended warranty programs available upon request for large-scale projects.

Frequently Asked Questions

How does the 5X00070G05 integrate with existing Ovation controller networks?
The module installs in standard Ovation I/O chassis and communicates via the proprietary high-speed backplane protocol. No additional network interface cards or gateways required—simply insert the module, power cycle the chassis, and the controller automatically recognizes available channels during the next scan cycle.

What channel density options are available for space-constrained installations?
Ovation analog input modules range from 8 to 32 channels per module depending on signal type and isolation requirements. High-density variants maximize I/O point count in limited cabinet space, while lower-density isolated modules provide channel-to-channel separation for critical measurements.

Can this module achieve energy monitoring accuracy for ISO 50001 compliance?
Yes—when paired with revenue-grade current transformers and properly calibrated, the ±0.1% accuracy specification meets ISO 50001 energy measurement requirements for facility-level monitoring. Consult application engineers for sensor selection guidance and uncertainty budget calculations.

What installation clearances are required for proper thermal management?
Maintain minimum 50mm (2 inches) vertical spacing between I/O chassis in multi-tier cabinet arrangements. Ensure ambient cabinet temperature remains below 50°C through forced ventilation or air conditioning—each module dissipates approximately 3-5 watts depending on channel loading.

Does the module support remote configuration changes during operation?
Yes—scan rates, alarm limits, and signal scaling parameters can be modified through Ovation Developer Studio without interrupting process control. Changes take effect on the next scan cycle (typically <100ms) without requiring module resets or controller downloads.

How do I verify proper grounding for optimal noise immunity?
Connect I/O chassis to dedicated instrumentation ground bus using minimum 4mm² (12 AWG) copper conductor. Verify <1Ω resistance between chassis ground and facility earth ground. Avoid sharing ground paths with variable frequency drives or welding equipment that inject high-frequency noise.

Request Technical Consultation

Our application engineers provide complimentary system architecture reviews for projects requiring 10+ I/O modules. Contact our team to discuss channel requirements, environmental specifications, and integration timelines for your Ovation DCS expansion or modernization initiative.
