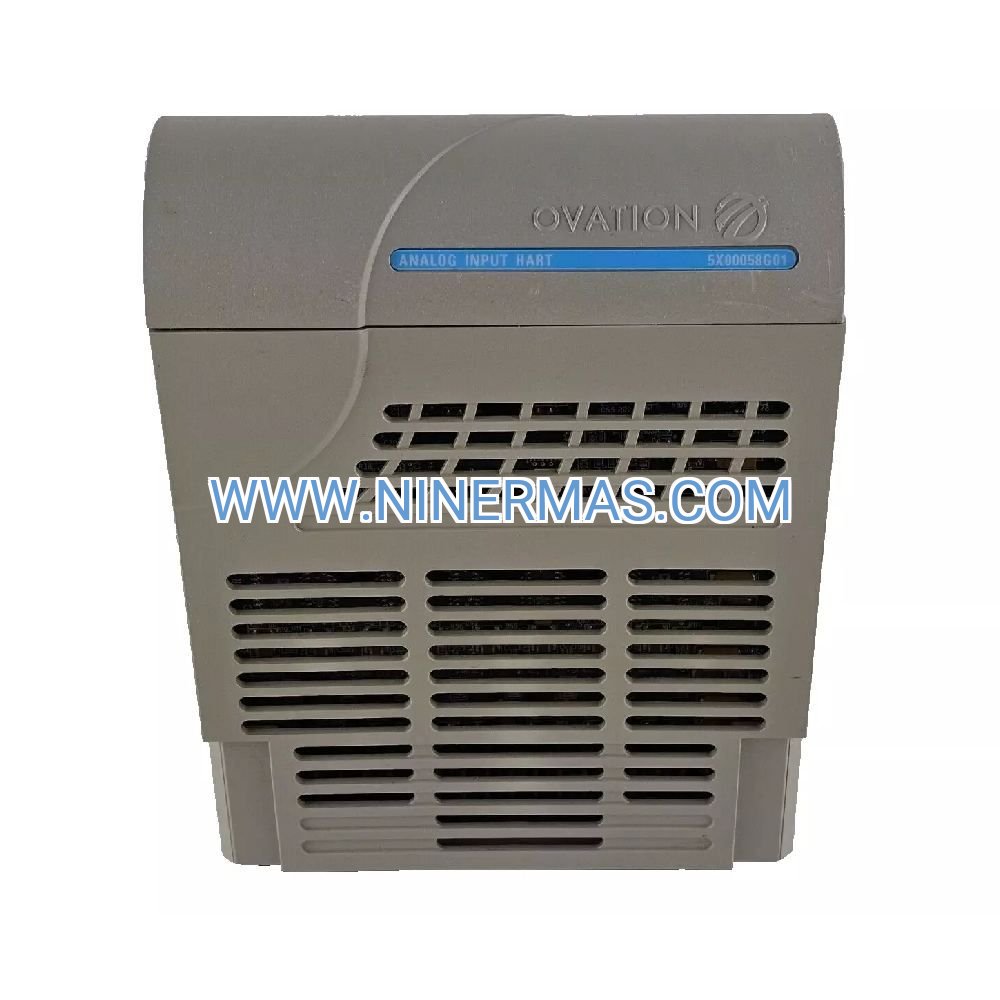

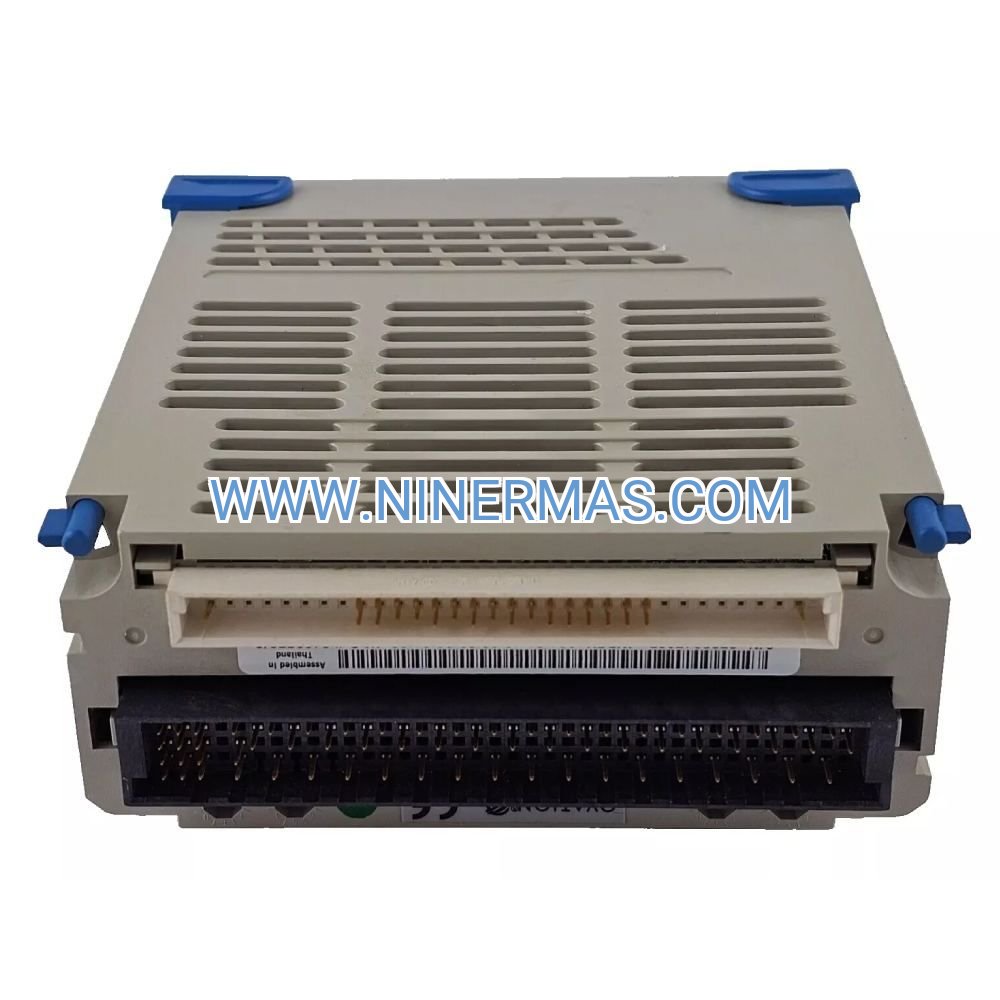

Westinghouse 5X00058G01 Analog Input Module (Industrial-Grade Signal Acquisition)

The Westinghouse 5X00058G01 is an industrial analog input module engineered for mission-critical signal acquisition in Ovation distributed control systems. Designed to bridge field instrumentation with central processors, this module converts analog signals into digital data streams with exceptional accuracy and noise immunity. Whether you're managing power generation assets, refinery operations, or pharmaceutical batch processes, the 5X00058G01 ensures reliable data integrity under the most demanding industrial conditions.

Built for process engineers and control system integrators who require uncompromising measurement precision, this module addresses common challenges in legacy system maintenance—obsolescence risk, extended downtime during failures, and integration complexity. With hot-swappable architecture and automatic configuration recognition, the 5X00058G01 minimizes operational disruptions while extending the service life of existing Ovation installations.

Key differentiators include multi-channel galvanic isolation to eliminate ground loops, conformal coating for harsh-environment protection, and native Modbus protocol support for seamless network integration. The result: faster commissioning, reduced maintenance windows, and predictable long-term performance in applications where measurement failure is not an option.

Core Features & Benefits

✓ Multi-Channel Isolated Inputs
Independent channel isolation prevents electrical interference between measurement points, critical for maintaining signal accuracy in high-EMI environments like substations and motor control centers. Eliminates costly ground loop troubleshooting.

✓ Hot-Swap Capability
Replace modules during live operation without system shutdown—reducing unplanned downtime from hours to seconds. Configuration auto-loads from controller memory, eliminating manual re-programming and human error during emergency replacements.

✓ Modbus Protocol Integration
Native Modbus RTU/TCP support accelerates integration with SCADA systems, HMIs, and third-party analytics platforms. Reduces engineering hours during system expansions or modernization projects.

✓ Industrial Environmental Rating
Operates reliably in -40°C to +70°C ambient conditions with conformal coating protection against moisture, dust, and corrosive gases. Proven performance in offshore platforms, chemical plants, and desert installations.

✓ Diagnostic LED Indicators
Real-time visual feedback on channel health, communication status, and power supply conditions accelerates fault isolation during commissioning and troubleshooting—cutting diagnostic time by up to 60%.

✓ Redundant Power Inputs
Dual power supply connections ensure continuous operation during planned maintenance or supply failures, meeting high-availability requirements for critical infrastructure applications.

Application Scenarios

→ Power Generation Turbine Monitoring
Combined-cycle plants deploy the 5X00058G01 to acquire vibration, temperature, and pressure signals from gas and steam turbines. Fast scan rates (typically 100ms) capture transient events during startup sequences, while high-resolution conversion (16-bit) enables early detection of bearing degradation—preventing catastrophic failures that cost millions in lost generation capacity.

→ Petrochemical Distillation Control
Refineries use this module for multi-point temperature profiling across distillation columns, where 0.1°C accuracy determines product specification compliance. Channel-to-channel isolation prevents thermocouple grounding issues that cause measurement drift, ensuring consistent product quality and regulatory compliance.

→ Pharmaceutical Batch Reactor Systems
FDA-regulated manufacturing environments leverage the 5X00058G01 for critical parameter monitoring (pH, temperature, pressure) with full audit trail support. Timestamp-synchronized data acquisition meets 21 CFR Part 11 requirements, while hot-swap capability maintains sterile processing continuity during module replacements.

→ Water Treatment SCADA Networks
Municipal utilities integrate this module into chlorination control loops and filtration monitoring systems. Modbus connectivity enables centralized data aggregation across distributed pump stations, while industrial temperature ratings ensure reliable operation in outdoor enclosures year-round.

→ Mining Conveyor Safety Systems
Material handling operations monitor belt speed, motor current, and bearing temperatures through the 5X00058G01. Redundant power inputs maintain safety interlock integrity during electrical maintenance, preventing equipment damage and personnel hazards.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 5X00058G01, confirm your Ovation controller firmware supports the module revision. For applications requiring HART communication overlay, consider the 5X00106G02 variant. Installations in Class I Div 2 hazardous areas require intrinsically safe barriers on input circuits—consult your electrical authority having jurisdiction.

Extended Functions

IoT Gateway Integration: The module's Modbus interface enables connectivity to industrial IoT platforms like AWS IoT Core, Azure IoT Hub, or on-premise historians. Stream real-time process data to cloud analytics engines for predictive maintenance modeling and energy optimization algorithms.

Advanced Diagnostics: Built-in self-test routines continuously monitor ADC linearity, reference voltage stability, and communication bus integrity. Diagnostic registers accessible via Modbus provide early warning of component degradation before measurement accuracy degrades.

Customization Options: Factory configuration services available for pre-programmed channel assignments, scaling parameters, and alarm setpoints—reducing on-site commissioning time by up to 40%. Contact our engineering team for project-specific requirements.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days via express courier. Custom-configured modules require 7-10 business days for factory programming and testing. Expedited processing available for emergency outage situations.

Warranty Coverage: 12-month warranty against manufacturing defects from shipment date. Covers component failures, not damage from improper installation or electrical overstress. Extended warranty programs available for critical spares inventory.

Technical Support: Lifetime application engineering support included with purchase. Our team assists with configuration file development, troubleshooting integration issues, and obsolescence planning. Response within 4 business hours for technical inquiries.

Documentation Package: Each module ships with installation manual, wiring diagrams, Modbus register map, and calibration certificate. CAD drawings and 3D STEP models available for panel layout design.

Frequently Asked Questions

Q: How does the 5X00058G01 interface with existing Ovation controllers?
A: The module connects via standard Ovation I/O backplane using the proprietary communication protocol. Configuration occurs through the Ovation Developer Studio software—no custom programming required. The controller automatically recognizes the module type and loads the appropriate driver upon power-up.

Q: What input signal range and accuracy can I expect from this analog module?
A: The 5X00058G01 supports industry-standard signals (4-20mA, 0-10V, thermocouples, RTDs) with 16-bit resolution. Typical accuracy is ±0.1% of full scale at 25°C, degrading to ±0.25% across the full operating temperature range. Consult the datasheet for specific signal type performance.

Q: Does this module support energy monitoring or power measurement applications?
A: While the 5X00058G01 can acquire voltage and current signals from transducers, it's optimized for process control rather than revenue-grade metering. For power quality analysis or energy management, consider dedicated power monitoring modules with harmonic analysis capabilities.

Q: What are the physical installation requirements for mounting this I/O module?
A: The module mounts in standard Ovation I/O chassis using DIN-rail or panel-mount configurations. Requires 25mm clearance on each side for airflow and cable routing. Maximum wire gauge is 14 AWG (2.5mm²) for power terminals, 18 AWG (1.0mm²) for signal inputs. Torque specifications: 0.5-0.6 Nm for terminal screws.

Q: Can I monitor module performance remotely through SCADA or cloud platforms?
A: Yes—the Modbus interface exposes diagnostic registers for remote monitoring of channel status, communication errors, and power supply voltage. Integrate with SCADA systems, OPC servers, or IoT gateways to track module health metrics and trigger maintenance alerts based on predefined thresholds.

Q: Is the 5X00058G01 suitable for safety-instrumented system (SIS) applications?
A: This module is designed for basic process control (BPCS), not safety-critical functions. For SIL-rated applications, specify modules certified to IEC 61508 standards with documented failure rates and diagnostic coverage. Consult your functional safety engineer for proper SIS component selection.

Take the Next Step

Secure your Ovation system's long-term reliability with genuine Westinghouse components. Add the 5X00058G01 to your cart now, or contact our application engineers at sale@ninermas.com or +0086 187 5021 5667 for technical consultation on your specific integration requirements. Volume pricing and scheduled delivery programs available for planned maintenance projects.
