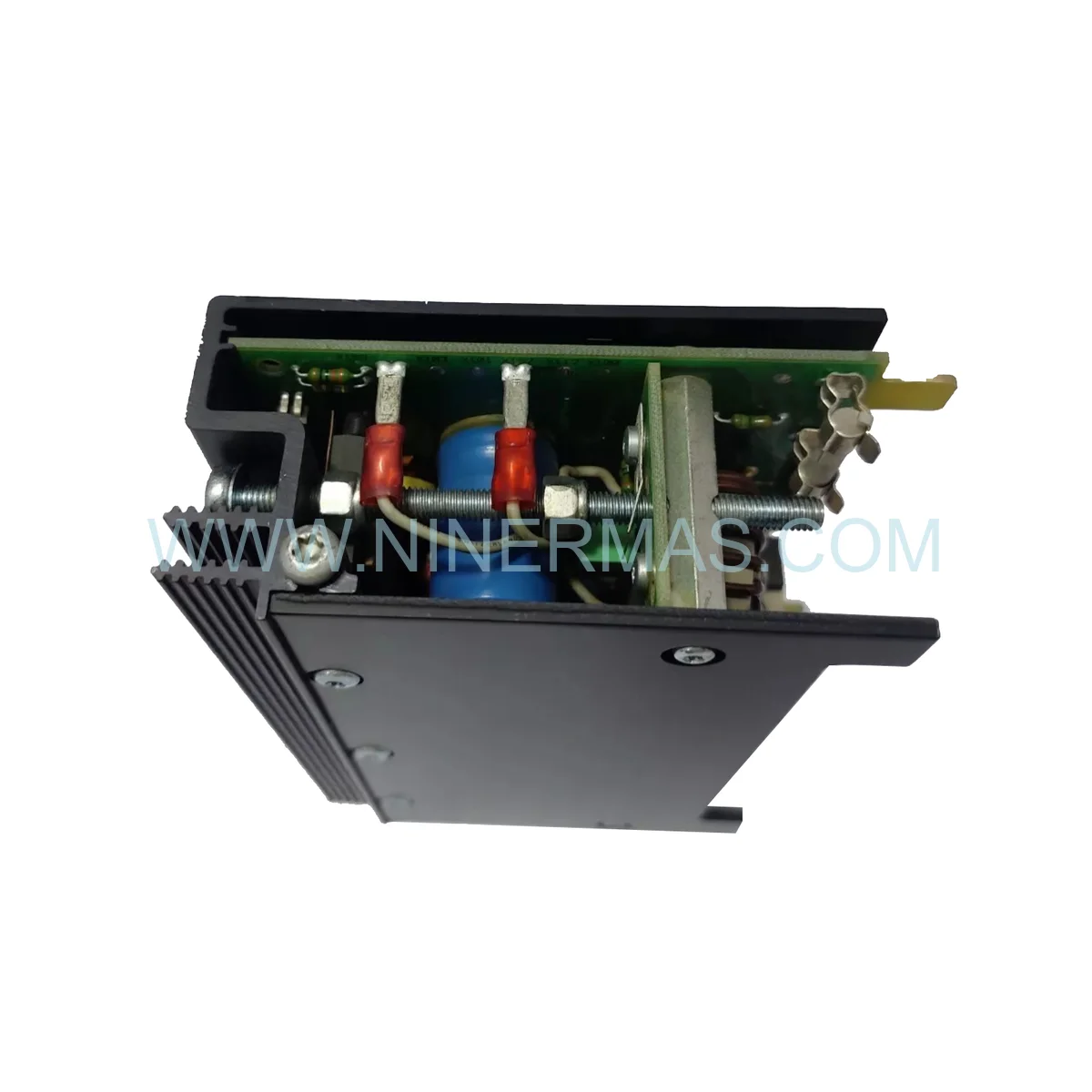

ABB DSSR170 Industrial DC Power Module (48990001-PC)

The ABB DSSR170 48990001-PC is an industrial-grade DC power supply module designed to deliver stable, regulated power for mission-critical automation systems. Engineered for ABB's 800xA distributed control platform, this compact power module converts and conditions DC voltage with precision, ensuring reliable operation of I/O cards, communication modules, and field instrumentation in harsh industrial environments.

Process manufacturers and system integrators choose the DSSR170 for its proven reliability in chemical plants, power generation facilities, and manufacturing automation networks. The module addresses voltage fluctuation challenges while providing essential protection against overcurrent, thermal overload, and electromagnetic interference that can compromise control system integrity.

With DIN-rail mounting, integrated diagnostics, and compatibility with redundant power architectures, the DSSR170 streamlines installation, reduces cabinet footprint, and accelerates troubleshooting—delivering measurable improvements in system uptime and maintenance efficiency.

Core Capabilities & Technical Advantages

→ Precision Voltage Regulation: Advanced switching topology maintains tight output voltage tolerance across varying load conditions, protecting sensitive automation components from voltage-induced failures and data corruption.

→ Multi-Layer Protection Architecture: Integrated overcurrent shutdown, thermal monitoring, and reverse polarity protection safeguard both the power module and downstream equipment, reducing unplanned downtime and equipment replacement costs.

→ EMI-Hardened Design: Built-in electromagnetic interference filtering ensures clean power delivery in electrically noisy industrial settings, maintaining signal integrity for high-speed communication protocols and analog instrumentation.

→ Space-Optimized Footprint: Compact DIN-rail form factor maximizes cabinet density, enabling system designers to allocate more space for I/O expansion while simplifying cable management and airflow planning.

→ Fast Transient Response: Rapid load regulation supports dynamic applications including servo drives, high-speed counters, and motion control systems where voltage stability directly impacts positioning accuracy.

→ Diagnostic LED Indicators: Front-panel status lights provide instant visibility into operating conditions, accelerating fault isolation and reducing mean time to repair during maintenance events.

Industry Applications & Use Cases

✓ Chemical Process Automation: Powers distributed I/O networks in batch reactors and continuous processing lines where voltage stability ensures accurate flow measurement, temperature control, and safety interlock reliability. Prevents process deviations caused by power quality issues.

✓ Power Generation & Utilities: Supplies critical turbine control systems, generator protection relays, and SCADA infrastructure where uninterrupted power delivery is essential for grid stability and equipment protection. Supports redundant configurations for fault-tolerant operation.

✓ Manufacturing Automation: Energizes PLC I/O racks, HMI panels, and fieldbus networks in automotive assembly, food processing, and packaging machinery where production continuity depends on consistent power quality and rapid fault recovery.

✓ Oil & Gas Facilities: Operates in hazardous area control panels for pipeline monitoring, compressor stations, and offshore platforms where environmental extremes and safety requirements demand ruggedized power solutions with proven field reliability.

✓ Water & Wastewater Treatment: Drives instrumentation and control networks for pumping stations, filtration systems, and chemical dosing equipment where 24/7 operation and remote monitoring capabilities require dependable power infrastructure.

Technical Specifications & Selection Criteria

Selection Guidelines: When specifying the DSSR170, calculate total load current including 20% safety margin for future expansion. Verify input voltage compatibility with existing DC bus infrastructure. For redundant systems, pair with identical units and implement current-sharing configurations. Consider ambient temperature and ventilation requirements to ensure thermal derating limits are not exceeded.

Advanced Integration Features

Redundancy Support: The DSSR170 supports N+1 redundant power configurations through diode-OR or active current-sharing topologies, enabling fault-tolerant architectures for safety-instrumented systems (SIS) and critical process control applications. Automatic load balancing extends service life by distributing thermal stress across multiple units.

System Compatibility: Designed for seamless integration with ABB 800xA control systems, the module maintains electrical compatibility with legacy DSSR122 installations while offering enhanced efficiency and thermal performance. Standardized mounting dimensions enable retrofit upgrades without cabinet modifications.

Diagnostic Capabilities: Front-panel LED indicators provide real-time status for output voltage, overload conditions, and thermal warnings. This visual feedback accelerates commissioning validation and enables rapid fault diagnosis without requiring test equipment, reducing troubleshooting time by up to 40%.

Delivery, Warranty & Technical Support

Lead Time: Standard delivery 3-5 business days for in-stock units. Custom configurations or bulk orders may require 2-3 weeks. Expedited shipping available for critical replacement scenarios.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for high-reliability applications. Warranty includes advance replacement service to minimize downtime.

Technical Assistance: Access to application engineers for system design consultation, load calculations, and integration planning. Post-installation support includes remote diagnostics, firmware updates (if applicable), and troubleshooting guidance.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings, and compliance certificates. CAD models and EPLAN macros available for download to streamline panel design workflows.

Frequently Asked Questions

Q: How does the DSSR170 integrate with existing ABB 800xA control systems?
A: The DSSR170 mounts on standard DIN rail within 800xA I/O cabinets and connects to the DC power distribution bus. It provides isolated, regulated power to I/O modules, communication cards, and field devices. No special configuration required—simply wire input/output terminals per installation manual and verify LED status indicators.

Q: What load capacity should I specify for a typical I/O rack configuration?
A: Calculate total current draw of all installed I/O cards, communication modules, and connected field devices. Add 20% margin for inrush current and future expansion. For example, a rack with 8 analog input cards (50mA each) and 4 digital output cards (100mA each) requires minimum 800mA capacity—select next higher rated DSSR model.

Q: Can this power module reduce energy consumption in my control system?
A: Yes. The DSSR170's high-efficiency switching design (typically >85%) generates less waste heat compared to linear regulators, reducing cooling requirements and lowering cabinet air conditioning costs. In large installations with 50+ power supplies, annual energy savings can exceed $2,000 per system.

Q: What installation clearances are required for proper thermal management?
A: Maintain minimum 10mm spacing above and below the module for convection cooling. Ensure cabinet ambient temperature does not exceed 55°C at full load. For high-density installations, consider forced-air cooling or derating output current by 2.5% per °C above 50°C ambient.

Q: Does the DSSR170 support remote monitoring and diagnostics?
A: The module provides local LED status indication. For remote monitoring, integrate with ABB 800xA system diagnostics or add external monitoring relays connected to the power supply's auxiliary contacts (if equipped). Some configurations support HART or Modbus communication for centralized power management.

Q: How do I verify compatibility with my current DSSR122 installation?
A: The DSSR170 maintains electrical and mechanical compatibility with DSSR122 mounting footprints and terminal assignments. Verify input voltage range and output current rating match your application requirements. Consult ABB migration guide (document 3BSE069276) for detailed cross-reference tables and upgrade procedures.

Request Technical Consultation

Our automation specialists are ready to assist with power system design, load calculations, and product selection. Contact us for application-specific recommendations, volume pricing, or expedited delivery options. We support global industrial projects with technical expertise and reliable supply chain management.
