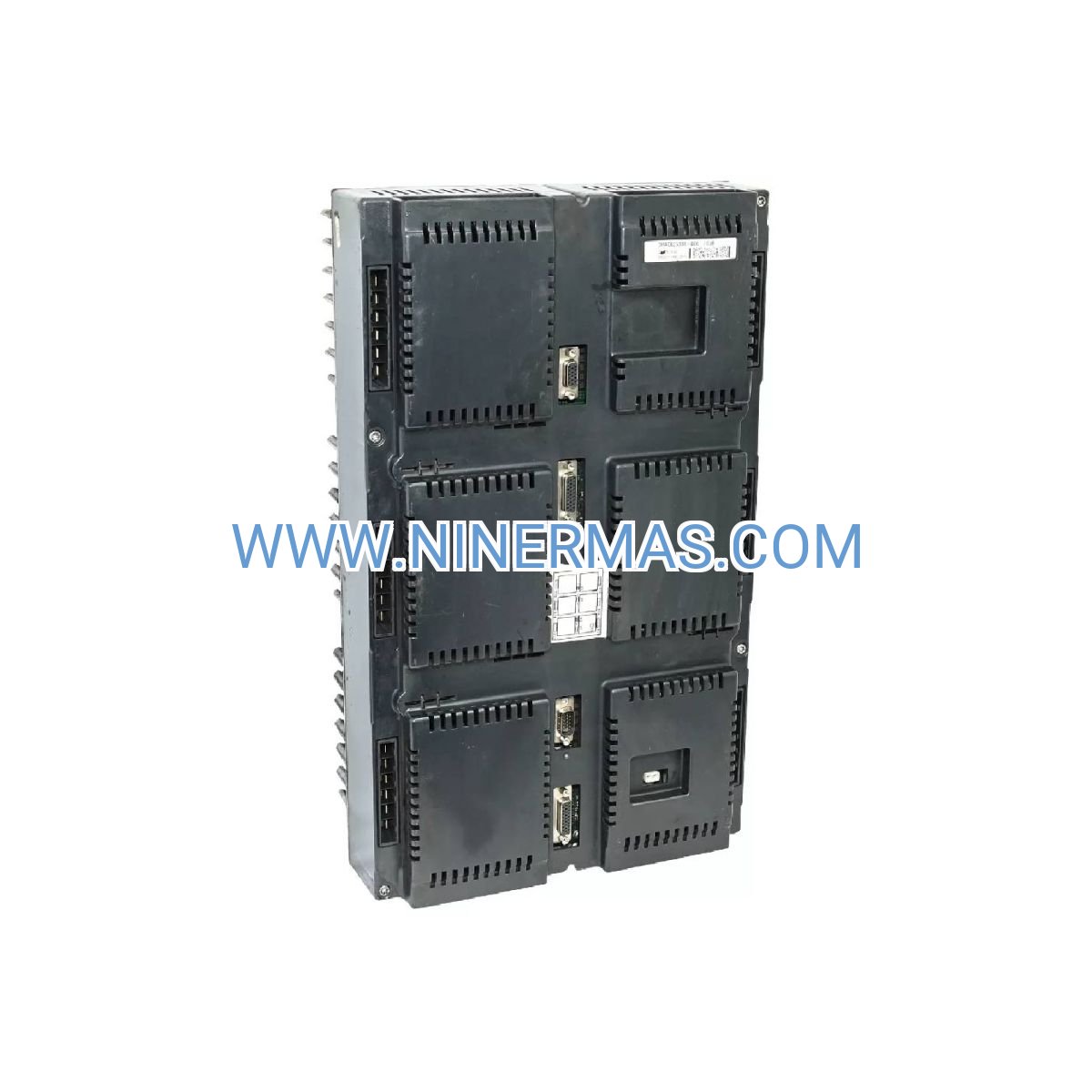

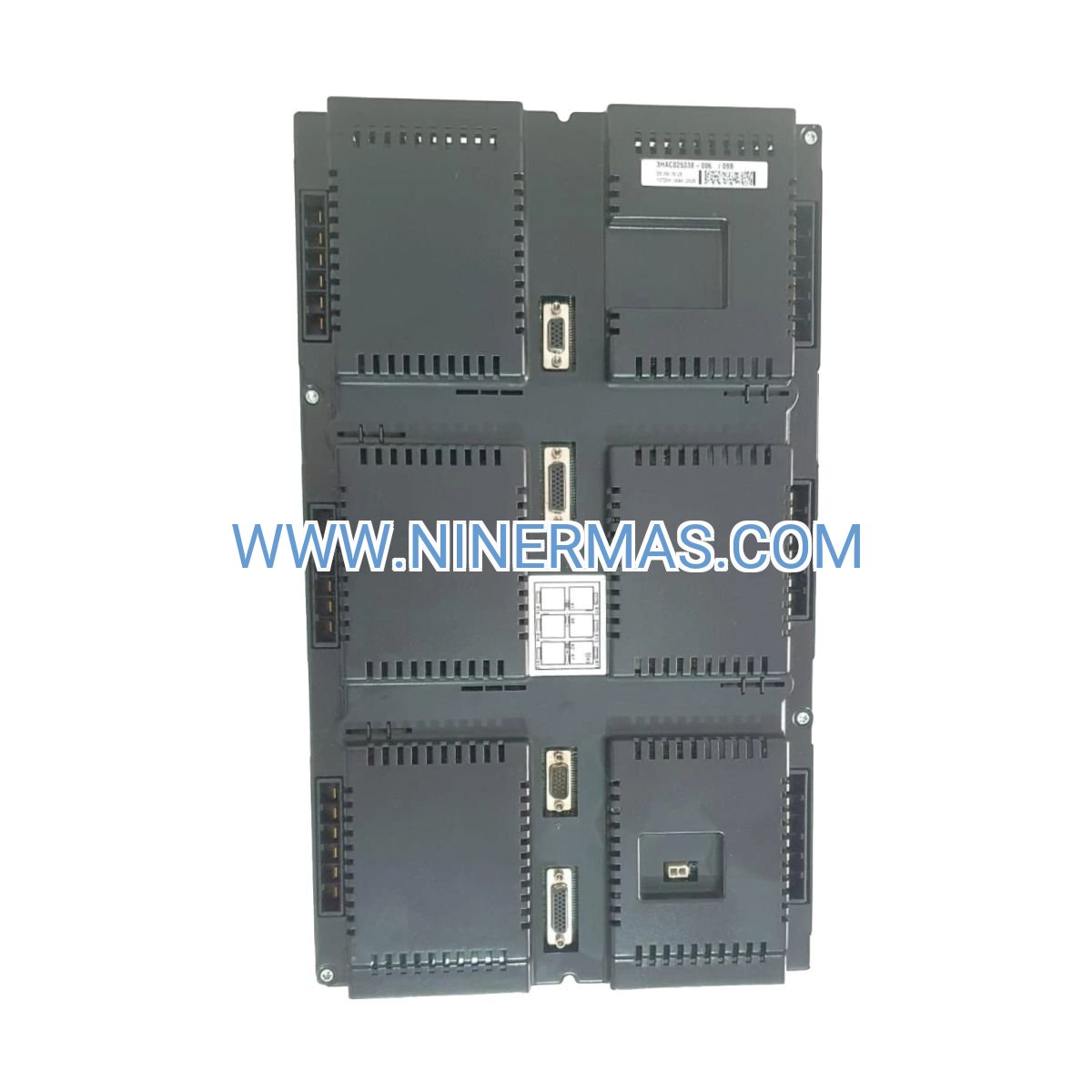

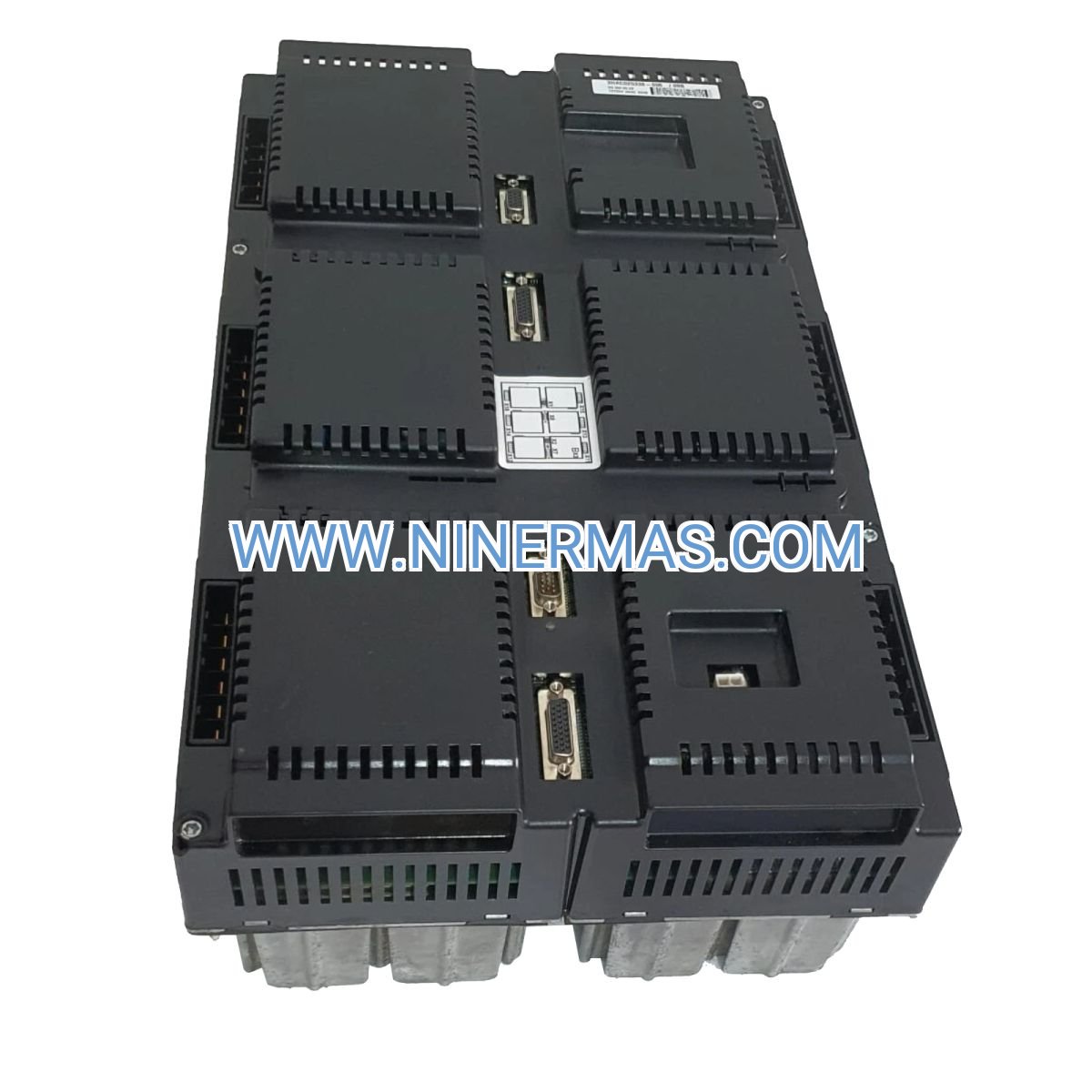

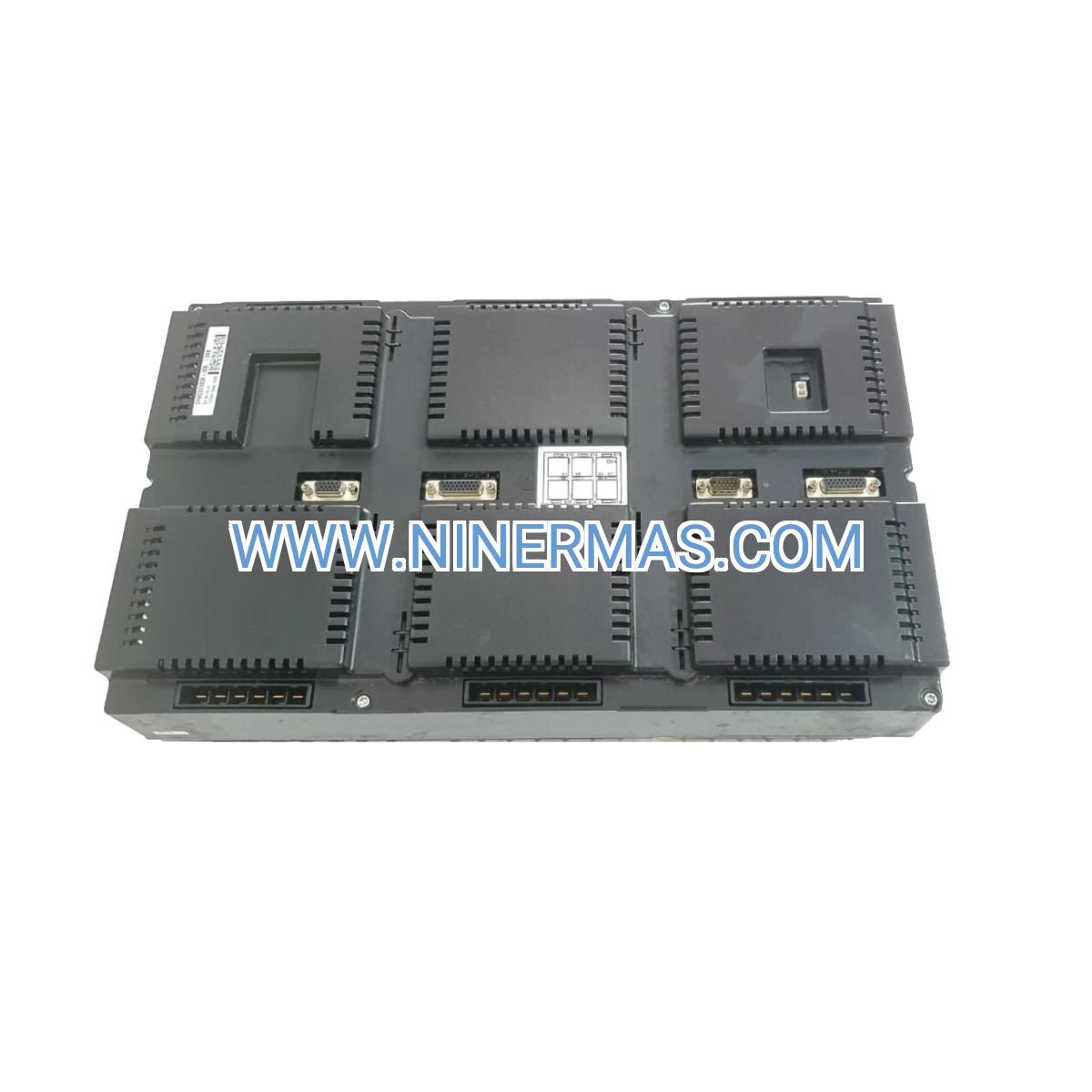

ABB 3HAC025338-006 D6 Servo Drive Unit (Industrial-Grade Motion Controller)

The ABB 3HAC025338-006 is a high-performance main servo drive engineered for IRC5 robot controller platforms, delivering precision motion control in demanding industrial environments. Manufactured in Ireland to OEM specifications, this D6 3W 3V servo unit provides reliable power management and multi-axis coordination for automated production systems.

Designed for system integrators and maintenance teams managing ABB robotics infrastructure, this drive unit addresses critical challenges in motion accuracy, thermal stability, and uptime continuity. Whether you're upgrading legacy equipment or maintaining mission-critical production lines, the 3HAC025338-006 ensures consistent torque delivery and smooth acceleration profiles across variable load conditions.

With integrated diagnostic interfaces and safety-compliant architecture, this servo drive reduces unplanned downtime while supporting predictive maintenance strategies. Compatible with ABB's DSQC component ecosystem, it enables seamless integration into existing automation frameworks.

Core Features & Benefits

✓ Precision Motion Control
Advanced servo algorithms deliver ±0.02mm path accuracy for welding, assembly, and material handling applications, ensuring repeatable positioning across millions of cycles.

✓ Thermal Resilience
Robust heat dissipation architecture supports continuous operation in ambient temperatures up to 45°C, eliminating thermal-induced faults during extended production runs.

✓ Diagnostic Intelligence
Real-time monitoring interfaces provide torque feedback, temperature alerts, and fault logging—reducing mean time to repair (MTTR) by up to 40% through proactive issue detection.

✓ Energy Optimization
Regenerative braking and adaptive power staging reduce energy consumption by 15-22% compared to legacy drive units, lowering operational costs in high-duty-cycle applications.

✓ Safety Compliance
Built-in safe torque off (STO) functionality and emergency stop integration meet ISO 10218 and IEC 61508 standards for collaborative and industrial robotics.

✓ Multi-Axis Synchronization
Coordinates up to six servo axes with sub-millisecond timing precision, enabling complex motion sequences for pick-and-place, palletizing, and CNC tending operations.

Application Scenarios

→ Automotive Assembly Lines
Drives spot welding robots and body-in-white handling systems where cycle times demand 0.8-second positioning accuracy. Handles peak torque loads during rapid deceleration phases without thermal derating.

→ Electronics Manufacturing
Powers SCARA and delta robots in PCB assembly, component placement, and inspection stations. Vibration-dampened control ensures defect-free handling of sensitive components weighing 50g-5kg.

→ Food & Beverage Packaging
Controls high-speed pick-and-place robots in washdown environments, with sealed connectors and conformal coating protecting against moisture ingress in IP54-rated installations.

→ Metal Fabrication
Manages heavy-duty material handling robots transferring castings, forgings, and machined parts weighing up to 250kg. Regenerative braking recovers kinetic energy during load deceleration.

→ Pharmaceutical Production
Ensures contamination-free operation in cleanroom environments (ISO Class 7/8), with low-outgassing materials and validated firmware for GMP-compliant facilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3HAC025338-006 when your application requires six-axis coordination, continuous-duty operation exceeding 16 hours/day, or integration with existing IRC5 controllers. For lower-power applications (≤2kW per axis), consider the DSQC346 series. For higher torque demands (≥5kW), evaluate the DSQC663 platform.

Extended Functions

IoT Integration: Supports OPC UA and MQTT protocols for Industry 4.0 connectivity, enabling cloud-based analytics, remote diagnostics, and fleet management through ABB Ability™ platforms.

Advanced Motion Profiles: Configurable S-curve acceleration, jerk limiting, and electronic camming for applications requiring smooth motion transitions and reduced mechanical stress.

Customization Options: Available with extended temperature ratings (-10°C to +55°C), conformal coating for harsh environments, and custom firmware for specialized motion algorithms.

Delivery & Service Guarantee

Lead Time: Standard units ship within 3-5 business days. Custom configurations require 2-3 weeks for factory preparation.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Extended 24/36-month plans available.

Technical Support: Lifetime access to application engineers for installation guidance, parameter tuning, and troubleshooting assistance via email, phone, and remote desktop.

Documentation: Includes installation manual, wiring diagrams, parameter reference guide, and RobotStudio configuration files.

Frequently Asked Questions

How does the 3HAC025338-006 connect to existing IRC5 controllers?
The drive unit mounts directly into IRC5 cabinet slots using standard DIN rail clips. Connection requires a 37-pin D-sub cable (included) for control signals and M12 power connectors for motor phases. Configuration is performed through RobotStudio software with pre-loaded parameter sets.

What payload capacity does this servo drive support?
The D6 configuration handles robots with 20-165kg payload ratings, depending on arm geometry and reach. Peak torque output of 45Nm per axis accommodates rapid acceleration of heavy end-effectors in material handling applications.

Can this drive reduce energy costs in 24/7 operations?
Yes. Regenerative braking recovers 18-25% of kinetic energy during deceleration cycles, feeding power back to the DC bus. In continuous-duty applications, this translates to 12-18% reduction in total energy consumption compared to non-regenerative drives.

What are the installation space requirements?
The unit occupies a single IRC5 drive slot (80mm width × 320mm height × 280mm depth). Minimum clearance of 50mm on ventilation sides is required for adequate airflow. Wall-mount and floor-standing cabinet options are available.

Does the drive support remote monitoring and diagnostics?
Full remote access is enabled through ABB's Service Port or Ethernet/IP connections. Technicians can monitor real-time torque, temperature, and fault logs via web browser or mobile app. SNMP traps and email alerts notify teams of threshold violations.

Is this drive compatible with non-ABB robot brands?
The 3HAC025338-006 is optimized for ABB IRC5 systems and requires proprietary communication protocols. For third-party robots, consult our engineering team for adapter solutions or consider universal servo drives with open fieldbus interfaces.

Ready to Upgrade Your Robotics System?

Contact our automation specialists for compatibility verification, technical datasheets, and volume pricing. Request a quote today or speak with an engineer to discuss your specific motion control requirements.
