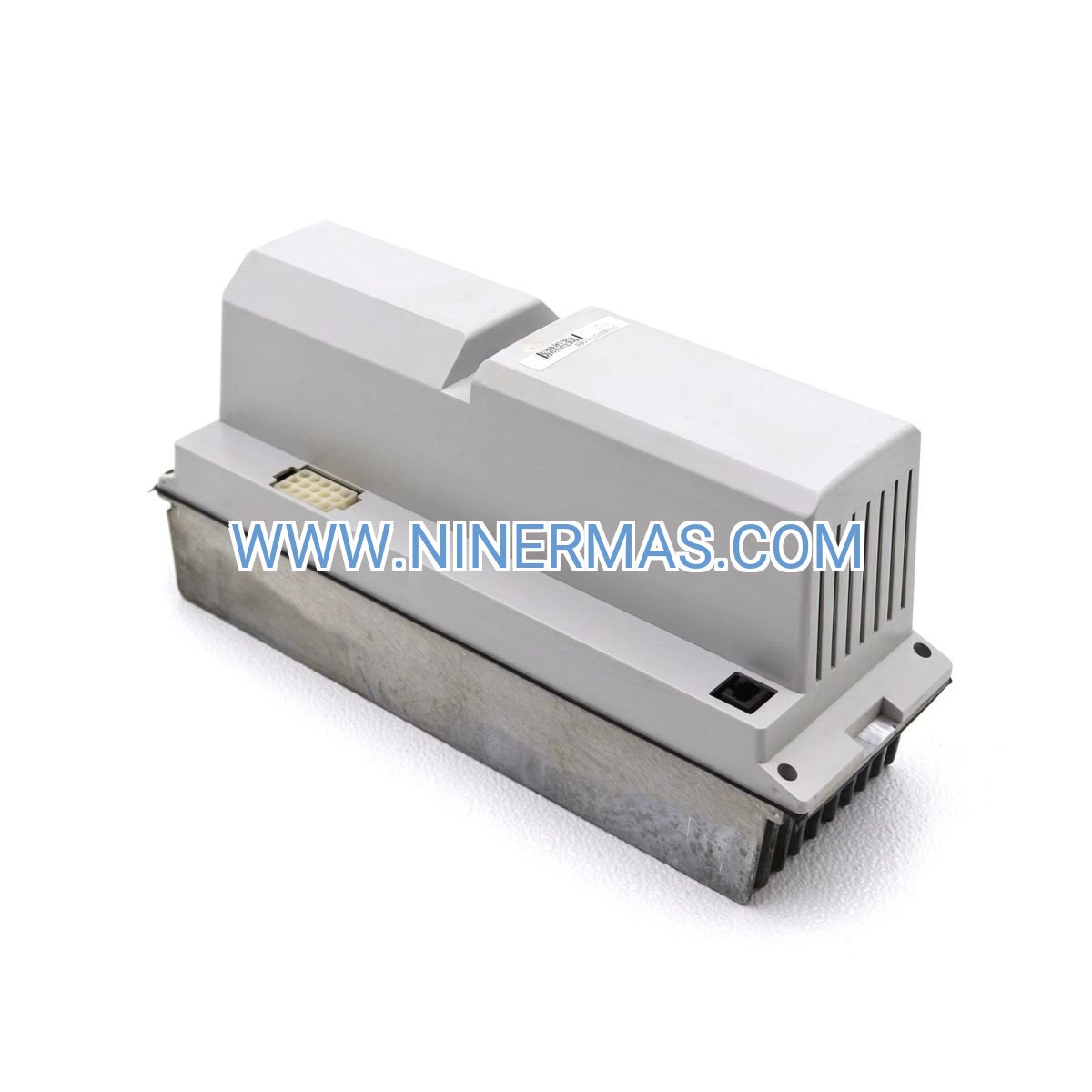

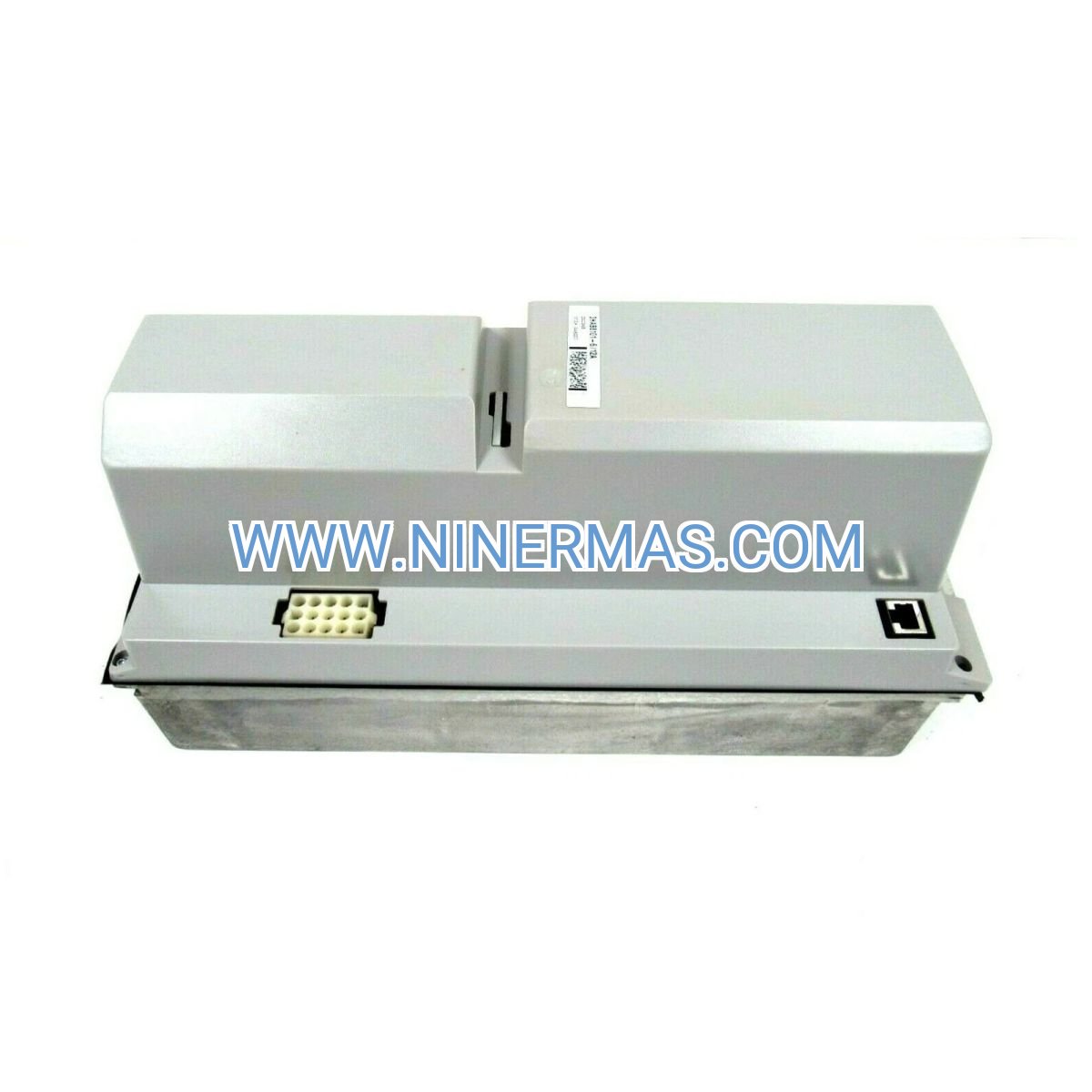

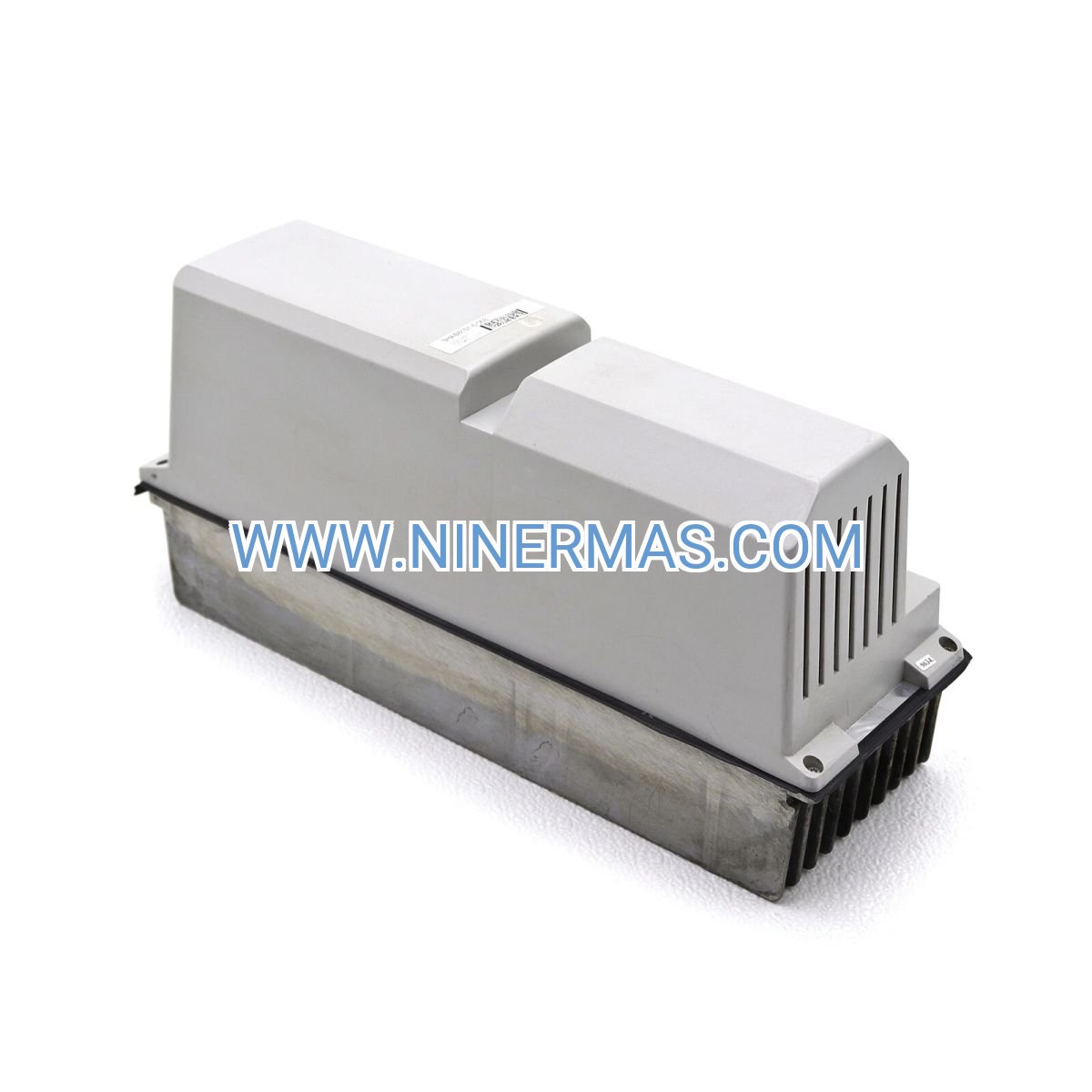

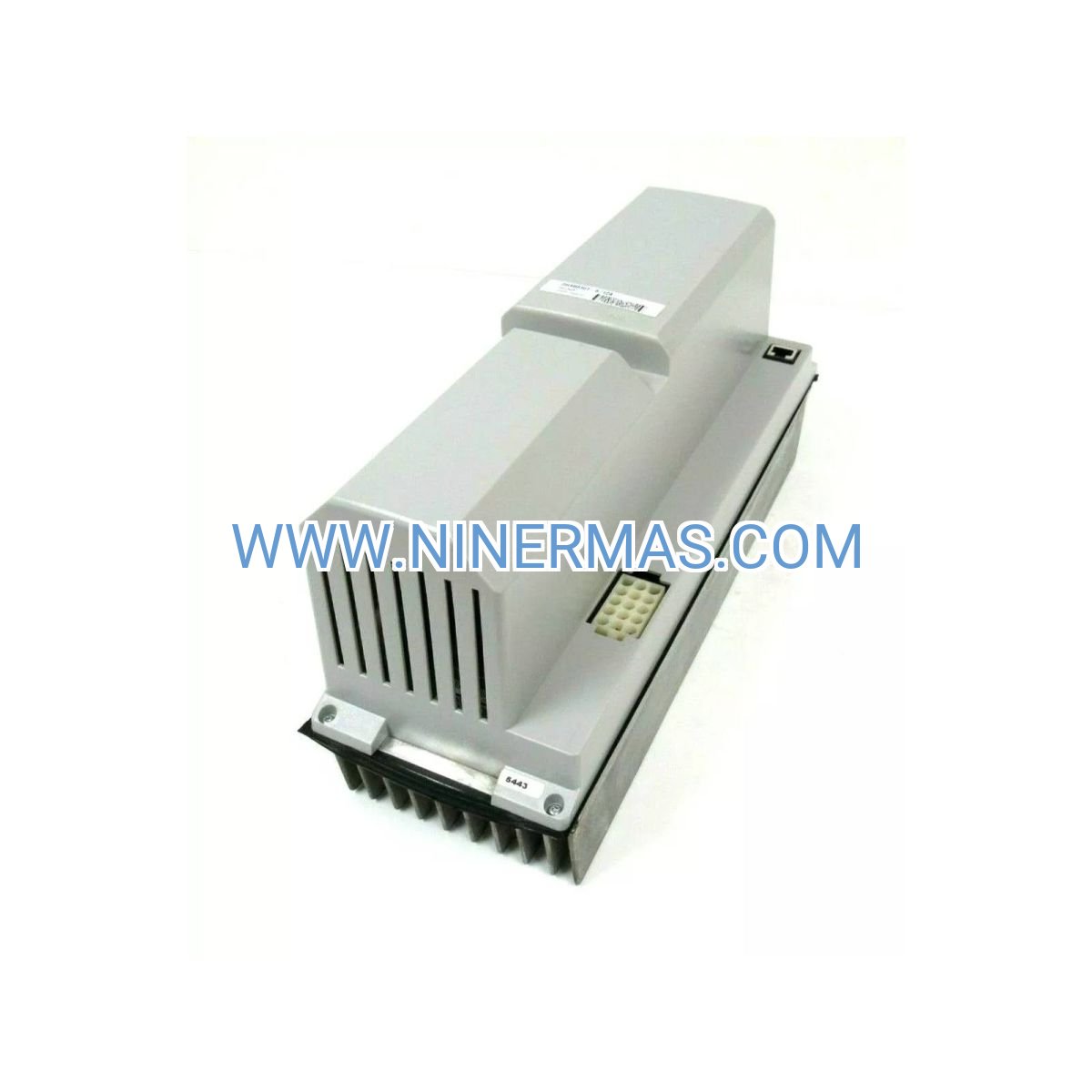

ABB DSQC346B Servo Drive Unit (Industrial-Grade Motion Controller)

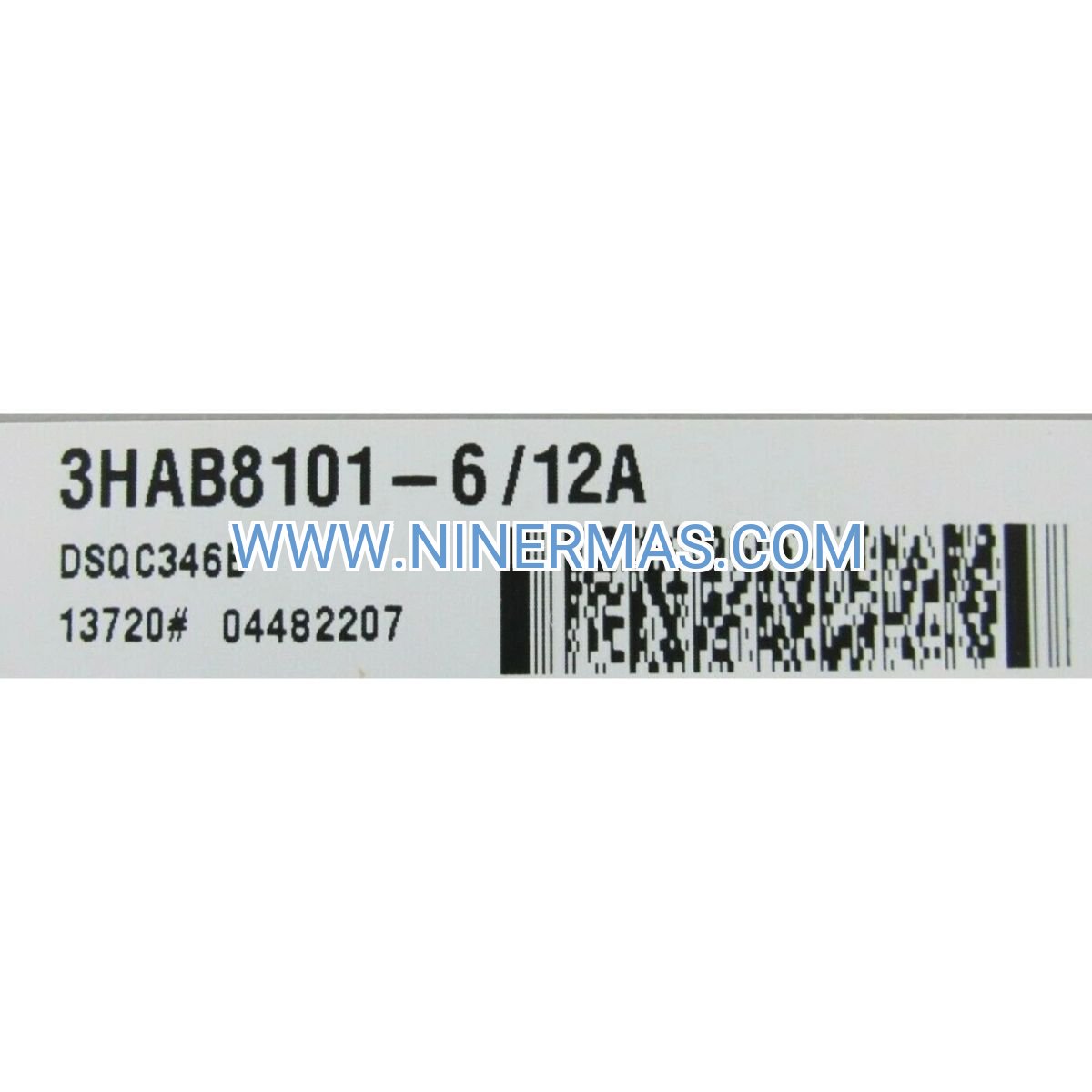

The ABB DSQC346B (P/N: 3HAB8101-6) represents a critical motion control component within ABB's S4-generation robotic architecture. Engineered for single-axis servo amplification, this drive unit translates digital control signals into precise motor commands, enabling repeatable positioning accuracy across industrial automation workflows. Designed for integration with S4, S4C, and S4C+ controller platforms, it addresses the core challenge of maintaining trajectory fidelity under variable load conditions in manufacturing environments.

Manufacturing engineers and automation integrators deploy this servo drive to eliminate motion inconsistencies that compromise product quality. Whether coordinating multi-axis welding sequences or synchronizing pick-and-place operations with conveyor systems, the DSQC346B ensures deterministic motion response. Its Swiss-engineered design prioritizes thermal stability and electrical noise immunity—essential attributes for 24/7 production uptime in automotive, electronics, and heavy machinery sectors.

With factory-calibrated feedback loops and modular replacement architecture, this drive unit reduces mean time to repair (MTTR) while maintaining ISO-certified positioning tolerances. The unit ships ready for DIN rail installation and serial bus integration, supported by comprehensive technical documentation for rapid commissioning.

Core Capabilities & Technical Advantages

→ Closed-Loop Precision Control
Digital PWM modulation with real-time feedback compensation maintains ±0.02mm repeatability across full motion envelope. Adaptive algorithms automatically adjust for mechanical wear and thermal expansion, preserving accuracy over multi-year operational lifecycles.

→ S4 Controller Ecosystem Compatibility
Native integration with ABB S4/S4C/S4C+ platforms via proprietary serial bus protocol. Supports 250 Hz position update rates for smooth trajectory execution in coordinated multi-axis applications. Plug-compatible with existing S4-generation robot installations.

→ Industrial Environmental Resilience
Operates reliably in ambient temperatures up to 45°C with integrated thermal management. Overcurrent and short-circuit protection safeguards against electrical faults. Conformal-coated PCBs resist moisture and particulate contamination in harsh factory environments.

→ Rapid Service & Maintenance
Modular design enables drive replacement in under 15 minutes during scheduled maintenance windows. LED diagnostic indicators accelerate fault isolation. Compatible with ABB's global spare parts network for same-day shipping in major industrial regions.

→ Three-Phase Power Efficiency
Optimized for industrial AC power distribution with regenerative braking capability. Reduces energy consumption during deceleration phases while protecting motor windings from voltage spikes. Meets CE and UL electrical safety certifications.

Industrial Application Scenarios

✓ Automotive Welding Automation
Maintains consistent torch speed and positioning during MIG/TIG welding operations on body-in-white assembly lines. Compensates for part tolerance variations to ensure weld bead uniformity. Deployed in tier-1 supplier facilities processing 300+ units per shift.

✓ High-Speed Packaging & Palletizing
Enables synchronized motion control for delta and SCARA robots handling consumer goods at rates exceeding 120 picks per minute. Coordinates with vision systems for dynamic target acquisition. Reduces product damage through controlled acceleration profiles.

✓ CNC Machine Tending
Orchestrates robot movements with machining center door interlocks and part presence sensors. Ensures collision-free tool loading/unloading in lights-out manufacturing cells. Supports integration with Fanuc, Mazak, and DMG Mori equipment.

✓ Electronics Assembly
Provides micro-positioning accuracy required for PCB component placement and connector insertion. Maintains force control during press-fit operations to prevent substrate damage. Qualified for ESD-sensitive cleanroom environments.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify controller generation (S4/S4C/S4C+) before ordering. For IRC5-generation controllers, specify DSQC663 series drives instead. Consult robot model documentation to confirm axis count and drive quantity requirements. Multi-axis systems require one drive unit per controlled axis.

Advanced Integration Features

The DSQC346B supports coordinated motion control across up to six robot axes when deployed in multi-drive configurations. Serial bus communication enables synchronized trajectory execution with sub-millisecond timing precision. The drive's onboard diagnostics interface with ABB's RobotStudio software for real-time performance monitoring and parameter tuning.

For applications requiring extended motion profiles or custom velocity curves, the drive accepts user-defined acceleration limits and jerk constraints. This programmability enables optimization for fragile part handling or high-throughput material transfer. Integration with third-party PLCs is supported via discrete I/O and fieldbus gateways.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 10-15 business days for factory-direct orders
Warranty Coverage: 12-month manufacturer defect warranty with optional extended service plans
Technical Support: Email and phone assistance for installation, configuration, and troubleshooting
Documentation Included: Installation manual, wiring diagrams, parameter reference guide, factory test certificate

All units undergo functional testing and calibration verification before shipment. Packaging includes anti-static protection and shock-absorbing materials to prevent transit damage. International orders include customs documentation and HS code classification for expedited clearance.

Frequently Asked Questions

Q: How do I verify compatibility between this servo drive and my existing ABB robot controller?
A: Check your controller's model designation—S4, S4C, or S4C+ controllers are compatible. The DSQC346B is NOT compatible with newer IRC5-generation controllers, which require DSQC663 series drives. Consult your robot's technical manual or contact our support team with your controller serial number for confirmation.

Q: What is the maximum ambient temperature rating for continuous operation?
A: The drive unit operates reliably up to 45°C ambient temperature with proper ventilation. For installations in high-temperature environments (foundries, heat-treatment facilities), ensure cabinet cooling systems maintain airflow and consider derating power output by 10% above 40°C.

Q: Can this drive unit support regenerative braking for energy recovery?
A: Yes, the DSQC346B includes regenerative braking capability that feeds energy back to the DC bus during deceleration. This reduces overall system power consumption and minimizes heat dissipation in the motor windings. A braking resistor may be required depending on duty cycle and load inertia.

Q: What diagnostic capabilities are available for troubleshooting motion control issues?
A: The drive features LED status indicators for power, communication, and fault conditions. Detailed error codes are accessible through the S4 controller's service menu. Integration with ABB RobotStudio enables real-time monitoring of current draw, velocity tracking error, and temperature readings.

Q: Is remote monitoring and predictive maintenance supported?
A: When connected to ABB's Ability™ platform via the S4C controller, the drive can transmit operational data for condition monitoring. This enables predictive maintenance alerts based on thermal trends, current anomalies, and cumulative operating hours. Requires compatible controller firmware and network connectivity.

Q: What is the typical replacement interval for this servo drive in 24/7 production environments?
A: Under continuous operation with proper cooling and electrical protection, the DSQC346B typically achieves 50,000+ operating hours before component degradation. Preventive replacement is recommended at 5-7 year intervals in high-duty-cycle applications. Keep spare units on-site to minimize unplanned downtime.
