Description
ABB PP865A Panel 800 Touchscreen (Industrial-Grade 15" HMI)
The ABB PP865A represents a professional-class human-machine interface engineered for mission-critical process control environments. This 15-inch Panel 800 series operator terminal combines XGA-resolution visual clarity with industrial-hardened construction, delivering reliable operator interaction across ABB 800xA distributed control systems and Compact Product Suite architectures.
Designed for continuous operation in demanding manufacturing settings, the PP865A features a resistive touchscreen operable with safety gloves, IP65-rated front panel protection against dust and moisture ingress, and extended backlight longevity exceeding 50,000 operational hours. Process engineers and plant operators gain immediate access to real-time data visualization, alarm management workflows, and setpoint adjustment capabilities through an intuitive touch interface.
Whether deployed in chemical batch reactors, power generation control rooms, or water treatment SCADA networks, the PP865A delivers the performance reliability and integration flexibility required for modern industrial automation infrastructure.
Core Capabilities & Industrial Advantages
✓ High-Resolution Process Visualization
The 1024×768 XGA display delivers 16.7 million colors across a 15-inch viewing area, enabling simultaneous presentation of complex P&ID graphics, multi-pen trend charts, and hierarchical alarm lists. Operators can monitor critical process variables without screen switching, reducing cognitive load during abnormal situations and emergency response scenarios.
✓ Glove-Compatible Resistive Touch Technology
Unlike capacitive screens requiring bare-finger contact, the PP865A's resistive touchscreen responds to gloved hands, stylus input, and standard finger pressure. This design accommodates cleanroom protocols, chemical handling PPE requirements, and cold-environment operations where operators must maintain hand protection while interacting with control systems.
✓ IP65 Environmental Sealing
When properly panel-mounted with the included gasket, the front bezel achieves IP65 ingress protection, defending internal electronics against dust accumulation, water spray from washdown procedures, and chemical mist exposure. This rating supports deployment in food processing facilities, pharmaceutical manufacturing zones, and outdoor enclosures subject to weather exposure.
✓ Native 800xA DCS Integration
Seamless connectivity with ABB 800xA versions 4.1 through 6.0 eliminates middleware complexity. Tag databases synchronize automatically through Panel Builder 800 software, while alarm priorities, user permissions, and graphic libraries inherit from the central engineering environment. This integration reduces commissioning time and maintains consistency across distributed operator stations.
✓ Extended Backlight Service Life
The LED backlight system maintains >50% brightness after 50,000 hours of continuous operation—equivalent to 5.7 years of 24/7 runtime. This longevity minimizes maintenance interventions, reduces spare parts inventory requirements, and lowers total cost of ownership compared to CCFL-backlit alternatives requiring replacement every 2-3 years.
→ Wide Viewing Angle for Multi-Operator Environments
160° horizontal and 140° vertical viewing angles enable supervisors and relief operators to observe process status from adjacent positions without direct screen alignment. This characteristic proves valuable in central control rooms where multiple personnel collaborate during shift handovers or upset conditions.
Proven Deployment Scenarios
Pharmaceutical Batch Manufacturing
In sterile production suites, PP865A panels mounted in stainless steel control cabinets provide operators with recipe execution oversight, CIP sequence monitoring, and batch record documentation. The IP65 rating withstands daily sanitization protocols, while FDA 21 CFR Part 11-compliant electronic signature capabilities support regulatory audit trails for GMP compliance.
Petrochemical Refinery SCADA
Refinery control rooms deploy PP865A terminals for crude distillation unit monitoring, catalytic cracker supervision, and product blending control. The high-resolution display accommodates detailed flow diagrams spanning multiple process areas, while alarm filtering and prioritization tools help operators distinguish critical safety alarms from routine process deviations during plant upsets.
Municipal Water Treatment Oversight
Water and wastewater facilities utilize PP865A panels for lift station control, clarifier monitoring, and chemical dosing automation. Data logging features capture flow rates, turbidity measurements, and chlorine residuals for regulatory reporting to environmental agencies, while remote access via VPN enables after-hours troubleshooting by maintenance staff.
Power Plant Turbine Control
Combined-cycle and coal-fired power stations integrate PP865A panels into turbine control cabinets for vibration monitoring, bearing temperature tracking, and governor setpoint adjustment. The wide operating temperature range (0-50°C) accommodates installation in non-climate-controlled equipment rooms, while the sealed front panel prevents coal dust infiltration.
Food Processing Line Management
Breweries, dairy plants, and beverage bottling operations employ PP865A panels for production line visualization, pasteurization control, and packaging equipment coordination. Recipe management functions store formulation parameters for different product SKUs, enabling rapid changeovers between production runs while maintaining traceability for food safety audits.
Engineering Specifications & Selection Criteria
| Parameter Category | Specification | Engineering Notes |
|---|---|---|
| Display Technology | 15" TFT LCD, 1024×768 XGA | Active matrix provides 140° vertical viewing angle |
| Touch Interface | Analog resistive, 4-wire | Operable with gloves, stylus, or bare fingers |
| Color Depth | 16.7M colors (24-bit RGB) | Supports photorealistic process graphics |
| Luminance | 400 cd/m² typical | Readable in ambient industrial lighting |
| Backlight MTBF | >50,000 hrs to 50% brightness | LED technology, no mercury content |
| Processor Architecture | Industrial ARM core | Embedded Windows CE real-time OS |
| System Memory | 256 MB RAM / 512 MB Flash | Supports complex HMI applications |
| Network Interface | Ethernet 10/100 Mbps | RJ45 connector, auto-negotiation |
| Power Requirements | 24 VDC ±20%, 30W max | Isolated supply recommended |
| Operating Range | 0°C to +50°C ambient | Convection-cooled, no fans required |
| Humidity Tolerance | 10-95% RH non-condensing | Conformal coating on PCBs |
| Front Panel Rating | IP65 per IEC 60529 | Requires proper gasket installation |
| Panel Cutout | 382mm W × 309mm H | 1-6mm panel thickness supported |
| Unit Weight | 4.64 kg (10.23 lbs) | Includes mounting hardware |
| Certifications | UL/CSA, CE, RoHS, REACH | IEC 61010-1 safety compliance |
Selection Guidelines: Choose PP865A when applications require 15-inch screen real estate for multi-window process graphics, glove-operable touch input, and IP65 environmental protection. For smaller footprints, consider PP835 (6.5"); for larger displays, evaluate PP886 (19" widescreen). Verify Panel Builder 800 v5 license availability before procurement.
Extended Functionality & System Integration
Panel Builder 800 Development Environment
The PP865A requires Panel Builder 800 version 5 software for HMI application creation. This engineering tool provides drag-and-drop graphic editors, pre-built faceplate libraries for valves/motors/PIDs, alarm management configurators, and trend chart designers. Applications developed in Panel Builder 800 can be reused across the entire Panel 800 product family, protecting engineering investment during system expansions.
Multi-Protocol Communication Support
Beyond native 800xA integration, the PP865A supports OPC DA/UA for third-party PLC connectivity, Modbus TCP for field device polling, and SNMP for network management. This protocol flexibility enables hybrid architectures where ABB HMIs interface with Siemens, Rockwell, or Schneider controllers, or serve as visualization front-ends for legacy DCS migrations.
Cybersecurity & Access Control
Role-based user authentication restricts operator access to authorized process areas and control functions. Password policies enforce complexity requirements and expiration intervals, while audit logs track all setpoint changes, alarm acknowledgments, and mode transfers for forensic analysis during incident investigations or regulatory inspections.
Remote Diagnostics & VNC Access
Built-in VNC server functionality permits remote desktop access for troubleshooting by automation engineers without physical presence at the panel location. This capability reduces mean time to repair (MTTR) for software configuration issues and enables centralized support teams to service geographically distributed facilities.
Procurement Terms & Service Commitments
Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct procurement of large quantities or custom configurations.
Warranty Coverage: 24-month manufacturer's warranty from shipment date, covering defects in materials and workmanship. Warranty includes advance replacement service for critical applications requiring minimal downtime.
Technical Support: Pre-sales application engineering assistance for system architecture design, panel cutout verification, and communication protocol selection. Post-sales support includes Panel Builder 800 configuration guidance, network troubleshooting, and firmware update procedures.
Documentation Package: Each PP865A ships with installation quick-start guide, panel cutout template, mounting hardware kit, and digital access to full technical manual, Panel Builder 800 software download links, and CAD drawings for mechanical integration.
Frequently Asked Technical Questions
Q: Can the PP865A interface with non-ABB control systems like Allen-Bradley or Siemens PLCs?
A: Yes, through OPC DA/UA or Modbus TCP protocols configured in Panel Builder 800. You'll need to map PLC tag addresses to HMI objects manually, as automatic tag import only functions with ABB 800xA systems. Third-party controller integration requires additional engineering effort compared to native 800xA connectivity.
Q: What is the maximum Ethernet cable distance between the PP865A and the control network switch?
A: Standard Ethernet specifications limit Cat5e/Cat6 cable runs to 100 meters (328 feet) for reliable 100 Mbps communication. For longer distances, deploy industrial Ethernet switches with fiber optic uplinks or use media converters to extend reach beyond copper cable limitations.
Q: Does the IP65 rating apply to the entire enclosure or only the front bezel?
A: IP65 protection applies exclusively to the front panel when properly installed with the supplied gasket in a sealed cutout. The rear electronics compartment requires additional enclosure protection if exposed to harsh environments. Mount the PP865A in a NEMA 4X or IP65-rated cabinet for full environmental protection.
Q: How does touchscreen calibration accuracy degrade over time in high-use applications?
A: Resistive touchscreens experience gradual calibration drift due to mechanical wear on the conductive layers. ABB recommends annual recalibration via the system menu for applications with >1000 touches per day. The optional RX865 protective cover significantly extends touchscreen life by reducing direct surface contact and contamination.

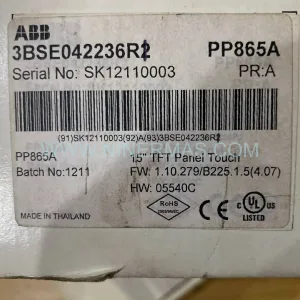

Q: Can I retrofit a PP865A to replace an older PP865 (3BSE042236R1) without modifying the panel cutout?
A: Yes, the PP865A maintains identical mechanical dimensions and cutout specifications as the previous PP865 revision. However, verify Panel Builder 800 application compatibility, as version 5 applications may require minor modifications when migrating from older Panel Builder releases. Electrical connections and mounting hardware are interchangeable.
Q: What cybersecurity measures protect the PP865A from unauthorized network access?
A: Implement network segmentation via VLANs to isolate HMI traffic from enterprise IT networks, configure Windows CE firewall rules to block unused ports, disable VNC access when not required for remote support, and enforce strong password policies through Panel Builder 800 security settings. For critical infrastructure, deploy industrial firewalls with deep packet inspection between HMI and control networks.
Specify PP865A for Your Next Automation Project
Ready to enhance operator visibility and control system interaction? Contact our automation specialists to discuss PP865A integration into your ABB 800xA architecture, request panel cutout templates for mechanical design validation, or obtain project-specific quotations for multi-panel deployments. Our engineering team provides pre-sales application support to ensure optimal HMI selection for your process control requirements.
Next Steps: Email detailed system specifications and quantity requirements to our sales team, or schedule a technical consultation to review communication protocols, graphic design workflows, and Panel Builder 800 licensing options.
