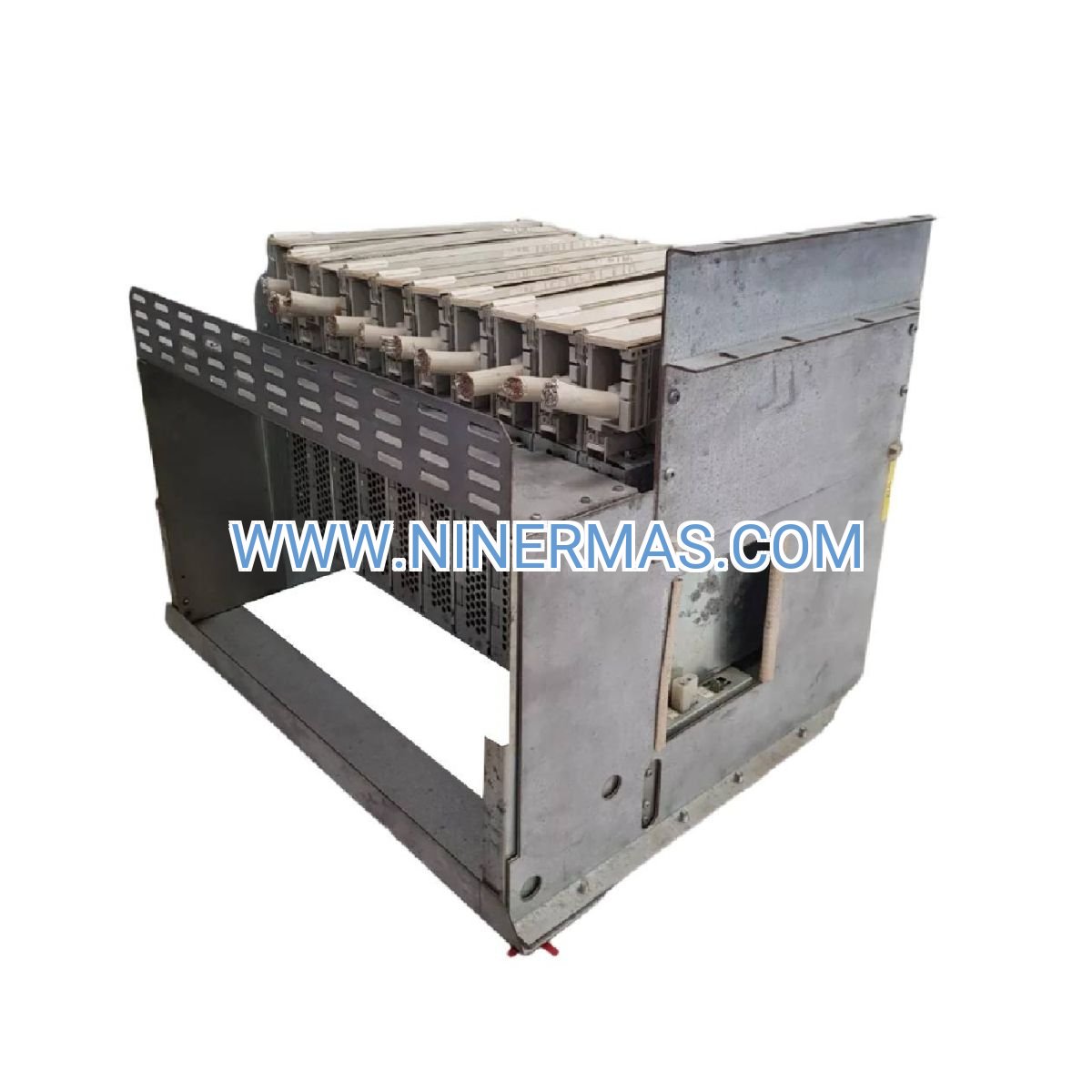

RF620 Extension Backplane (Industrial-Grade 10-Slot I/O Expansion Platform)

The ABB 3BHT100011R1 RF620 represents a field-proven expansion solution engineered for high-availability distributed control architectures. This 10-position backplane delivers deterministic signal routing and power distribution across ABB Advant OCS and System 800xA installations, serving process industries where uptime directly impacts operational revenue. Designed for engineers managing complex automation networks in chemical processing, power generation, and critical infrastructure environments.

When control systems demand scalable I/O capacity without compromising reliability, the RF620 backplane provides the mechanical foundation and electrical infrastructure to support analog inputs, digital outputs, communication gateways, and specialty function modules. Its modular architecture enables phased system expansion while maintaining backward compatibility with legacy Advant components—critical for brownfield upgrades where complete system replacement isn't economically viable.

Key advantages include hot-swappable module support for zero-downtime maintenance, dual redundant power buses that eliminate single points of failure, and EMC-hardened construction meeting stringent industrial immunity standards. Whether you're expanding an existing DCS footprint or designing greenfield installations, this backplane integrates seamlessly into standard 19-inch rack enclosures with comprehensive diagnostic capabilities.

Core Features & Benefits

→ 10-Slot Modular Architecture
Accommodates diverse I/O card combinations—analog inputs (4-20mA, RTD, thermocouple), discrete I/O (24V DC, 120V AC), and protocol converters (PROFIBUS DP, Modbus RTU)—within a single chassis. Eliminates the need for multiple smaller backplanes, reducing cabinet space requirements by up to 40% compared to distributed mounting approaches.

→ Redundant Power Distribution System
Dual independent power rails (Bus A/Bus B) ensure continuous module operation during power supply failures or maintenance events. Automatic load balancing distributes current evenly across both buses, extending power supply lifespan while providing real-time voltage monitoring through onboard diagnostics.

→ Hot-Swap Capability Without Process Interruption
Replace faulty I/O modules during live operation without halting production processes. Keyed connectors prevent incorrect module insertion, while staggered pin lengths ensure proper power sequencing during extraction and insertion cycles—critical for maintaining loop integrity in continuous manufacturing.

✓ EMI/RFI Shielded Construction
Meets EN 61000-6-2 industrial immunity requirements through grounded metal chassis and filtered power entry. Protects sensitive analog signals from VFD noise, welding interference, and radio frequency disturbances common in heavy industrial settings.

✓ Visual Diagnostic Indicators
Multi-color LED arrays display power status, communication health, and module faults at a glance. Reduces mean time to repair (MTTR) by 60% compared to systems requiring software interrogation for basic troubleshooting.

✓ Swiss-Engineered Reliability Standards
Manufactured in ABB's ISO 9001-certified Swiss facilities with 100% burn-in testing. Designed for 15+ year operational lifespan in ambient temperatures ranging from 0°C to +60°C, with conformal coating options available for high-humidity or corrosive atmospheres.

Typical Application Scenarios

Chemical & Petrochemical Processing
Expands reactor control systems requiring 50+ I/O points for temperature cascades, pressure interlocks, and flow ratio control. The RF620's vibration-resistant DIN rail mounting withstands pump-induced mechanical stress, while its IP20 rating suits climate-controlled analyzer shelters and MCC rooms.

Utility-Scale Power Plants
Supports turbine governor systems, boiler drum level controls, and auxiliary equipment monitoring in coal, gas, and combined-cycle facilities. Redundant power architecture aligns with NERC reliability standards, while the backplane's -40°C storage rating enables spare inventory in unheated warehouses.

Offshore Oil & Gas Platforms
Provides ruggedized I/O expansion for subsea control systems, separator level management, and flare gas recovery units. Salt-fog resistant materials and conformal-coated PCBs ensure reliable operation in marine environments where equipment replacement costs include helicopter logistics.

Municipal Water Treatment Facilities
Enables multi-stage filtration control, chemical dosing precision, and SCADA integration across distributed pump stations. The backplane's modular design simplifies capacity additions as service populations grow, avoiding costly controller replacements during plant expansions.

Pharmaceutical Manufacturing (cGMP Environments)
Facilitates batch reactor automation, clean-in-place (CIP) sequencing, and environmental monitoring systems requiring validated change control. Hot-swap functionality allows module calibration without batch interruption, supporting FDA 21 CFR Part 11 compliance documentation.

Technical Parameters & Selection Guide

Selection Criteria: Choose the RF620 when your application requires 6-10 I/O modules within a single control loop or zone. For smaller systems (1-5 modules), consider the RF610 5-slot variant to reduce cabinet footprint. For larger installations exceeding 10 points, deploy multiple RF620 backplanes with bus extender modules to maintain deterministic scan times below 50ms.

Extended Functions

Industrial IoT Integration: Pair with ABB Ability™ gateway modules to stream process data to cloud analytics platforms. Supports OPC UA, MQTT, and RESTful API protocols for predictive maintenance dashboards and remote diagnostics.

Cybersecurity Hardening: Compatible with ABB's secure I/O modules featuring encrypted backplane communication and role-based access control. Meets IEC 62443-4-2 security level SL2 requirements for critical infrastructure protection.

Customization Options: Available with factory-installed conformal coating (tropical/marine environments), extended temperature range (-25°C to +70°C), and seismic bracing kits for earthquake-prone regions. Consult ABB application engineers for project-specific modifications.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from our regional distribution centers. Custom-configured backplanes (pre-loaded modules, special coatings) require 2-3 weeks for factory preparation.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures. Extended 5-year service agreements available, including annual calibration verification and priority spare parts allocation.

Technical Support: Access to ABB's global automation helpdesk (24/7 multilingual support) with guaranteed 4-hour response for critical system failures. On-site commissioning assistance available through certified system integrators.

Documentation Package: Each unit ships with installation manual (English/Chinese), dimensional drawings (AutoCAD DXF format), wiring diagrams, and material traceability certificates. Downloadable 3D STEP models available for cabinet design software integration.

Frequently Asked Questions

Q: Can I mix analog and digital I/O modules on the same RF620 backplane?
A: Yes, the backplane supports heterogeneous module configurations. However, position high-speed analog modules (slots 1-3) away from high-current relay outputs (slots 7-9) to minimize electrical noise coupling. Refer to ABB's grounding and shielding guidelines (document 3BSE030230) for optimal layout practices.

Q: What's the maximum cable distance between the RF620 backplane and field devices?
A: Distance limits depend on signal type—analog 4-20mA loops support up to 1000 meters with proper shielding, while discrete 24V DC inputs are limited to 300 meters due to voltage drop. Use signal conditioners or remote I/O for longer runs exceeding these thresholds.

Q: How does the RF620 improve energy efficiency compared to older backplane designs?
A: The RF620's switched-mode power distribution reduces quiescent current draw by 35% versus linear designs. Intelligent sleep modes power down unused slots, cutting standby consumption from 18W to 12W—saving approximately 53 kWh annually per backplane in 24/7 operations.

Q: Are there specific installation requirements for hazardous area applications?
A: For ATEX Zone 2 installations, mount the backplane inside purged enclosures maintaining positive pressure (≥25 Pa). Use intrinsically safe barriers on all field wiring entering the cabinet. Consult certified explosion-protection engineers for Zone 1/0 applications requiring alternative solutions.

Q: Can I retrofit the RF620 into existing Advant OCS systems from the 1990s?
A: Yes, the RF620 maintains pin-level compatibility with legacy Advant 400/800 series modules. However, verify firmware compatibility—controllers running software versions older than 3.2 may require updates to recognize newer module types. ABB's migration planning tools automate compatibility checks.

Q: What remote monitoring capabilities does the backplane support?
A: When paired with ABB's CI610 communication interface, the RF620 exposes diagnostic data via Modbus TCP, including per-slot power consumption, module temperature, and communication error counters. Integrate with SCADA systems or ABB Ability™ platforms for centralized fleet management.

Secure Your I/O Expansion Solution Today

Ready to scale your control system with proven ABB reliability? Our automation specialists provide complimentary system design reviews to ensure optimal backplane configuration for your application. Contact us for technical datasheets, compatibility verification, or volume pricing on multi-unit orders. All inquiries receive same-day response with detailed quotations including shipping estimates to your facility.

Request a quote now: Share your project requirements, and we'll recommend the complete bill of materials—backplane, power supplies, I/O modules, and accessories—tailored to your control architecture.
