ABB S-073N ALU Phase Module | ACS2000 HV Inverter Component

Description

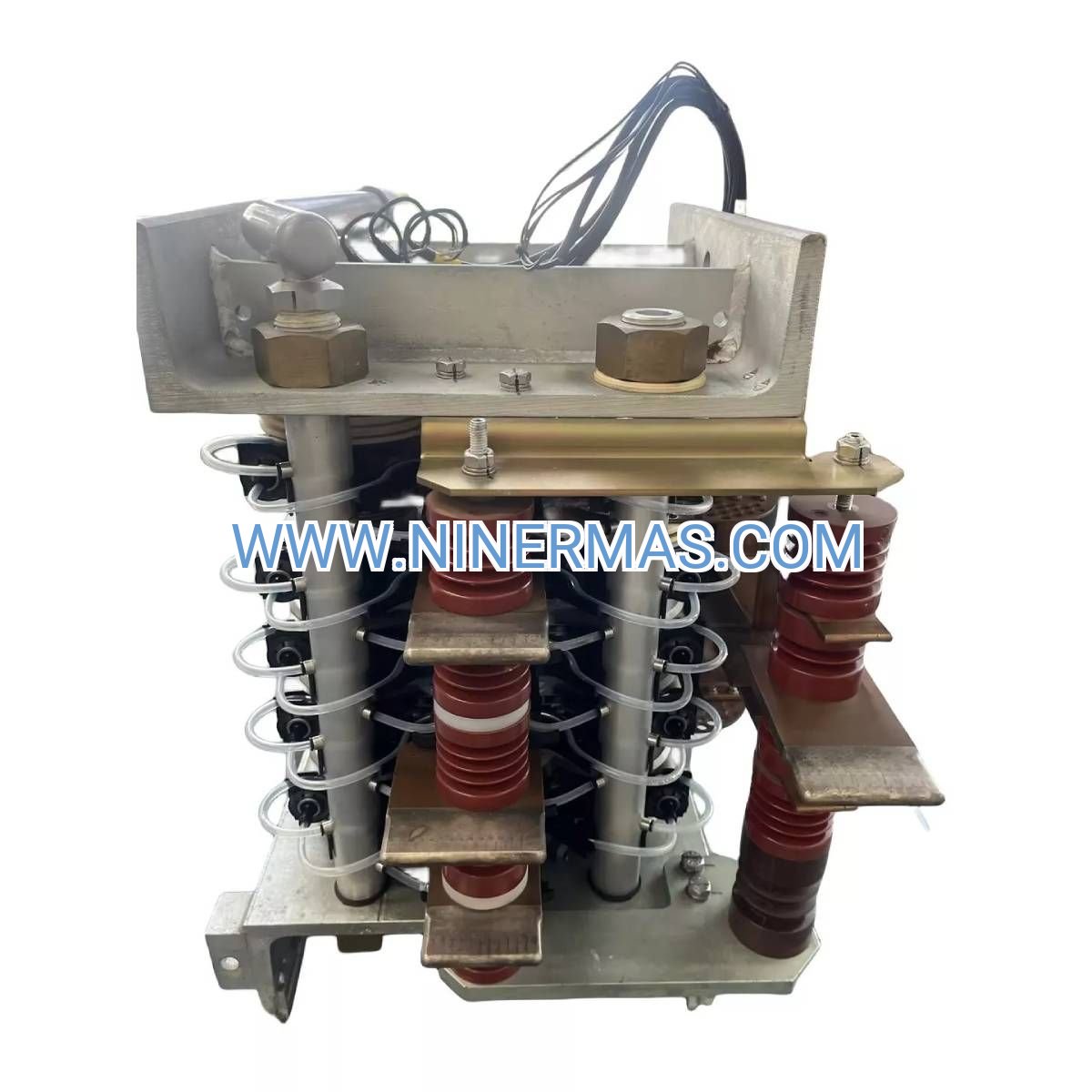

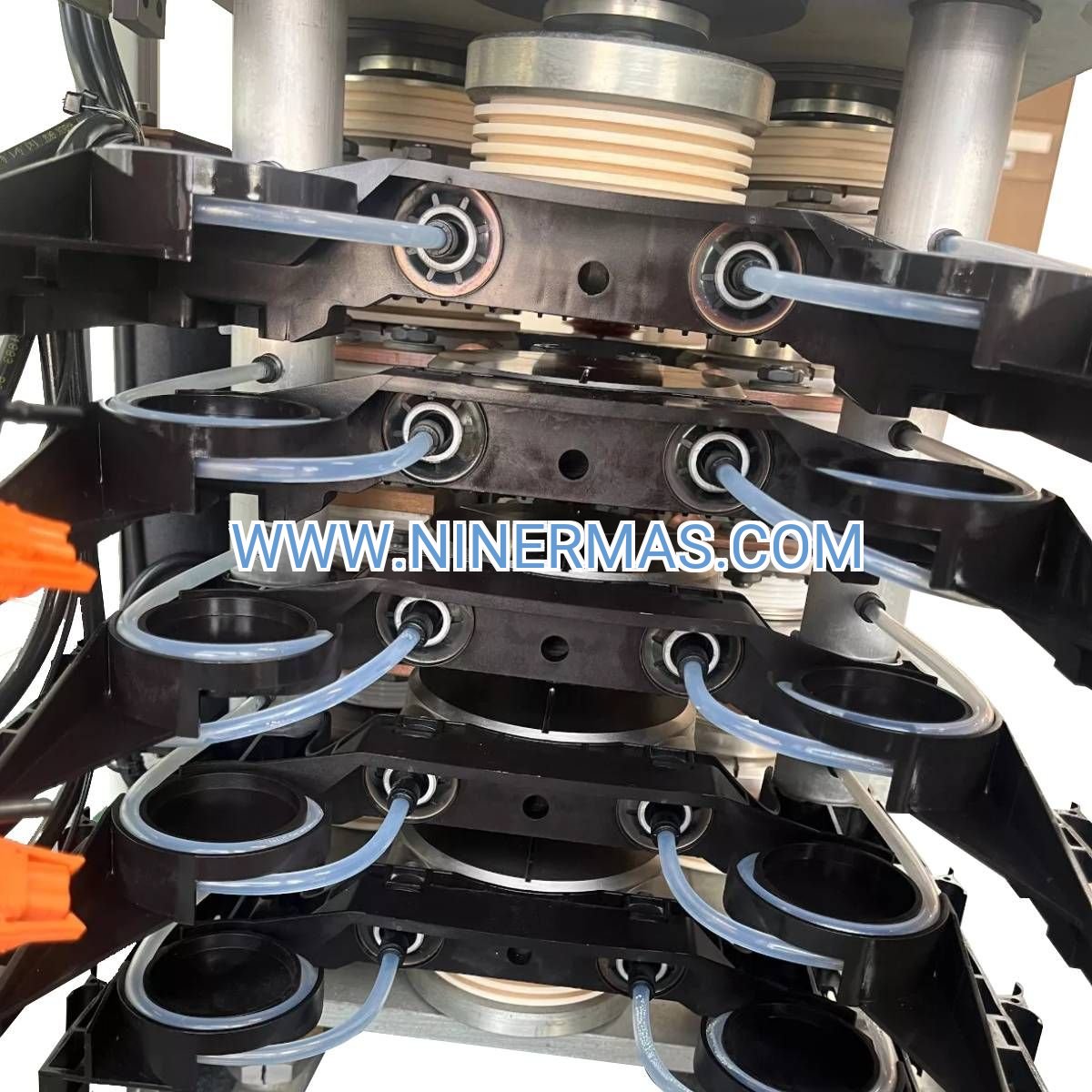

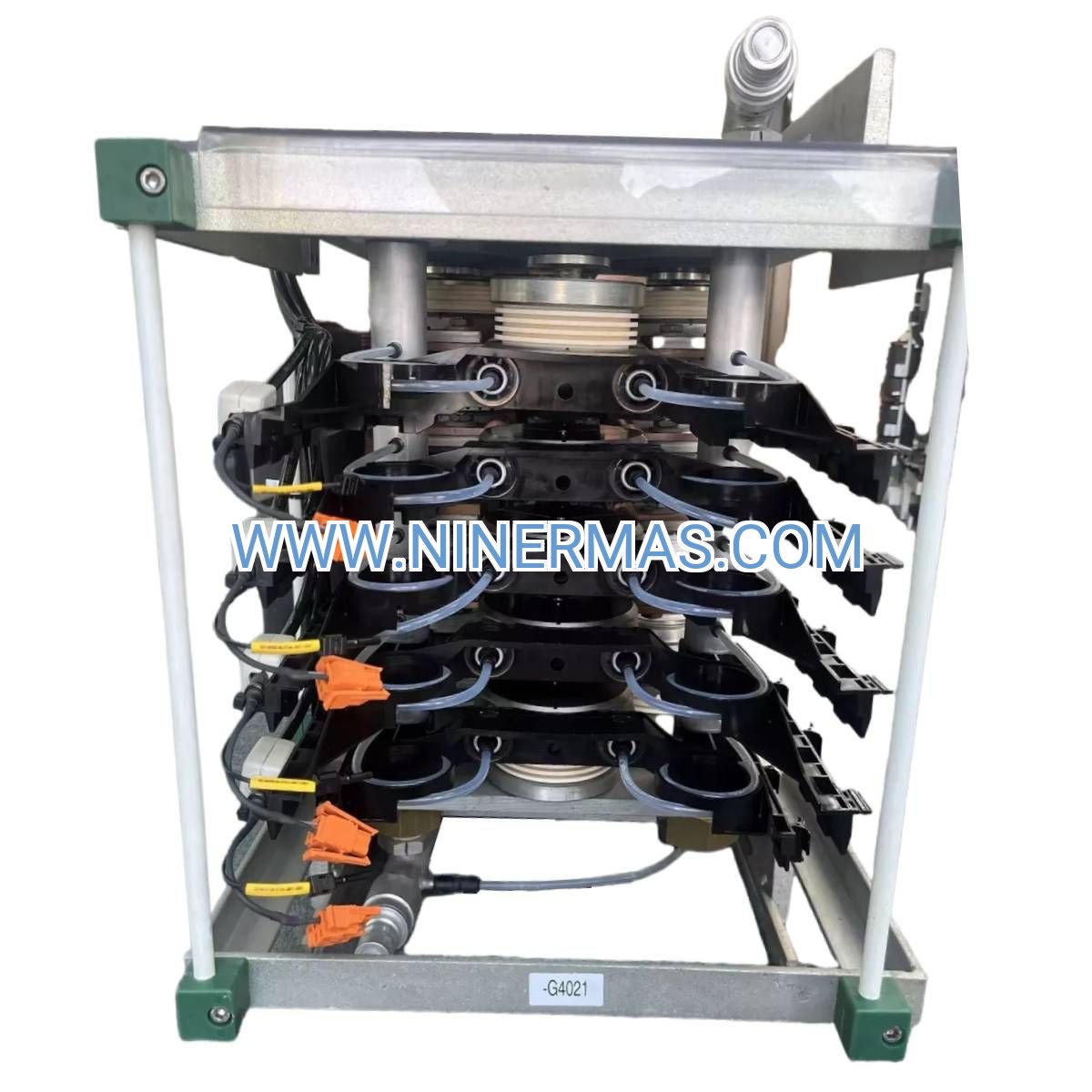

ABB S-073N ALU Phase Module Rack (Industrial-Grade Power Electronics Platform)

The ABB 3BHB009884R5211 represents a critical power conversion component within ACS2000 medium-voltage drive systems. Engineered with precision aluminum construction, this phase module rack delivers reliable switching performance for industrial motors ranging from 2.3 kV to 11 kV applications. Swiss manufacturing ensures consistent quality across mining operations, marine propulsion systems, and heavy industrial installations worldwide.

Designed for system integrators and maintenance teams managing high-power variable frequency drives, this module addresses the challenge of maintaining uptime in mission-critical motor control applications. When phase modules fail in cement kilns, pipeline compressors, or ship propulsion systems, production losses can exceed $50,000 per hour—making rapid replacement capability essential.

Key differentiators include aluminum thermal management architecture supporting -40°C to +85°C operation, modular rack design enabling 2-hour field replacement, and compatibility with both IGCT and IGBT semiconductor technologies. The 10 kg lightweight construction simplifies handling while maintaining structural integrity under continuous vibration and thermal cycling.

Engineering Advantages & Performance Characteristics

✓ Thermal Management Excellence: Aluminum alloy construction provides 205 W/m·K thermal conductivity—3× better than steel alternatives. Integrated cooling channels support both forced-air and liquid cooling configurations, maintaining junction temperatures below 125°C even at 100% load in 50°C ambient conditions.

✓ Rapid Field Serviceability: Rack-mounted architecture with standardized mounting points enables complete module replacement in under 2 hours. Pre-assembled design eliminates on-site wiring errors, reducing commissioning time by 60% compared to component-level repairs.

✓ Environmental Resilience: -40°C to +85°C operating range supports installations from Arctic offshore platforms to Middle Eastern desert facilities. Conformal coating on PCBs provides protection against humidity, salt spray, and industrial contaminants per IEC 60721-3-3 Class 3C3 standards.

✓ Multi-Level Topology Support: Compatible with 3-level, 5-level, and cascaded H-bridge converter configurations. Flexible busbar interface accommodates DC link voltages from 3.6 kV to 15 kV, supporting power ratings from 2 MW to 40 MW per drive system.

→ Swiss Quality Assurance: Every unit undergoes 100% factory testing including high-pot isolation verification (2× rated voltage + 1 kV), thermal cycling validation, and functional load testing. Full material traceability ensures compliance with nuclear and marine classification society requirements.

Industrial Deployment Scenarios

Mining & Mineral Processing Operations

Powers SAG mills, ball mills, and conveyor drives in copper, gold, and iron ore facilities. Typical installation: 8 MW semi-autogenous grinding mill operating 24/7 in Chilean copper mine at 3,300m elevation. The module's altitude derating characteristics and dust-resistant design maintain 98.5% availability despite harsh conditions. Prevents production losses averaging $75,000 per unplanned shutdown.

Offshore Oil & Gas Production

Drives high-pressure injection pumps and gas compression trains on FPSO vessels and fixed platforms. Case study: North Sea platform using 12 MW compressor drive with S-073N modules operating in -20°C to +45°C conditions. Salt-fog resistance and vibration tolerance (5g peak per IEC 60068-2-6) ensure 5-year maintenance intervals between inspections.

Marine Propulsion & Thruster Systems

Enables variable-speed control for main propulsion motors (15-25 MW) and azimuth thrusters (2-5 MW) in cruise ships, LNG carriers, and icebreakers. The compact 10 kg design fits space-constrained engine rooms while meeting DNV-GL and Lloyd's Register shock and vibration standards. Supports dynamic positioning systems requiring ±0.5% speed regulation accuracy.

Cement & Steel Manufacturing

Controls rotary kiln drives (5-10 MW), vertical roller mills (3-8 MW), and rolling mill motors in continuous production environments. Handles frequent load transients (0-100% torque in <200ms) without nuisance trips. High short-circuit withstand capability (10× rated current for 10ms) protects against downstream faults in electrically noisy plant environments.

Technical Parameters & Selection Criteria

Specification	Value	Notes
Manufacturer Part Number	3BHB009884R5211	Factory-sealed packaging with anti-static protection
Type Designation	S-073N ALU Phase Module Rack	"ALU" denotes aluminum construction variant
Compatible Drive Platform	ABB ACS2000 Series	Verify firmware compatibility for drives manufactured pre-2010
Voltage Class	2.3 kV – 11 kV	DC bus voltage determines required insulation coordination
Current Rating	System-dependent (500A – 3000A)	Determined by semiconductor selection and cooling method
Switching Frequency	150 Hz – 500 Hz	Lower frequencies for IGCT, higher for IGBT configurations
Operating Temperature	-40°C to +85°C	Derate current by 2% per °C above 40°C ambient
Storage Temperature	-55°C to +100°C	Short-term exposure (<72 hours) acceptable
Cooling Interface	Forced air or liquid	Liquid cooling required for >5 MW applications
Dimensions (H×W×D)	450mm × 280mm × 320mm	Verify cabinet clearances for maintenance access
Weight	10 kg (22 lbs)	Includes mounting hardware and thermal interface pads
Protection Rating	IP20 (cabinet-mounted)	Requires IP54 minimum enclosure for outdoor installations
Altitude Rating	Up to 4,000m without derating	Consult factory for installations above 4,000m
Compliance Standards	IEC 61800-5-1, UL 508C	CE marked for European installations

Selection Guidelines

When to specify this module: Replacement for existing ACS2000 installations, new builds requiring proven medium-voltage technology, applications demanding >98% availability, environments with extreme temperature or vibration.

Critical compatibility check: Verify drive serial number and firmware version with ABB technical support. Modules manufactured after 2015 may require controller updates for older drive systems. Always cross-reference with drive nameplate data before ordering.

System Integration & Advanced Capabilities

Semiconductor Technology Options

The S-073N rack accommodates both IGCT (Integrated Gate-Commutated Thyristor) and IGBT (Insulated Gate Bipolar Transistor) power modules. IGCT configurations offer superior short-circuit ruggedness and lower conduction losses for >5 MW applications, while IGBT variants provide higher switching frequencies (up to 500 Hz) for improved motor harmonic performance in precision speed control applications.

Condition Monitoring Integration

Pre-wired sensor interfaces support real-time monitoring of junction temperature, DC bus voltage ripple, and gate driver status. Data streams integrate with ABB Ability™ predictive maintenance platforms via Modbus TCP or PROFINET, enabling early detection of capacitor degradation (ESR increase >20%) or cooling system failures before catastrophic failure occurs.

Customization for Specialized Applications

Factory customization options include: conformal coating upgrades for offshore/chemical environments (NEMA 4X equivalent), extended temperature range variants (-55°C to +95°C), seismic bracing for nuclear installations per IEEE 344, and custom busbar configurations for retrofit projects with non-standard cabinet layouts.

Procurement & Technical Support

Standard Lead Time: 8-12 weeks for factory-new units. Expedited 4-week delivery available for critical outages (subject to 25% premium). Refurbished/exchange units available with 2-3 week turnaround for common configurations.

Warranty Coverage: 24 months from shipment date covering material defects and workmanship. Warranty excludes damage from improper installation, overvoltage events, or operation beyond rated parameters. Extended 5-year service agreements available including on-site spares and priority technical support.

Technical Documentation: Each shipment includes installation manual (English/Chinese), dimensional drawings (AutoCAD DXF format), thermal management guidelines, and commissioning checklist. Firmware compatibility matrix and obsolescence roadmap provided upon request.

Field Service Support: Remote diagnostics via secure VPN connection, 24/7 technical hotline with 2-hour response SLA for critical issues, on-site commissioning assistance available in major industrial regions (Asia-Pacific, Middle East, Americas).

Frequently Asked Questions

What is the typical replacement interval for S-073N phase module racks in continuous-duty applications?

Under normal operating conditions (≤80% load factor, proper cooling maintenance, clean power supply), the module rack itself has a 15-20 year service life. However, internal electrolytic capacitors typically require replacement every 7-10 years due to electrolyte evaporation. Semiconductor modules may need replacement every 10-15 years depending on thermal cycling severity. Implement annual insulation resistance testing and capacitor ESR measurements to predict end-of-life.

Can this module be retrofitted into older ACS1000 drive systems?

No, the S-073N is mechanically and electrically incompatible with ACS1000 platforms due to different DC bus voltage levels, control signal protocols, and mounting dimensions. ACS1000 systems require 3BHB003688R0101 or equivalent modules. Contact ABB for ACS1000-to-ACS2000 upgrade migration paths if seeking performance improvements.

What cooling airflow rate is required for forced-air configurations?

Minimum 250 CFM (425 m³/h) per module at 40°C ambient for full-rated operation. Increase to 350 CFM for 50°C ambient or high-altitude installations (>2,000m). Use filtered air with particle size <10 microns to prevent heatsink fouling. For liquid cooling, maintain 15-20°C coolant temperature with 8-12 LPM flow rate per module.

How does this module improve energy efficiency compared to older thyristor-based drives?

IGBT-based ACS2000 systems achieve 97-98% efficiency at rated load versus 94-95% for thyristor (SCR) drives. For a 5 MW motor operating 8,000 hours annually, this 3% efficiency gain saves approximately 120 MWh per year—equivalent to $12,000-18,000 in electricity costs depending on regional rates. Additional savings from reduced harmonic filtering requirements and improved power factor.

What are the storage requirements for spare modules?

Store in climate-controlled environment (15-30°C, <60% RH) in original anti-static packaging. Avoid direct sunlight and proximity to electromagnetic sources. Electrolytic capacitors require "reforming" (gradual voltage application) if stored >2 years before installation. Inspect mounting hardware for corrosion and replace thermal interface pads before installation of long-stored units.

Is this module suitable for hazardous area (ATEX/IECEx) installations?

The module itself is not ATEX/IECEx certified. For Zone 2/Division 2 installations, it must be housed in a certified enclosure with appropriate purging or pressurization systems. For Zone 1/Division 1 areas, consider ABB's explosion-proof drive solutions or install the drive in a non-hazardous control room with long motor cables (consult dv/dt filter requirements for cables >100m).

Request Technical Consultation & Quotation

Our industrial automation specialists provide application-specific guidance for ACS2000 component selection, retrofit planning, and lifecycle cost analysis. Submit your drive nameplate data, operating parameters, and project timeline for a detailed technical proposal within 24 hours.

Contact our team: Share motor specifications, environmental conditions, and criticality requirements to receive customized recommendations including spare parts strategy, commissioning support options, and total cost of ownership projections.
