ABB KU C711 AE Gate Driver Sub-Board – Industrial-Grade Power Distribution for ACS1000 Systems

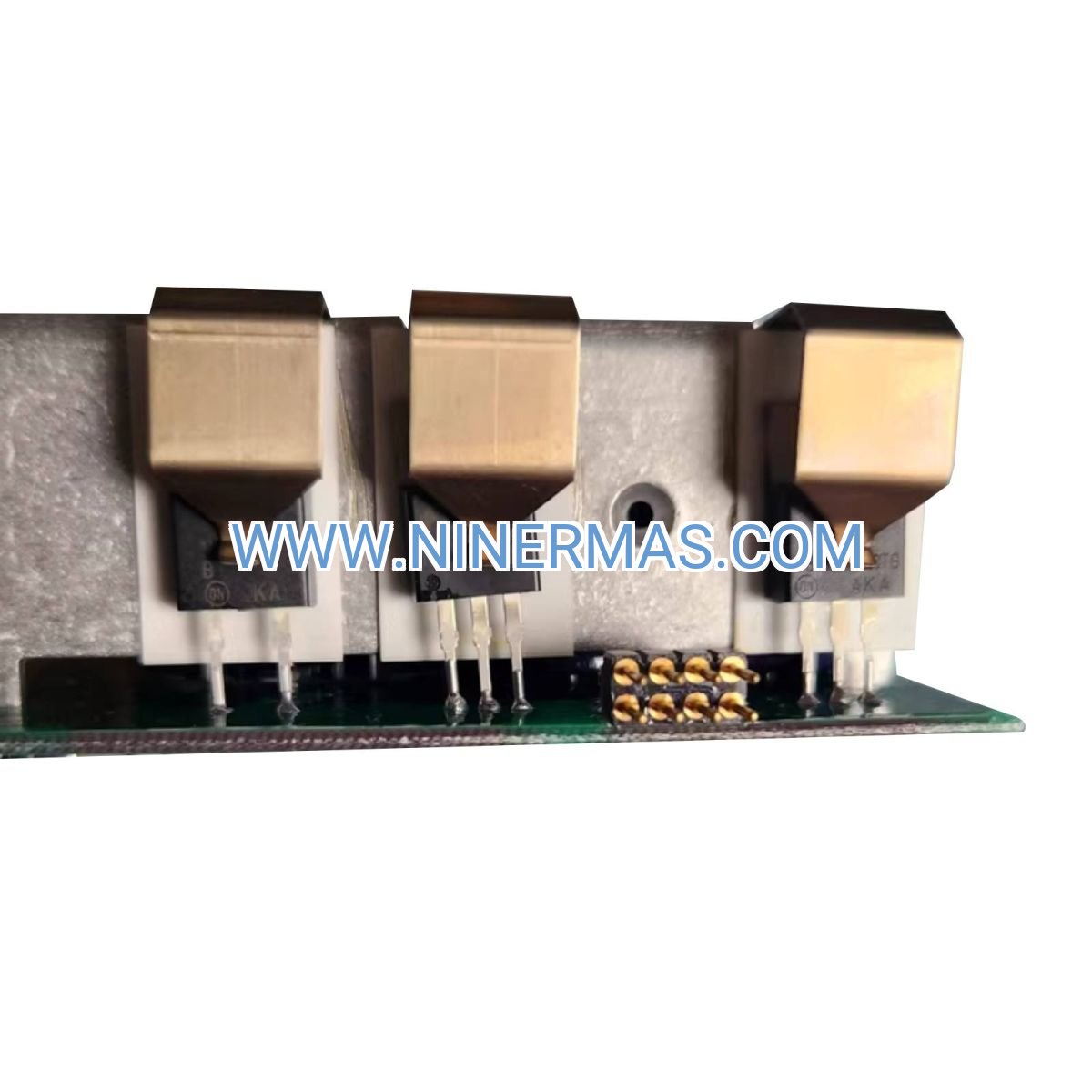

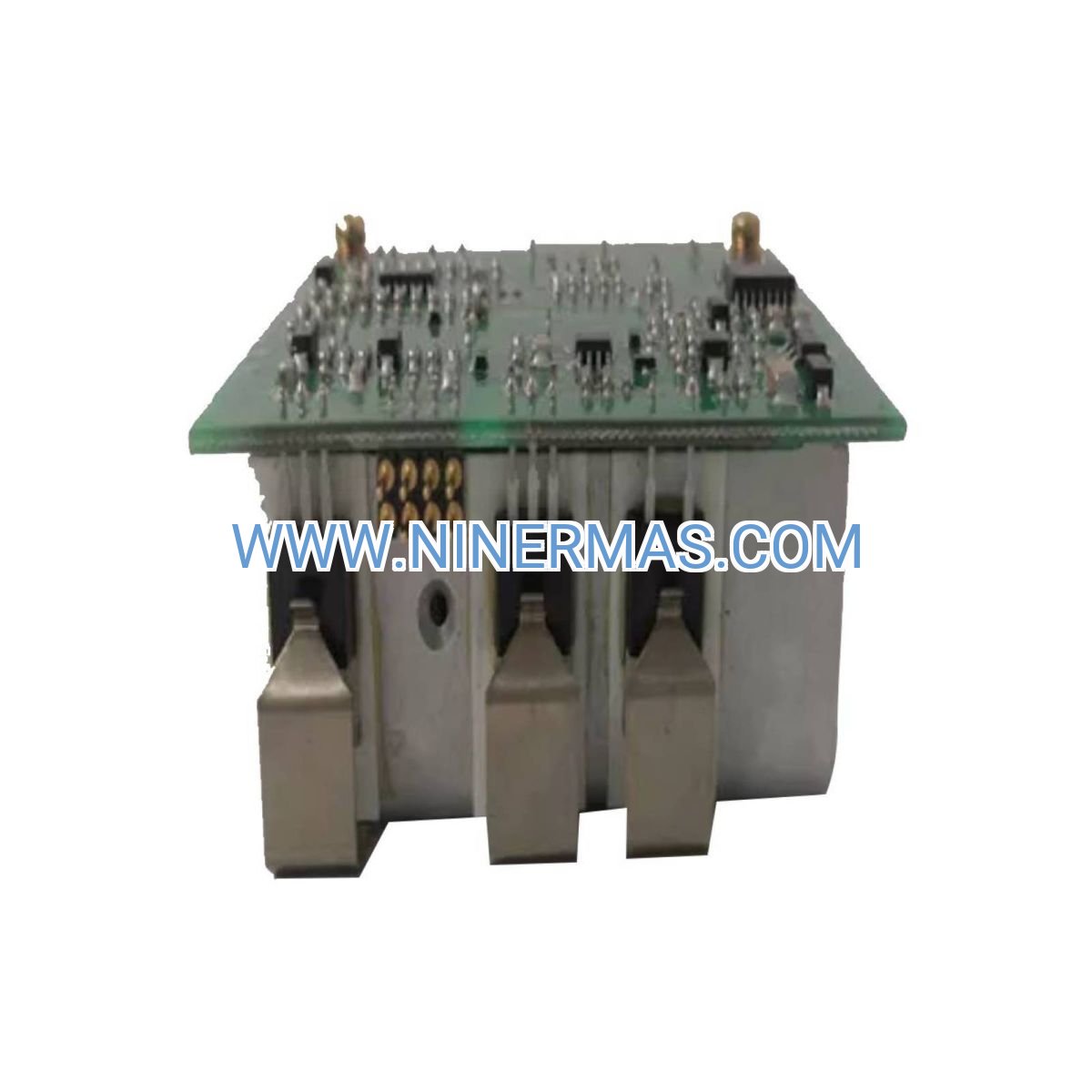

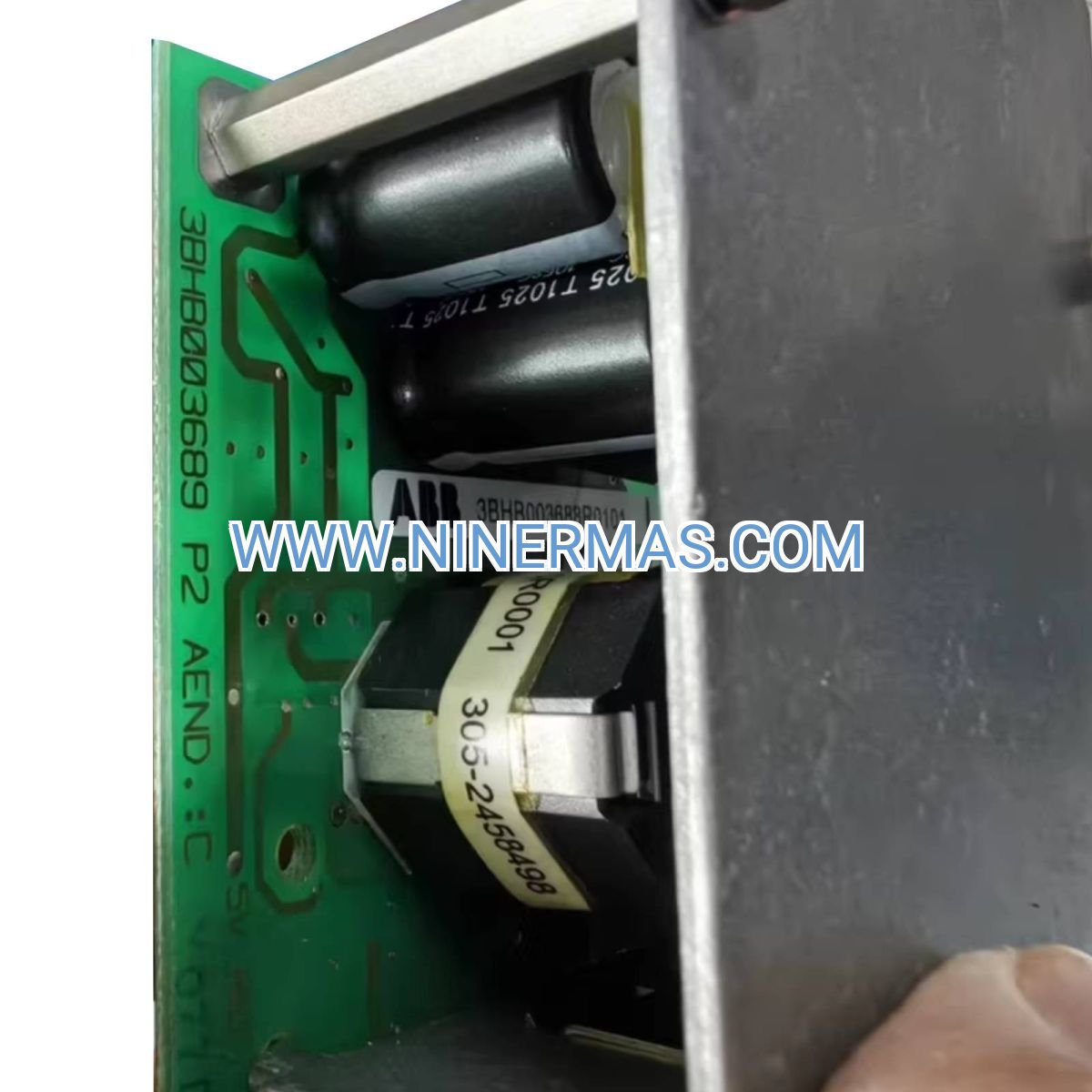

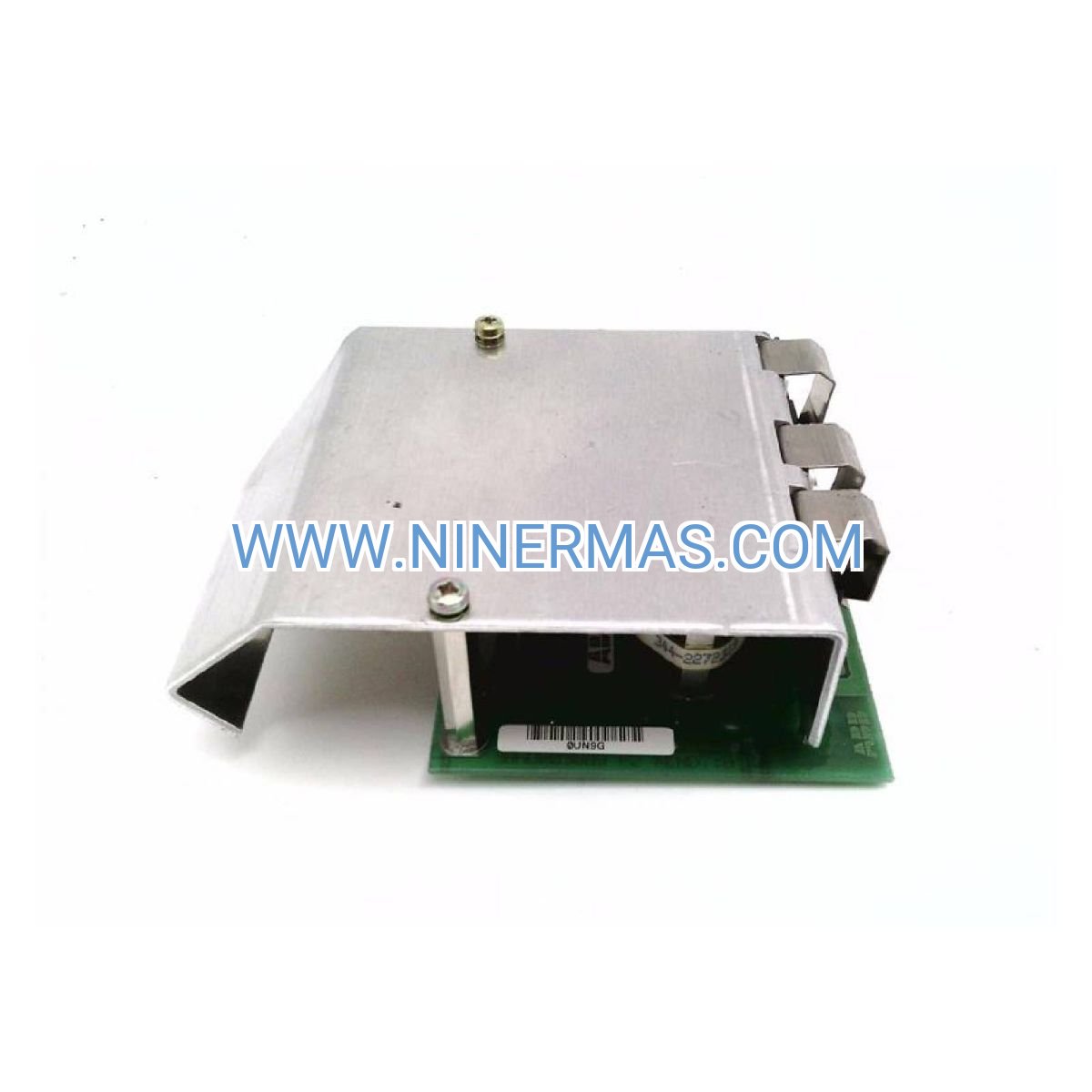

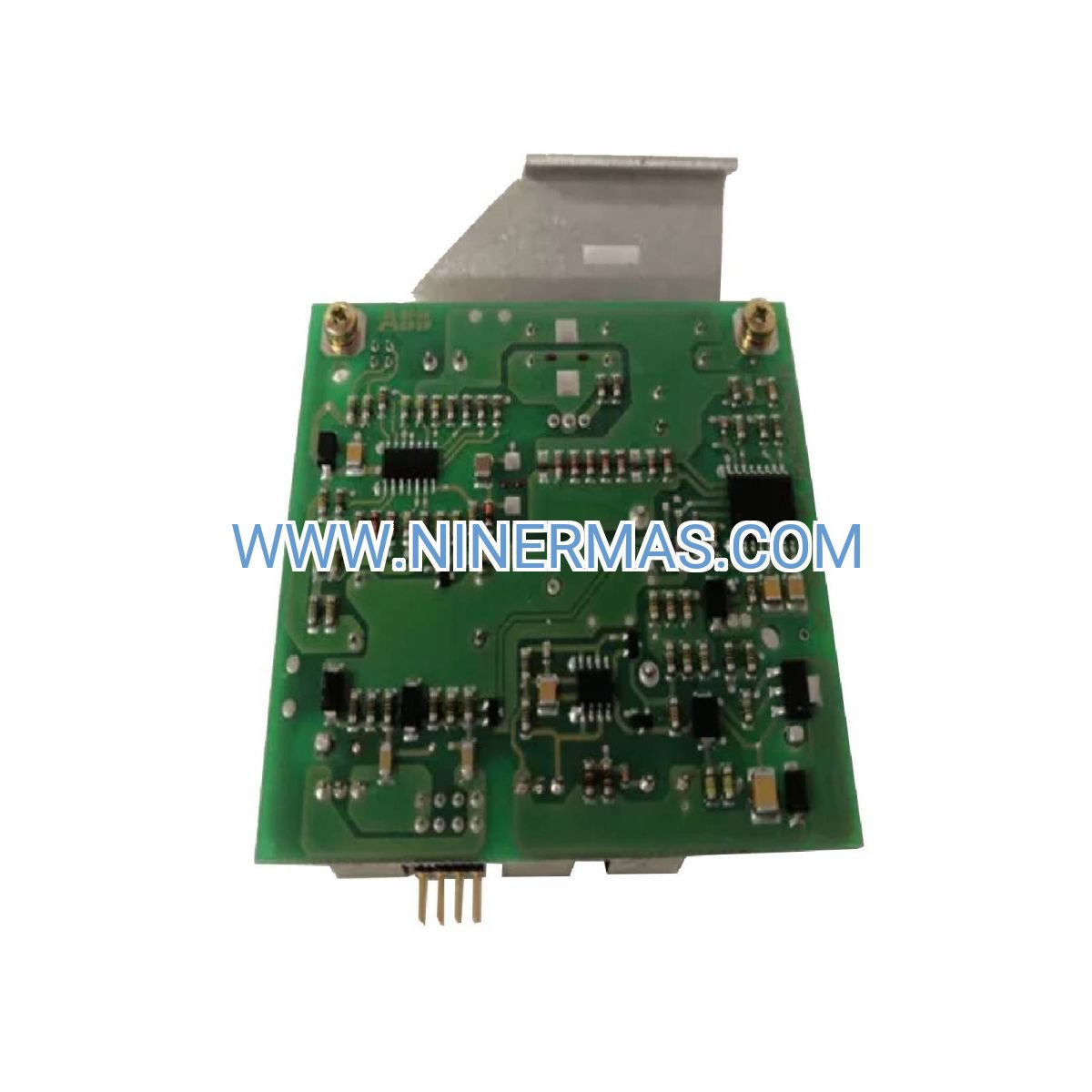

The ABB KU C711 AE (Part Number: 3BHB003688R0101) is a precision-engineered gate unit power supply sub-board designed exclusively for ABB ACS1000 medium voltage AC drive platforms. This varnished PCB assembly provides regulated 20V power distribution to IGCT gate driver circuits, enabling reliable semiconductor switching in high-power industrial environments. Manufactured in Switzerland under ISO 9001:2015 quality protocols, this component ensures mission-critical uptime in process automation, marine propulsion, mining operations, and utility-scale power systems where drive failure translates to significant production losses.

Built for harsh industrial conditions, the KU C711 AE features conformal varnish coating that protects against moisture ingress, chemical exposure, and particulate contamination common in cement plants, offshore platforms, and underground mining facilities. The multi-layer PCB design incorporates reinforced isolation between primary and secondary circuits, meeting stringent safety requirements for medium voltage applications up to 6.6 kV line voltage.

Whether you're maintaining existing ACS1000 installations or stocking critical spares for emergency repairs, the 3BHB003688R0101 sub-board delivers the reliability and performance demanded by continuous-duty industrial applications. This current-revision component supersedes legacy part numbers 3BHB003688R0001 and HB003688R0101, offering enhanced thermal performance and extended service life.

Core Technical Capabilities

→ Precision 20V Power Regulation: Delivers stable, low-ripple DC voltage to IGCT gate driver stages with ±2% regulation tolerance, ensuring consistent turn-on/turn-off characteristics across all operating conditions. Integrated voltage monitoring circuits interface with drive protection systems to trigger safe shutdown during fault events.

→ Reinforced Galvanic Isolation: Multi-layer PCB construction provides reinforced isolation barriers between low-voltage control logic and high-voltage power sections, exceeding IEC 61800-5-1 safety requirements for medium voltage drive systems. Isolation resistance exceeds 10 MΩ under standard test conditions.

→ Environmental Hardening: Conformal varnish coating creates a protective barrier against moisture (95% RH non-condensing), salt spray (marine environments), corrosive gases (H2S, SO2), and industrial dust. Coating thickness and coverage verified through automated optical inspection during manufacturing.

→ Thermal Management Optimization: Strategic placement of thermal vias and copper pour zones dissipates heat from power regulation components, enabling reliable operation in ambient temperatures up to 70°C typical of drive cabinets in steel mills, cement kilns, and engine rooms.

→ EMI Suppression Architecture: Integrated filtering capacitors and PCB layout techniques minimize electromagnetic interference generated by high-frequency switching operations, ensuring compliance with EN 61800-3 EMC standards for industrial drive systems.

✓ Swiss Manufacturing Excellence: Produced in ABB's Switzerland facilities with full material traceability, automated optical inspection, in-circuit testing, and functional validation under load conditions. Each board carries unique serial number for quality assurance tracking.

Industrial Application Scenarios

Marine Propulsion & Dynamic Positioning
Electric propulsion systems on cruise vessels, ferries, and offshore support vessels depend on ACS1000 drives for main propulsion motors rated 2-10 MW. The KU C711 AE sub-board's marine-grade conformal coating withstands salt spray, high humidity, and vibration inherent to shipboard installations. Compliance with DNV-GL and ABS marine certifications ensures suitability for safety-critical thruster and azimuth drive applications where loss of propulsion could compromise vessel safety. Typical installations include Carnival Cruise Lines, Royal Caribbean, and offshore drilling contractors operating in North Sea and Gulf of Mexico environments.

Mining Conveyors & SAG Mills
Underground and open-pit mining operations utilize ACS1000 drives for semi-autogenous grinding (SAG) mills, ball mills, and overland conveyor systems handling ore transport. The KU C711 AE operates reliably despite extreme mechanical vibration from mill rotation and shock loads from rock crushing. Varnished PCB construction resists dust ingress and moisture condensation in underground environments where humidity approaches saturation. Reduced maintenance intervals translate to higher equipment availability in 24/7 continuous mining operations where each hour of downtime costs $50,000-$150,000 in lost production.

Oil & Gas Compression Stations
Natural gas pipeline compression facilities employ ACS1000 drives for centrifugal compressors rated 5-20 MW, maintaining pipeline pressure across continental transmission networks. The KU C711 AE sub-board ensures reliable gate driver operation in hazardous area installations (Class I Division 2) where drive cabinets are pressurized or purged. Resistance to H2S corrosion protects electronics in sour gas processing plants. Typical applications include TransCanada pipeline systems, Gazprom compression stations, and LNG export terminals in Qatar and Australia.

Cement Kiln & Clinker Cooler Drives
Rotary cement kilns and grate coolers require precise speed control of 1-5 MW motors to optimize clinker production and fuel efficiency. ACS1000 drives equipped with KU C711 AE sub-boards operate in ambient temperatures exceeding 50°C near kiln discharge areas. Dust-resistant varnish coating prevents cement dust accumulation on PCB surfaces that could cause tracking failures. Energy-efficient variable speed operation reduces electrical consumption by 15-25% compared to fixed-speed drives, delivering ROI within 18-24 months in high-utilization cement plants.

Power Plant Auxiliary Systems
Coal-fired, combined-cycle, and nuclear power stations deploy ACS1000 drives for boiler feed pumps, induced draft fans, forced draft fans, and circulating water pumps. The KU C711 AE supports high-availability requirements (99.5%+ uptime) essential for utility-scale generation where auxiliary system failure can force unit derate or shutdown. Redundant drive configurations with on-site spare sub-boards minimize mean time to repair (MTTR) to under 4 hours, critical for maintaining grid stability and avoiding capacity payments penalties.

Technical Specifications & Selection Criteria

Selection Guidelines: Verify drive model and serial number before ordering to ensure compatibility. The 3BHB003688R0101 revision supersedes earlier versions and may have different mounting hole patterns or connector pinouts. Consult ACS1000 spare parts manual or contact ABB technical support for cross-reference verification. For drives manufactured before 2010, confirm mechanical and electrical compatibility before installation.

Advanced Integration Features

Fault Detection & Diagnostics: The KU C711 AE incorporates voltage monitoring circuits that continuously measure 20V rail output and communicate status to the drive's main control processor. When output voltage deviates beyond ±5% tolerance, the sub-board triggers a fault signal that initiates controlled drive shutdown, protecting expensive IGCT modules from gate under-voltage damage. Diagnostic LEDs on the main GUSP assembly provide visual indication of sub-board operational status during commissioning and troubleshooting.

Multi-Channel Power Distribution: Internal DC-DC converter topology provides isolated 20V outputs to multiple gate driver channels, ensuring that a fault in one driver circuit cannot propagate to adjacent channels. This architecture enhances system reliability in multi-level converter topologies where simultaneous failure of multiple IGCTs could result in catastrophic short-circuit conditions.

Transient Overvoltage Protection: Integrated metal oxide varistors (MOVs) and transient voltage suppressors (TVS) clamp voltage spikes generated by inductive switching events or external electrical disturbances. Protection circuits are rated to withstand IEC 61000-4-5 surge immunity test levels (±2 kV common mode, ±1 kV differential mode), typical of industrial power distribution environments with frequent motor starting and welding operations.

Remote Monitoring Compatibility: When integrated with ABB's DriveWindow or Ability™ System 800xA control platforms, the KU C711 AE's operational parameters can be monitored remotely via Ethernet or PROFIBUS communication links. Predictive maintenance algorithms analyze voltage regulation trends and thermal stress indicators to forecast component end-of-life, enabling proactive replacement before failure occurs.

Delivery, Warranty & Technical Support

Standard Lead Time: 6-8 weeks for factory orders from ABB Switzerland manufacturing facility. Regional warehouse stock (Finland, Singapore, China, Australia, USA) may offer 2-4 week delivery for commonly requested spare parts. Expedited air freight available for critical outages with 24-48 hour delivery to major industrial centers, subject to express shipping surcharge.

Warranty Coverage: 12 months from date of shipment or 18 months from date of manufacture, whichever occurs first. Warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty programs (24-36 months) available through ABB service agreements. Warranty void if PCB shows evidence of unauthorized repair, modification, or operation outside specified environmental limits.

Technical Documentation: Each shipment includes installation instructions, electrical schematic, and safety precautions. Comprehensive service manuals, troubleshooting flowcharts, and training materials available through ABB Library (library.abb.com) or via authorized service centers. CAD drawings and 3D STEP models provided upon request for mechanical integration planning.

Global Service Network: ABB maintains 24/7 technical support hotline (+41 58 586 0000 for Europe, regional numbers for Americas and Asia-Pacific) staffed by drive specialists with access to engineering databases and field service history. On-site commissioning support and emergency repair services available through ABB Authorized Service Partners in 100+ countries. Remote diagnostics via ABB Ability™ Connected Services can often resolve issues without site visit, reducing MTTR by 40-60%.

Frequently Asked Questions

Q: Can the KU C711 AE sub-board be retrofitted into older ACS1000 drives manufactured before 2005?
A: The 3BHB003688R0101 revision is backward compatible with most ACS1000 drive variants, but mechanical mounting and connector pinout verification is essential. Drives with serial numbers below 10000 may require main GUSP board upgrade to accommodate the current sub-board revision. Consult ABB technical support with your drive serial number for compatibility confirmation before ordering.

Q: What is the expected service life of the KU C711 AE in continuous-duty applications?
A: Under normal operating conditions (ambient temperature ≤50°C, clean filtered air, no exposure to corrosive atmospheres), the sub-board typically achieves 10-15 years service life before electrolytic capacitor degradation necessitates replacement. In harsh environments (high temperature, high humidity, chemical exposure), proactive replacement at 7-10 year intervals is recommended as part of preventive maintenance programs.

Q: How can I verify that a KU C711 AE sub-board is functioning correctly during preventive maintenance?
A: With drive control power energized but main power disconnected, measure the 20V output rail with a calibrated digital multimeter. Voltage should read 19.6-20.4 VDC with minimal ripple (<100 mV peak-to-peak when measured with oscilloscope). Check isolation resistance between primary and secondary circuits using megohmmeter set to 500 VDC test voltage; reading should exceed 10 MΩ. Thermal imaging can identify hot spots indicating component stress or inadequate cooling airflow.

Q: Are there any special ESD precautions required when handling the KU C711 AE sub-board?
A: Yes, the sub-board contains CMOS logic and other static-sensitive components that can be damaged by electrostatic discharge below human perception threshold (30V). Always wear grounded ESD wrist strap when handling boards outside anti-static packaging. Work on grounded ESD-safe mat and avoid touching component leads or PCB traces with bare hands. Store replacement boards in original anti-static bags with desiccant until installation.

Q: What is the recommended spare parts inventory strategy for facilities with multiple ACS1000 drives?
A: For single-drive installations, maintain one spare KU C711 AE sub-board as insurance against unexpected failure. Facilities with 2-5 drives should stock 2 spare sub-boards based on statistical failure probability over 5-year planning horizon. Large installations (6+ drives) or critical applications (main propulsion, primary process drives) should maintain 3-4 spare sub-boards plus consideration of complete GUSP assembly spare to minimize mean time to repair (MTTR) to under 4 hours.

Q: Does the conformal varnish coating affect heat dissipation or component temperatures?
A: The varnish coating thickness (typically 25-75 microns) has negligible impact on thermal performance. ABB's coating formulation is specifically selected for low thermal resistance while providing environmental protection. Thermal vias and copper pour zones in the PCB design provide primary heat dissipation paths to the mounting surface and ambient air. Proper drive cabinet ventilation (minimum 200 CFM airflow) is more critical to thermal management than coating thickness.

Order Your ABB KU C711 AE Sub-Board Today

Ensure uninterrupted operation of your ACS1000 drive systems with genuine ABB replacement parts. The 3BHB003688R0101 KU C711 AE gate unit power supply sub-board delivers the reliability and performance your critical applications demand. Contact our industrial automation specialists for technical consultation, compatibility verification, and volume pricing for multi-unit orders. Express shipping available for emergency situations.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 to speak with an application engineer. Bulk discounts available for orders of 5+ units. All products ship with certificate of conformity and full technical documentation.
