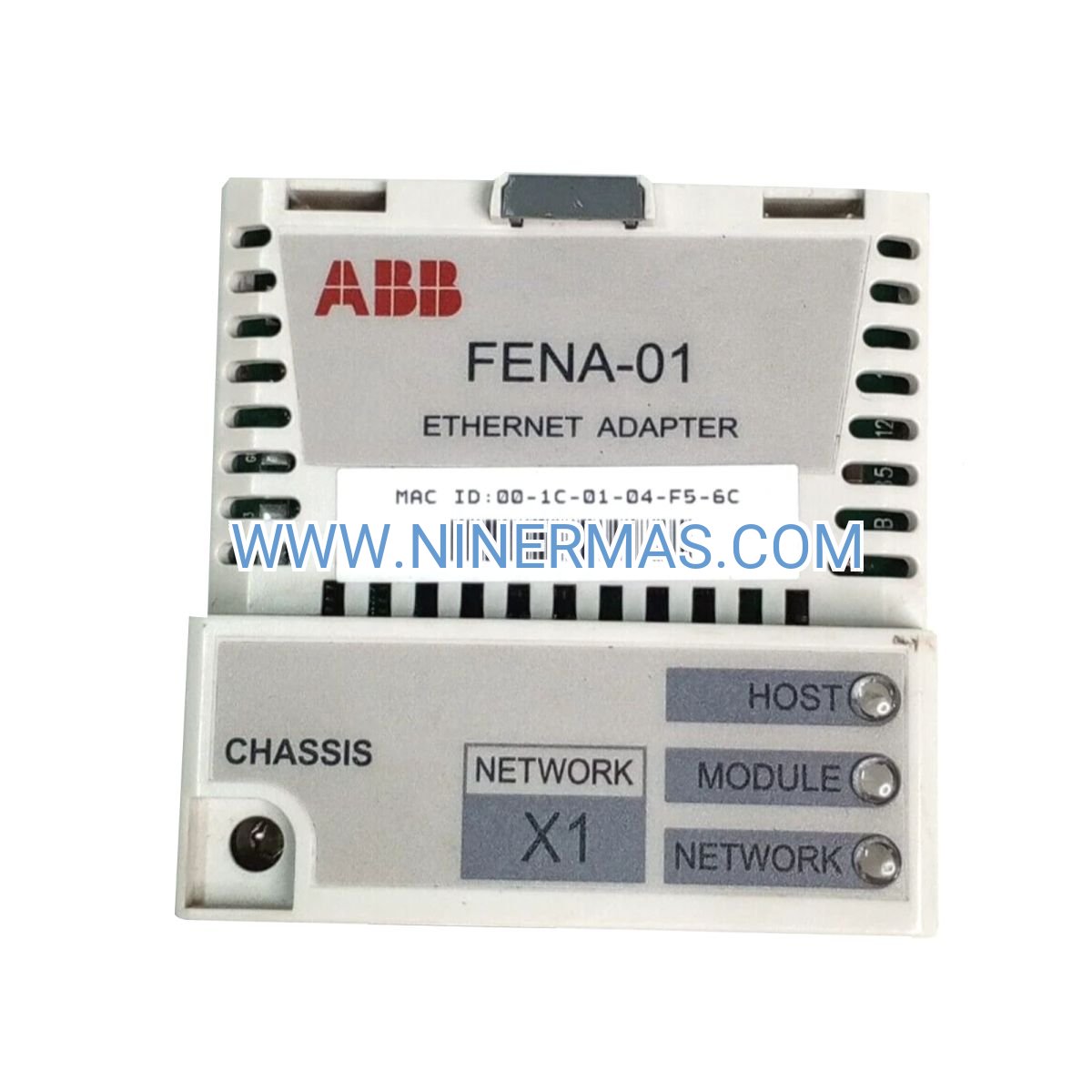

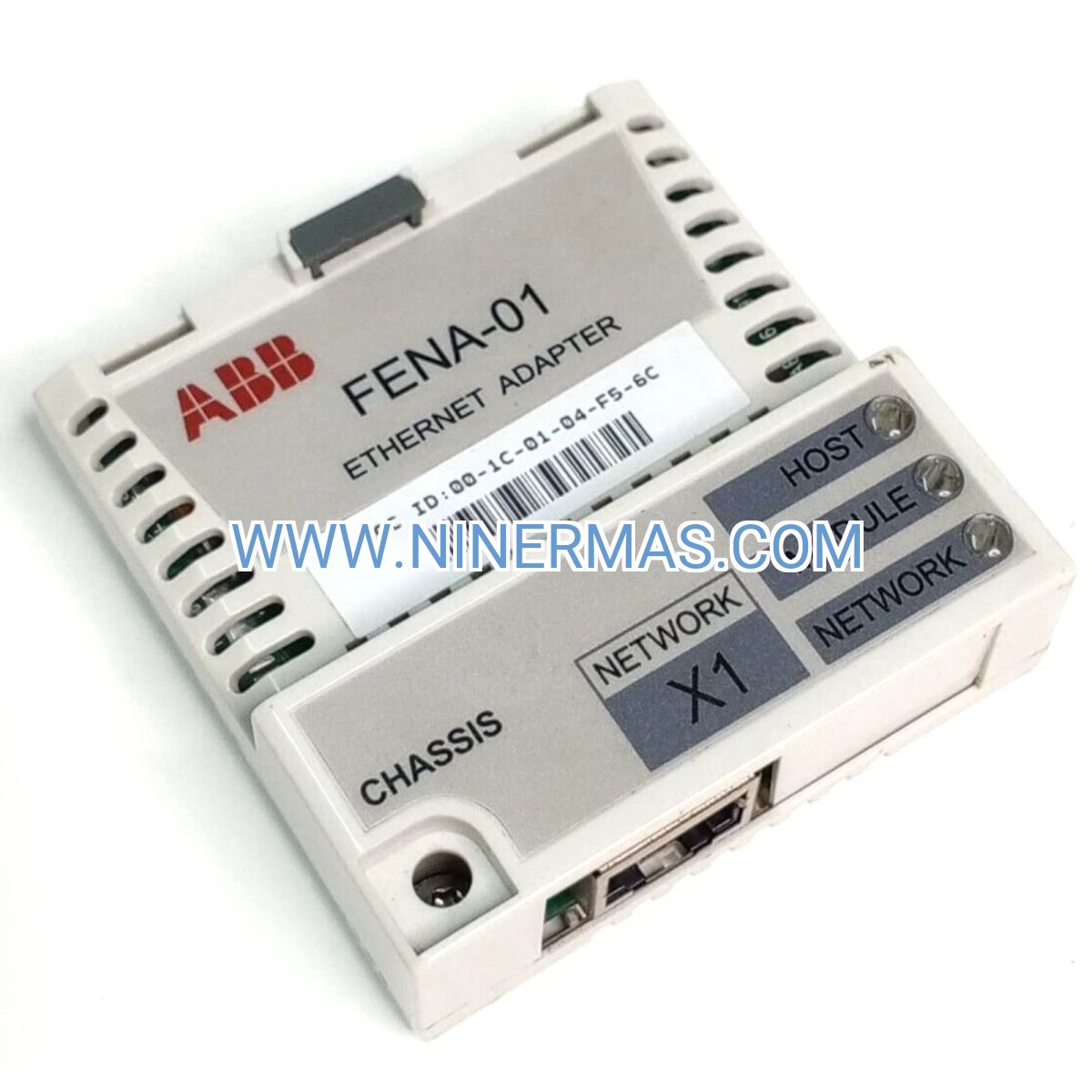

ABB FENA-01 Ethernet Module (Industrial-Grade Drive Connectivity)

The ABB FENA-01 represents a professional-grade Ethernet communication interface engineered for seamless integration of variable frequency drives into modern industrial networks. This fieldbus adapter delivers dual-protocol capability—supporting both Ethernet/IP and Modbus TCP standards—enabling direct connectivity between ABB AC drives and enterprise automation infrastructure without proprietary gateways or protocol converters.

Designed for system integrators and plant engineers who demand reliable, high-speed communication in mission-critical applications, the FENA-01 eliminates traditional fieldbus complexity through standard Ethernet connectivity. Whether you're retrofitting legacy drive systems or deploying new automation architectures, this adapter provides the foundation for centralized drive management, predictive maintenance programs, and energy optimization initiatives across manufacturing, water treatment, HVAC, and process industries.

With plug-and-play installation requiring no external power supply and built-in web-based configuration tools, the FENA-01 reduces commissioning time by up to 60% compared to traditional fieldbus solutions while delivering deterministic I/O performance for time-sensitive control applications.

Core Capabilities & Technical Advantages

→ Universal Protocol Compatibility
Native support for Ethernet/IP (ODVA-certified) and Modbus TCP protocols ensures interoperability with Allen-Bradley ControlLogix, Siemens S7, Schneider Modicon, and virtually all industrial PLC platforms. Eliminates vendor lock-in and simplifies multi-brand automation environments.

→ Deterministic Real-Time Performance
Cyclic I/O data exchange at 10-millisecond intervals provides responsive process control for applications requiring tight speed regulation, synchronized motion, or rapid fault response. Supports up to 64 bytes of input data and 64 bytes of output data per scan cycle.

→ Zero-Configuration Power Architecture
Draws operating power directly from the drive's internal option bus, eliminating external power supplies, additional wiring, and potential failure points. Reduces installation costs by approximately $150-$200 per drive compared to externally-powered communication modules.

✓ Integrated Web-Based Diagnostics
Embedded HTTP server enables parameter configuration, network diagnostics, and real-time monitoring through any standard web browser—no proprietary software required. Maintenance technicians can troubleshoot communication issues using smartphones or tablets without specialized training.

✓ Industrial-Hardened Construction
Operates reliably in ambient temperatures from -10°C to +50°C with 5-95% relative humidity tolerance. Conformal-coated PCB assembly resists dust, moisture, and chemical exposure common in industrial environments. MTBF exceeds 200,000 hours under typical operating conditions.

✓ Compact Slot-Mounted Design
Installs directly into standard ABB drive option slots without increasing control cabinet footprint or requiring DIN rail mounting hardware. Single retaining screw ensures vibration-resistant mechanical connection suitable for mobile equipment and high-vibration applications.

Industrial Application Scenarios

Centralized Building Management Systems
Facility managers integrate HVAC drives controlling chillers, cooling towers, and air handling units into Johnson Controls Metasys or Honeywell Enterprise Buildings Integrator platforms. The FENA-01 enables real-time monitoring of 50+ drives from a single workstation, with automated demand-based control reducing HVAC energy consumption by 15-25% while maintaining occupant comfort standards. Alarm notifications and trend data support ASHRAE 90.1 compliance and LEED certification requirements.

Municipal Water & Wastewater Treatment
Utility operators connect pump station drives to Wonderware System Platform or Ignition SCADA systems via Modbus TCP, eliminating costly site visits for routine parameter adjustments. Remote speed control optimizes pump efficiency across varying demand cycles, while real-time power monitoring identifies cavitation, bearing wear, and impeller fouling before catastrophic failures occur. One 500-GPM pump station reduced annual maintenance costs by $12,000 through predictive analytics enabled by FENA-01 connectivity.

Discrete Manufacturing Automation
Production engineers synchronize conveyor drives with Rockwell ControlLogix PLCs using Ethernet/IP for deterministic material handling in automotive assembly, packaging lines, and distribution centers. Drive status words integrate directly into PLC ladder logic, enabling automated fault recovery sequences that reduce unplanned downtime by 40%. Recipe-based speed profiles download from MES systems in under 2 seconds, supporting high-mix production environments.

Food & Beverage Processing Lines
Plant maintenance teams access mixer, pump, and conveyor drive parameters through Siemens WinCC or Rockwell FactoryTalk HMI systems without specialized ABB software. During CIP (clean-in-place) cycles, operators remotely adjust agitator speeds to optimize cleaning effectiveness while monitoring motor current for product buildup detection. The FENA-01's stainless-steel-compatible mounting and IP20-rated enclosure meet FDA sanitation requirements for food-contact equipment zones.

Oil & Gas Upstream Production
Field technicians integrate compressor and pump drives into Emerson DeltaV or Yokogawa Centum DCS networks at remote wellhead sites and gathering stations. The adapter's -10°C to +50°C operating range and conformal coating withstand desert heat, coastal humidity, and oilfield chemical exposure. Ethernet connectivity eliminates proprietary PROFIBUS or DeviceNet gateways, reducing spare parts inventory costs by 30% and simplifying technician training.

Technical Specifications & Selection Criteria

Drive Compatibility Matrix:
Verified compatible with ACS550 (0.75-355 kW), ACS800 (0.55 kW-5.6 MW), ACS880 (0.55-700 kW), ACH580 HVAC drives (0.75-500 kW), and ACQ580 water/wastewater drives (0.75-500 kW). Requires drive firmware version R4.0 or later for full feature support. Contact technical support for compatibility with ACS350, ACS310, or legacy drive models.

Network Infrastructure Requirements:
Standard 10/100 Mbps Ethernet switch with auto-MDI/MDI-X support. Shielded Cat5e or Cat6 cable recommended for installations near VFD power wiring (maintain 300mm separation minimum). Dedicated drive network VLAN recommended for installations with >10 drives to prevent broadcast storms and ensure deterministic performance.

Advanced Integration Features

Embedded Web Server Capabilities
The FENA-01's built-in HTTP server provides browser-based access to drive parameters, real-time I/O status, network diagnostics, and firmware version information. Maintenance personnel can perform parameter backups, compare configurations between drives, and export diagnostic logs in CSV format for analysis—all without installing ABB's DriveWindow software. The web interface supports simultaneous connections from up to 4 clients, enabling collaborative troubleshooting sessions.

SNMP Monitoring & Alerting
SNMP v2c agent enables integration with enterprise network management systems like SolarWinds, PRTG, or Nagios. Monitor adapter uptime, packet error rates, and communication faults alongside IT infrastructure. Configure SNMP traps to alert network operations centers when drive communication is lost, enabling faster response to production disruptions.

Modbus Register Mapping Flexibility
Access over 500 drive parameters via Modbus TCP using standard function codes 03 (read holding registers) and 16 (write multiple registers). Custom register maps support legacy SCADA systems with fixed addressing schemes. Broadcast messaging capability allows simultaneous parameter updates to multiple drives, ideal for synchronized recipe changes in batch processing applications.

Ethernet/IP Add-On Profile Support
Implements AC/DC Drive Profile (Volume 8) for standardized drive control across multi-vendor systems. Explicit messaging enables on-demand parameter reads/writes for commissioning and diagnostics, while implicit I/O provides deterministic cyclic data exchange for real-time control. Supports CIP Safety extensions for SIL 2-rated safe torque-off applications when paired with compatible ABB drive firmware.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock units ship within 2-3 business days via DHL/FedEx Express. Custom configurations or bulk orders (>20 units) typically require 4-6 weeks from order confirmation. Expedited shipping available for critical downtime situations—contact sales for same-day dispatch options.

Warranty Coverage: 18-month manufacturer warranty from shipment date covers defects in materials and workmanship. Warranty includes free replacement module and return shipping. Extended warranty programs available for up to 5 years, including advance replacement and on-site installation support.

Technical Documentation Package: Each FENA-01 ships with quick-start installation guide, safety instructions, and CE/UL compliance certificates. Comprehensive user manual (150+ pages), EDS files, Modbus register maps, and PLC integration examples available for download from ABB Drives Support Portal. Video tutorials cover installation, IP address configuration, and Ethernet/IP setup with Rockwell PLCs.

Application Engineering Support: Pre-sales technical consultation available to review network architecture, protocol selection, and drive compatibility. Post-sales support includes remote diagnostics, firmware update assistance, and PLC/SCADA integration troubleshooting. Email support responds within 4 business hours; phone support available 8AM-6PM EST Monday-Friday.

Frequently Asked Questions

Can the FENA-01 adapter support simultaneous Ethernet/IP and Modbus TCP connections?
No, the adapter operates in single-protocol mode—you must select either Ethernet/IP or Modbus TCP during initial configuration. Protocol selection is stored in non-volatile memory and persists through power cycles. To switch protocols, access the drive parameter menu or web interface and change the protocol setting, then cycle drive power. Both protocols cannot be active simultaneously due to resource constraints.

What network bandwidth does each FENA-01 adapter consume during normal operation?
Typical bandwidth consumption ranges from 5-15 kbps per drive depending on I/O data size and scan rate. A 10ms scan cycle with 32 bytes input/output generates approximately 10 kbps of cyclic traffic. Explicit messaging for parameter reads/writes adds 1-5 kbps during commissioning or HMI interaction. A 100 Mbps Ethernet network can support 500+ drives before bandwidth saturation becomes a concern.

Does the FENA-01 require external power supply or can it operate solely from the drive?
The adapter draws all operating power (2.5W typical) from the drive's internal option bus—no external power supply required. This simplifies installation and eliminates potential failure points. However, the drive must be powered on for the FENA-01 to function; the adapter does not operate when the drive is in standby mode or disconnected from mains power.

How do I configure IP address settings if the drive control panel is inaccessible?
The FENA-01 ships with default IP address 192.168.0.1 and subnet mask 255.255.255.0. Temporarily configure your PC's Ethernet adapter to the same subnet (e.g., 192.168.0.100), connect directly to the FENA-01 via Ethernet cable, and access the web interface at http://192.168.0.1. Login with default credentials (consult user manual), change IP settings to match your plant network, save configuration, and reboot the adapter.

What cybersecurity features does the FENA-01 provide for industrial network protection?
The adapter supports password-protected web interface access and Ethernet/IP CIP Security extensions (when enabled in drive firmware). For enhanced security, deploy the FENA-01 on isolated drive networks separated from enterprise IT networks via industrial firewalls or unidirectional gateways. The adapter does not support HTTPS encryption or certificate-based authentication—implement network-level security controls (VLANs, ACLs, IDS) for sensitive applications.

Can I use standard unshielded Ethernet cables or must I use shielded cables for FENA-01 installations?
Shielded Cat5e or Cat6 cables are strongly recommended for industrial environments to prevent electromagnetic interference from VFD power cables, motor leads, and welding equipment. Maintain minimum 300mm (12") separation between Ethernet cables and high-voltage wiring. Unshielded cables may work in low-EMI office environments but risk intermittent communication faults in typical factory settings. Use metal RJ45 connectors and bond cable shields to drive chassis ground for optimal noise immunity.

Request Technical Consultation

Our application engineers are available to discuss your drive networking requirements, recommend optimal protocol selection, and provide integration guidance for your specific PLC/SCADA platform. Contact us with your project details including drive models, network architecture, and control system specifications for personalized technical recommendations and competitive pricing on volume orders.
