Industrial-Grade Hybrid Controller CPU for Mission-Critical SCADA Applications

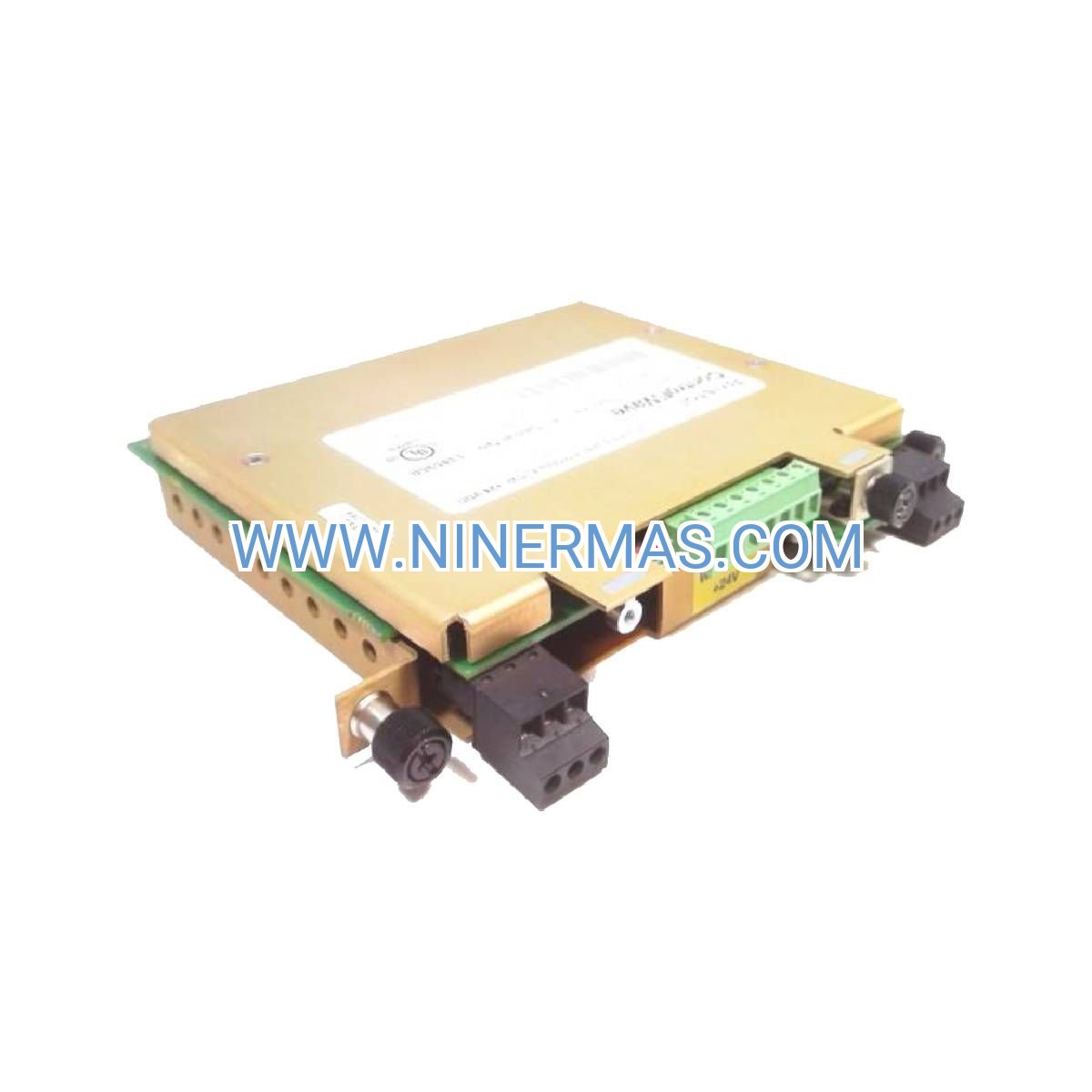

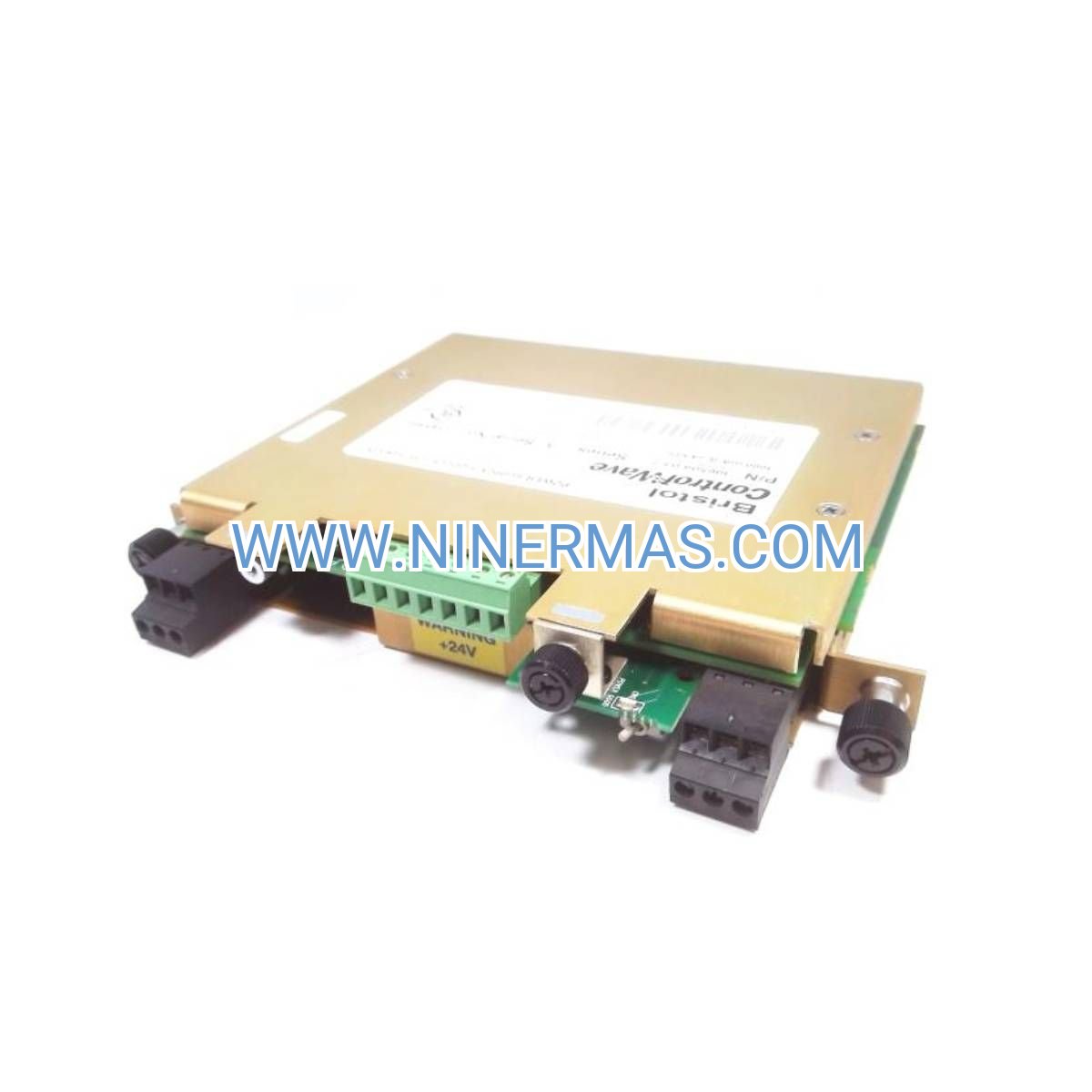

The 396509-03-7 ControlWave Micro CPU Module represents a proven solution for organizations requiring reliable hybrid control in remote and harsh-environment installations. Engineered by Emerson for distributed automation architectures, this processing unit integrates programmable logic controller intelligence with remote terminal unit communication protocols—enabling unified control across pipeline networks, water infrastructure, and utility distribution systems where uptime and data integrity are non-negotiable.

Designed for system integrators and operations teams managing geographically dispersed assets, this CPU module addresses the challenge of maintaining real-time control while transmitting telemetry data over bandwidth-constrained links. Its dual-mode architecture eliminates the need for separate PLC and RTU hardware, reducing cabinet footprint by 40% and simplifying spare parts inventory for maintenance teams.

Whether you're modernizing legacy SCADA infrastructure or deploying new remote monitoring stations, the 396509-03-7 delivers field-proven reliability with support for industry-standard protocols including Modbus RTU/TCP, DNP3 Level 2, and IEC 60870-5 variants—ensuring seamless integration with existing supervisory systems and third-party devices.

Key Technical Specifications & Performance Advantages

→ Processing Power: 32-bit RISC architecture with hardware floating-point unit enables complex PID calculations and flow computation algorithms (AGA-3, AGA-7, API MPMS) without performance degradation

→ Memory Resources: 2 MB non-volatile Flash storage for application logic plus 512 KB battery-backed SRAM ensures data retention during extended power outages—critical for custody transfer and regulatory compliance

→ Communication Flexibility: Dual serial ports (RS-232/485 software-selectable) plus 10/100 Ethernet interface support simultaneous local HMI, SCADA polling, and peer-to-peer messaging between controllers

→ I/O Scalability: Accommodates up to 512 digital points and 256 analog channels through modular expansion—sufficient for medium-complexity facilities without requiring additional rack space

→ Environmental Resilience: Operates reliably from -40°C to +70°C with conformal coating protection against humidity, dust, and corrosive atmospheres typical of unmanned installations

→ Safety Certification: Class I Division 2 (North America), ATEX Zone 2 (Europe), and IECEx approval for deployment in hazardous area classifications common to oil & gas facilities

Industry-Specific Application Scenarios

Midstream Pipeline Operations: Deploy at remote compressor stations and pump facilities where the CPU module executes local control sequences (start/stop logic, pressure regulation, leak detection) while simultaneously transmitting operational data to pipeline control centers via DNP3 over cellular or satellite links. The autonomous operation capability maintains safe shutdown procedures even during communication failures—a requirement for pipeline safety management systems.

Municipal Water Systems: Automate lift stations and booster pump facilities across distributed networks where the hybrid architecture reduces equipment costs by 35% compared to separate PLC/RTU configurations. Built-in data logging captures flow totalizers and runtime hours for regulatory reporting, while Modbus TCP connectivity enables integration with modern SCADA platforms and mobile operator interfaces.

Electric Utility Substations: Implement substation automation schemes requiring IEC 60870-5-104 or DNP3 Secure Authentication for grid modernization projects. The CPU module's deterministic scan time ensures protective relay coordination while supporting GOOSE messaging for inter-substation communication in accordance with IEC 61850 standards.

Oil & Gas Production Facilities: Control wellhead automation, separator vessels, and tank farm operations where SIL 2 capability supports safety instrumented functions. The module's battery-backed clock maintains accurate event timestamping for incident investigation and production accounting—essential for joint venture operations and regulatory audits.

Technical Parameters & Selection Criteria

Selection Guidance: Choose the 396509-03-7 when your application requires protocol flexibility beyond basic Modbus, operates in temperature extremes, or demands hazardous area certification. For applications with fewer than 128 I/O points and standard temperature ranges, consider the ControlWave Express series for cost optimization. For SIL 3 safety applications, consult Emerson's DeltaV SIS platform.

Advanced Integration & Connectivity Options

IIoT-Ready Architecture: While maintaining backward compatibility with legacy serial protocols, the CPU module supports modern IT/OT convergence through OPC UA server functionality and RESTful API access. This enables integration with cloud-based analytics platforms, mobile dashboards, and enterprise asset management systems without compromising operational technology security.

Cybersecurity Features: Embedded firewall rules, user authentication with role-based permissions, and encrypted communication channels (TLS 1.2) align with NERC CIP and IEC 62443 requirements for critical infrastructure protection. Audit logging tracks all configuration changes and remote access sessions for compliance documentation.

Redundancy Support: Hot-standby configurations with automatic failover ensure continuous operation in high-availability applications. Bumpless transfer maintains control outputs during switchover events, preventing process upsets in critical loops.

Delivery, Warranty & Technical Support

Lead Time: Standard units ship within 3-5 business days from regional distribution centers. Custom configurations (specialized firmware, extended temperature testing) require 2-3 weeks.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for mission-critical installations requiring guaranteed replacement within 4 hours.

Technical Assistance: Access to Emerson's global support network with 24/7 phone and email assistance. Regional application engineers provide on-site commissioning support, training workshops, and system health assessments.

Documentation Package: Includes installation manual, programming reference guide, protocol implementation guides, and CAD drawings for panel layout. ControlWave Designer software (evaluation license) provided for application development and diagnostics.

Frequently Asked Questions

What communication protocols does the 396509-03-7 ControlWave CPU support for SCADA integration?
The module natively supports Modbus RTU/TCP, DNP3 Level 2 (with Secure Authentication option), IEC 60870-5-101 (serial) and 104 (Ethernet), plus OPC DA and OPC UA for IT system integration. Multiple protocols can operate simultaneously on different ports.

How does the hybrid PLC/RTU architecture reduce system costs compared to separate controllers?
By combining local control logic execution with SCADA telemetry in a single CPU module, you eliminate redundant hardware, reduce panel space by 40%, simplify wiring, and maintain only one spare parts inventory. Total installed cost savings typically range from 25-35% for remote sites.

Can the CPU module operate autonomously during communication outages to central SCADA systems?
Yes—the 396509-03-7 executes control logic independently of SCADA connectivity. Battery-backed memory retains setpoints and operational data during power loss, while the real-time clock maintains accurate timestamping for event reconstruction when communications restore.

What programming languages are supported for application development on this platform?
ControlWave Designer software supports all five IEC 61131-3 languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), and Sequential Function Chart (SFC). Pre-built function libraries accelerate development for common tasks like PID control and flow calculations.

Is the 396509-03-7 suitable for hazardous area installations in oil and gas facilities?
Yes—the module carries Class I Division 2 (Groups A, B, C, D), ATEX Zone 2 (Gas Group IIC), and IECEx certifications for deployment in classified locations. Conformal coating provides additional protection against corrosive atmospheres and humidity.

How do I migrate from legacy ControlWave systems to this CPU module?
The 396509-03-7 maintains backward compatibility with earlier ControlWave generations. Existing application code can be imported into ControlWave Designer with minimal modifications. Emerson's migration services team provides assessment tools and conversion assistance to minimize downtime during upgrades.

Ready to Modernize Your Remote Automation Infrastructure?

Contact our industrial automation specialists to discuss your specific application requirements, receive technical specifications, or request a quotation for the 396509-03-7 ControlWave Micro CPU Module. Our team can provide system architecture recommendations, protocol compatibility verification, and integration support to ensure successful deployment.
