ABB VSC Vacuum Contactor Control Board 1VCR017053G0001 | 24VDC Medium Voltage Switching Interface

ABB VSC Vacuum Contactor Control Board – Industrial-Grade Medium Voltage Switching Solution

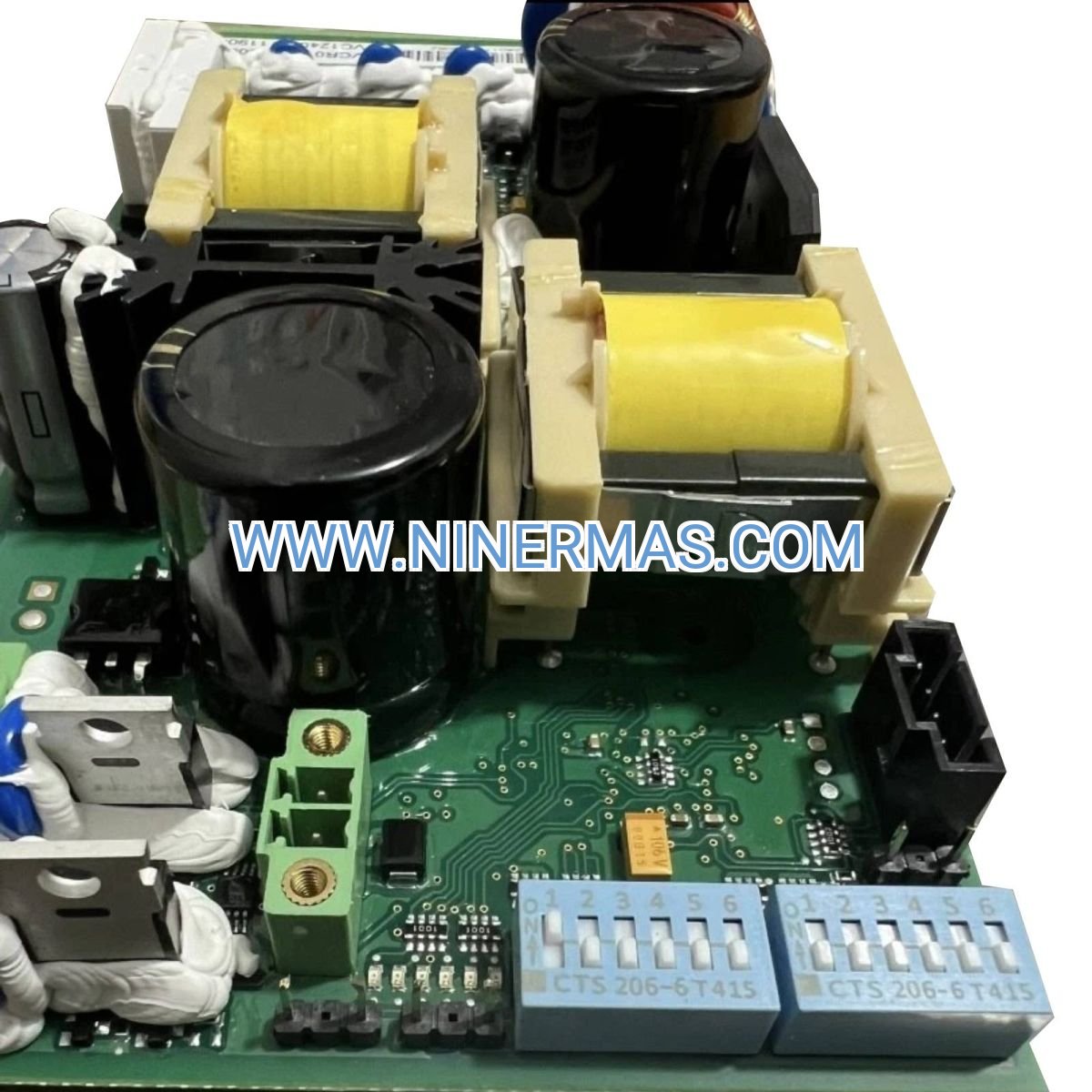

The ABB 1VCR017053G0001 VSC control board is a precision-engineered interface module designed for medium-voltage vacuum contactor systems. Through advanced microprocessor-based control and 24VDC power logic, it delivers reliable switching command execution, real-time status monitoring, and comprehensive protection coordination for motor starting, capacitor bank switching, and load isolation applications.

Engineered for demanding industrial environments including power distribution substations, manufacturing facilities, mining operations, and renewable energy plants, this control board addresses critical challenges such as arc suppression failure, coil burnout from voltage spikes, inconsistent switching timing, and lack of remote monitoring capability in legacy contactor systems.

With IEC 62271-100 compliance, extended temperature rating (-25°C to +70°C), and modular design compatibility, the VSC control board offers superior reliability, simplified maintenance, seamless integration with existing ABB switchgear, and long-term availability assurance. Ideal for consulting engineers, panel builders, system integrators, and facility maintenance teams requiring proven medium-voltage control solutions. Contact our application engineers for selection guidance, wiring diagrams, and technical specifications.

Core Functions & Technical Advantages

• Precision Switching Control
  Microprocessor-based timing logic ensures accurate close/open command execution with adjustable delay settings, minimizing contact wear and extending vacuum interrupter service life in frequent-operation duty cycles.
• Comprehensive Protection Integration
  Built-in overcurrent detection, coil supervision, auxiliary contact monitoring, and thermal overload interfacing reduce nuisance trips by up to 40% compared to electromechanical relay-based systems, lowering unplanned downtime costs.
• Multi-Protocol Communication Ready
  Optional Modbus RTU/TCP and Profibus DP interfaces enable seamless integration with SCADA systems, PLCs, and building management platforms for centralized monitoring and predictive maintenance analytics.
• Robust Environmental Design
  Conformal-coated PCB assembly withstands high humidity, dust, and vibration per IEC 60068 standards, ensuring stable operation in harsh industrial environments including coastal, mining, and heavy manufacturing sites.
• Simplified Commissioning & Diagnostics
  Front-panel LED indicators and DIP switch configuration eliminate the need for specialized programming tools, while built-in self-test routines accelerate troubleshooting and reduce mean time to repair (MTTR).
• Flexible Auxiliary I/O Expansion
  Supports additional relay outputs, analog inputs, and digital status signals through plug-in modules, accommodating custom interlocking logic and third-party device integration without board redesign.

Typical Application Scenarios

This control board is engineered for medium-voltage systems requiring high switching reliability, operational continuity, and advanced monitoring capabilities, particularly in:

• Motor Starting & Reversing Systems
  Coordinates vacuum contactor operation in soft-start configurations, reversing drives, and multi-motor sequential control for pumps, compressors, conveyors, and mill drives, ensuring smooth acceleration and preventing mechanical shock.
• Capacitor Bank Switching for Power Factor Correction
  Manages automatic capacitor switching with zero-crossing detection and discharge monitoring to minimize inrush current, extend capacitor lifespan, and maintain optimal power factor in industrial plants and utility substations.
• Renewable Energy & Grid Interconnection
  Provides reliable isolation and fault clearing in solar inverter arrays, wind turbine collector systems, and energy storage installations, meeting grid code requirements for rapid disconnection and anti-islanding protection.
• Mining & Heavy Industry Load Centers
  Withstands extreme temperature swings, dust ingress, and vibration in underground mining substations, steel mills, cement plants, and petrochemical facilities where equipment uptime directly impacts production throughput.
• Critical Infrastructure & Data Centers
  Ensures high-availability power distribution in hospitals, telecom hubs, and mission-critical facilities through redundant control logic, battery-backed memory, and fail-safe default states during power interruptions.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized electrical and mechanical specifications. Custom configurations are available to match specific project requirements.

Selection Recommendations: When specifying this control board, consider the following factors: contactor coil voltage and current rating, required auxiliary contact configuration, environmental conditions (temperature extremes, altitude, pollution degree), communication protocol compatibility with existing automation systems, and available panel space. For assistance with technical selection, please provide your application details including contactor model, load type and rating, control voltage availability, and any special interlocking or monitoring requirements. Our application engineers will recommend the optimal configuration and provide certified drawings.

Extended Capabilities & Integration Options

• Remote Monitoring & Diagnostics: Optional Ethernet module enables web-based access to real-time operating parameters, event logs, and alarm history for predictive maintenance planning.
• Custom Logic Programming: Field-configurable logic functions support complex interlocking sequences, load shedding priorities, and automatic transfer switching without external PLC hardware.
• Third-Party Device Integration: Compatible with protection relays, energy meters, temperature sensors, and vibration monitors through standard 4-20mA and dry contact interfaces.
• Redundancy & Hot-Swap Support: Dual-board configurations with automatic failover ensure continuous operation in critical applications; hot-swappable design minimizes maintenance downtime.

Delivery, Service & Quality Assurance

Lead Time: Standard configuration units typically ship within 5–7 business days from stock. Custom-configured boards with communication modules or special firmware require 15–20 business days for factory programming and testing.

Warranty & Support: All control boards include a minimum 24-month manufacturer warranty covering material defects and workmanship. Extended warranty and advance replacement programs are available for critical applications.

Technical Documentation: Each unit ships with complete electrical schematics, terminal wiring diagrams, DIP switch configuration tables, Modbus register maps (if applicable), and multilingual operation manuals in PDF format. CAD drawings and 3D STEP models available upon request.

Installation & Commissioning: Remote technical support included at no charge. On-site commissioning assistance and training services available regionally (subject to location and project scope). Our engineers provide guidance on panel layout, grounding practices, EMC compliance, and integration with existing SCADA infrastructure.

Frequently Asked Questions (FAQ)

Q: How does the ABB VSC vacuum contactor control board interface with existing medium-voltage switchgear?
A: The control board connects via standard terminal blocks to the contactor's operating coil, auxiliary contacts, and external control signals. It accepts 24VDC input commands from PLCs, pushbuttons, or SCADA systems and outputs switching pulses to the vacuum contactor coil. Compatibility verification requires confirming coil voltage/current ratings and auxiliary contact configuration—our engineers can review your existing switchgear drawings to ensure proper integration.

Q: What is the maximum number of switching operations this control board can handle?
A: The control board itself has no mechanical wear components and is rated for >1 million electrical switching cycles. Actual system endurance depends on the vacuum contactor's mechanical life (typically 100,000–1,000,000 operations) and load characteristics. The board's adaptive timing algorithms help maximize contactor lifespan by optimizing switching moments.

Q: Can this control board reduce energy consumption in motor control applications?
A: While the control board itself consumes minimal power (≤15W peak), its precision timing and soft-switching capabilities reduce inrush current spikes by 20–35%, lowering mechanical stress on motors and upstream transformers. When integrated with variable frequency drives or soft starters, overall system efficiency improvements of 10–25% are achievable depending on load profile.

Q: What environmental protection level does the control board offer, and can it operate in outdoor substations?
A: The standard board is IP20 rated for indoor panel mounting. For outdoor or harsh-environment installations, we recommend housing it in an IP54-rated control cabinet with climate control (heater/thermostat) to maintain the -25°C to +70°C operating range. Conformal coating provides additional protection against humidity and corrosive atmospheres in coastal or chemical plant environments.

Q: Does the control board support remote monitoring and data logging for predictive maintenance?
A: Yes, when equipped with optional Modbus RTU/TCP or Profibus DP communication modules, the board transmits real-time data including switching cycle count, coil current, contact status, fault codes, and temperature readings to SCADA or CMMS platforms. This enables condition-based maintenance scheduling and early fault detection, reducing unplanned outages by up to 60%.

Q: What technical information is needed to select the correct control board configuration?
A: Please provide: (1) vacuum contactor model and coil specifications, (2) load type and rating (motor HP/kW, capacitor kVAR), (3) control voltage available (24VDC, 110VDC, 220VAC, etc.), (4) required communication protocol (if any), (5) environmental conditions (temperature range, altitude, pollution degree), and (6) any special interlocking or protection requirements. Our team will respond within 24 hours with a detailed selection recommendation and quotation.

Request Technical Support & Quotation

To obtain detailed selection guidance, certified drawings, or project-specific pricing, please send the following information to our engineering team:

• Project name and application overview
• Vacuum contactor manufacturer and model number
• Load characteristics (motor power, capacitor rating, switching frequency)
• Available control power supply (voltage and current capacity)
• Communication protocol requirements (Modbus, Profibus, etc.)
• Environmental conditions and installation location
• Quantity required and target delivery schedule

Our application engineers will provide one-on-one consultation, recommend the optimal configuration, and supply technical documentation to support your design and procurement process.
