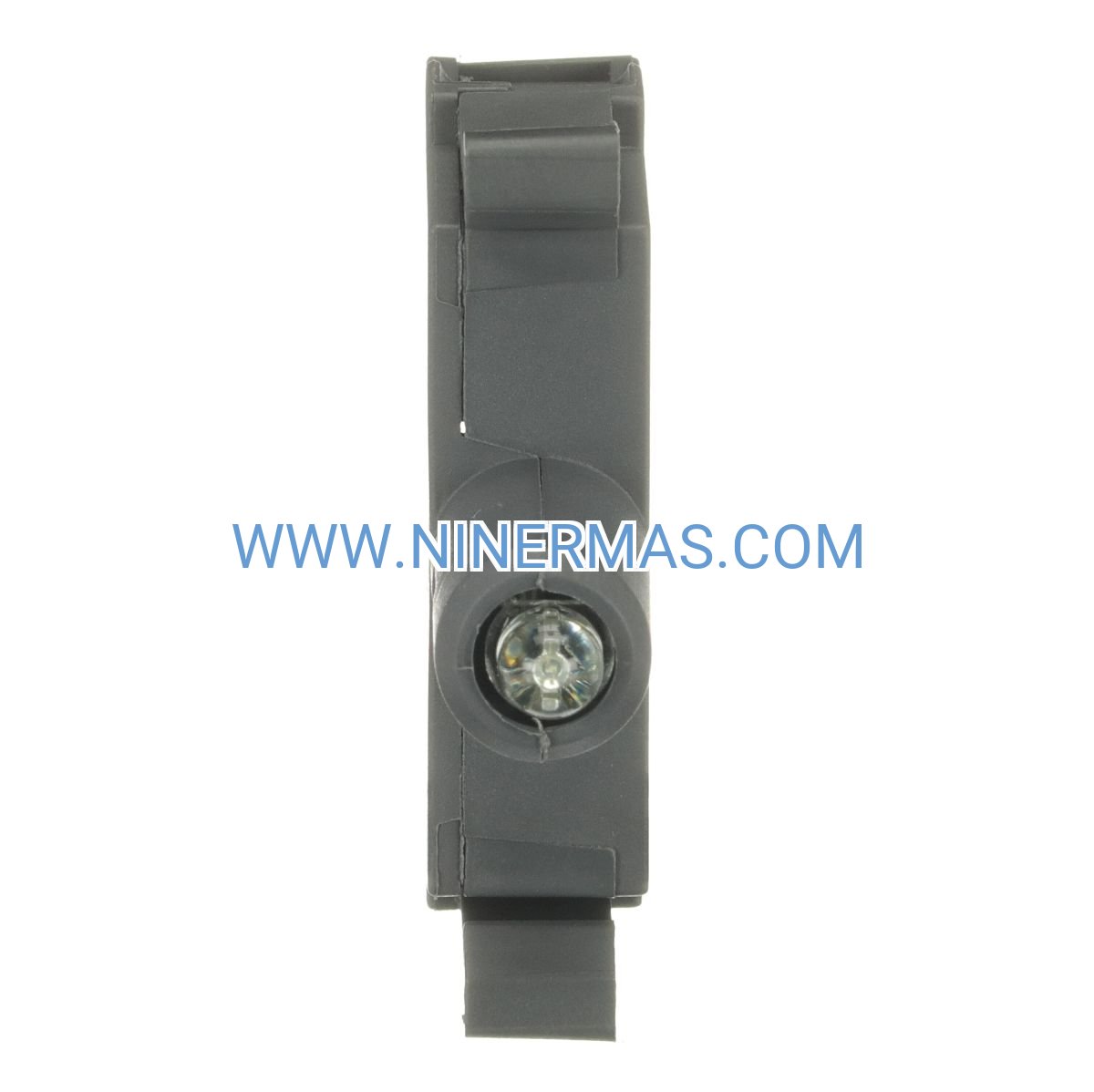

ABB 1SFA611621R1041 Red LED Indicator Block (Industrial-Grade Signaling Component)

The ABB 1SFA611621R1041 represents a professional-grade visual signaling solution engineered for demanding industrial environments. This modular red LED indicator block combines solid-state lighting technology with ABB's proven reliability standards, delivering consistent status indication across manufacturing, process control, and building automation applications. Designed for system integrators and maintenance teams who require dependable visual feedback without ongoing lamp replacement cycles, this component reduces total cost of ownership while maintaining operational visibility.

Industrial facilities face constant pressure to minimize unplanned downtime and maintenance interventions. Traditional incandescent pilot lights require frequent bulb changes, creating recurring labor costs and potential safety gaps during replacement. The 1SFA611621R1041 addresses these challenges through LED technology that extends operational life beyond 50,000 hours—equivalent to over 5 years of continuous operation. This maintenance-free approach allows plant managers to allocate technician time to higher-value tasks while ensuring critical status indicators remain functional.

Whether you're upgrading legacy control panels, designing new machine interfaces, or standardizing visual indication across multiple facilities, this modular LED block integrates seamlessly with ABB's comprehensive control product ecosystem. The compact footprint, standardized mounting, and low power consumption make it an ideal choice for OEMs, panel builders, and facility engineers seeking long-term reliability with minimal operational complexity.

Core Features & Benefits

→ Extended Service Life Technology
Solid-state LED construction delivers 50,000+ operational hours, eliminating bulb inventory requirements and reducing maintenance call frequency by up to 90% compared to incandescent alternatives. This translates to lower lifecycle costs and improved system uptime.

→ Energy-Efficient Operation
Consumes significantly less power than traditional pilot lights, reducing panel heat generation and electrical load. In large installations with hundreds of indicators, annual energy savings can offset initial component costs within 18-24 months.

→ Modular Integration Design
Standardized dimensions and mounting interface allow rapid installation on DIN rails or panel cutouts. Compatible with ABB's full range of modular accessories, enabling flexible configuration changes without panel redesign.

✓ Industrial Environmental Resilience
Operates reliably across -25°C to +55°C temperature range with IP20 front panel protection. Vibration-resistant construction withstands typical industrial shock and vibration profiles found in manufacturing and process environments.

✓ Instant Visual Recognition
Bright red LED output ensures clear visibility from typical operator distances (3-5 meters) under varied ambient lighting conditions. Consistent color temperature eliminates interpretation errors during shift changes.

✓ Simplified Wiring & Installation
Accepts 0.5-2.5mm² wire gauge through accessible screw terminals. No special tools required—snap-mount mechanism enables single-person installation in under 2 minutes per unit.

Typical Application Scenarios

Manufacturing Equipment Status Monitoring
Packaging lines, CNC machining centers, and assembly automation systems utilize red LED indicators to signal fault conditions, emergency stops, or maintenance requirements. The 1SFA611621R1041 provides operators with immediate visual feedback when production equipment requires attention, reducing response time and preventing cascading failures.

Process Control & SCADA Interfaces
Water treatment facilities, chemical processing plants, and food production operations deploy these indicators on local control panels to mirror SCADA system alarms. When combined with green or amber LED blocks, they create intuitive three-state indication systems that allow field technicians to assess system status without accessing HMI screens.

Building Management & HVAC Systems
Commercial building automation panels use red LED indicators to flag HVAC faults, fire alarm conditions, or security system alerts. The low power consumption makes them ideal for battery-backed emergency panels where energy efficiency directly impacts backup runtime.

Power Distribution & Electrical Switchgear
Electrical contractors install these blocks in motor control centers and distribution panels to indicate breaker trip conditions, ground fault detection, or phase loss scenarios. The robust construction withstands the electromagnetic interference common in high-current switching environments.

Machine Safety & Interlock Systems
Safety-rated control circuits incorporate red LED indicators to show guard door status, light curtain interruptions, or safety relay states. While the LED block itself is not safety-rated, it provides valuable diagnostic information for troubleshooting safety system behavior.

Technical Parameters & Selection Guide

Selection Criteria: When specifying LED indicator blocks, verify control voltage compatibility (24V DC is standard for most industrial PLCs), confirm mounting space availability, and consider color-coding requirements for your application. For multi-state indication, combine with ABB's green (1SFA611621R1042) and amber LED variants. Ensure your panel design provides adequate IP rating for the installation environment—the IP20 front rating requires protected enclosure mounting for dusty or wet locations.

Extended Functions

Multi-Color Status Arrays: Combine multiple LED blocks to create custom indication matrices. Common configurations include red/green pairs for run/fault indication, or red/amber/green triads for three-state process monitoring.

PLC Integration: Connect directly to digital output modules from Siemens, Allen-Bradley, ABB, or other PLC platforms. The low current draw allows multiple indicators per output point when using appropriate current-sinking or current-sourcing configurations.

Retrofit Applications: Standard mounting footprint enables direct replacement of legacy pilot lights in existing panels. Verify voltage compatibility and terminal configuration before ordering replacement quantities.

Custom Panel Layouts: Modular design supports both horizontal and vertical arrangement patterns. Use with ABB's mounting accessories to create organized indication zones that improve operator ergonomics.

Delivery & Service Assurance

Standard Lead Time: In-stock items ship within 1-3 business days. Typical delivery to major industrial centers: 5-7 business days via express courier, 10-14 days for standard shipping.

Custom Orders: Bulk quantities (100+ units) or special voltage variants may require 3-4 weeks. Contact our technical sales team for project-specific lead time confirmation.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of purchase. Warranty covers LED failure, housing defects, and terminal connection issues under normal operating conditions.

Technical Support: Pre-sales application engineering assistance available to help with product selection, wiring diagrams, and panel layout optimization. Post-sales support includes troubleshooting guidance and replacement coordination.

Documentation Package: Each order includes installation instructions, wiring diagrams, dimensional drawings, and compliance certificates. CAD files (DXF/STEP format) available upon request for panel design integration.

Frequently Asked Questions

What control voltage does the ABB 1SFA611621R1041 LED indicator require for proper operation?
This modular LED block operates on 24V DC, the standard control voltage for most industrial automation systems. It draws less than 20mA, making it compatible with typical PLC digital output modules. Always verify your specific control system voltage before ordering—using incorrect voltage may damage the LED or result in insufficient brightness.

Can I install this red LED block alongside green indicators to create run/fault status displays?
Absolutely. The 1SFA611621R1041 shares identical mounting dimensions with ABB's green (1SFA611621R1042) and amber LED variants, allowing you to build custom multi-color indication arrays. This is a common configuration in machine control panels where green indicates normal operation and red signals fault conditions.

How does the 50,000-hour LED lifespan translate to real-world maintenance savings?
At continuous 24/7 operation, 50,000 hours equals approximately 5.7 years before LED degradation reaches 70% of original brightness (L70 standard). In practice, most indicators operate intermittently, extending functional life to 10-15 years. This eliminates the quarterly or annual bulb replacement cycles required by incandescent pilot lights, reducing maintenance labor costs by 85-90%.

Is this LED indicator suitable for outdoor electrical enclosures or washdown environments?
The IP20 front panel rating is designed for indoor panel mounting in controlled environments. For outdoor installations or areas subject to water spray, the LED block must be mounted inside a NEMA 4/4X or IP65-rated enclosure with appropriate window cutout. The indicator itself is not rated for direct water exposure.

What wire size should I use when connecting this indicator to my control panel terminals?
The screw terminals accept 0.5-2.5mm² wire gauge (approximately 20-14 AWG). For typical panel wiring, 1.0mm² (18 AWG) stranded wire provides optimal balance between flexibility and current capacity. Use ferrules on stranded wire to prevent strand breakage and ensure reliable terminal contact.

Can I dim this LED indicator or does it only operate at full brightness?
This is a standard on/off indicator without built-in dimming capability. It operates at full brightness when rated voltage is applied. For applications requiring variable intensity, consider PWM dimming through your PLC output or specify ABB's dimmable indicator variants if available for your voltage range.

Ready to Upgrade Your Control Panel Indication?

Reduce maintenance costs and improve system reliability with the ABB 1SFA611621R1041 modular red LED indicator block. Our technical team can assist with product selection, quantity pricing for panel builder projects, and integration guidance for your specific application.

Contact our industrial automation specialists today:
→ Request a quotation for your project quantities
→ Discuss custom panel integration requirements
→ Verify compatibility with your existing control system
→ Arrange sample evaluation units for testing
