ABB 1MRK002133-ABr03 Multi-Protocol Communication Interface | IEC 61850 & DNP3 Gateway for Substation Automation

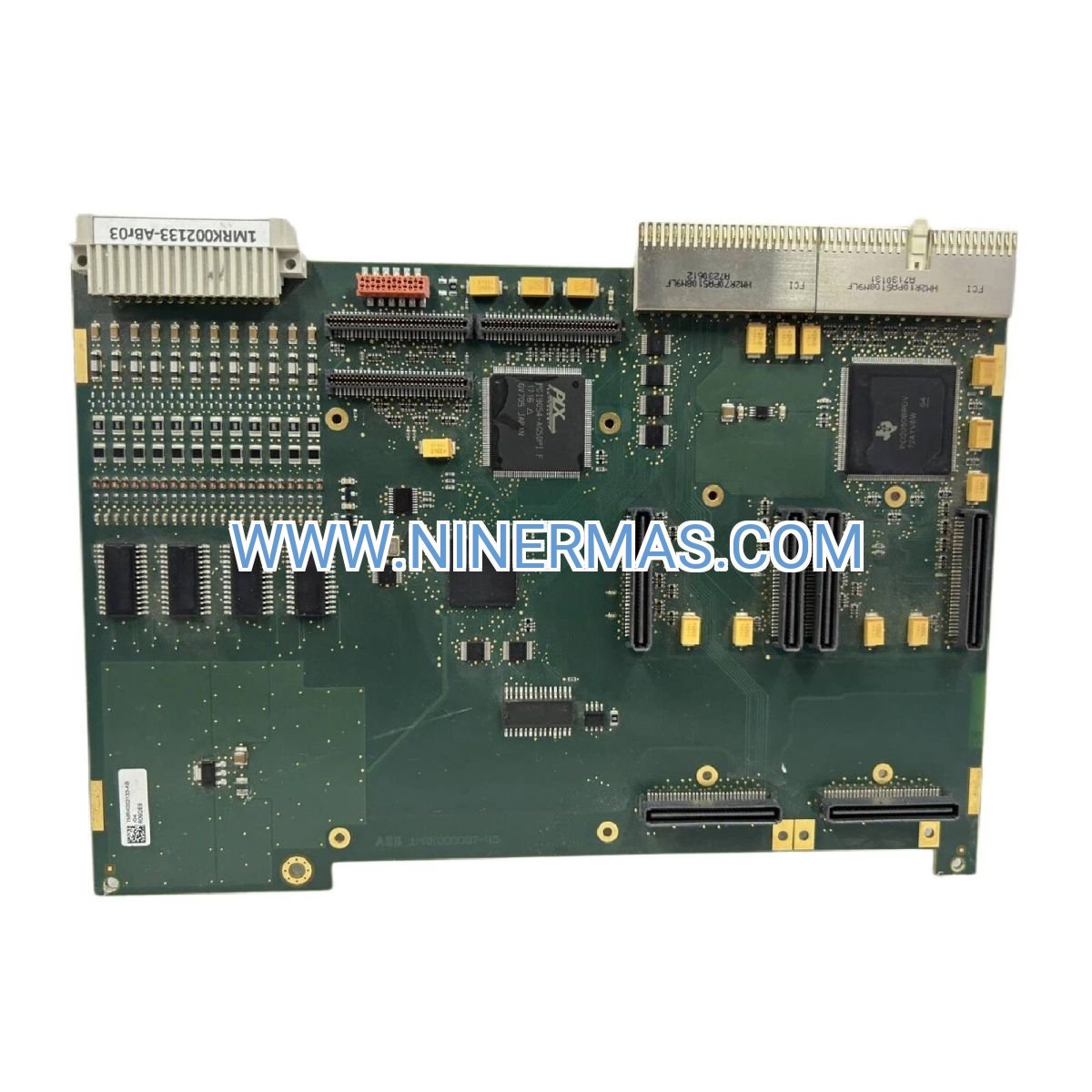

ABB 1MRK002133-ABr03 Multi-Protocol Communication Interface (Industrial-Grade Substation Gateway)

The ABB 1MRK002133-ABr03 is a professional-grade communication interface module designed for seamless integration with ABB Relion series protection relays and substation automation systems. Through advanced multi-protocol support including IEC 61850, DNP3, and Modbus TCP/RTU, this module enables real-time data exchange, remote monitoring, and centralized control across power distribution networks.

Engineered for utilities, industrial facilities, renewable energy plants, and critical infrastructure projects, this interface addresses common challenges such as protocol incompatibility, limited remote access, fragmented SCADA integration, and insufficient diagnostic visibility. It serves as the critical communication bridge between field protection devices and supervisory control systems.

Featuring standardized configuration templates and customizable parameter settings, the 1MRK002133-ABr03 delivers reliable performance, broad compatibility, simplified commissioning, and long-term maintainability. Ideal for consulting engineers, system integrators, EPC contractors, and facility operators seeking proven substation communication solutions. Contact our engineering team for protocol mapping guidance and project-specific configurations.

Core Functions & Advantages

Multi-Protocol Support
Natively supports IEC 61850 (MMS/GOOSE), DNP3 (Serial & TCP), Modbus TCP/RTU, and proprietary ABB protocols, enabling interoperability across diverse SCADA platforms and legacy systems without additional gateways.

Real-Time Data Acquisition
Provides high-speed polling and event-driven reporting of protection relay status, measurements, alarms, and fault records, ensuring operators receive timely information for decision-making and incident response.

Dual Communication Ports
Equipped with Ethernet (RJ45) and RS-485 serial interfaces, supporting simultaneous connections to local HMI panels and remote SCADA masters, enhancing system redundancy and flexibility.

Robust Industrial Design
Built to withstand harsh substation environments with wide operating temperature range (-40°C to +70°C), EMC compliance (IEC 61000 series), and conformal coating options for humidity and contamination resistance.

Simplified Configuration & Diagnostics
Utilizes ABB PCM600 software for intuitive parameter setup, protocol mapping, and firmware updates. Built-in diagnostic LEDs and web interface facilitate rapid troubleshooting and reduce commissioning time.

Cybersecurity Features
Implements role-based access control, encrypted communication channels (TLS/SSL), and audit logging to meet IEC 62351 security standards and protect critical infrastructure from unauthorized access.

Typical Application Scenarios

This communication interface is engineered for environments demanding high reliability, protocol versatility, and seamless SCADA integration, including:

Utility Substations & Transmission Networks
Connects ABB Relion protection relays (REF615, RET615, REG670 series) to utility SCADA systems via IEC 61850 or DNP3, enabling centralized monitoring of transmission lines, transformers, and busbar protection schemes across geographically distributed substations.

Industrial Power Distribution & On-Site Generation
Integrates protection and control devices in manufacturing plants, data centers, mining operations, and petrochemical facilities, providing real-time visibility into medium-voltage switchgear, generator protection, and motor control systems to minimize downtime and optimize energy management.

Renewable Energy Plants (Solar, Wind, Hydro)
Facilitates communication between inverter protection relays, grid-tie controllers, and plant SCADA systems, supporting compliance with grid codes (IEEE 1547, VDE-AR-N 4120) and enabling remote performance monitoring and fault diagnostics.

Railway Traction Power & Infrastructure
Deployed in traction substations and electrified rail networks to monitor feeder protection, catenary voltage, and fault recorder data, ensuring safe and reliable power supply for metro, light rail, and high-speed rail systems.

Marine & Offshore Platforms
Provides reliable communication in shipboard power management systems and offshore oil & gas platforms, where space constraints, vibration, and corrosive atmospheres demand ruggedized interface solutions with proven maritime certifications.

Technical Parameters & Selection Guide

To streamline design and procurement, we provide standardized specifications and support custom configurations based on project requirements:

Key Specifications:

• Supported Protocols: IEC 61850 Ed.1/Ed.2 (MMS, GOOSE), DNP3 Level 2/3 (Serial & TCP), Modbus TCP/RTU, SPA, LON
• Communication Ports: 1× Ethernet 10/100 Mbps (RJ45), 1× RS-485 (terminal block)
• Power Supply: 24–250 VDC / 110–230 VAC (±20%), <10 W consumption
• Operating Temperature: -40°C to +70°C (extended range available)
• Humidity: 5% to 95% RH, non-condensing (conformal coating option for 100% RH)
• Enclosure Rating: IP20 (panel-mount), IP54 (optional sealed enclosure)
• Mounting: DIN rail or panel-mount bracket
• Dimensions (W×H×D): Approx. 45 mm × 130 mm × 120 mm
• Certifications: IEC 61850-3, IEEE 1613, CE, UL, DNV-GL (marine), ATEX (hazardous areas upon request)
• MTBF: >200,000 hours (MIL-HDBK-217F)

Selection Considerations:
When specifying the 1MRK002133-ABr03, consider the following project parameters: primary SCADA protocol (IEC 61850 vs. DNP3), number of connected relays, network topology (star, daisy-chain, redundant ring), available DC/AC power supply voltage, ambient temperature range, and cybersecurity requirements (firewall integration, VPN support). For complex multi-vendor integration or legacy system retrofits, consult our application engineers who can provide protocol conversion matrices, network architecture diagrams, and commissioning checklists.

Extended Capabilities

Time Synchronization: Supports SNTP, IEEE 1588 PTP, and IRIG-B for precise event timestamping across distributed protection systems, critical for fault analysis and sequence-of-events recording.

Redundancy & Failover: Compatible with IEC 61850 PRP (Parallel Redundancy Protocol) and HSR (High-availability Seamless Redundancy) for zero-downtime communication in mission-critical substations.

Remote Firmware Updates: Enables secure over-the-network firmware upgrades via ABB Asset Suite or third-party device management platforms, reducing site visit costs and accelerating feature deployment.

Data Logging & Buffering: Internal memory stores up to 10,000 time-stamped events and 500 disturbance records, ensuring no data loss during temporary SCADA communication outages.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3–5 business days; custom-configured modules require 10–15 business days for factory programming and testing.

Warranty: Backed by a 24-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available.

Technical Support: Includes remote commissioning assistance, protocol troubleshooting, and access to ABB's global support network. On-site startup services available in major regions (subject to location and project scope).

Documentation Package: Each module ships with complete technical documentation including product manual, quick start guide, IEC 61850 ICD/CID files, DNP3 device profile, Modbus register map, wiring diagrams, and PCM600 configuration templates for rapid deployment.

Quality Certifications: Manufactured in ISO 9001:2015 certified facilities with full traceability, factory acceptance testing (FAT) reports, and compliance certificates (CE, UL, IEC) included with shipment.

Frequently Asked Questions (FAQ)

Q: How does the ABB 1MRK002133-ABr03 communication interface integrate with existing protection relay systems?
A: The module connects directly to ABB Relion series relays via rear communication ports or front-panel Ethernet jacks. Configuration is performed using ABB PCM600 software, which auto-detects connected devices and allows drag-and-drop protocol mapping. For non-ABB relays, Modbus RTU/TCP or DNP3 serial modes provide universal compatibility. Verify relay firmware version and communication port availability before ordering.

Q: What is the maximum number of protection relays one interface module can communicate with?
A: Via IEC 61850, a single module can serve as a client to multiple IED servers on the same Ethernet subnet (typically 10–50 devices depending on polling rate and data volume). For serial protocols (DNP3/Modbus RTU), one RS-485 port supports up to 32 devices in a multi-drop configuration. For larger installations, deploy multiple interface modules or use managed Ethernet switches with VLAN segmentation.

Q: What energy savings or efficiency improvements can be expected from deploying this communication interface?
A: While the interface itself is a communication device (not a direct energy-saving component), it enables significant operational efficiency gains: real-time load monitoring reduces transformer overloading by 15–25%, predictive maintenance based on thermal and partial discharge data cuts unplanned outages by up to 40%, and automated demand response integration can shift peak loads, lowering energy costs by 10–20% in time-of-use tariff environments.

Q: What are the environmental and installation requirements for the 1MRK002133-ABr03 module?
A: The module is rated for indoor substation environments with IP20 protection (panel-mount). Operating temperature range is -40°C to +70°C, suitable for unheated control buildings. For outdoor kiosks or high-humidity coastal areas, specify conformal coating and IP54 sealed enclosure options. Ensure adequate ventilation (convection cooling, no fan required) and maintain clearance per IEC 61439 standards. Avoid direct sunlight, condensation, and corrosive gas exposure.

Q: Can the interface support remote monitoring and data acquisition over cellular or satellite networks?
A: Yes, when paired with industrial routers or VPN gateways supporting 4G/5G/LTE or VSAT links, the module enables secure remote SCADA access. Recommended practice: deploy edge firewall with IEC 62351 encryption, use static IP or DDNS for addressing, and implement role-based access control. ABB Ability™ cloud platform integration is also available for centralized fleet management and analytics.

Q: Which communication protocols and standards does the 1MRK002133-ABr03 support for substation automation?
A: The module natively supports IEC 61850 Edition 1 & 2 (MMS, GOOSE, SV), DNP3 Level 2/3 (Serial & TCP/IP), Modbus TCP/RTU, SPA (ABB proprietary), and LON. It is certified to IEC 61850-3 (substation environmental), IEEE 1613 (environmental & EMC), and IEC 62351 (cybersecurity). Custom protocol stacks (e.g., IEC 60870-5-104, OPC UA) can be enabled via firmware updates or gateway appliances.

Request a Custom Solution

To receive a tailored selection proposal, technical datasheet, or quotation, please provide the following project details: application type (utility/industrial/renewable), primary SCADA protocol requirement, number and model of connected protection relays, network architecture (star/ring/redundant), available power supply (DC/AC voltage), environmental conditions (temperature/humidity/IP rating), cybersecurity compliance needs (IEC 62351/NERC CIP), and preferred delivery timeline. Our application engineers will respond within 24 hours with a comprehensive solution package including configuration files, wiring diagrams, and commissioning support options.
