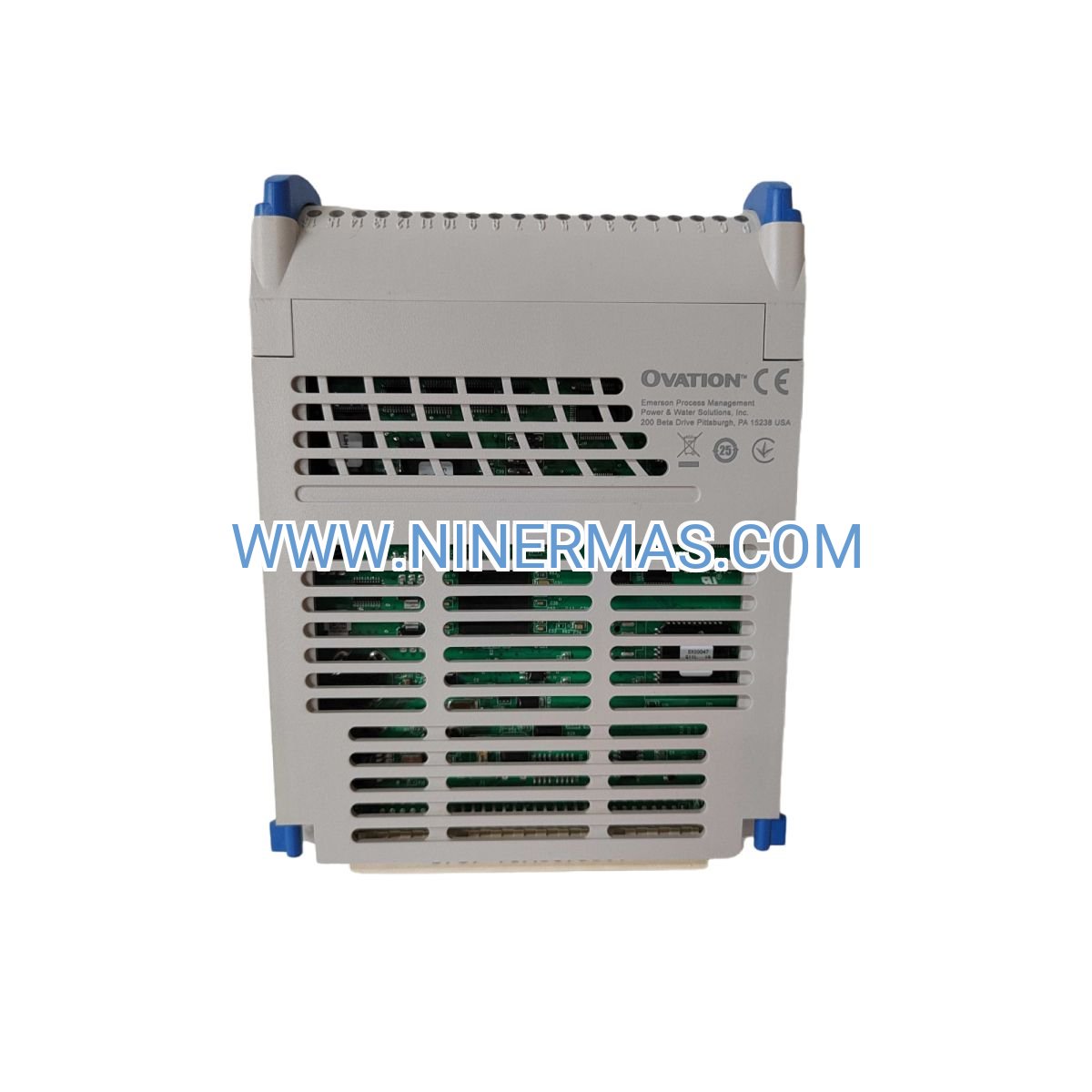

1C31233G02 Differential Digital Input Base (Industrial-Grade Safety I/O)

The 1C31233G02 represents a specialized differential digital input module base engineered for Emerson Ovation distributed control systems requiring uncompromising signal integrity in safety-critical applications. This module employs differential input topology to achieve superior common-mode noise rejection exceeding 80dB, making it the preferred choice for emergency shutdown systems, burner management, and fire & gas detection networks where false trips cost millions and missed alarms endanger lives.

Designed for process industries operating under IEC 61508 functional safety mandates, this input base supports SIL-3 safety integrity levels when deployed in redundant configurations. Field-proven across offshore oil platforms, refinery alkylation units, and LNG liquefaction trains, the module delivers deterministic response times under 5 milliseconds while maintaining continuous diagnostic coverage of input circuits, power supplies, and communication paths.

Unlike conventional single-ended inputs susceptible to ground loops and electromagnetic interference, the 1C31233G02's differential architecture measures voltage differentials between dedicated signal pairs—automatically canceling noise common to both conductors. This fundamental design advantage enables reliable operation in electrically hostile environments adjacent to variable frequency drives, arc welders, and high-voltage switchgear without expensive shielding or signal conditioning.

Core Capabilities & Technical Advantages

→ Differential Signal Processing: Dual-wire input architecture with >80dB common-mode rejection ratio eliminates ground potential differences and radiated EMI, ensuring clean signal acquisition in noisy industrial environments where single-ended inputs fail.

→ Extended Cable Distance Support: Maintains signal fidelity over cable runs exceeding 1000 meters without amplification or repeaters, reducing installation costs in large facilities while eliminating single points of failure associated with field-mounted signal conditioners.

→ Comprehensive Fault Detection: Continuous monitoring of wire break conditions, short circuits, power supply deviations, and out-of-range signals with automatic fault annunciation to Ovation operator workstations—enabling predictive maintenance before safety system degradation.

✓ Multi-Channel Isolation: 2500V RMS channel-to-system isolation prevents fault propagation between input circuits, protecting downstream controllers from field-side electrical transients and lightning-induced surges.

✓ Wide Operating Voltage Range: 18-30VDC input acceptance accommodates voltage drops in long cable runs and aging power supplies without nuisance alarms, reducing maintenance callouts in remote installations.

✓ Hazardous Area Certification: FM approved, ATEX/IECEx Zone 2, and CSA Class I Division 2 ratings permit installation in classified areas without expensive purge systems or explosion-proof enclosures.

Industry-Specific Application Scenarios

Offshore Platform Emergency Shutdown: Monitor critical inputs from emergency stop stations, high-integrity pressure protection systems (HIPPS), and subsea isolation valve position switches on floating production platforms. The module's salt-fog resistance and conformal coating withstand corrosive marine atmospheres while differential inputs reject electrical noise from drilling equipment and thruster motors.

Refinery Burner Management: Interface with UV/IR flame scanners, fuel valve limit switches, and combustible gas detectors in fired heater and boiler control systems. Sub-5ms response times ensure rapid flame failure detection, preventing furnace explosions that could destroy equipment worth tens of millions of dollars.

Chemical Plant Safety Instrumented Systems: Acquire signals from toxic gas detectors, reactor high-temperature switches, and manual emergency shutdown pushbuttons in SIL-3 rated safety loops. Built-in diagnostics meet IEC 61511 proof test requirements, reducing safety system lifecycle costs.

Power Generation Turbine Protection: Connect to vibration monitors, bearing temperature sensors, and overspeed trip devices in steam and gas turbine control systems. The module's -40°C to +70°C operating range supports outdoor installations without environmental enclosures.

Pipeline Compressor Station Monitoring: Track valve position confirmations, motor overload contacts, and leak detection system outputs across multi-mile pipeline facilities. Long-distance signal integrity eliminates the need for intermediate marshalling panels, simplifying system architecture.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this module when your application requires noise immunity beyond conventional optoisolated inputs, when cable runs exceed 300 meters, or when safety integrity level verification demands documented failure rate data. For non-safety applications with short cable runs in electrically quiet environments, standard digital input modules may offer lower cost alternatives.

Advanced Integration & Customization Options

Redundant Controller Pairing: Deploy in dual-redundant Ovation safety controller configurations with automatic failover—ensuring continuous monitoring during controller maintenance or failure events. The module supports hot-swap replacement without system shutdown.

Configurable Input Filtering: Adjust digital filter time constants from 1ms to 100ms via Ovation Developer Studio software, accommodating both fast-acting safety inputs (emergency stops) and slower process monitoring signals (level switches) within the same module.

HART Pass-Through Capability: Selected input channels support HART protocol overlay on 4-20mA signals, enabling remote configuration and diagnostics of intelligent field devices without additional infrastructure.

Third-Party System Integration: OPC UA and Modbus TCP gateways enable data sharing with plant historians, asset management systems, and corporate ERP platforms for predictive maintenance analytics and regulatory compliance reporting.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock modules with factory calibration certificates and serial number traceability documentation.

Custom Configuration: 10-15 business days for modules requiring special firmware versions, extended temperature testing, or customer-specific labeling.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship, with advance replacement available for critical applications.

Technical Support: Lifetime access to Emerson-certified application engineers for configuration assistance, troubleshooting, and safety system design reviews. Phone and email support available during extended business hours.

Documentation Package: Includes installation manual, wiring diagrams, proof test procedures for SIL applications, AutoCAD terminal block drawings, and IEC 61508 safety manual with PFD calculations.

Frequently Asked Questions

Q: How does differential input architecture improve reliability compared to single-ended designs?
A: Differential inputs measure voltage between two dedicated wires rather than between signal and ground, automatically rejecting noise that appears equally on both conductors. This provides 80dB+ noise immunity—equivalent to rejecting 99.99% of common-mode interference—enabling operation in electrically noisy environments where single-ended inputs generate false alarms.

Q: What maximum cable distance can this module support without signal degradation?
A: The high-impedance differential design maintains signal integrity over cable runs exceeding 1000 meters using standard 18AWG twisted-pair instrumentation cable. For runs beyond 1500 meters, consider increasing wire gauge to 16AWG or implementing intermediate junction boxes with surge protection.

Q: Can this module interface with both dry contact and wet contact field devices?
A: Yes. The module accepts both voltage-sourcing (wet contact) and current-sinking (dry contact) field devices. For dry contacts, the module provides internal 24VDC excitation. Consult the wiring manual for proper jumper configuration based on your field device type.

Q: What diagnostic capabilities help reduce unplanned downtime?
A: Continuous monitoring detects wire breaks, short circuits, power supply faults, and out-of-range conditions with automatic annunciation to Ovation operator displays. Diagnostic coverage exceeds 95%, meeting IEC 61508 requirements for SIL-3 applications and enabling condition-based maintenance strategies.

Q: Is hot-swap replacement supported during live operation?
A: Yes, when deployed in redundant controller configurations. The module includes keying to prevent insertion into incorrect slots and automatic configuration download upon installation, minimizing mean time to repair during emergency replacements.

Q: What environmental protection enables outdoor installation?
A: Conformal coating protects circuitry from salt fog, humidity, and industrial contaminants. The -40°C to +70°C operating range supports outdoor installations in arctic and desert climates. For direct weather exposure, install in NEMA 4X or IP66-rated enclosures.

Request Technical Consultation

Our application engineering team provides complimentary pre-sales support including safety system architecture reviews, cable length calculations, and SIL verification assistance. Contact us to discuss your specific requirements and receive a detailed quotation with lead time confirmation.
