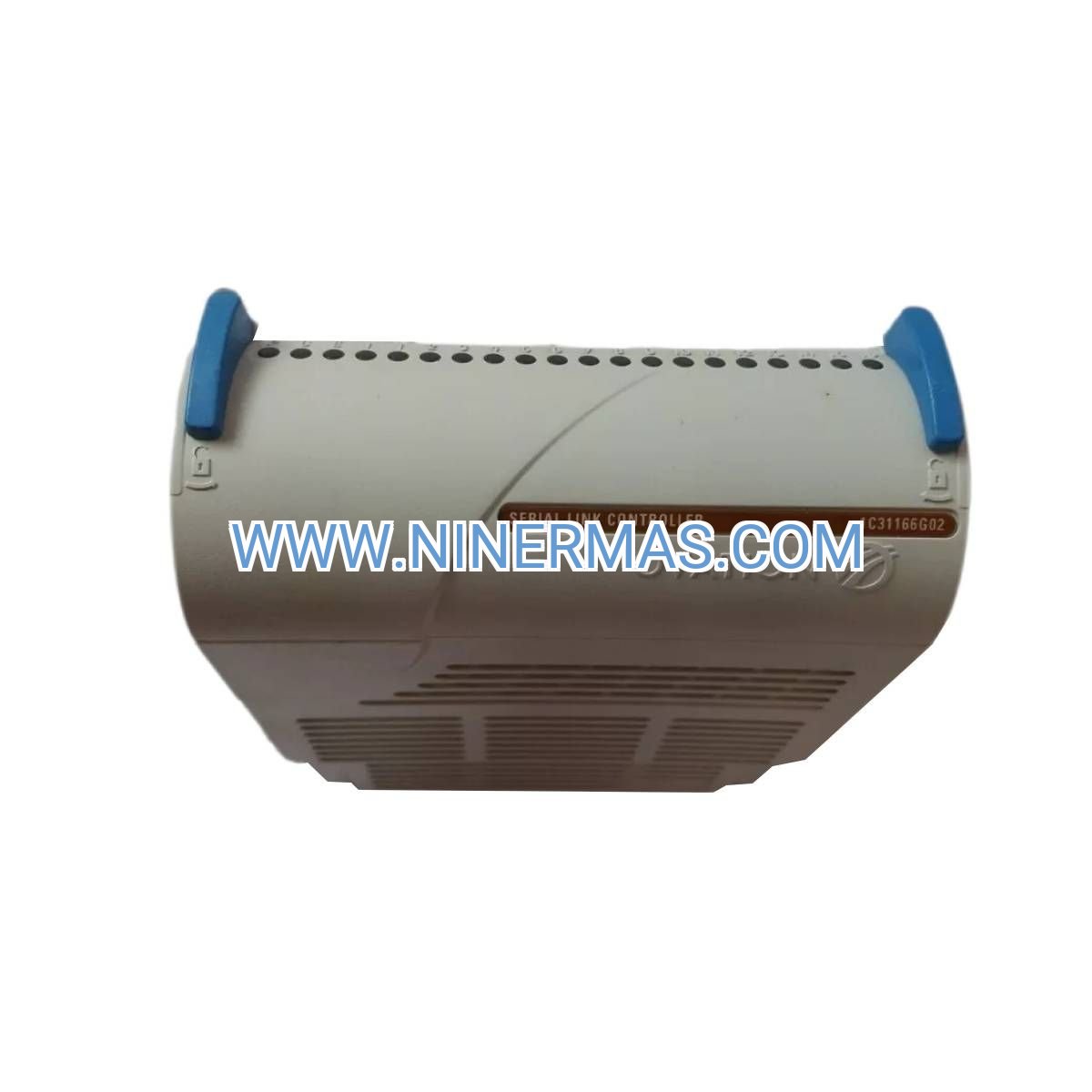

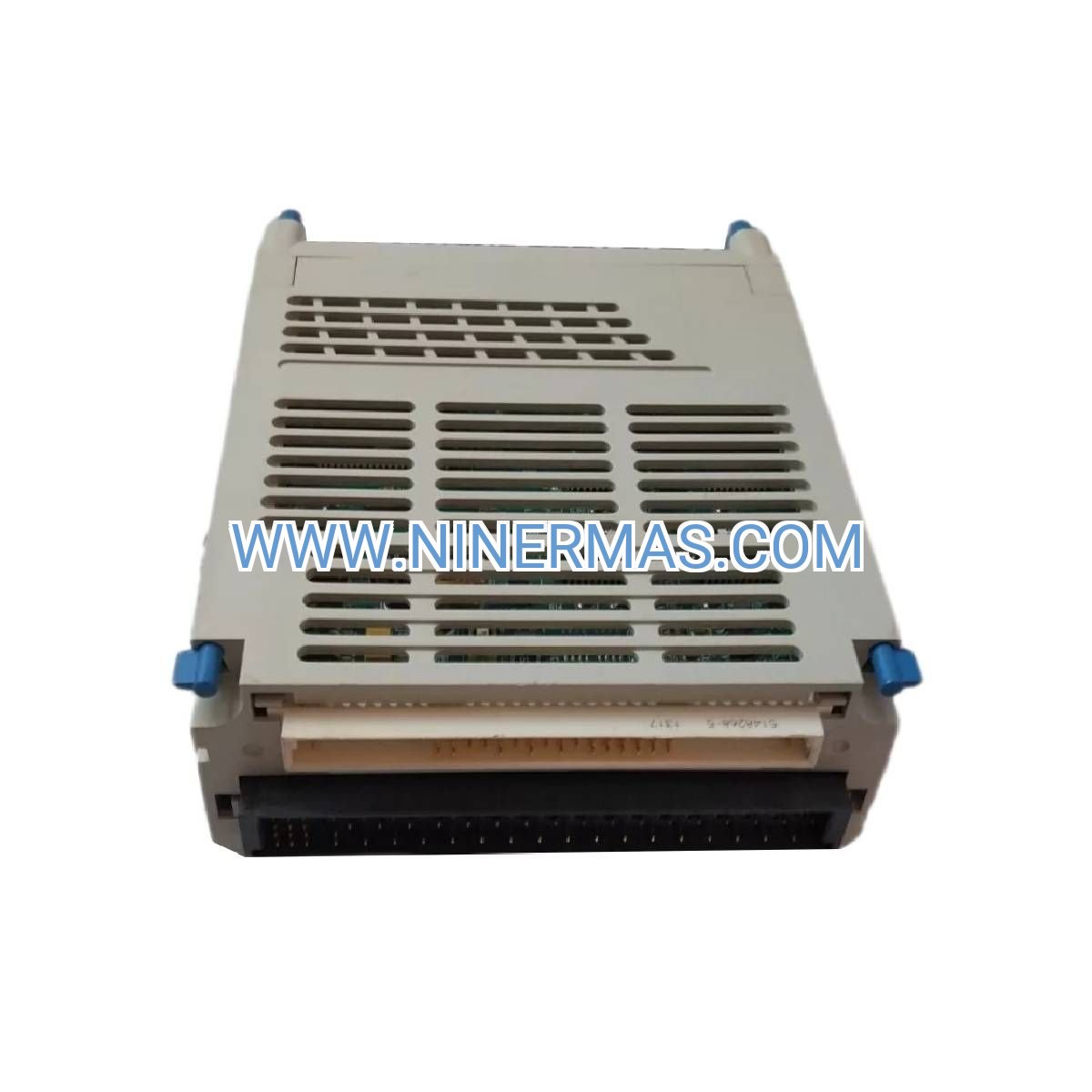

R1120-Powered Communication Controller for Mission-Critical DCS Infrastructure

The 1C31166G02 represents a cornerstone component in Emerson Ovation distributed control architectures, delivering deterministic network orchestration through its R1120 processor core. Engineered for power generation, petrochemical, and heavy industrial environments, this link controller establishes reliable data pathways between field controllers, HMI workstations, and supervisory systems—transforming isolated automation islands into unified, responsive control ecosystems.

Designed for facilities where downtime translates to six-figure losses per hour, this module addresses the fundamental challenge of maintaining continuous, secure communication across heterogeneous automation networks. Plant engineers and system integrators deploy the 1C31166G02 to eliminate communication bottlenecks, reduce integration complexity, and future-proof control infrastructure against evolving industrial protocols.

With dual-redundant networking, multi-protocol support, and industrial-hardened construction, this controller serves as the central nervous system for Ovation installations ranging from 50-MW cogeneration plants to 1,000-MW combined-cycle facilities. Its proven track record in 24/7 operations makes it the preferred choice for critical infrastructure where reliability is non-negotiable.

Core Capabilities & Technical Advantages

→ R1120 Dual-Core Processing Engine: Parallel execution architecture handles communication protocol conversion, data buffering, and network management simultaneously without performance degradation—maintaining sub-5ms response times even under peak load conditions.

→ Redundant Gigabit Ethernet Topology: Dual independent network interfaces with automatic failover ensure uninterrupted connectivity; if primary path fails, secondary link activates within 50 milliseconds with zero data loss or control disruption.

→ Universal Protocol Translation: Native support for OPC DA/UA, Modbus TCP, DNP3, and IEC 61850 eliminates costly protocol gateways; seamlessly bridges legacy systems with modern SCADA platforms and cloud analytics infrastructure.

→ Enterprise-Scale Data Throughput: Processes 10,000+ I/O tags per second with deterministic latency, supporting large-scale installations with hundreds of controllers and thousands of field devices without communication lag.

→ Hot-Standby Redundancy Architecture: Pair two controllers for bumpless failover; active unit continuously synchronizes state to standby, guaranteeing control continuity during maintenance or hardware failures.

→ Industrial Cybersecurity Framework: TLS 1.2 encrypted communications, role-based authentication, and IEC 62443 compliance protect against unauthorized access while maintaining operational transparency for authorized personnel.

Industry-Specific Deployment Scenarios

✓ Combined-Cycle Power Generation:
In multi-unit power plants, the 1C31166G02 synchronizes gas turbine, steam turbine, and heat recovery steam generator controls while feeding real-time performance data to plant historians and energy management systems. This integration enables operators to optimize heat rate, respond to grid frequency events, and maximize ancillary service revenue—capabilities that can improve plant profitability by 3-5% annually.

✓ Refinery Process Units:
Coordinate distillation columns, catalytic crackers, and blending operations across multiple Ovation controllers while interfacing with enterprise MES systems for production scheduling and quality tracking. The controller's high-speed networking reduces batch cycle times and improves product consistency through tighter process coordination.

✓ Chemical Manufacturing Complexes:
Link reactor control systems with utilities management, safety instrumented systems, and environmental monitoring networks. Real-time data sharing enables advanced process control strategies that reduce raw material consumption by 2-4% while maintaining strict safety and emissions compliance.

✓ District Heating & Cogeneration:
Integrate thermal production with electrical generation and distribution management, enabling dynamic load balancing based on steam demand, electricity prices, and weather forecasts. This optimization can reduce fuel costs by $500K-$2M annually for mid-sized facilities.

✓ Pulp & Paper Mills:
Connect recovery boilers, power boilers, and turbine-generators with process control systems managing digesters, washers, and paper machines. Coordinated control improves energy self-sufficiency and reduces purchased power expenses.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 1C31166G02 when your Ovation system requires enterprise connectivity, multi-protocol support, or redundant networking. For smaller installations with <2,000 tags and single-protocol requirements, consider standard I/O link modules. For systems exceeding 20,000 tags or requiring advanced security features, evaluate pairing multiple 1C31166G02 units in distributed architecture.

Advanced Integration & Customization Options

Cloud Analytics Gateway Configuration: Deploy the controller as a secure edge device streaming process data to Azure IoT Hub, AWS IoT Core, or private cloud platforms. This enables predictive maintenance analytics, remote expert diagnostics, and machine learning model deployment without compromising OT network security.

Custom Protocol Development: Leverage the controller's Linux-based architecture to implement proprietary communication protocols or specialized data transformations through user-defined function blocks—ideal for integrating unique legacy equipment or emerging IoT devices.

High-Availability Clustering: Configure multiple controllers in mesh topology for geographically distributed facilities, ensuring control continuity even if entire network segments fail due to natural disasters or infrastructure damage.

Delivery Timeline & Support Infrastructure

Standard Delivery: 3-5 business days for in-stock units via express courier with full tracking and insurance. All modules undergo factory testing and arrive ready for rack installation.

Custom Configuration: 7-10 business days for pre-programmed units with customer-specific network settings, security certificates, and protocol configurations—reducing on-site commissioning time by 40-60%.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year protection plans available for critical applications requiring guaranteed parts availability.

Technical Support: Access to Emerson-certified engineers via phone, email, and remote desktop support during commissioning and operation. 24/7 emergency support available for production-critical issues.

Documentation Package: Includes installation manual, network configuration guide, protocol implementation examples, cybersecurity hardening checklist, and troubleshooting flowcharts in PDF format.

Frequently Asked Questions

How does the 1C31166G02 integrate with existing Ovation controller networks?
The module installs in standard Ovation racks and auto-discovers controllers via the Ovation network. Configuration through Ovation Developer Studio takes 15-30 minutes for basic setups. The controller supports both star and ring network topologies, adapting to your existing infrastructure without requiring network redesign.

What redundancy options ensure continuous operation during maintenance or failures?
Deploy two 1C31166G02 units in hot-standby configuration; the active controller continuously synchronizes state to the backup. If the primary unit fails or requires maintenance, the standby assumes control within 50 milliseconds with zero data loss. This architecture achieves 99.99% availability in properly designed systems.

Can this controller connect Ovation systems to third-party SCADA or historian platforms?
Yes, the built-in OPC UA server exposes Ovation data to any OPC-compliant client, including Wonderware, Ignition, OSIsoft PI, and GE Proficy. The controller also supports Modbus TCP for legacy SCADA integration and DNP3 for utility substation connectivity—eliminating the need for separate protocol gateways.

What cybersecurity measures protect against industrial network threats?
The controller implements defense-in-depth security: TLS 1.2 encryption for all network traffic, certificate-based authentication, role-based access control with audit logging, and built-in firewall rules. It complies with IEC 62443-4-2 security requirements and supports network segmentation strategies recommended by NIST and DHS CISA.

How many I/O points or controllers can a single 1C31166G02 support?
A single controller handles 10,000+ tags at 1-second update rates with sub-5ms latency. In typical power plant applications, this supports 20-30 Ovation controllers with 300-500 I/O points each. For larger installations, deploy multiple link controllers in distributed architecture or implement hierarchical networking.

Is specialized training required for installation and configuration?
Basic installation requires standard Ovation system knowledge—mounting, wiring, and IP address assignment. Advanced features like redundancy configuration, custom protocol mapping, and cybersecurity hardening benefit from Emerson training courses. We provide configuration templates and step-by-step guides to accelerate deployment for experienced automation professionals.

Ready to Strengthen Your DCS Communication Infrastructure?

Contact our industrial automation specialists to discuss your Ovation network requirements, receive application-specific configuration recommendations, and obtain detailed pricing for single units or project quantities. Our team provides complimentary network architecture reviews to ensure optimal controller placement and performance.

Request a quote today: Share your system specifications, and we'll respond within 4 business hours with pricing, delivery timeline, and technical recommendations tailored to your facility.
