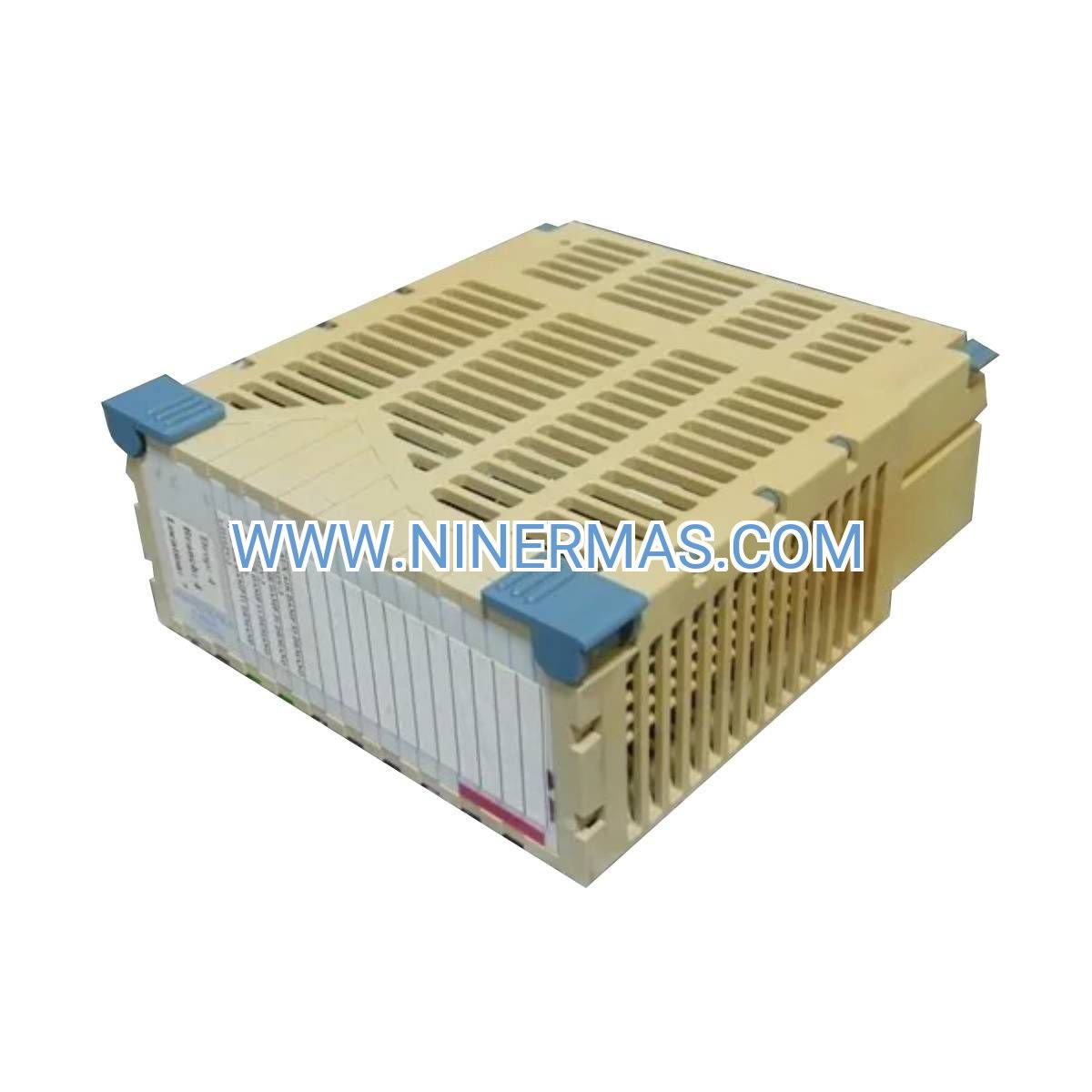

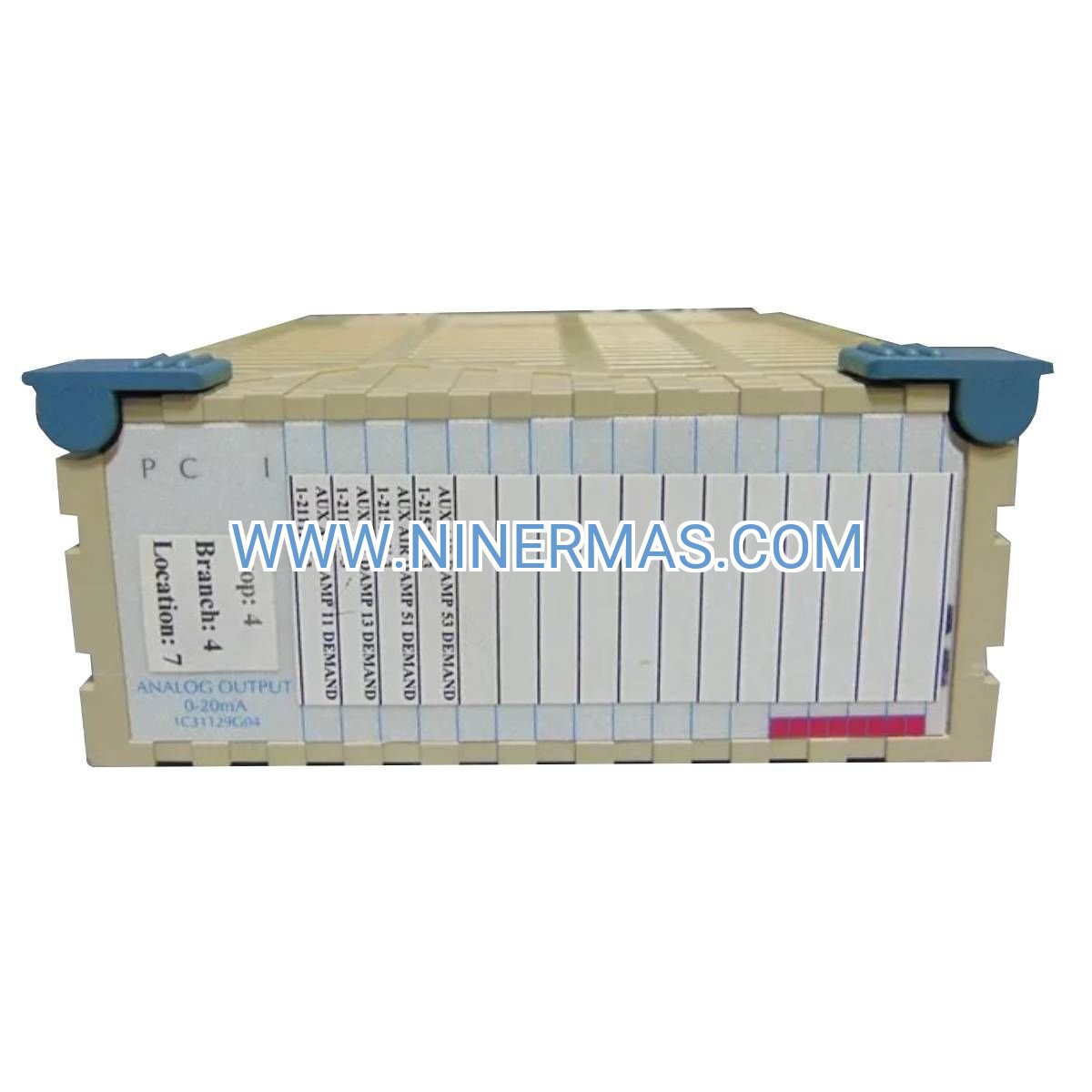

1C31129G04 Analog Output Module (Industrial-Grade DCS Component)

The 1C31129G04 represents a critical control interface within Emerson's Ovation distributed control system architecture, engineered to convert digital control signals into precise 4-20mA analog outputs for field instrumentation. This module serves as the bridge between your DCS logic and physical process equipment—valve actuators, variable frequency drives, and proportional control devices—ensuring accurate command execution in mission-critical industrial environments. Built for facilities where downtime translates to significant revenue loss, the 1C31129G04 combines robust hardware design with intelligent diagnostics to maintain process stability across power generation, chemical processing, and water treatment operations.

Process engineers and automation specialists rely on this module when control precision directly impacts product quality, safety margins, or regulatory compliance. Whether you're managing steam turbine governor control in a 500MW power station or coordinating chemical dosing systems in pharmaceutical manufacturing, the 1C31129G04 delivers the signal fidelity and operational reliability that complex processes demand.

Key differentiators include native Ovation system integration eliminating third-party interfaces, hot-swap capability for zero-downtime maintenance, and comprehensive loop diagnostics that detect wiring faults before they escalate into process upsets. This module doesn't just output signals—it actively monitors loop health and provides actionable intelligence to your maintenance teams.

Core Capabilities & Business Value

→ Multi-Channel 4-20mA Output Architecture
Delivers simultaneous control signals to multiple field devices from a single card slot, maximizing I/O density in space-constrained control cabinets while reducing per-point installation costs by 30-40% compared to single-channel solutions.

✓ ±0.1% Full-Scale Accuracy
Maintains tight signal precision across the entire operating range, translating to improved process yield in applications like reactor temperature control where ±1°C setpoint deviation can impact batch quality or catalyst efficiency.

→ 600Ω Loop Drive Capability
Supports extended cable runs up to 1,500 meters without signal degradation, enabling centralized control room architectures in large facilities and eliminating the need for costly field-mounted signal boosters or repeaters.

✓ Sub-100ms Response Time
Ensures rapid control action during process transients, critical for fast-loop applications such as combustion air control or pressure relief valve modulation where delayed response could trigger safety system activation.

→ Channel-to-Backplane Isolation
Prevents ground loop interference and electrical noise propagation, protecting sensitive control signals in electrically noisy environments like steel mills or arc furnace operations where electromagnetic interference is prevalent.

✓ Integrated Loop Diagnostics
Continuously monitors for open circuits, short circuits, and out-of-range conditions with automatic alarm generation, reducing troubleshooting time by 60% and enabling predictive maintenance strategies that prevent unplanned outages.

Industry-Specific Application Scenarios

Thermal Power Generation Facilities
Controls boiler feedwater regulation valves, forced draft fan dampers, and attemperator spray valves in coal-fired and combined-cycle plants. Addresses the challenge of maintaining precise steam parameters during load-following operations while meeting emissions compliance requirements. Delivers stable control during rapid load changes, minimizing thermal stress on pressure parts and extending equipment service life by 15-20%.

Chemical & Petrochemical Processing
Manages reactor jacket cooling valves, distillation column reflux control, and polymer extrusion temperature regulation. Solves the problem of maintaining tight process windows in exothermic reactions where temperature excursions can trigger runaway conditions or off-spec product formation. Provides the signal stability needed to achieve ±0.5% composition control in high-value specialty chemical production.

Water & Wastewater Treatment
Regulates chemical feed pumps for coagulation, pH adjustment valve positioners, and chlorine dosing systems in municipal treatment plants. Addresses regulatory compliance challenges by ensuring precise chemical dosing that meets discharge permit limits while minimizing reagent consumption. Reduces chemical costs by 8-12% through improved dosing accuracy compared to pneumatic control systems.

Pulp & Paper Manufacturing
Controls consistency valves in stock preparation, bleaching chemical addition, and dryer section steam pressure regulation. Tackles the challenge of maintaining uniform product quality across continuous production runs where moisture content or basis weight variations lead to customer complaints. Enables tighter quality control that reduces off-spec production by 25-30%.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this module when your application requires proven Ovation system compatibility, hot-swap maintenance capability, and integrated diagnostics. For applications with extreme temperature requirements beyond -20°C to +65°C, consult factory for extended-range options. If your facility operates in hazardous areas requiring intrinsic safety barriers, verify barrier compatibility with 4-20mA output specifications.

Advanced Integration & Customization Options

Ovation Developer Studio Integration: Configure output scaling, alarm limits, and diagnostic thresholds directly within the Ovation engineering environment without external tools. Supports custom linearization tables for non-linear valve characteristics or specialized actuator response curves.

Redundancy Architecture Support: Compatible with Ovation redundant controller configurations, enabling automatic failover without output signal interruption. Critical for applications where control signal loss could trigger emergency shutdowns or safety system activation.

HART Protocol Compatibility: When paired with HART-enabled field devices, supports digital communication overlay on the 4-20mA signal for remote device configuration and advanced diagnostics without additional wiring infrastructure.

Custom Calibration Services: Factory calibration to customer-specific accuracy requirements available for applications demanding tighter tolerances than standard ±0.1% specification, such as pharmaceutical batch control or aerospace testing facilities.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock modules with factory test certification and technical documentation package. Expedited shipping available for emergency outage support with 24-hour dispatch capability.

Custom Configuration: 7-10 business days for modules requiring special calibration, extended temperature testing, or customer-specific firmware versions. Includes comprehensive factory acceptance testing with documented results.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Extended warranty programs available for critical sparing applications with guaranteed replacement within 48 hours.

Technical Support: Unlimited access to application engineering team for configuration assistance, troubleshooting support, and integration guidance. On-site commissioning services available for complex multi-module installations or system upgrades.

Documentation Package: Includes detailed installation manual with wiring diagrams, configuration examples, troubleshooting flowcharts, and dimensional drawings for panel layout planning. Firmware revision notes and compatibility matrices provided for system integration planning.

Frequently Asked Questions

Q: How does the 1C31129G04 integrate with existing Ovation controller hardware?
A: The module installs directly into standard Ovation I/O card racks using the backplane connector, with automatic configuration download from the controller upon insertion. No manual addressing or DIP switch settings required—the Ovation system recognizes the module type and applies the stored configuration automatically, reducing commissioning time to under 5 minutes per module.

Q: What is the maximum cable distance supported for 4-20mA output loops?
A: With the 600Ω drive capability, you can achieve cable runs up to 1,500 meters using standard 18 AWG instrumentation cable (approximately 20Ω per 1,000 feet). For longer distances, consider using 16 AWG cable or installing field-mounted signal isolators to maintain signal integrity.

Q: Can this analog output module reduce energy consumption in my control system?
A: Yes, the low-power design consumes 40-50% less energy than legacy analog output cards, which translates to reduced cooling requirements in the control cabinet. For a typical 100-point I/O system, this can reduce annual HVAC energy costs by $800-1,200 while extending the service life of temperature-sensitive electronic components.

Q: What installation requirements must be met for proper module operation?
A: The module requires installation in an Ovation-compatible card rack with adequate backplane power supply capacity (verify total rack load does not exceed supply rating). Control room environment must maintain -20°C to +65°C temperature range with relative humidity below 95% non-condensing. Ensure proper grounding of the I/O rack chassis to prevent ground loop interference.

Q: Does the module support remote monitoring and diagnostics capabilities?
A: Yes, all diagnostic data—including loop current values, open/short circuit status, and module health indicators—are accessible through the Ovation operator interface and can be integrated with plant-wide asset management systems via OPC connectivity. This enables centralized monitoring of I/O health across multiple control systems from a single workstation.

Q: How quickly can a failed module be replaced during an emergency outage?
A: The hot-swap design allows module replacement in under 3 minutes without powering down the I/O rack or interrupting other control loops. Simply extract the failed module using the provided tool, insert the replacement, and the system automatically downloads the configuration—no manual programming or calibration required in the field.

Take the Next Step

Ready to enhance your Ovation DCS with proven analog output performance? Contact our application engineering team for technical consultation, system compatibility verification, or to request a detailed quotation. We'll help you determine the optimal I/O configuration for your specific process requirements and provide comprehensive support from initial specification through commissioning and beyond.
