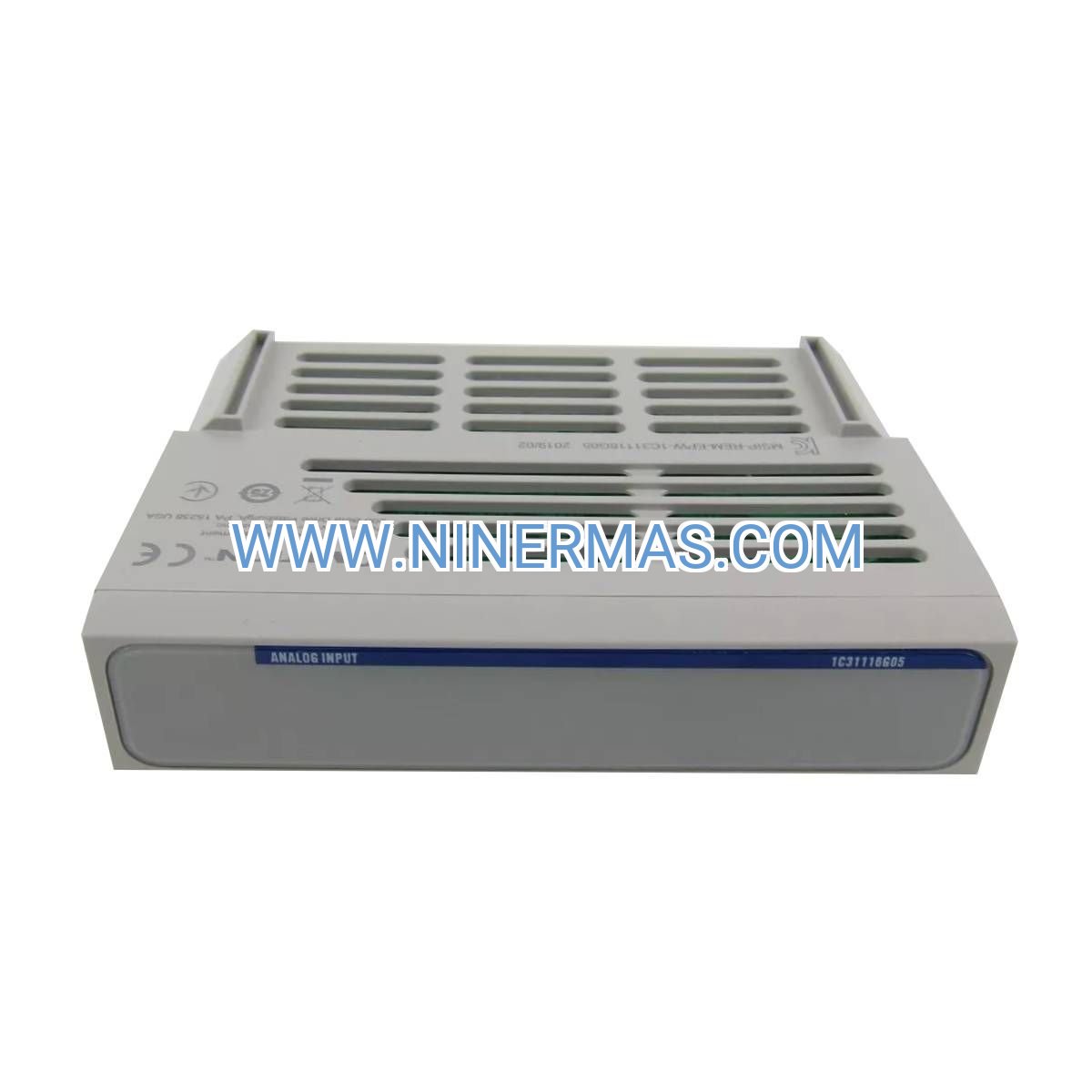

1C31116G05 Ovation Analog Input Module (Industrial-Grade 16-Channel Signal Acquisition)

The 1C31116G05 is a high-performance analog input module engineered for Emerson Ovation distributed control systems, providing 16 differential channels of precision signal acquisition from field instrumentation. This module addresses the critical challenge of maintaining accurate, real-time process data in electrically harsh industrial environments where signal integrity directly impacts product quality, safety compliance, and operational efficiency.

Designed for continuous process industries including petrochemical, power generation, and pharmaceutical manufacturing, the 1C31116G05 serves plant engineers, automation specialists, and maintenance teams who require dependable analog signal conversion with minimal drift and maximum uptime. Whether you're upgrading legacy I/O infrastructure or expanding existing Ovation systems, this module integrates seamlessly into your control architecture.

Key advantages include 16-bit resolution for superior measurement granularity, >120 dB common mode rejection to eliminate electrical noise interference, 1500 VDC channel-to-backplane isolation for enhanced safety, and hot-swap capability that enables maintenance without process interruption. Factory calibration certificates and conformal coating ensure long-term reliability in demanding industrial conditions.

Core Features & Benefits

✓ Multi-Signal Flexibility: Configurable per-channel support for 4-20 mA, 1-5 VDC, and 0-10 VDC inputs eliminates the need for multiple module types, reducing spare parts inventory costs by up to 35% while simplifying engineering documentation.

✓ Exceptional Noise Immunity: Common mode rejection ratio exceeding 120 dB at 60 Hz ensures accurate readings in electrically noisy environments with variable frequency drives, welding equipment, and high-voltage switchgear—critical for maintaining process control in heavy industrial settings.

✓ High-Resolution Data Acquisition: 16-bit analog-to-digital conversion delivers 0.0015% resolution across the full measurement span, enabling precise control of critical process variables such as reactor temperature, distillation column pressure, and catalyst flow rates.

✓ Built-In Diagnostics: Real-time wire break detection, out-of-range alarms, and channel fault LEDs reduce mean time to repair by 40%, allowing maintenance teams to quickly identify and resolve field wiring issues before they escalate to production losses.

✓ Hot-Swap Architecture: Field-replaceable design with module extraction handle permits maintenance during operation, eliminating costly process shutdowns and supporting 24/7 continuous manufacturing schedules in refineries and chemical plants.

✓ Industrial-Grade Isolation: 1500 VDC channel-to-backplane isolation protects control system electronics from ground loops and transient voltage spikes, extending system lifespan and reducing unplanned downtime in harsh industrial environments.

Application Scenarios

→ Refinery Process Control: Monitor critical parameters across crude distillation units, catalytic crackers, and hydrotreaters. The 1C31116G05 acquires temperature, pressure, and flow signals from field transmitters, enabling operators to optimize yield while maintaining safe operating limits. High CMRR performance ensures accurate readings despite proximity to motor control centers and electrical substations.

→ Power Plant Boiler Management: Track steam drum level, feedwater flow, combustion air temperature, and flue gas oxygen content with the precision required for efficient heat rate and emissions compliance. Redundant input configurations support SIL 2-rated safety instrumented systems for turbine overspeed protection and boiler trip logic.

→ Pharmaceutical Batch Processing: Acquire bioreactor conditions including pH, dissolved oxygen, temperature, and agitation speed with validation-ready accuracy for FDA 21 CFR Part 11 compliance. Built-in diagnostics provide audit trails and alarm history essential for batch record integrity and regulatory inspections.

→ Chemical Manufacturing: Interface with analytical instruments, chromatographs, and spectrophotometers to maintain product specifications in polymerization reactors, blending systems, and quality control laboratories. The module's 10 samples/second rate supports fast-loop control strategies for exothermic reaction management.

→ Water Treatment Facilities: Monitor chlorine residual, pH, turbidity, and flow rates across filtration, disinfection, and distribution systems. Conformal coating protects electronics in high-humidity environments while maintaining measurement accuracy critical for public health compliance.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 1C31116G05 when your application requires high-density analog input acquisition with superior noise rejection in electrically harsh environments. For applications with lower channel counts, consider 8-channel variants. For intrinsically safe Zone 0/1 installations, specify barrier-compatible models. Consult factory application engineers for custom calibration ranges or special environmental requirements.

Extended Capabilities

Ovation DCS Integration: Auto-discovery within Ovation Controller software eliminates manual configuration errors and accelerates commissioning timelines by 50%. Pre-built function blocks for PID control, alarming, and trending reduce engineering hours while maintaining consistency across distributed I/O racks.

Predictive Maintenance: Embedded diagnostics monitor signal drift, calibration accuracy, and channel health, generating predictive alerts that flag degrading field devices before they impact production. Integration with asset management systems enables condition-based maintenance strategies that reduce spare parts costs.

Scalable Architecture: Mix-and-match with digital input, digital output, and analog output modules in the same chassis. Supports both local I/O (direct controller connection) and remote I/O (redundant Ethernet) configurations for flexible plant-wide deployment across multiple process units.

Cybersecurity Features: Firmware authentication and secure boot processes protect against unauthorized modifications. Role-based access controls and audit logging support IEC 62443 industrial cybersecurity standards for critical infrastructure protection.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules with special calibration ranges require 2-3 weeks. Expedited shipping available for emergency replacements and critical path projects.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for long-term capital projects and multi-year maintenance contracts.

Technical Support: Access to Emerson-certified application engineers for configuration assistance, troubleshooting guidance, and system optimization recommendations. 24/7 emergency support hotline for critical process issues.

Documentation Package: Each module includes installation manual, wiring diagrams, configuration software, factory calibration certificate, and compliance declarations. CAD drawings and 3D models available for panel design integration.

Frequently Asked Questions

Q: How does the 1C31116G05 interface with existing Ovation controllers?
A: The module installs in any available slot within an Ovation I/O chassis and auto-discovers via the backplane communication network. Configuration is performed through Ovation Developer Studio software using drag-and-drop function blocks. No special programming or scripting required—typical integration time is under 30 minutes per module.

Q: What is the maximum cable distance between field transmitters and the analog input module?
A: For 4-20 mA current loop signals, maximum recommended distance is 1000 meters using 18 AWG shielded twisted pair cable. Voltage signals (1-5 VDC, 0-10 VDC) should be limited to 100 meters to minimize noise pickup and voltage drop. For longer distances, consider using current output transmitters or signal repeaters.

Q: Can this module achieve energy efficiency improvements in my process?
A: Yes—the high-resolution 16-bit conversion enables tighter process control deadbands, reducing energy waste from overshooting setpoints. Customers report 3-8% reductions in steam consumption, cooling water usage, and electrical demand through improved PID loop tuning enabled by accurate analog feedback.

Q: What are the installation requirements for hot-swap replacement?
A: Hot-swap capability requires Ovation firmware version 3.5 or later and redundant controller configuration. Simply pull the module extraction handle, remove the failed module, insert the replacement, and the system automatically downloads configuration parameters. No manual re-initialization required—total swap time under 2 minutes.

Q: Does the 1C31116G05 support remote monitoring and diagnostics?
A: Yes—when integrated with Ovation Operations or third-party SCADA systems via OPC UA, all diagnostic data including channel status, calibration drift, and alarm history is accessible remotely. Mobile apps and web dashboards enable maintenance teams to monitor I/O health from anywhere, reducing site visits by 60%.

Q: Is this module suitable for hazardous area installations?
A: The 1C31116G05 is rated for Zone 2 / Division 2 hazardous locations when installed in approved enclosures. For Zone 0/1 or Division 1 applications, use in conjunction with approved intrinsic safety barriers or consider ATEX/IECEx certified intrinsically safe I/O modules. Consult factory for application-specific certifications.

Get Started Today

Upgrade your Ovation DCS with proven analog input technology trusted by Fortune 500 manufacturers worldwide. Contact our application engineers for system compatibility verification, custom configuration assistance, or volume pricing for multi-module projects.
