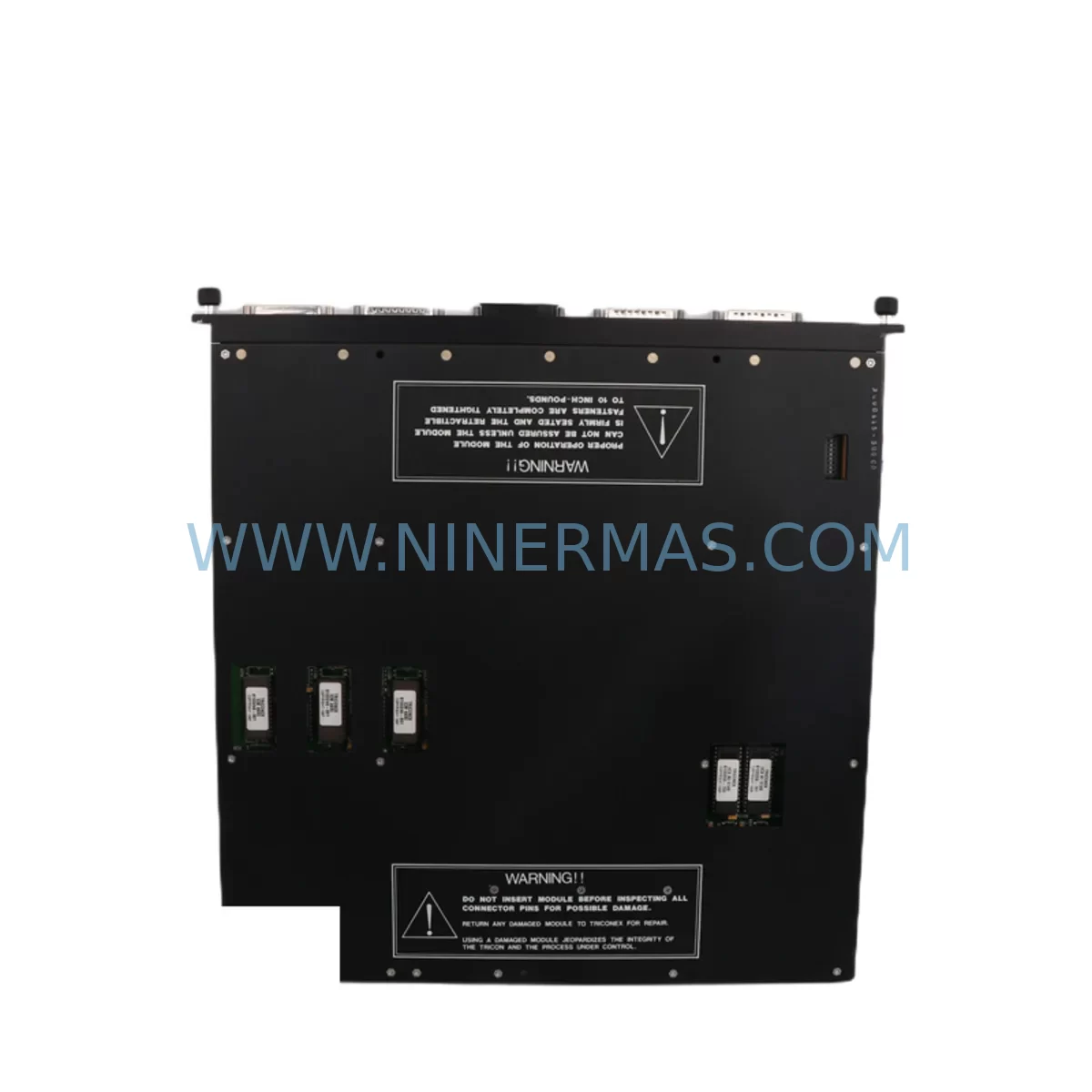

The Triconex 4119 is an Interface Communication Module (ICM) designed for the Tricon Triple Modular Redundant (TMR) Safety PLC platform — one of the most widely deployed Safety Instrumented Systems (SIS) in oil & gas, petrochemical refining, LNG terminals, offshore platforms, and power generation facilities worldwide. As legacy Tricon v9 and Tricon v10 control systems approach end-of-life, the 4119 ICM has become a critical spare part for engineers managing retrofit projects, unplanned failures, and long-cycle maintenance programs.

The 4119 module serves as the communication backbone between the Tricon main chassis and downstream I/O expansion racks, remote I/O nodes, and external supervisory networks. Its role in maintaining the integrity of the TMR voting architecture makes it non-negotiable during any system migration or upgrade. Whether you are replacing a failed unit on a live process line, planning a phased control cabinet modernization, or executing a full SIS upgrade to meet IEC 61511 compliance requirements, the Triconex 4119 provides a direct, drop-in retrofit path with no firmware re-engineering required in most legacy configurations.

At NINERMAS, every Triconex 4119 unit is sourced from verified supply channels, pre-shipment tested against OEM functional benchmarks, and backed by a 12-month warranty. We maintain ready stock to support emergency procurement timelines and long-term spare parts programs for critical infrastructure operators globally.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Triconex 4119 into an existing legacy control system requires a structured pre-installation assessment. Engineers should begin by auditing the Tricon main chassis backplane to confirm available slot positions and verify that the chassis revision is compatible with the 4119 ICM firmware version in use. In multi-chassis configurations — common in large process units with distributed I/O — the module address assignment must be documented and cross-referenced against the active TriStation 1131 project file before the replacement module is inserted.

Power budget verification is a frequently overlooked step. The Tricon chassis relies on dedicated power supply modules — typically from the Triconex 8312 or Triconex 8310 power supply family — to distribute regulated DC power across all installed modules via the backplane. Before installing the 4119, confirm that the chassis power supply has sufficient headroom to support the ICM’s draw, particularly in fully populated chassis configurations where Triconex 3703E or Triconex 3805E analog I/O modules are already consuming significant backplane capacity.

Terminal wiring and field signal integrity must also be validated during the retrofit window. If the 4119 replacement is part of a broader control cabinet upgrade that includes swapping Triconex 3501 digital input modules or Triconex 3601 digital output modules, technicians should use the opportunity to inspect field terminal blocks, verify wire labeling against the as-built drawings, and confirm that signal isolators or marshalling panels are correctly configured for the new module layout.

For systems undergoing communication protocol migration — for example, transitioning from legacy serial-based supervisory links to Ethernet-based SCADA integration — the 4119 ICM’s role in the communication chain must be re-mapped in the TriStation 1131 project. This includes updating the communication node configuration, verifying the HMI tag database against the revised I/O map, and confirming that the Tricon Communication Module (TCM) or any installed Triconex 4351B network interface module is correctly addressed within the updated system topology.

In retrofit projects involving I/O expansion — where additional Triconex 3721 thermocouple input modules or Triconex 3805E analog output modules are being added to extend process coverage — the 4119 ICM must be confirmed as the active interface between the main chassis and the expansion rack. Rack-to-rack cable routing, backplane bus termination, and expansion chassis addressing should all be verified during the pre-commissioning walkthrough to avoid communication faults during system restart.

Where a Triconex programming cable or TriStation workstation is required for on-site configuration verification, ensure the engineering workstation is running a compatible version of TriStation 1131 and that the project backup is current before any module swap is initiated. This protects the original program logic and allows rapid rollback if unexpected behavior is observed during the commissioning phase.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any live-system ICM replacement. For the Triconex 4119, the TMR architecture of the Tricon platform provides an inherent advantage: the triple-redundant voting logic continues to maintain process control integrity even when one leg of the system is temporarily degraded during a module swap, provided the replacement is executed within the system’s fault-tolerant window.

Before initiating the replacement, the site team should confirm the current system health status via the TriStation 1131 diagnostic interface — checking for any pre-existing faults on the remaining TMR legs, verifying that the chassis is not already operating in degraded mode, and ensuring that the process unit is in a stable operating state. A replacement executed on a system already carrying a single-leg fault carries significantly higher risk and should be escalated to a planned maintenance window with process unit isolation if possible.

The physical swap of the 4119 ICM should be preceded by a full project backup from the TriStation workstation, a documented snapshot of the current I/O status, and confirmation that the HMI operator screens are displaying live data correctly. After module insertion, the commissioning sequence should include: power-on self-test verification, module address confirmation, communication link re-establishment with any connected expansion chassis or remote I/O nodes, and a full HMI data refresh to confirm that all process tags are updating correctly.

For sites operating under strict process safety management (PSM) or functional safety audit requirements, the replacement activity should be documented in the site’s Management of Change (MOC) system, with pre- and post-installation functional safety verification recorded against the relevant Safety Instrumented Function (SIF) loop. NINERMAS can provide unit-level test records and serialized documentation to support MOC and audit trail requirements upon request.

Retrofit Support FAQ

Q1: Is the Triconex 4119 a direct replacement for the existing ICM in my Tricon v9 or v10 system?
In the majority of legacy Tricon configurations, the 4119 is a direct like-for-like replacement requiring no hardware modification. However, engineers should verify the chassis revision, slot assignment, and TriStation 1131 project compatibility before installation. NINERMAS provides pre-shipment functional test records for every unit to support your site acceptance criteria.

Q2: How do I verify wiring and terminal compatibility before installing the replacement module?
The 4119 ICM interfaces with the Tricon chassis via the backplane — it does not have direct field terminal connections. Field wiring compatibility checks should focus on the I/O modules connected downstream of the ICM, including any digital input, digital output, or analog I/O modules in the expansion chassis. Confirm terminal block wiring against as-built drawings and verify signal isolator settings before restarting the system.

Q3: What is the lead time and stock availability for the Triconex 4119?
NINERMAS maintains ready stock of the Triconex 4119 to support both emergency procurement and planned spare parts programs. Standard shipment is available within 3–5 business days for stocked units. For long-term procurement commitments or multi-unit spare parts programs, contact our team to discuss dedicated stock allocation and extended supply agreements.

Q4: What warranty and post-shipment support does NINERMAS provide?
All Triconex 4119 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing, and test records are available upon request. Our technical team can provide commissioning guidance, compatibility verification support, and replacement coordination for units that develop faults within the warranty period.
